Southbend 4601DD-2GR 60" 6 Burner Gas Range w/ Griddle & (2) Standard Ovens, Liquid Propane
$8,122.00 /Each
Call for details!
Selected Gas Type: Liquid Propane
Southbend 4601DD-2GR Description
The Southbend 4601DD-2GR range combines the functions of a gas range, griddle, and standard oven in one unit. The standing pilot must be manually ignited with propane to provide the six anti-clogging cast iron burners with heat. Over the burners, the cast iron grates accept 14-inch stock pots on the rear and can endure heavy use. A gas shutoff on the front keeps staff safe. The unit has a 1⁄2-inch-thick polished steel griddle on the right that can endure regular heating.
The Southbend 4601DD-2GR range has two standard ovens that range from 175 to 550 degrees Fahrenheit. Each compartment has a corrosion-resistant porcelain interior with coved corners that ensure air flows evenly and product is cooked properly. One rack in each oven adjusts between the two slides, and the spring-loaded door is user friendly. Since the cabinet is made of stainless steel, it resists corrosion and can withstand heavy use. An overshelf on the flue riser holds small equipment and supplies, and the adjustable legs stabilize the unit on uneven floors.
- Heated by propane
- 6 cast iron burners with large openings resist clogging
- Cast iron grates can be removed during cleaning
- 14-in.-dia. stock pots fit on the back grates
- Manual standing pilot ignition system
- Safe front emergency gas shutoff
- Durable 24-in. griddle on the right is 1⁄2-in. thick
- Polished steel griddle plate distributes heat evenly
- Stainless steel cabinet is dent and corrosion resistant
- Overshelf on top of the flue riser stores small equipment and supplies
- Removable drip tray facilitates grease disposal
- Legs adjust to sit on uneven floors
- Includes a regulator and 3⁄4-in. rear connection
- 336,000 BTU

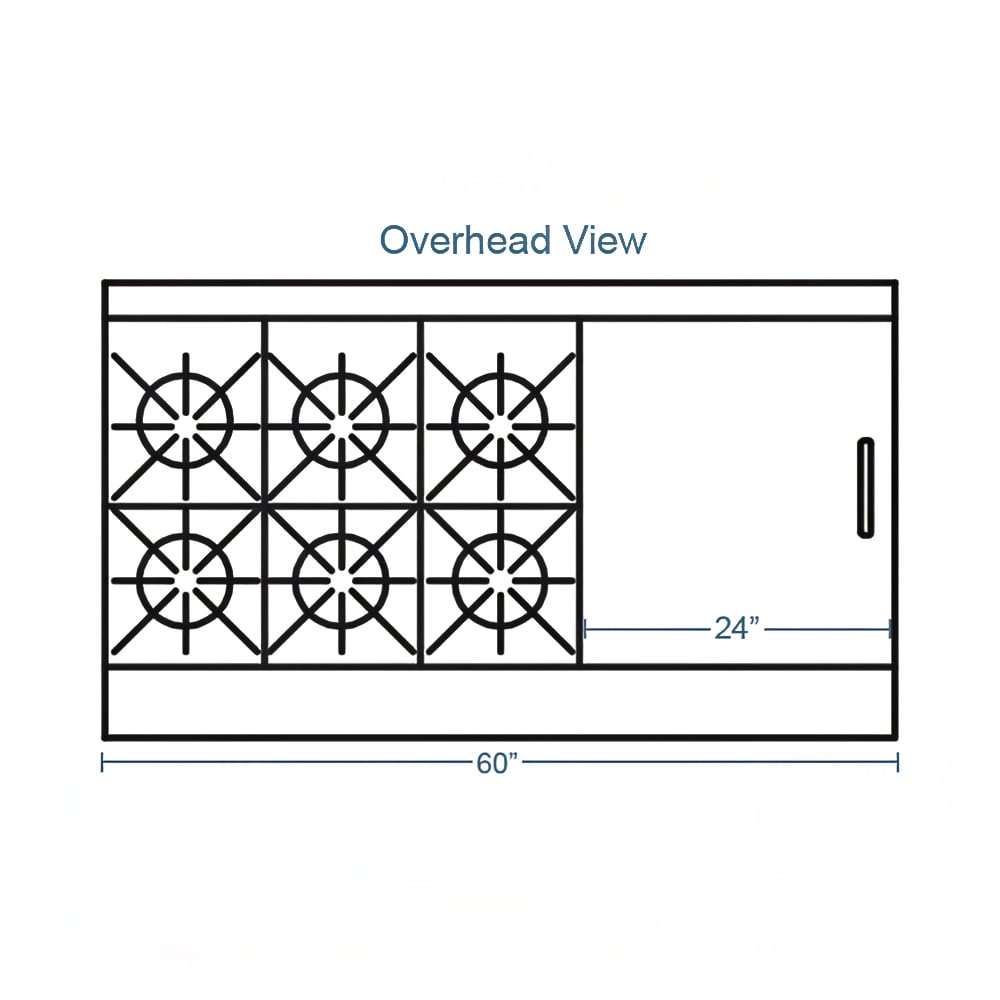

- Overall dimensions: 60.75 in. W x 34 in. D x 59.5 in. H
- Thermostat range: 175-550 degrees F
- Airflow-enhancing coved corners aid in cleanup
- Porcelain interior resists corrosion and staining
- Single racks adjust to 2 slide positions in each oven
- Spring-loaded door
- Starts with a battery spark ignition system
- Oven dimensions: 26 in. W x 24 in. D x 14 in. H
*Image may not depict product color, inclusions or accessories.
*Free shipping on Southbend 4601DD-2GR within the 48 contiguous states.
- Comparing Commercial Range Configurations
- Learn How to Choose the Right Commercial Range
- Base Options for Commercial Ranges
- What to Know Before Buying a Commercial Gas Range
- Cleaning Your Commercial Hood
- Gas vs Electric Ranges
- Natural Gas vs Propane
- Range Cleaning and Maintenance Tips
- What is a Commercial Range?
- Choosing the Right Range Configuration
- Commercial Range Repair and Troubleshooting
From The Manufacturer
Ultimate Restaurant Range, liquid propane gas, 60", (6) non-clog burners, standard grates, (1) 24" griddle right, standing pilot, (2) standard ovens with battery spark ignition, includes (1) rack per oven, 22-1/2" flue riser with shelf, stainless steel front, sides, shelf & 6" adjustable legs, 282,000 BTU, cCSAus, CSA Flame, CSA Star, NSF
Southbend 4601DD-2GR Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Southbend |
| Additional Info | Contact Customer Service for altitudes above 2,000 feet |
| Application | Restaurant |
| Base | Standard Oven |
| BTU / Burner | 24000 |
| Burner Configuration | Standard |
| Burner Style | Grates |
| Burner Type(s) | Open |
| Controls | Manual |
| Depth (in) | 34 |
| Gas Inlet Size | 0.75 |
| Gas Type | LP |
| Griddle Location | Right |
| Griddle Width (in) | 24 |
| Heat | Gas |
| Height (in) | 59.5 |
| Installation Type | Freestanding |
| Kitchen Innovations Awards | 2010 |
| Max Temp | 550 |
| Number of Burners | 6 |
| Number of Ovens | Double |
| Open Burner BTU (ea) | 24000 |
| Plate Thickness (in) | 1/2 |
| Product | Gas Ranges |
| Product Type | Cooking Equipment |
| Rack Positions per Standard Oven | 2 |
| Racks per Standard Oven | 1 |
| Range Configuration | Burners/Griddle |
| Rating | Better |
| Series | Ultimate |
| Special Features | Spark Ignition |
| Standard Oven BTU/hr | 45000 |
| Standard Oven Dimensions | 26"W x 26.5"D x 14"H |
| Total BTU | 282000 |
| Vent | Backriser w/ hi-shelf |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 60 |
| Weight | 1075.00 |
