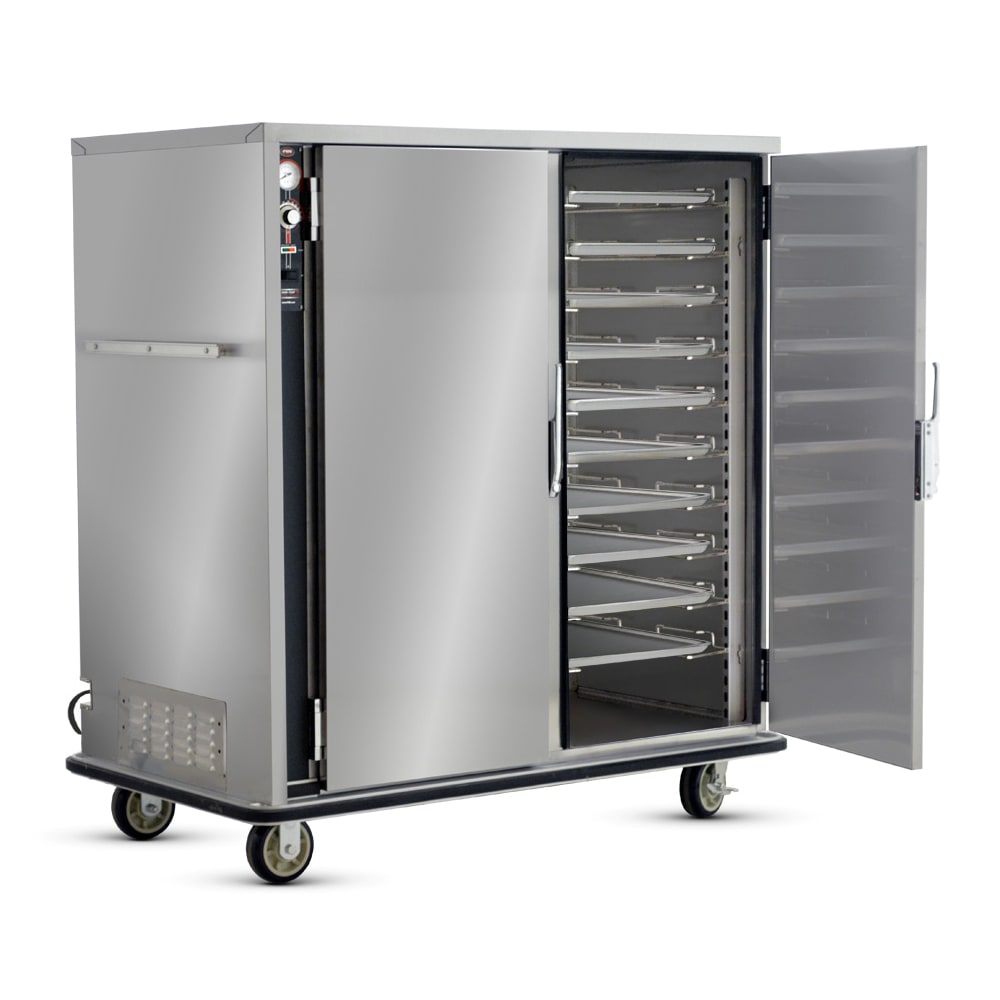

FWE UHS-20 Full Height Insulated Mobile Heated Cabinet w/ (20) Pan Capacity, 120v
$7,618.52 /Each
FWE UHS-20 Description
Insulated with high-density fiberglass, the FWE UHS-20 full-height mobile heated cabinet preserves energy and reduces heat loss. Hot and cold spots are eliminated using a Humi-Temp heat and humidity system, circulating air evenly for uniform product holding. The temperature can be adjusted from 90 to 190 degrees Fahrenheit. The controls are mounted to the front to facilitate access, and they include a thermometer that provides a constant temperature readouts even when the unit itself is powered off.
The FWE UHS-20 insulated heated cabinet is built with two flush-mount doors with edge-mount latches. Universal tray slides can accommodate as many as (20) 18-inch by 26-inch full-size sheet pans or (40) 12-inch by 20-inch full-size food pans, and they can be adjusted in increments of 1 1⁄2 inches. Made of stainless steel, this unit is durable enough to stand up against repeated commercial use. It measures 58 1⁄2 inches wide by 33 1⁄2 inches deep by 61 1⁄2 inches high, and it's equipped with casters to enable mobility.
- Full-height configuration
- Front-mounted controls with an adjustable thermostat
- Constant temperature readout
- Temperature range: 90-190 degrees F
- 20 universal tray slides on 4 1⁄2-in. centers
- Slides adjustable in 1 1⁄2-in. increments
- Accommodates (20) 18-in. x 26-in. or (40) 12-in. x 20-in. pans
- 2 flush-mounted doors with edge-mount latches
- Humi-Temp heat and humidity system
- Removable humidifier pan
- High-density fiberglass insulation
- Push bar handles facilitate transport
- Wraparound bumper
- Resilient stainless steel construction
- 6-in. casters (2 rigid and 2 swivel with brakes)
- 58 1⁄2 in. W x 33 1⁄2 in. D x 61 1⁄2 in. H
- 13.8 A, 1650 W
- 120 V/50-60 Hz/1 ph, NEMA 5-15P plug
*Image may not depict product color, inclusions or accessories.
From The Manufacturer
Heated Cabinet, mobile, (20) universal tray slides, (20) 18" x 26" or (40) 12" x 20" pan capacity, 4-1/2" OC, adjustable on 1-1/2" increments, Humi-temp heat & humidity system, adjustable thermostat, individual controls, insulated, removable humidifier pan, (2) flush mounted doors, push bar handles, wraparound bumper, stainless steel interior & exterior, 6" casters (2) rigid & (4) swivel, NSF, CE, cULus, UL, IPX4
FWE UHS-20 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | FWE |
| Application | Heat & Humidity |
| Color | Silver |
| Construction | Stainless Steel |
| Control Location | Top |
| Controls | Dial |
| Depth (in) | 33.5 |
| Door Design | Full |
| Door Type | Solid |
| Heat | Electric |
| Height (in) | 61.5 |
| Hertz | 60 |
| Hinge Configuration | Left/Right |
| Includes | Bumpers |
| kW | 1.7 |
| Load Type | Reach In |
| NEMA | 5-15P |
| No. of Doors | 2 |
| Pan Capacity | 20 |
| Phase | 1 |
| Product | Heated Cabinets |
| Product Type | Food Warming Equipment |
| Sections | 2 |
| Size | Full Height |
| Slide Spacing (in) | 4.5 |
| Slide Type | Universal |
| Special Features | All Stainless Exterior |
| Type | Insulated |
| Voltage | 120 |
| Warranty | 2-year Limited Parts; 1-year Labor |
| Width (in) | 58.5 |
| Weight | 500.00 |
