FWE UHS-12 Full Height Insulated Mobile Heated Cabinet w/ (24) Pan Capacity - 120v

KaTom #: 219-UHS12 • MPN: UHS-12 120
  • 219-UHS12 Primary Thumbnail Image

QUICK SHIP: Typically ships in 1 - 3 Business Days

$6,571.20 /Each

  • Protect Your Product
  • Coverage starting at $125.25
  • Edit Remove

Selected Tray Capacity: (12) 18" x 26"

Nadia Sandlin User Image
Ask a Foodservice Equipment Specialist

FWE UHS-12 Description

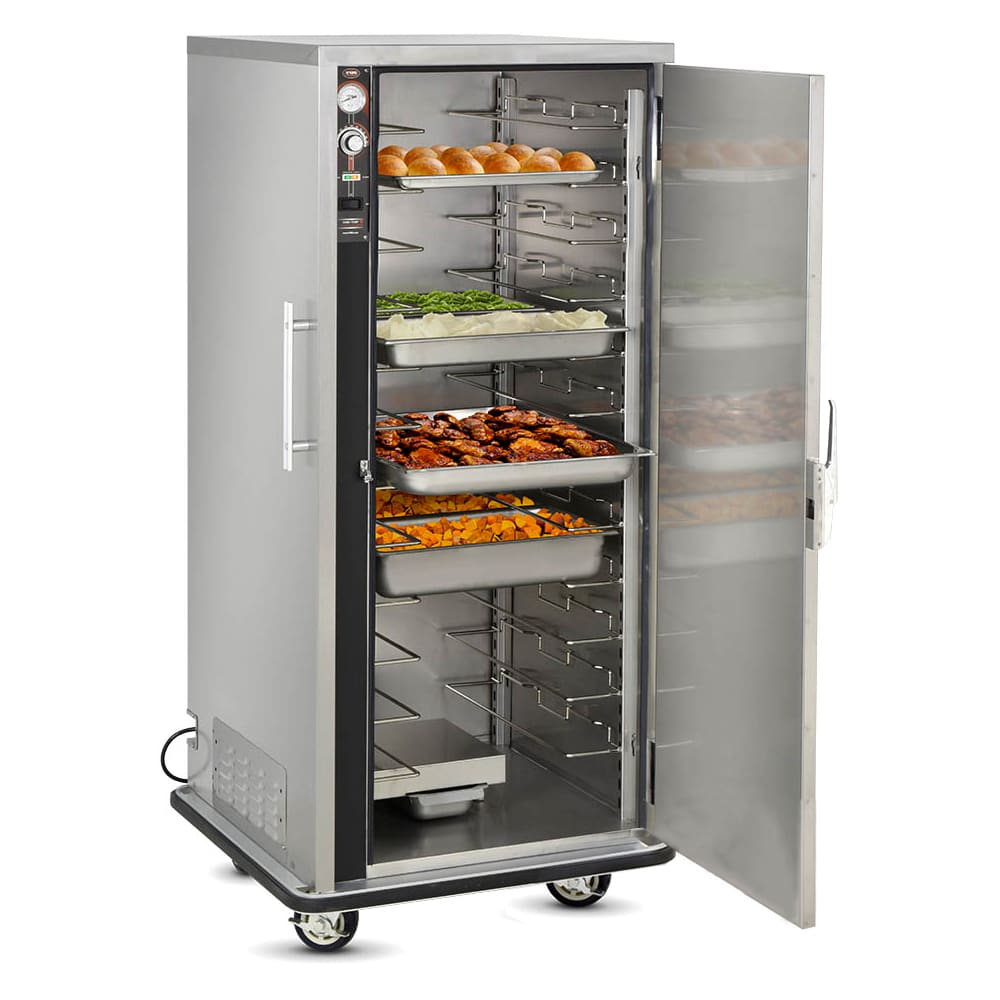

Built for transport, the FWE UHS-12 heated cabinet is supported with 5-inch casters, two of which are rigid and two of which swivel. Made of stainless steel, its base is welded to stay locked in place during movement, preventing rattling. Acting as a shield, a solid 1 1⁄2-inch-wide bumper wraps around the frame to prevent damage if the unit runs into an object. Users can push the cabinet with its two 1-inch by 3⁄8-inch heavy-duty push-bar handles.

At 32 3⁄4 inches wide, 33 1⁄2 inches deep, and 69 1⁄2 inches high, the unit’s 12 nickel-plated tray slides hold eight 18-inch by 26-inch sheet pans or 24 hotel pans 12 inches by 20 inches. The slides can be adjusted in 1 1⁄2-inch increments on stainless steel uprights to accommodate changing food items and are removable for interior cleaning. Its insulated door swings out 180 degrees for full access into the unit’s interior.

The FWE UHS-12 commercial heated cabinet uses a Humi-Temp heat and humidity system, which creates uniform distribution of hot, moist air to reduce random hot and cold spots. More humidity can be added to the heat circulation if foods need to be stored for longer periods. Users manage the system’s heat controls with a control panel located on the front of the unit, while a thermometer portrays the temperature at all times—even without a power source—to ensure the unit is at the correct temperature for desired results.

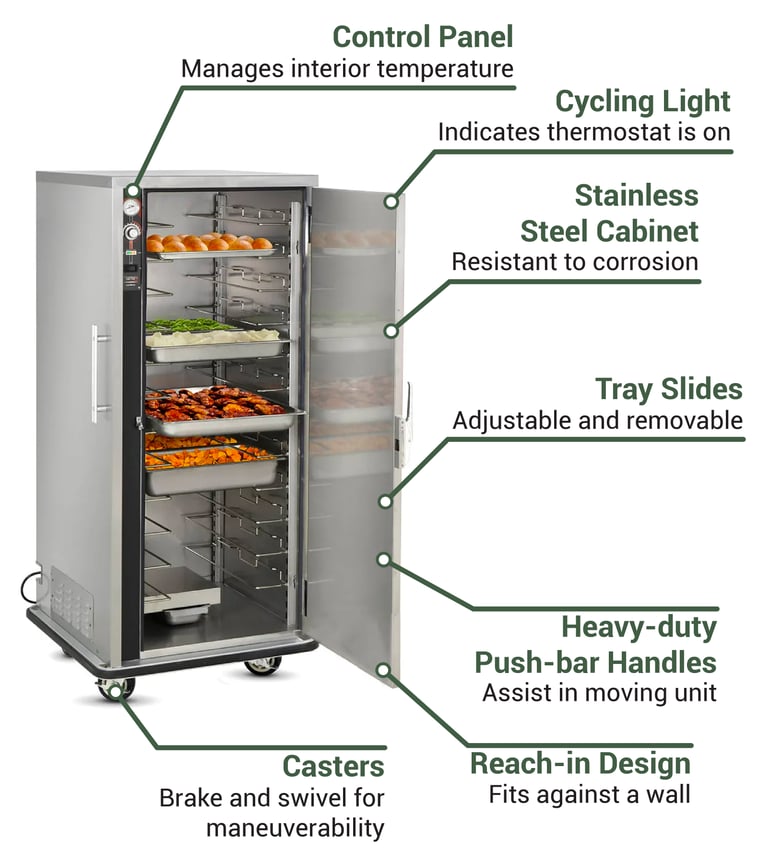

Front Controls
Built-in controls and thermometer provide convenient temperature monitoring
Wide Access Door
Door opens 180° to provide unobstructed loading and unloading access
Removable Components
Tray slides and humidifier pan remove easily for faster interior cleaning
Flexible Capacity
Holds eight sheet pans or 24 hotel pans for versatile food holding applications
Insulated Cabinet
Retains heat efficiently while helping keep exterior surfaces cooler
Mobile Design
Four casters and push handles support smooth transport between prep and serving areas

  • Reach-in design
  • Mobile
  • 12 removable nickel-plated tray slides
  • Holds (8) 18-in. x 26-in. pans or (24) 12-in. x 20-in. pans
  • Slides are adjustable in 1 1⁄2-in. increments along stainless steel uprights
  • Stainless steel construction
  • 1-in. heavy-gauge, stainless steel welded tubular base frame
  • Flush-mounted, insulated, and hinged swing-out door
  • 1 1⁄2-in. bumper
  • (2) 5-in. rigid casters and (2) 5-in. swivel casters
  • Heating controls with temperature range between 90 and 190 degrees F
  • Uses Humi-Temp heating system
  • Built-in front control panel and thermometer
  • Thermostat cycling light
  • Power supply light
  • Removable stainless steel humidifier pan

  • Push-bar handles: 1 in. x 3⁄8 in.
  • Overall: 32 3⁄4 in. W x 33 1⁄2 in. D x 69 1⁄2 in. H
  • 11 A, 1.3 kW
  • 120 V/60 Hz/1 ph, tri-directional power cord with NEMA 5-15P plug

*Image may not depict product color, inclusions or accessories.

Additional Product Information

Additional Product Information

From The Manufacturer

Heated Cabinet, mobile, (12) universal tray slides, (12) 18" x 26" or (24) 12" x 20" pan capacity, 4-1/2" OC, adjustable on 1-1/2" increments, Humi-temp heat & humidity system, adjustable thermostat, individual controls, insulated, removable humidifier pan, (1) flush mounted door, edgemount door latch, push bar handles, wraparound bumper, stainless steel interior & exterior, 5" casters (2) rigid & (2) swivel with brakes, NSF, cULus, UL, IPX4, ENERGY STAR®, CE

Warranty Icon
2-year Limited Parts; 1-year Labor

FWE UHS-12 Specifications

Residential Users: The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Warning Small Important Prop 65 information for California residents.
