Duke WB302 NG Aerohot Steamtable Wet Bath Unit, 2 Pans & Carving Board, NG

Image may not depict product color, inclusions or accessories.

KaTom #: 212-WB302NG • MPN: WB302 NG QUICK SHIP

Typically ships within 1 - 3 business days

(0 reviews)Write a Review
Retail Price: $2,260.00
$784.67 / Each

Image may not depict product color, inclusions or accessories.

Duke WB302 NG Description


Duke's Aerohot series gas-powered steam table is built with two 12-inch x 20-inch compartments, so it can accept two full-size steam table pans or their fractional equivalents in a number of combinations. Model WB302 NG runs on natural gas to produce a total 15,000 BTU input on its maximum setting. An included safety pilot and gas pressure regulator help make this equipment easy to operate, while adjustable plastic feet allow it to be installed level, even on an uneven floor.

Product Details

  • Aerohot series
  • Built with a 20-gauge stainless steel top, undershelf, and body
  • 2 die-stamped openings each accept a full-size steam table pan or fractional pans in a number of combinations
  • Poly cutting board, measuring 7 in. deep and 12 in. thick, runs the length of the equipment
  • Cutting board is mounted on a 18-gauge stainless shelf with rugged die-stamped brackets
  • 18-gauge, corrosion-resistant stainless steel liner protects each well
  • 1-in. cast brass drain and valve for easily draining and changing water
  • Steam table is mounted on sturdy 430-series stainless steel tubular legs
  • Adjustable plastic feet allow the equipment to be installed level on uneven floors
  • Comes standard with a gas safety pilot and gas pressure regulator
  • Burners are manually-controlled with 1 adjustable valve
  • 15,000 BTU total input
  • Runs on natural gas
  • 12-in. gas connection
  • Overall Dimensions: 3038 in. L x 22716 in. W x 34-in. H
  • UL-EPH Listed and CSA-Design Certified

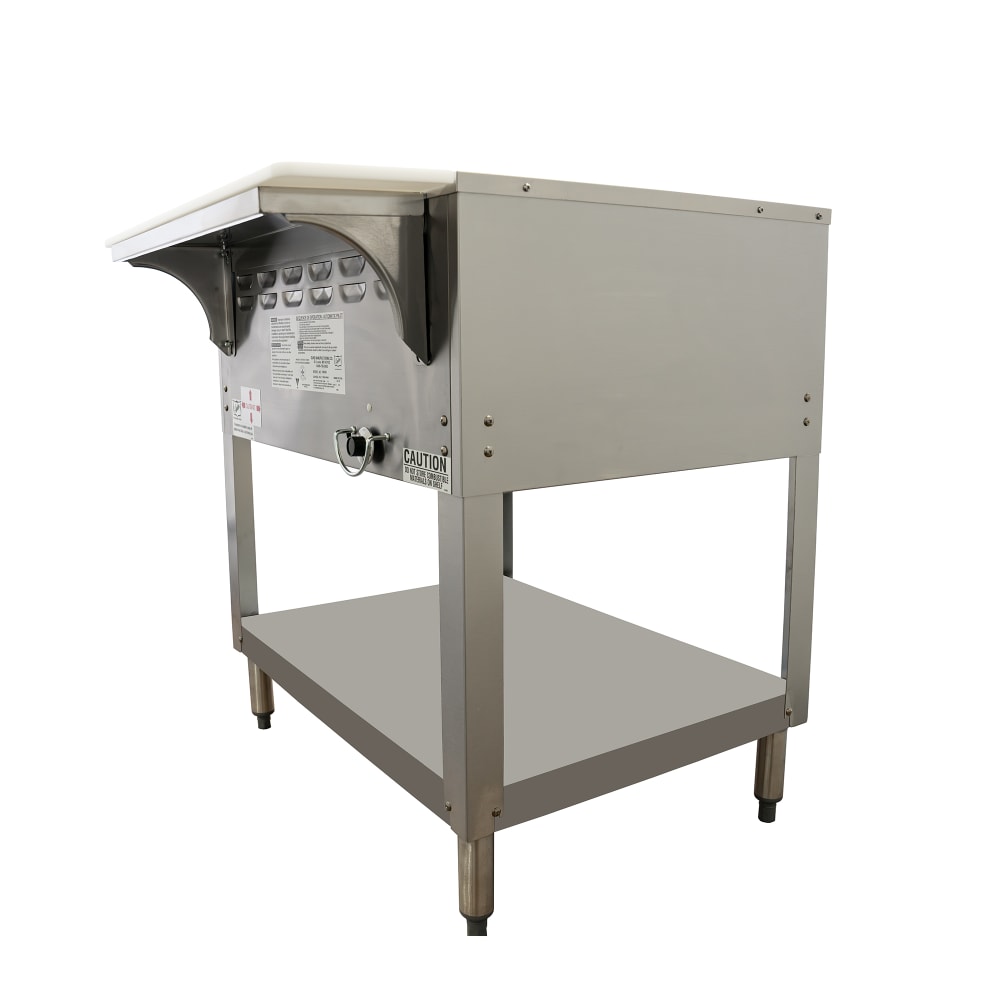

Aerohot Steamtable Wet Bath Unit, 30-3/8" gas, (2) pan size open water bath w/ one 15,000 BTU burner w/ adj. gas valve control & safety pilot, s/s top w/ 1/2" thick X 7" wide poly carving board, s/s open base w/ undershelf, legs & feet, NG (The WB303 is pictured.)

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Duke WB302 NG Specifications

PDF Spec Sheet
Manufacturer Duke
Category Hot Bars
Exterior Construction Stainless Steel
Sealed Well No
Specialty Options Poly Cutting Board
Type Gas
Wells 2
Width (in) 22.4375
Weight 110.00
