Vulcan started producing equipment in Louisville Ky., more than 150 years ago. Today, the brand produces state-of-the-art cooking appliances, including fryers, ovens, and everything in between. The brand is owned by Illinois Tool Works, a global manufacturing leader.

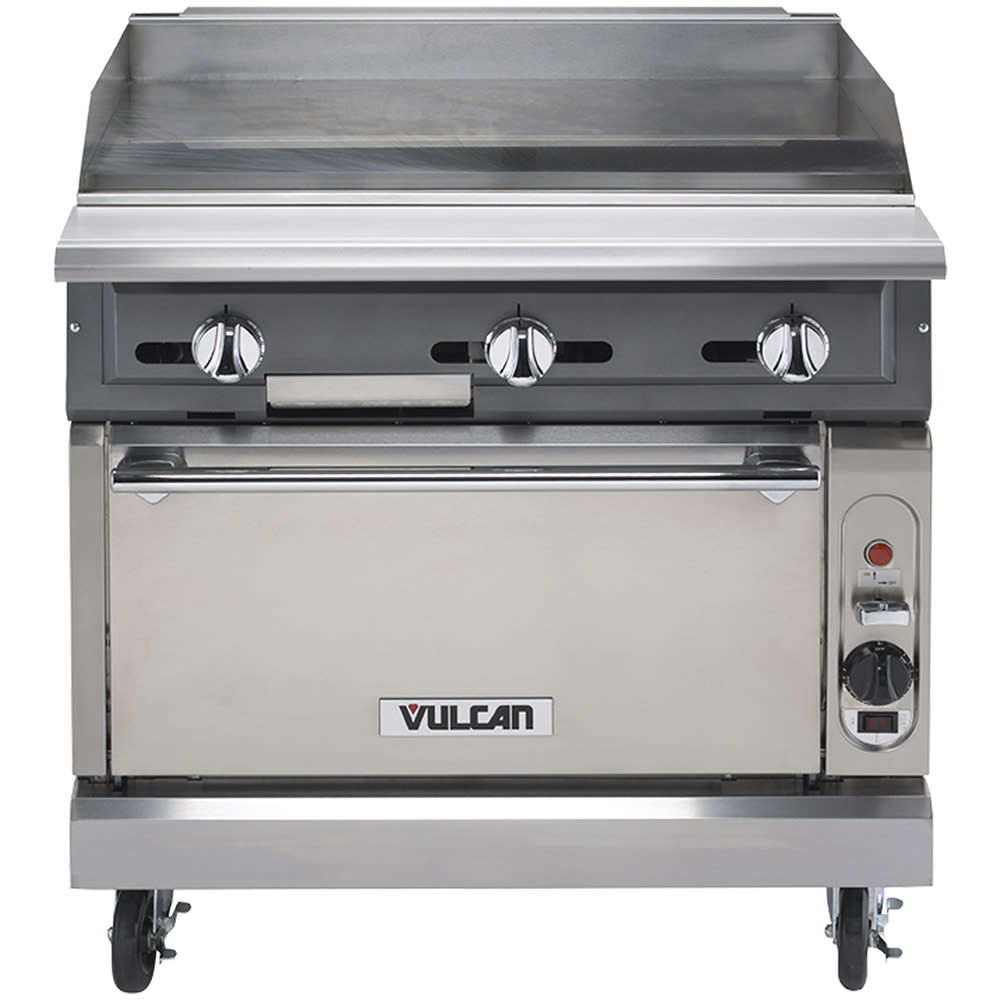

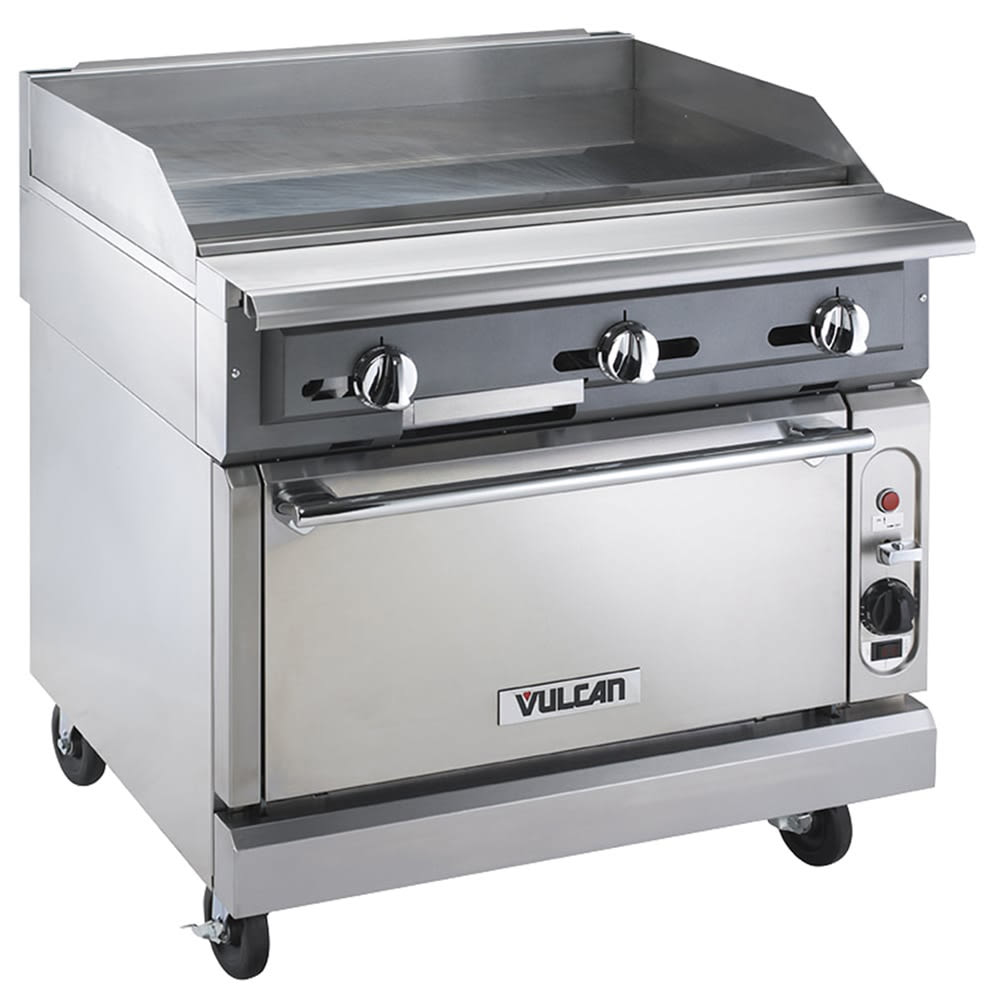

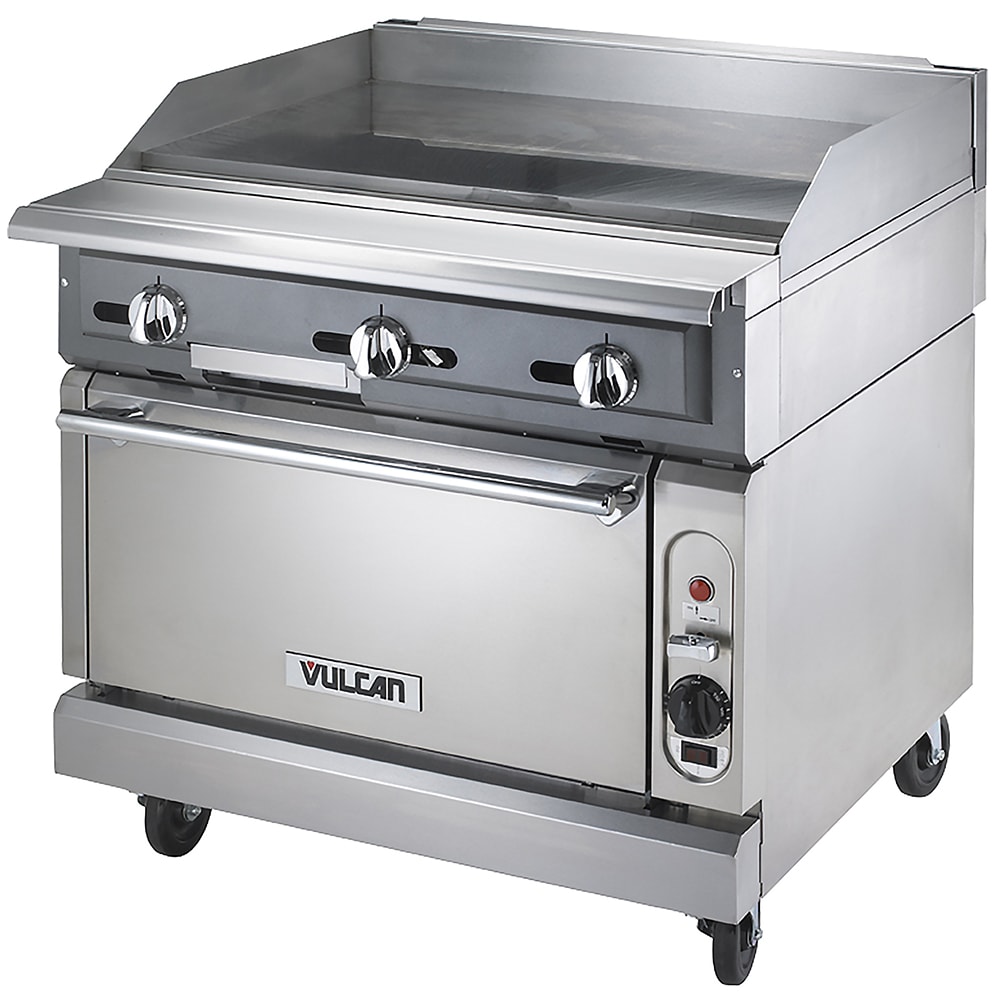

Vulcan VGMT36S 36" Gas Range w/ Full Griddle & Standard Oven, Natural Gas
Typically ships in 4 - 6 weeks
Free Shipping Item
$15,351.00 /Each
Low price guarantee - call us!
Selected Gas Type: Natural Gas
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Attention: Order by 06-01-2025 to save before the price increases!
Vulcan VGMT36S Description
The Vulcan VGMT36S griddle-top gas range offers griddling and baking in the same footprint. The top is a 35-inch-wide griddle, separated into three separately controlled sections. Because each section has its own pilot flame, employees can use one, two, or all three sections at once. The heat knobs can be turned to different intensities, enabling the user to cook multiple dishes simultaneously on the same surface. The temperature in each area stays precise with snap-action thermostats. To withstand repeated use, the griddle plate is 3⁄4 inches thick and made of sturdy stainless steel. Controls are protected by the front edge, which extends past the hot plate. Cleaning the griddle is simple, with splashes and a deep crumb tray.
The range's base is a standard oven with a steel interior, which is porcelain coated on the bottom, sides, and door interior to facilitate cleaning. The interior offers three rack positions, for tall or short product, and the unit comes with a single oven rack. Its door is sturdy, and much of the Vulcan VGMT36S heavy-duty range is constructed of stainless steel for strength.
Product Details
- Part of the V series
- 36-in.-wide griddle with 3 individually controlled sections
- Each section has a 30,000 BTU burner
- Each section has a pilot flame and heat knob
- Warp-resistant griddle plate is 3⁄4-in.-thick stainless steel sheet
- 4-in.-tall splashes keep grease on top
- Crumb tray for catching food waste
- Front edge extends past the hot plate to avert user injury
- Standard base oven has a 50,000 BTU burner
- Porcelain-coated oven interior streamlines cleaning
- 1 oven rack and 3 rack positions
- Oven temperature range: 150-550 degrees F
- Made of stainless steel to resist scratches, dents, and rust
- 6-in. adjustable legs
- Requires 10-in. clearance from combustible surfaces on the rear and sides
- 4-in. stub riser
- 140,000 total BTU
Dimensions & Utilities
- Griddle surface: 36 in. W x 233⁄8 in. D
- Oven interior: 27 in. W x 27 in. D x 13 in. H
- Overall: 36 in. W x 417⁄8 in. D x 401⁄2 in. H
- Heats with natural gas
- 11⁄4-in. manifold connection on front
- 11⁄4-in. capped gas connection on rear
- 4 A
- 115 V/60 Hz/1 ph, 7-ft. cord with a plug
*Free shipping on Vulcan VGMT36S within the 48 contiguous states.
From The Manufacturer
V Series Heavy Duty Range, gas, 36", griddle, 3/4" thick polished steel plate, snap action thermostatic controls, standard oven, stainless steel front, top front ledge, sides, base, burner box & stub back, 6" adjustable legs, 140,000 BTU, CSA Flame, CSA Star, NSF
*Image may not depict product color, inclusions or accessories.
1-year Limited Parts & Labor
Vulcan VGMT36S Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Vulcan |
| Additional Info | Contact Customer Service for altitudes above 2,000 feet |
| Application | Heavy Duty |
| Base | Standard Oven |
| BTU / Burner | 30000 |
| Burner Configuration | Standard |
| Burner Style | None |
| Burner Type(s) | None |
| Controls | Thermostatic |
| Depth (in) | 36.75 |
| Gas Inlet Size | 1.25 |
| Gas Type | NG |
| Griddle Location | Full |
| Griddle Width (in) | 36 |
| Heat | Gas |
| Height (in) | 36 |
| Installation Type | Freestanding |
| Max Temp | 550 |
| Number of Burners | None |
| Number of Ovens | Single |
| Plate Thickness (in) | 3/4 |
| Product | Gas Ranges |
| Product Type | Cooking Equipment |
| Rack Positions per Standard Oven | 3 |
| Racks per Standard Oven | 1 |
| Range Configuration | Griddle |
| Rating | Best |
| Series | V Series |
| Standard Oven BTU/hr | 32000 |
| Standard Oven Dimensions | 27"W x 27"D x 13"H |
| Total BTU | 140000 |
| Vent | Stub Riser |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 36 |
| Weight | 685.00 |
Documents
Residential Users: This unit is not to be installed or operated in a residential or other non-commercial setting. Check local codes to ensure your foodservice kitchen is properly equipped for this piece. Use in an improper setting will void the warranty and the manufacturer will not provide parts or labor coverage for damage, failure, or other issues with the product. While this product may be covered by a manufacturer's warranty, vendor assumes no liability for product failure or any damages/injuries.
WARNING: Important Prop 65 information for California residents.
