Vulcan started producing equipment in Louisville Ky., more than 150 years ago. Today, the brand produces state-of-the-art cooking appliances, including fryers, ovens, and everything in between. The brand is owned by Illinois Tool Works, a global manufacturing leader.

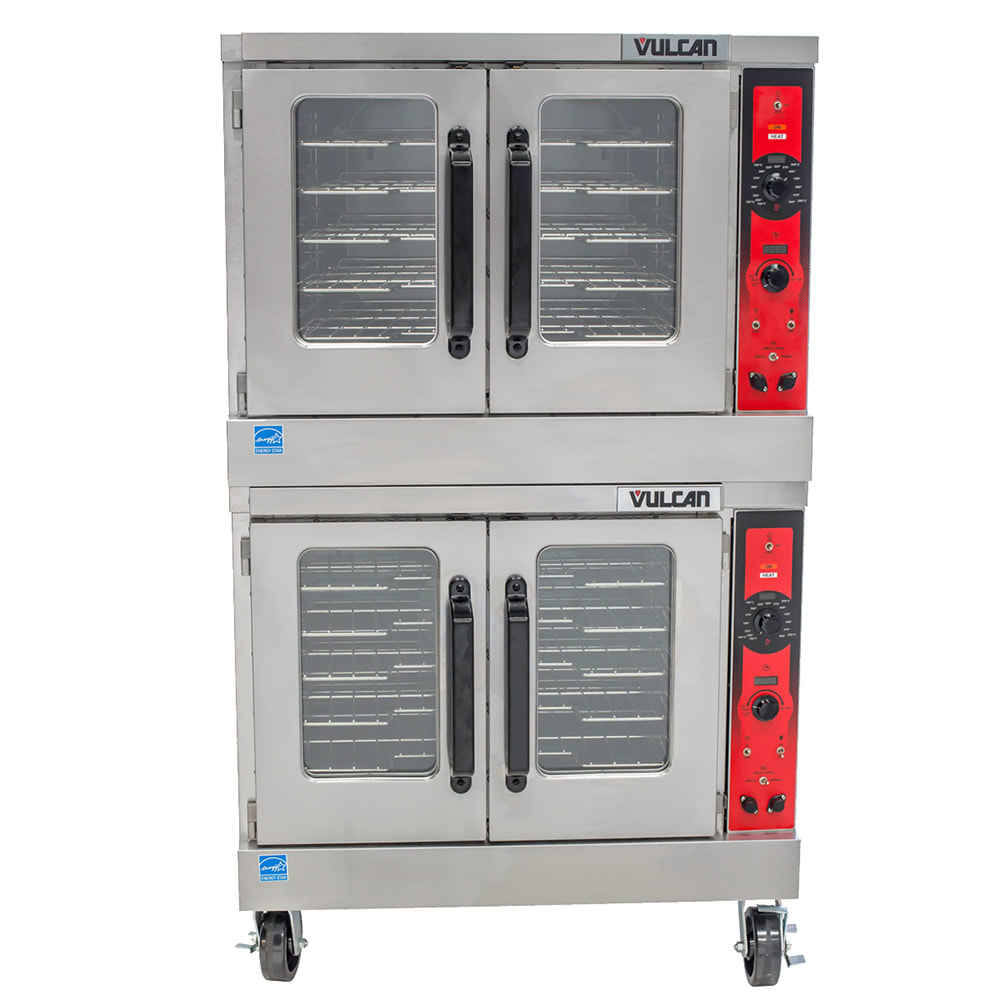

Vulcan VC55ED Double Full Size Electric Convection Oven - 25 kW, 208v/1ph
Typically ships in 4 - 8 Business Days
Free Shipping Item
$11,796.00 /Each
Selected Voltage: 208V, 1 Phase
| 208V, 1 Phase |
| 240V, 1 Phase |
| 240V, 3 Phase |
| 480V, 3 Phase |
White Glove Delivery
Contact your sales rep for availability
Attention: Order by 06-01-2025 to save before the price increases!
Vulcan VC55ED Description

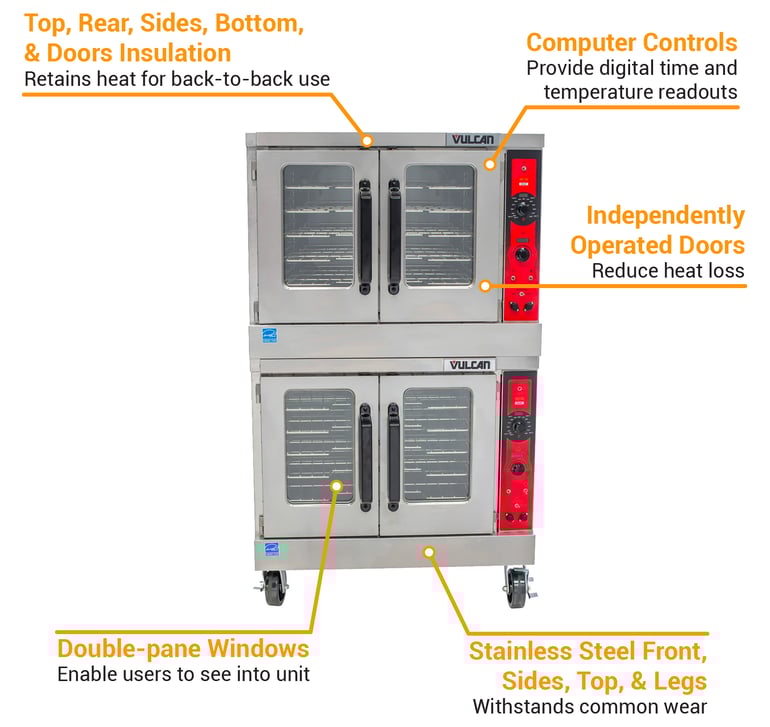

To cook many foods simultaneously, the Vulcan VC55ED double-deck electric convection oven includes two oven levels and five nickel-plated oven racks per section. Each oven has porcelain enamel to streamline cleaning, and their interiors measure 29 inches wide by 221⁄8 inches deep by 20 inches high. Heated with electric, solid-sheath elements, each oven is furnished with a two-speed, 1⁄2-horsepower oven blower-motor. By using the dial controls, operators can adjust the temperatures from 150 to 500 degrees Fahrenheit for desired results; temperature readouts are available on a digital display. This oven has a 5-hour timer with an audible alarm to prevent undercooking or burning.
To decrease temperature quickly in the Vulcan VC55ED electric convection oven, operators can flip the oven cool-down switch for fast cooling. Users also can manage operations with on-board diagnostics to ensure the unit works properly over time. Measuring 401/10 inches wide by 40 inches deep by 683/5 inches high, overall, this unit is supported by 8-inch stainless steel legs for stability. Its front, sides, top, and legs are made of stainless steel; non-sagging insulation is integrated into the top, rear, sides, doors, and bottom. For direct access to product, each of its four doors open separately, and they're equipped with double-pane windows for a good view into the oven sections.
- Part of the VC55E series
- 5 nickel-plated racks per section with 11-position rack guides
- Uses electric, solid-sheath elements for heating
- Stainless steel front, top, and sides
- Top, rear, sides, bottom, and doors have non-sagging insulation
- Adjustable, solid-state temperature dial controls from 150-500 degrees F
- Digital readout
- 5-hour timer with audible alarm
- 2-speed, 1⁄2-horsepower oven blower-motor
- Rapid cool-down switch
- Moisture vent built in
- Gentle bake mode selector switch
- Porcelain-enameled oven interior

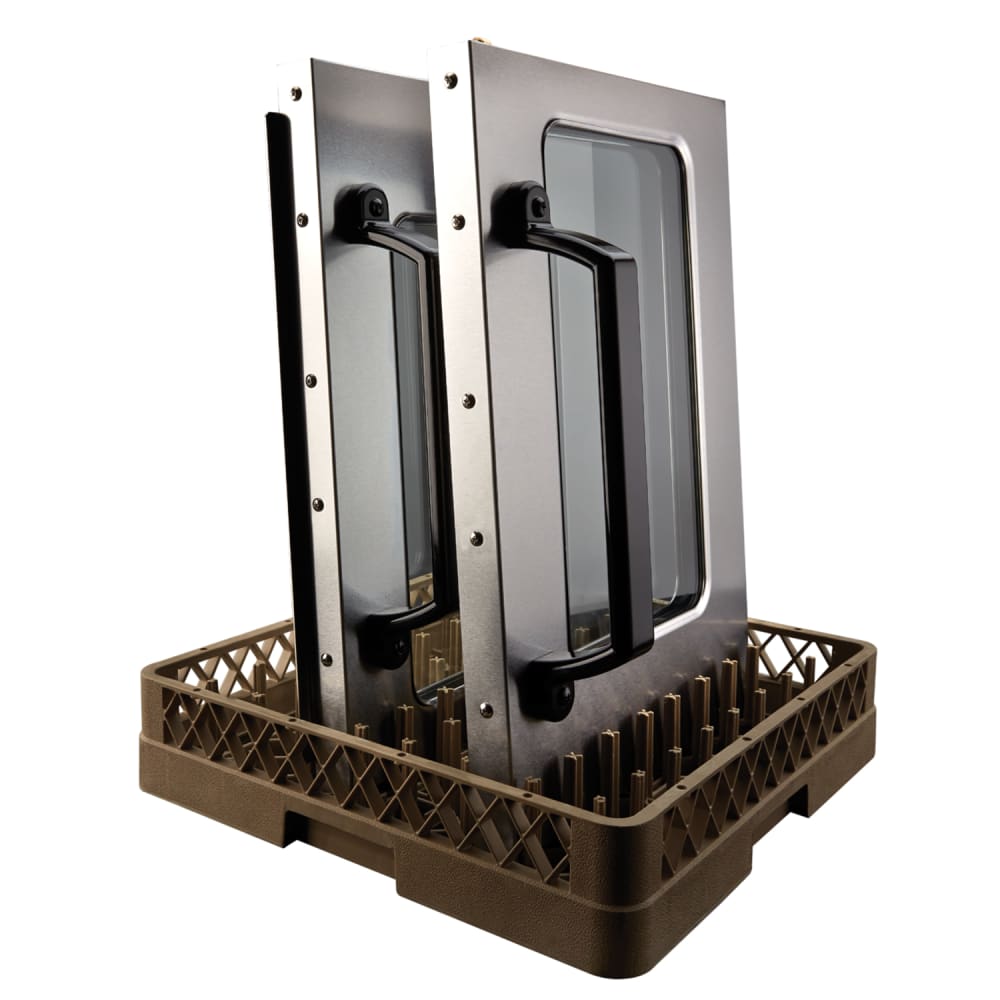

- 4 independently operating stainless steel doors with double-pane windows
- 2 interior oven lights (1 per section)
- 8-in. stainless steel legs
- Rear clearance: 2 in.
- Right side clearance: 4 in.
- Left side clearance: 1 in.
Dimensions & Utilities
- Oven interiors: (2) 29 in. W x 221⁄8 in. D x 20 in. H
- Oven racks: (10) 281⁄4 in. W x 201⁄2 in. D
- Overall: 401/10 in. W x 40 in. D x 683/5 in. H
- 120 A, 25 kW, 1⁄2 HP
- 208 V/60 Hz/1 ph
Product Features
*Free shipping on Vulcan VC55ED within the 48 contiguous states.
From The Manufacturer
Convection Oven, electric, double-deck, standard depth, solid state controls, 5-hour timer with digital display enhancement, 150° to 500°F temperature range, (5) oven racks per deck, independently operated removable doors with double pane windows, porcelain on steel interior, interior light, stainless steel front, top & 8"H legs, (2) 1/2 HP blower motors, 25.0kW, NSF, UL, ENERGY STAR®
*Image may not depict product color, inclusions or accessories.
1-year Limited Against Defects in Material & Workmanship; 90-day Replacement Parts
Vulcan VC55ED Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Vulcan |
| Base | Legs |
| Controls | Manual |
| Depth (in) | 40 |
| Door Type | Independent |
| Heat | Electric |
| Height (in) | 70 |
| Hertz | 60 |
| kW | 25 |
| Number of Ovens | Double |
| Oven Interior Style | Standard Depth |
| Pans Per Deck | 5 |
| Phase | 1 |
| Product | Convection Ovens |
| Product Type | Cooking Equipment |
| Rating | Better |
| Series | VC55E Series |
| Size | Full Size |
| Type | Floor Model |
| Voltage | 208 |
| Warranty | 1-year Limited Against Defects in Material & Workmanship; 90-day Replacement Parts |
| Width (in) | 40.25 |
| Weight | 674.00 |
Residential Users: This unit is not to be installed or operated in a residential or other non-commercial setting. Check local codes to ensure your foodservice kitchen is properly equipped for this piece. Use in an improper setting will void the warranty and the manufacturer will not provide parts or labor coverage for damage, failure, or other issues with the product. While this product may be covered by a manufacturer's warranty, vendor assumes no liability for product failure or any damages/injuries.
