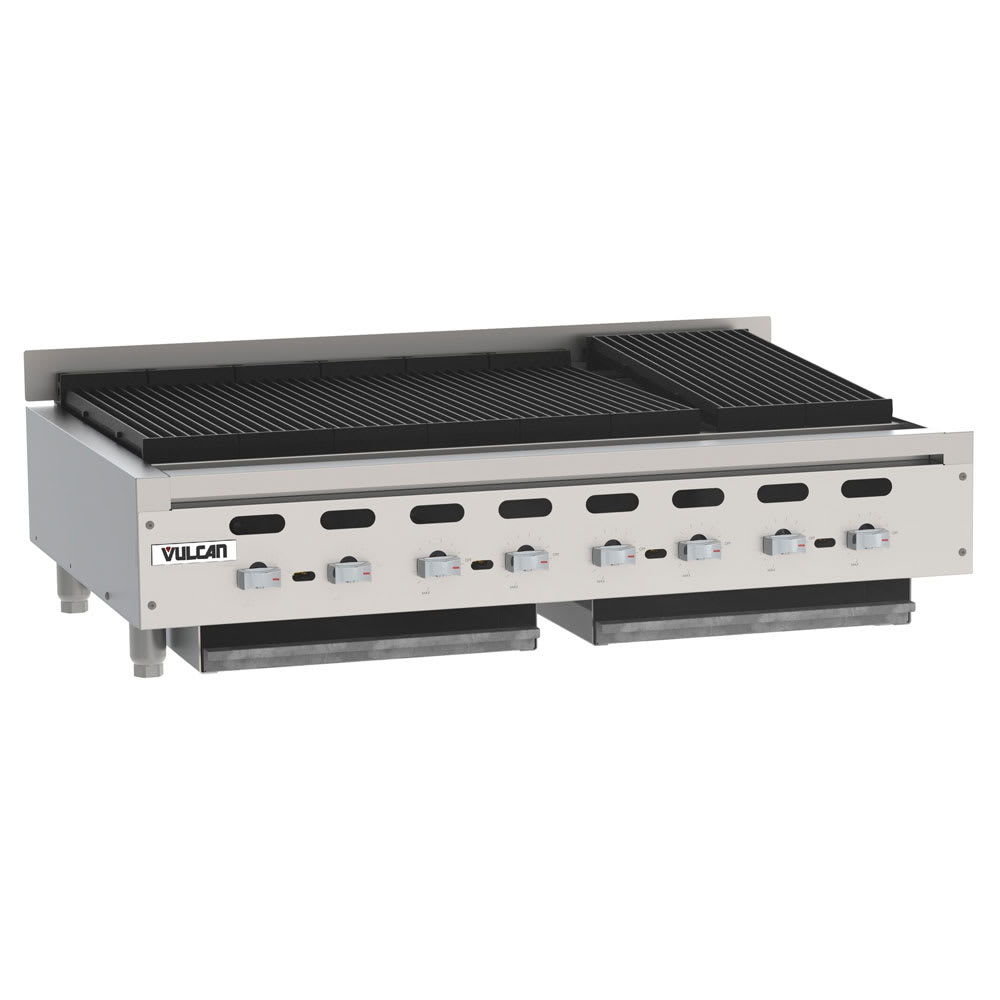

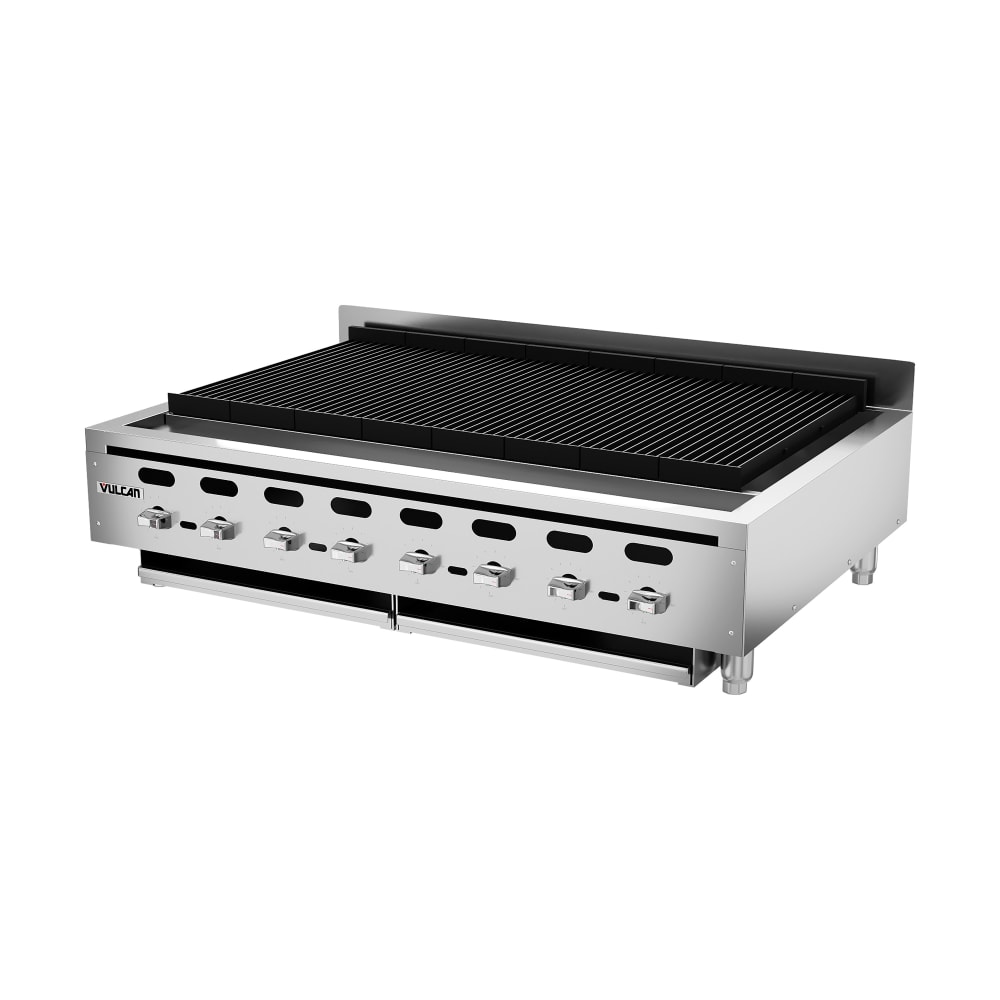

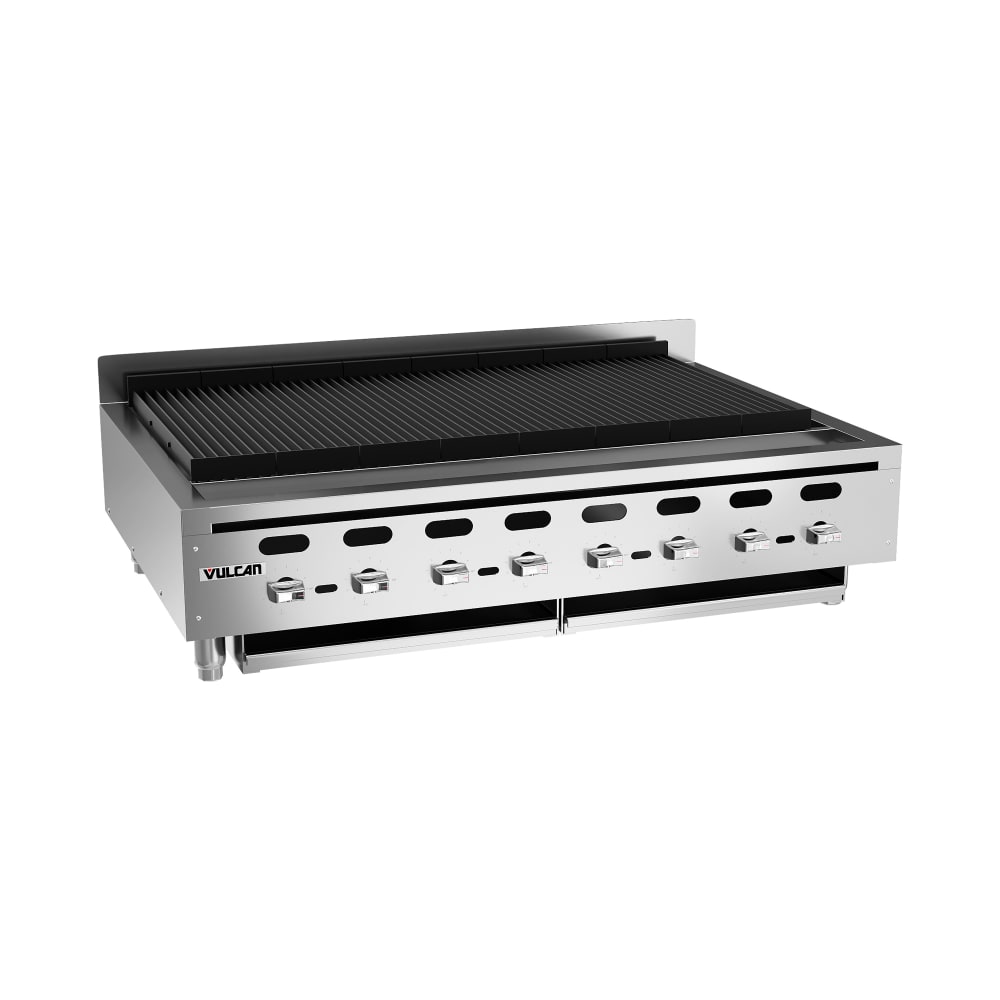

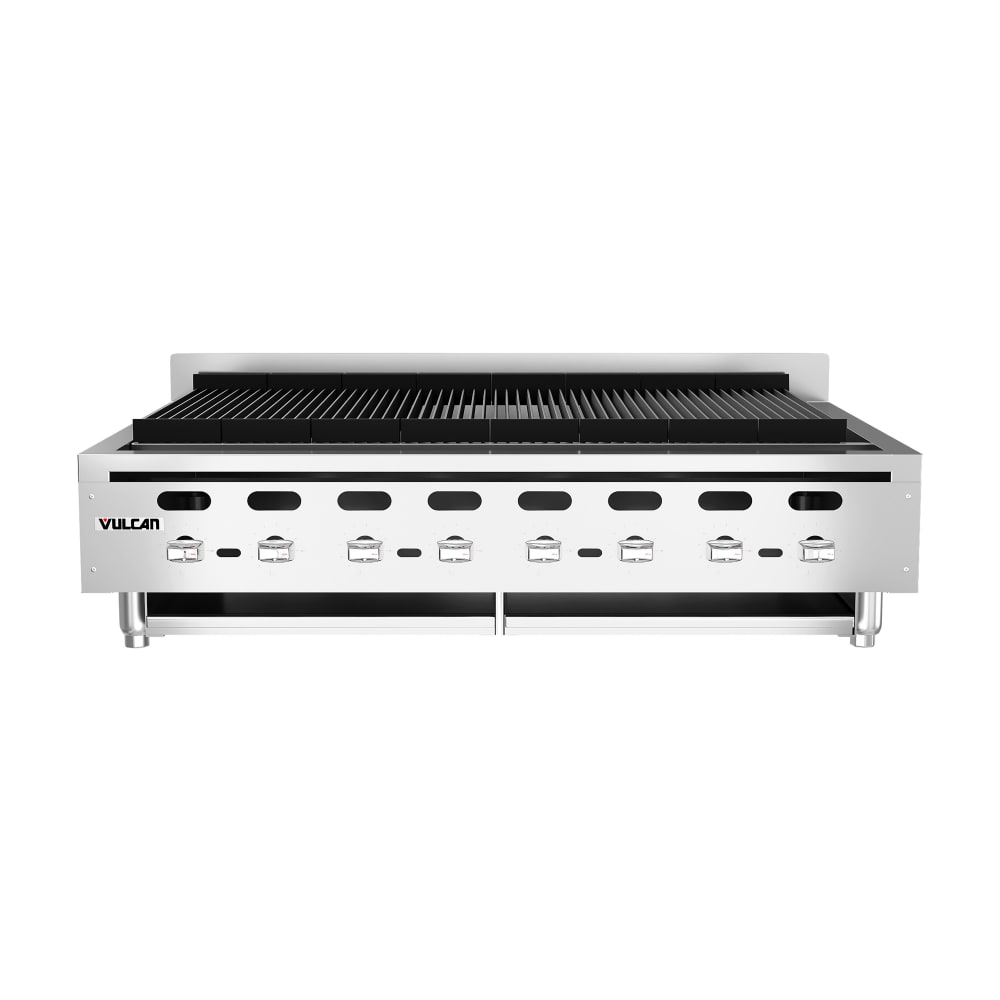

Vulcan VACB47 46.875" Radiant Charbroiler w/ Cast Iron Grates, LP

Image may not depict product color, inclusions or accessories.

KaTom #: 207-VACB47LP • MPN: VACB47 LP
Ships Free

Typically ships within 1 - 3 business days

Price: $4,845.00

Selected Gas Type: Liquid Propane

Image may not depict product color, inclusions or accessories.

Vulcan VACB47 Description


The Vulcan VACB47 charbroiler has heavy-duty cast iron grates and radiants, with a 17,000-BTU burner under each grate to consistently heat the cooking surface. Independent infinite valves for each burner mean different temperatures can be set at once, while burner dividers inhibit heat transfer, so different products can be cooked precisely on different grates. Radiants are more convenient to service and clean than lava rocks, and adjustable legs enable the unit to be placed on uneven surfaces. The Vulcan VACB47 charbroiler uses its heat deflector to keep the grease drawer cool.

Product Details

  • Propane heated
  • Grates and radiants are constructed of cast iron for durability
  • 1 burner under each of the 8 grates heats the surface evenly
  • Each burner has a separate heat control valve to simultaneously set different temperatures
  • Marks are engraved in the front panel to simplify temperature adjustment
  • Burner dividers help prevent heat transfer when cooking at different temperatures
  • Standing pilot ignition system
  • Damage-resistant stainless steel components withstand high-volume use
  • 4-in. legs are adjustable for setup on uneven surfaces
  • Deflector tray cools the grease drawer area by moving heat to the broiling surface for safe cleaning
  • 34-in. rear gas connection and gas pressure regulator
  • 128,000 BTU
  • Broiling area dimensions: 43 in. W x 22.31 in. D
  • Overall dimensions: 46.85 in. W x 31.03 in. D x 15.3 in. H
  • CSA listed; NSF certified

Our charbroiler buyers' guide has in-depth information on commercial charbroilers.

Achiever Charbroiler, LP gas, countertop, 46-7/8", (8) 17,000 BTU cast iron burners, infinite heat control valves, fully welded chassis, (2) drip trays, stainless steel front, sides & top trim, backsplash & grease trough, 4" adjustable legs, 136,000 BTU, CSA, NSF

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Warning Small Important Prop 65 information for California residents.

Vulcan VACB47 Specifications

PDF Spec Sheet
Manufacturer Vulcan
Total BTU 144,000
Cooking Surface Cast Iron
Function Heavy Duty
Grid Area 967
Heat Gas
Height (in) 11.5
Type Radiant
Width (in) 46.75
Warranty Limited 1-year
Gas Type LP
Product Type Countertop Cooking Equipment
Product Charbroiler
Weight 450.00
Vulcan VACB47 Certifications
  • NSF
