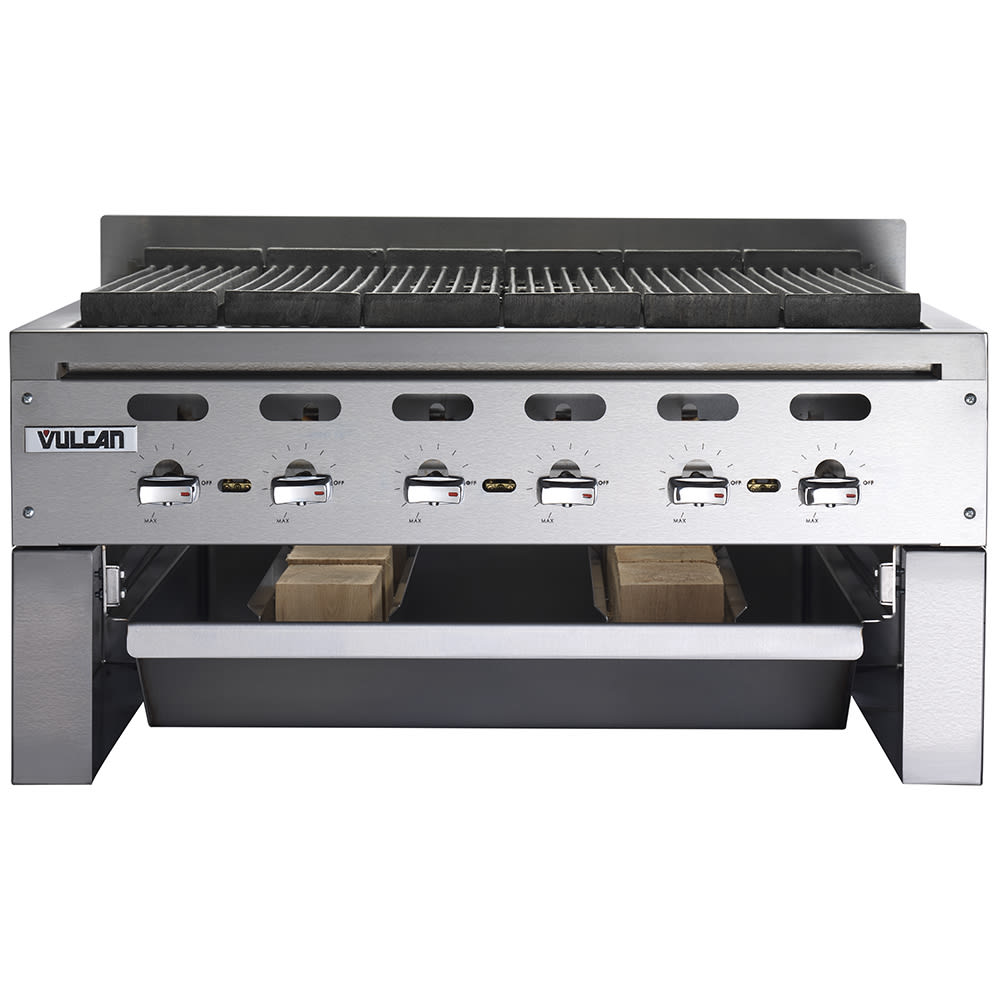

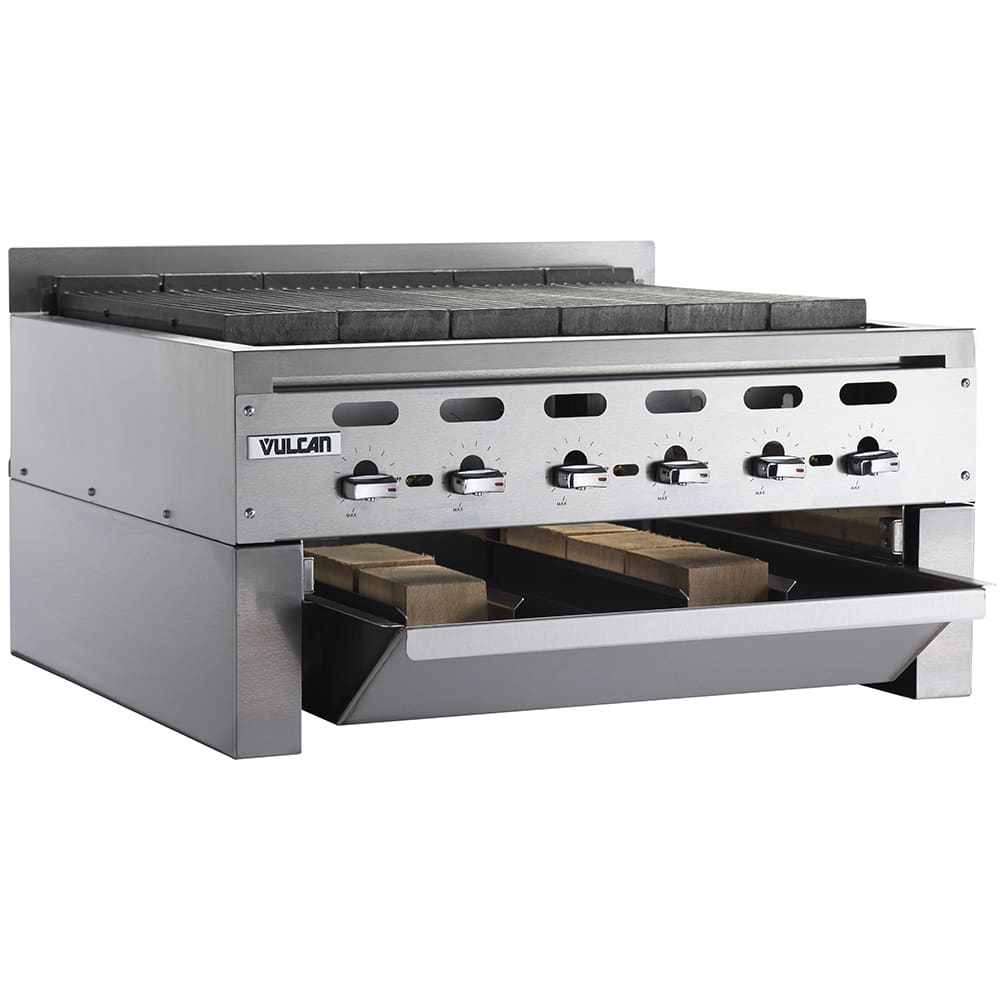

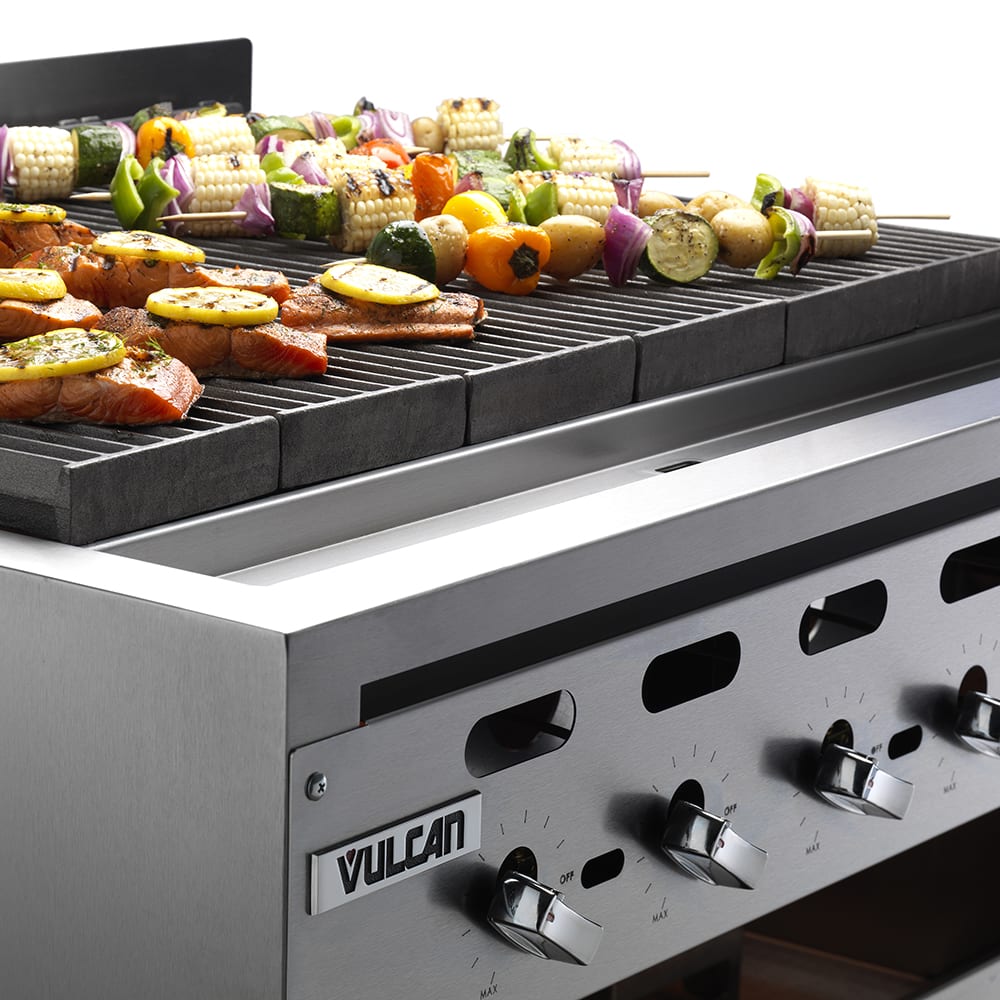

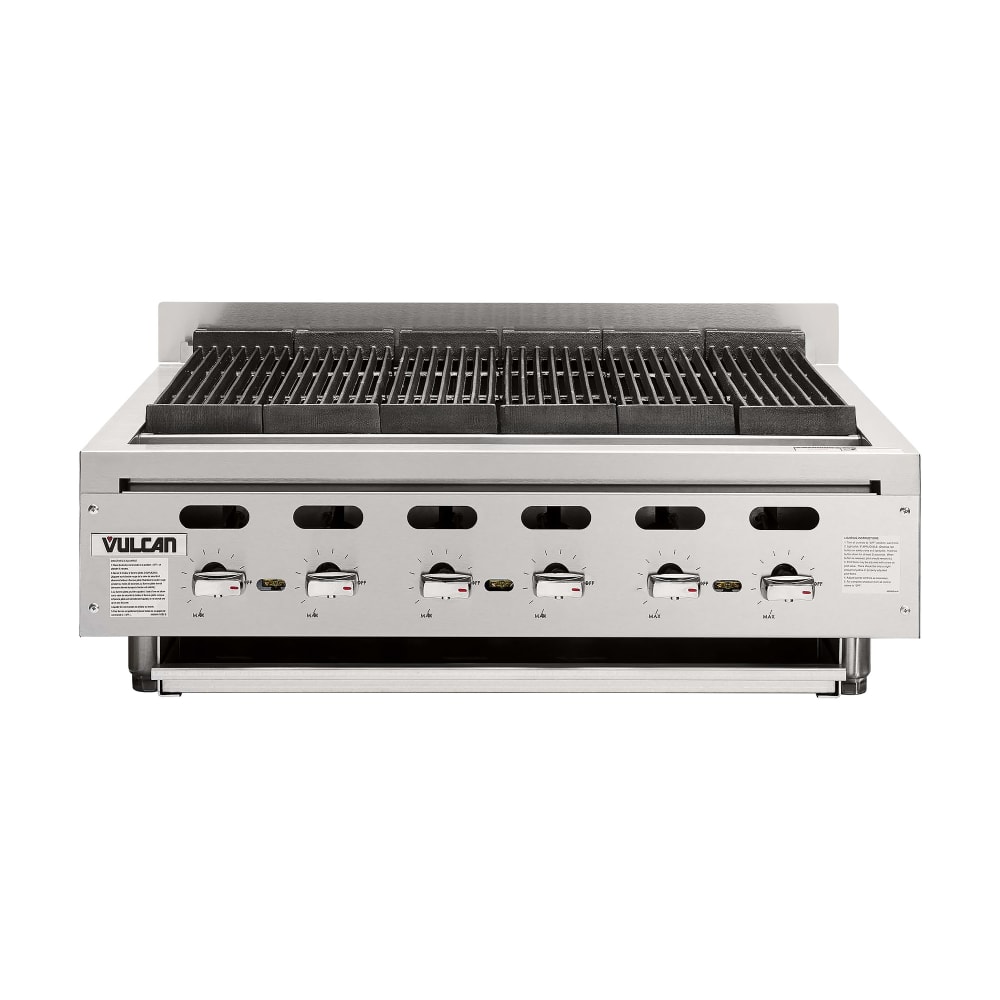

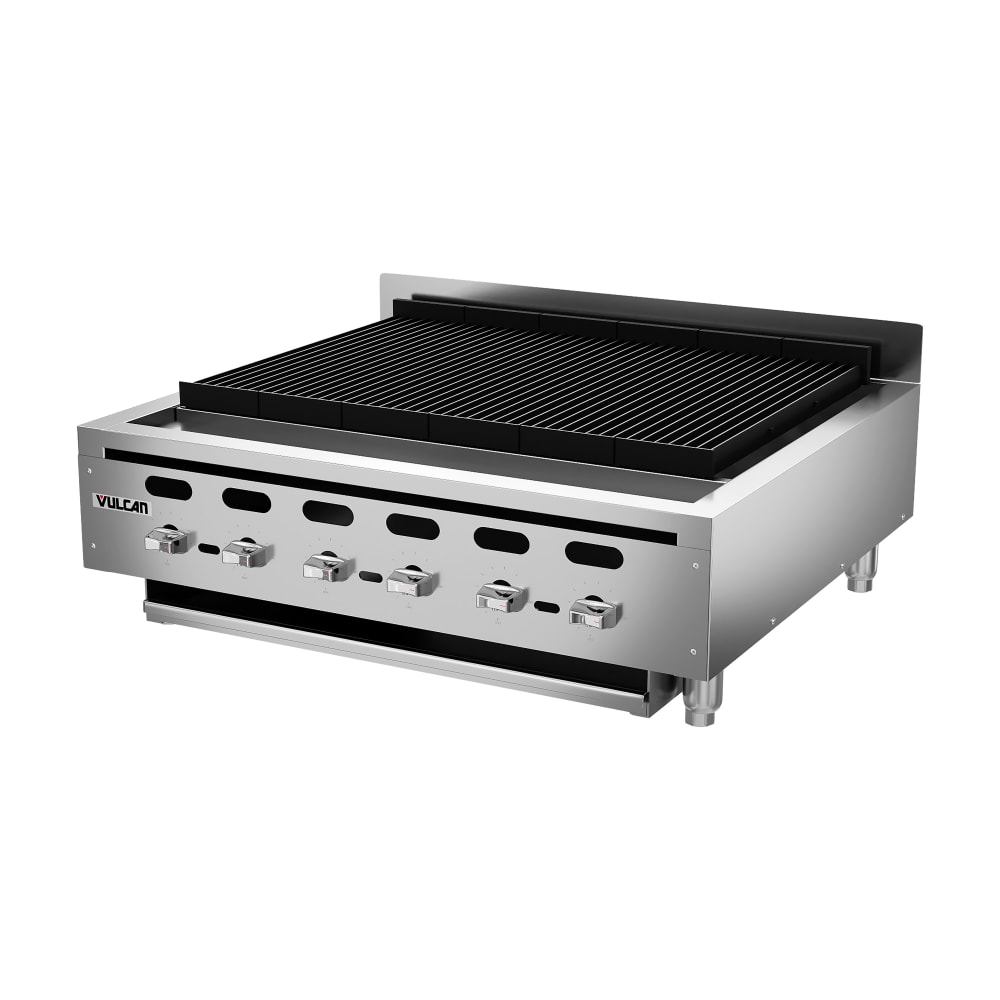

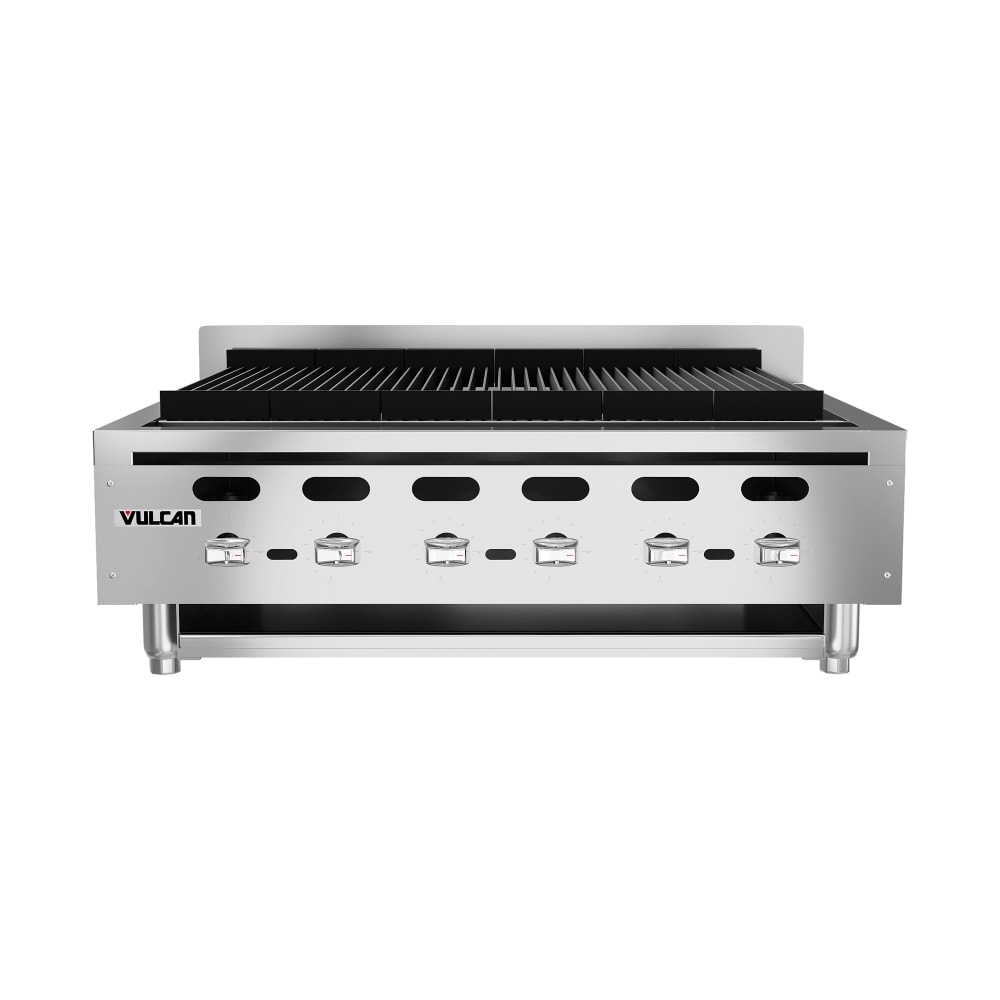

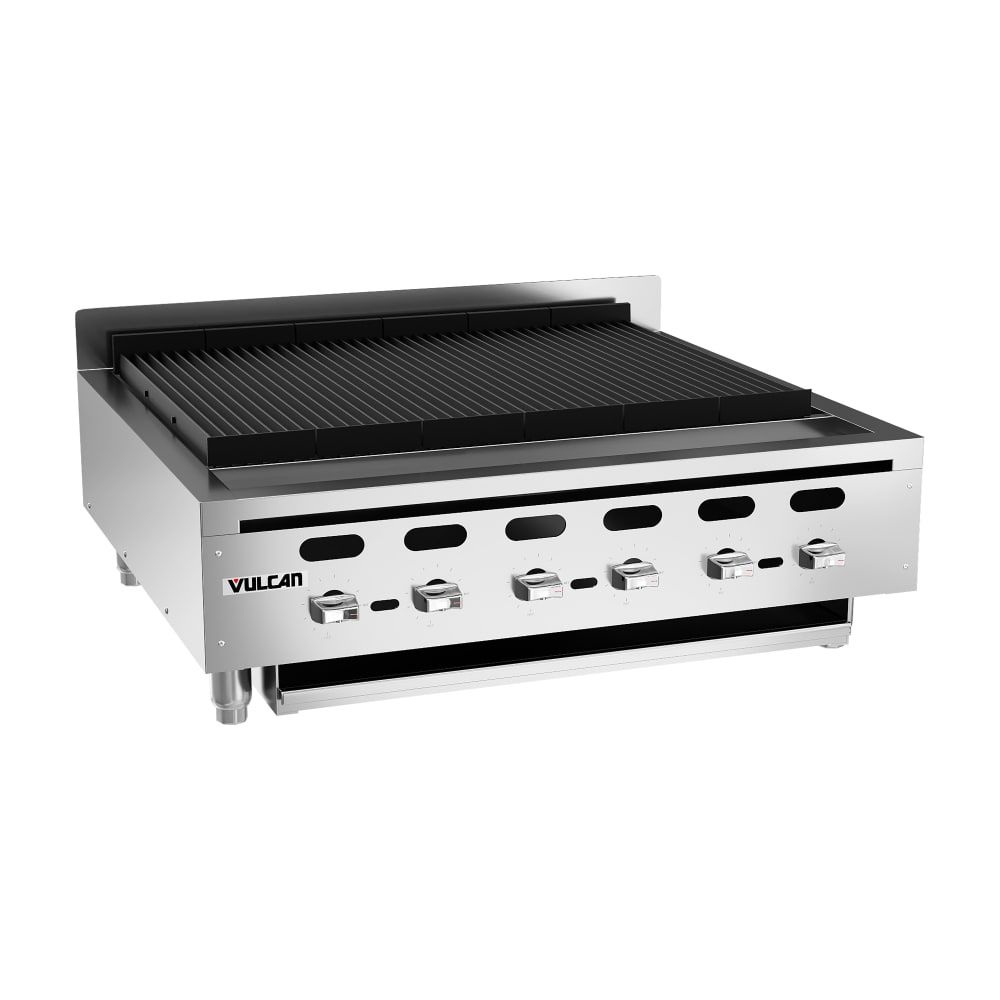

Vulcan VACB36 36" Radiant Charbroiler w/ Cast Iron Grates, NG

Image may not depict product color, inclusions or accessories.

KaTom #: 207-VACB36NG • MPN: VACB36 NG

Ships Free

Typically ships within 1 - 3 business days

(0 reviews)Write a Review
Price: $3,765.00

Selected Gas Type: Natural Gas

Image may not depict product color, inclusions or accessories.

Vulcan VACB36 Description

Vulcan

Places such as steakhouses and barbecue restaurants can bring out the best in their meats using Vulcan-Hart's VACB36 NG 36-1/8 inch radiant charbroiler. This VACB Series model contains 5-1/4 inch sloped cast iron grates and one 17,000 BTU per hour burner for each broiler grate. There is one high range infinite heat control valve for each burner, with valve adjustment marks engraved into front panel to easily set up. The heavy duty countermodel gas charbroiler also has an underburner deflection system, which leads heat in an upward direction, creating a "cool zone" in the grease trough to be easily cleaned.

Product Details:

  • 5-1/4 in. sloped cast iron grates
  • (1) 17,000 BTU per hr. burner for each broiler grate
  • 1 high range infinite heat control valve for each burner
  • Valve adjustment marks engraved into front panel for easy set up
  • Underburner deflection system leads heat in upward direction and creates grease drawer "cool zone" for easy cleaning
  • Standing pilot ignition system easy to light to generate heat
  • 3/4-in. rear gas connection and gas pressure regulator
  • Supercharger burner dividers lessen heat transfer to strengthen multi-zone cooking capabilities
  • Overall Dimensions: 36-in. W x 31-in. D x 15-1/2 in. H
  • CSA-Design, CSA-Gas, NSF Certified

Achiever Charbroiler, countertop, 36", (6) 17,000 BTU cast iron burners, infinite heat control valves, fully welded chassis, (1) drip tray, stainless steel front, sides & top trim, backsplash & grease trough, 4" adjustable legs, 102,000 BTU, CSA, NSF, NG

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Vulcan VACB36 Specifications

PDF Spec Sheet
Manufacturer Vulcan
BTU 108,000
Cooking Surface Cast Iron
Function Heavy Duty
Grid Area 726
Heat Gas
Height (in) 11.5
Type Radiant
Width (in) 36.125
Warranty Limited 1-year
Gas Type NG
Weight 370.00
Vulcan VACB36 Certifications
  • NSF
