Vulcan started producing equipment in Louisville Ky., more than 150 years ago. Today, the brand produces state-of-the-art cooking appliances, including fryers, ovens, and everything in between. The brand is owned by Illinois Tool Works, a global manufacturing leader.

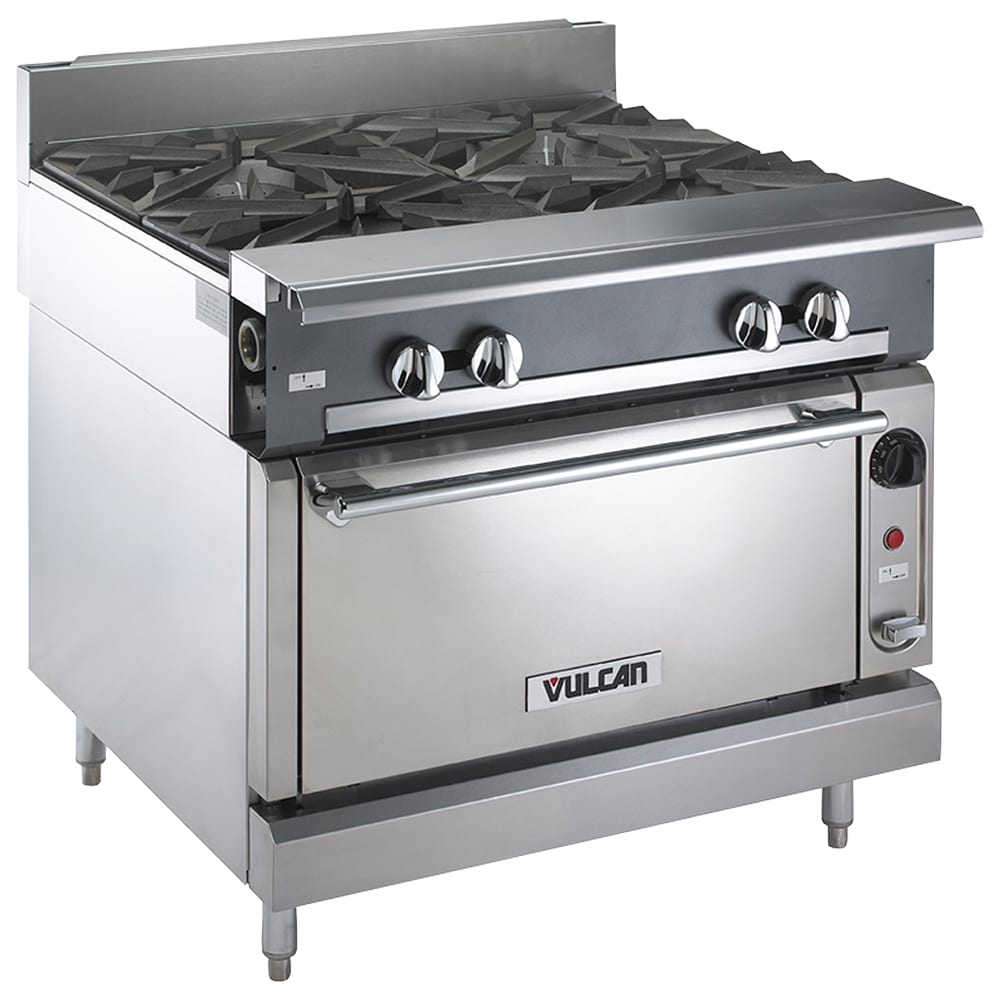

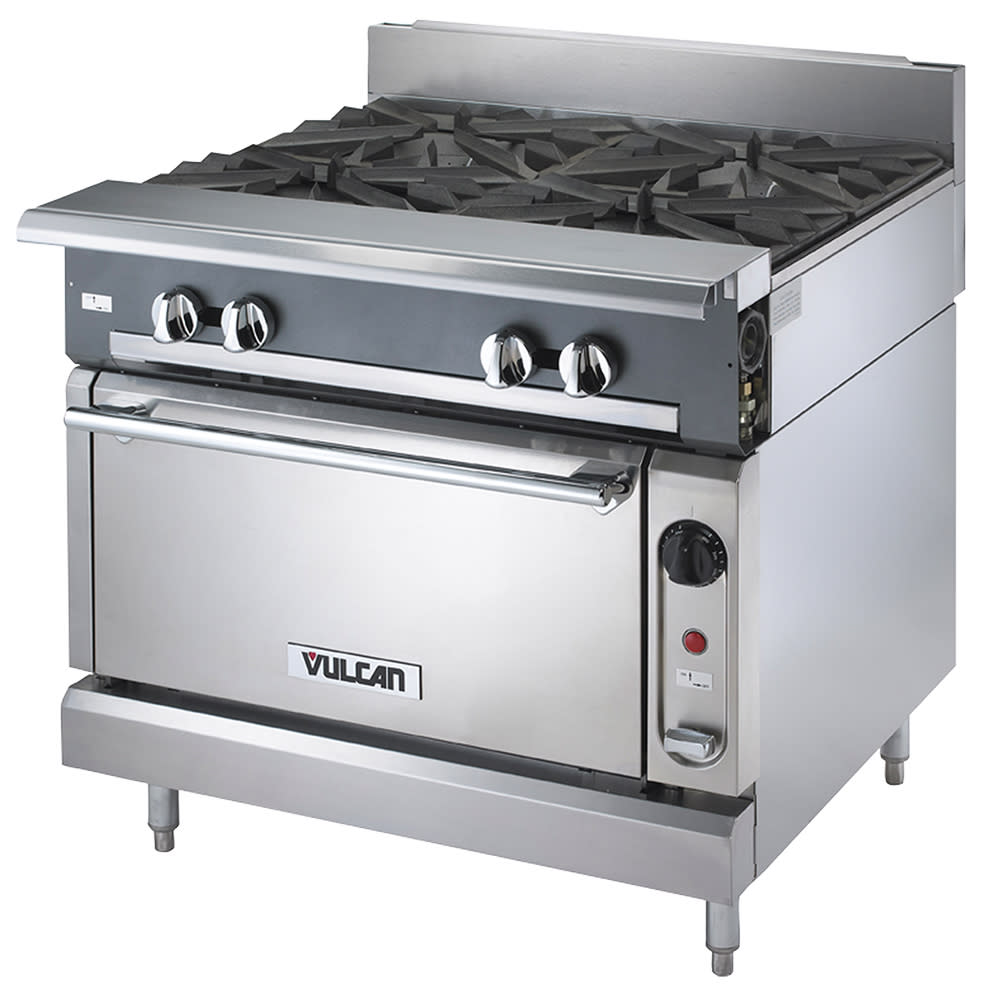

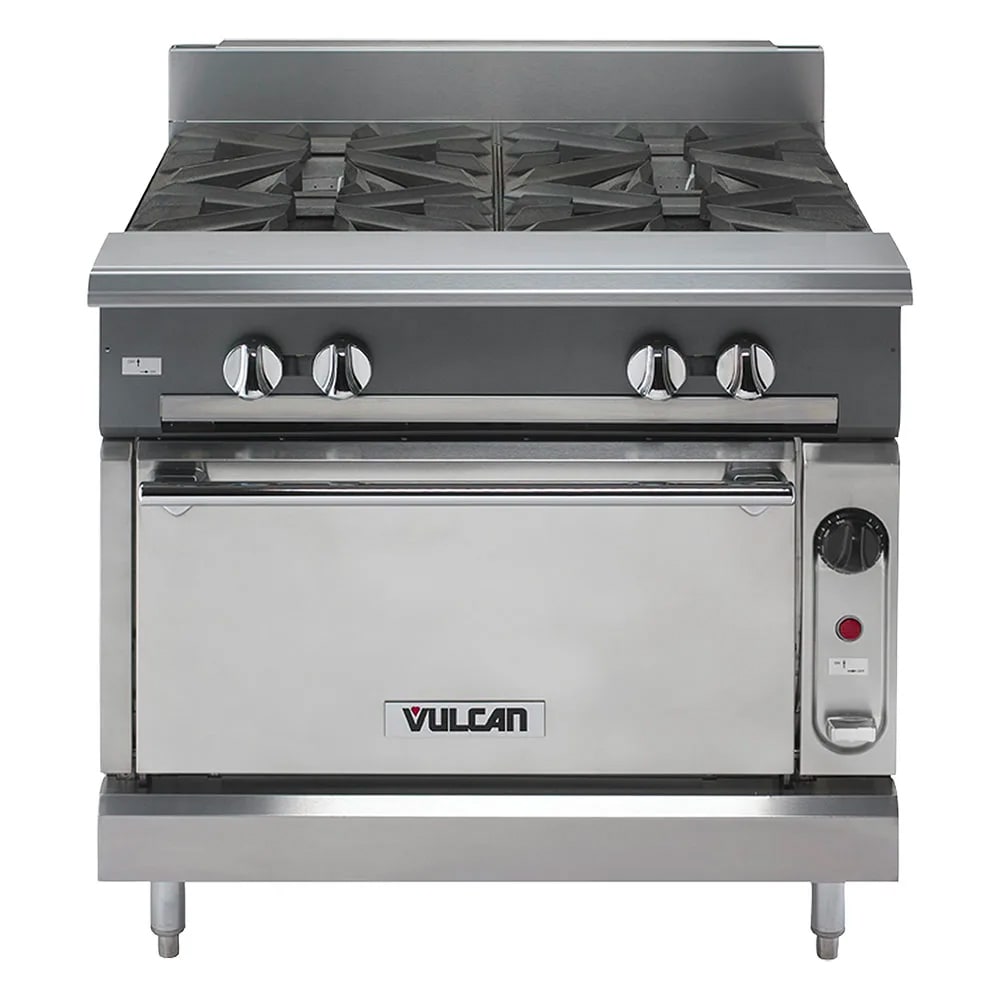

Vulcan V4B36S 36" 4 Burner Gas Range w/ Standard Oven, Natural Gas
Typically ships in 4 - 6 weeks
Free Shipping Item
Retail Price: $29,644.65
$12,203.00 /Each
Selected Gas Type: Natural Gas
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Attention: Order by 06-01-2025 to save before the price increases!
Vulcan V4B36S Description
Because the Vulcan V4B36S commercial gas range has four open-top burners on top, it can be used to cook a variety of products. These burners are one of the most popular ways to cook in a commercial kitchen so chefs are comfortable using them. Each burner has its own pilot and heat control knob, so they do not all have to be on at the same time, and the heat can be at different levels. Cast iron grates hold cookware over the burner flames; with large rear grates, the unit can hold stock pots. A crumb tray is positioned under the range top, catching food particles and other debris to ease cleaning.
A standard oven is in the base of this Vulcan V4B36S four-burner gas range. A conventional oven like this one does not heat as quickly or evenly as a convection oven because it does not have a fan, but it is commonly used to finish product cooked on the range with browning or melting. The oven temperature is adjustable from 150 to 550 degrees Fahrenheit on the thermostat. It comes with an oven rack that can be placed in three different positions.
Product Details
- (4) 35,000 BTU open-top burners
- Lift-off burner heads provide access to the components for cleaning
- Burners have independent pilots and heat control knobs
- Heavy-duty cast iron grates support cookware over the burners
- Grates are separated from aeration bowls to simplify cleanup
- Stainless steel, extra-deep crumb tray keeps debris from the top contained
- Stainless steel front ledge provides a place for plates and utensils to sit
- Stainless steel front, sides, and 4-in. rear stub riser
- 6-in. adjustable, stainless steel legs
- 190,000 total BTU
Standard Oven Base
- Adjustable thermostat
- Temperature range: 150-550 degrees F
- Rack is adjustable to 3 different positions
- Porcelain interior sides, bottom, and door panel are slick, preventing food and bacteria buildup
- Heavy-duty door with counterweight hinges
- 50,000 BTU
Dimensions & utilities
- Front grates: 17 in. W x 11 in. D
- Rear grates: 17 in. W x 14 in. D
- Oven interior: 27 in. W x 27 in. D x 13 in. H
- Overall: 36 in. W x 417/8 in. D x 401/2 in. H
- Uses natural gas
*Free shipping on Vulcan V4B36S within the 48 contiguous states.
From The Manufacturer
V Series Heavy Duty Range, gas, 36", (4) 35,000 BTU open burners, cast iron grates, standard oven, stainless steel front, front top ledge, sides, base, burner box & stub back, 190,000 BTU, 6" adjustable legs, CSA, NSF
*Image may not depict product color, inclusions or accessories.
1-year Limited Parts & Labor
Vulcan V4B36S Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Vulcan |
| Additional Info | Contact Customer Service for altitudes above 2,000 feet |
| Application | Heavy Duty |
| Base | Standard Oven |
| BTU / Burner | 35000 |
| Burner Configuration | Standard |
| Burner Style | Grates |
| Burner Type(s) | Open |
| Controls | Thermostatic |
| Depth (in) | 36.75 |
| Gas Inlet Size | 1.25 |
| Gas Type | NG |
| Heat | Gas |
| Height (in) | 36 |
| Installation Type | Freestanding |
| Max Temp | 550 |
| Number of Burners | 4 |
| Number of Ovens | Single |
| Open Burner BTU (ea) | 35000 |
| Product | Gas Ranges |
| Product Type | Cooking Equipment |
| Rack Positions per Standard Oven | 3 |
| Racks per Standard Oven | 1 |
| Range Configuration | Burners |
| Rating | Best |
| Series | V Series |
| Standard Oven BTU/hr | 32000 |
| Standard Oven Dimensions | 27"W x 27"D x 13"H |
| Total BTU | 190000 |
| Vent | Stub Riser |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 36 |
| Weight | 675.00 |
Documents
Residential Users: This unit is not to be installed or operated in a residential or other non-commercial setting. Check local codes to ensure your foodservice kitchen is properly equipped for this piece. Use in an improper setting will void the warranty and the manufacturer will not provide parts or labor coverage for damage, failure, or other issues with the product. While this product may be covered by a manufacturer's warranty, vendor assumes no liability for product failure or any damages/injuries.
WARNING: Important Prop 65 information for California residents.
