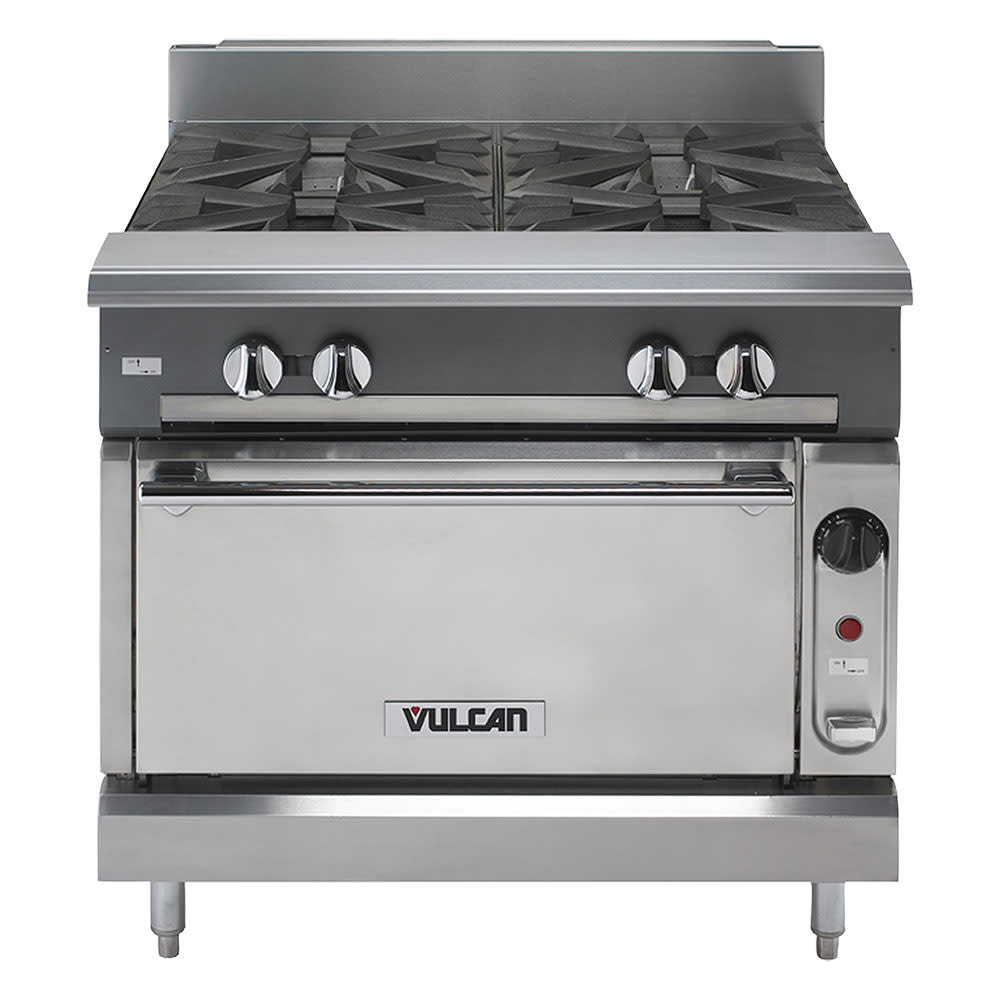

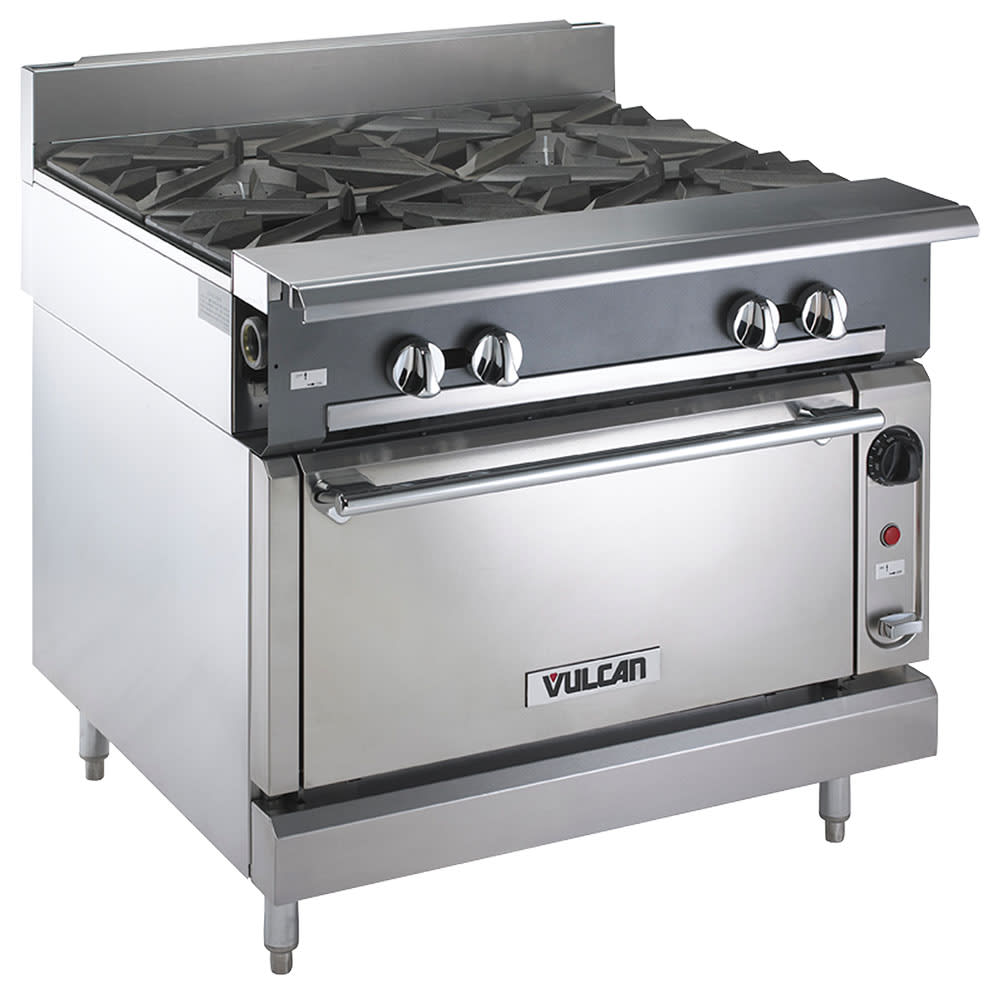

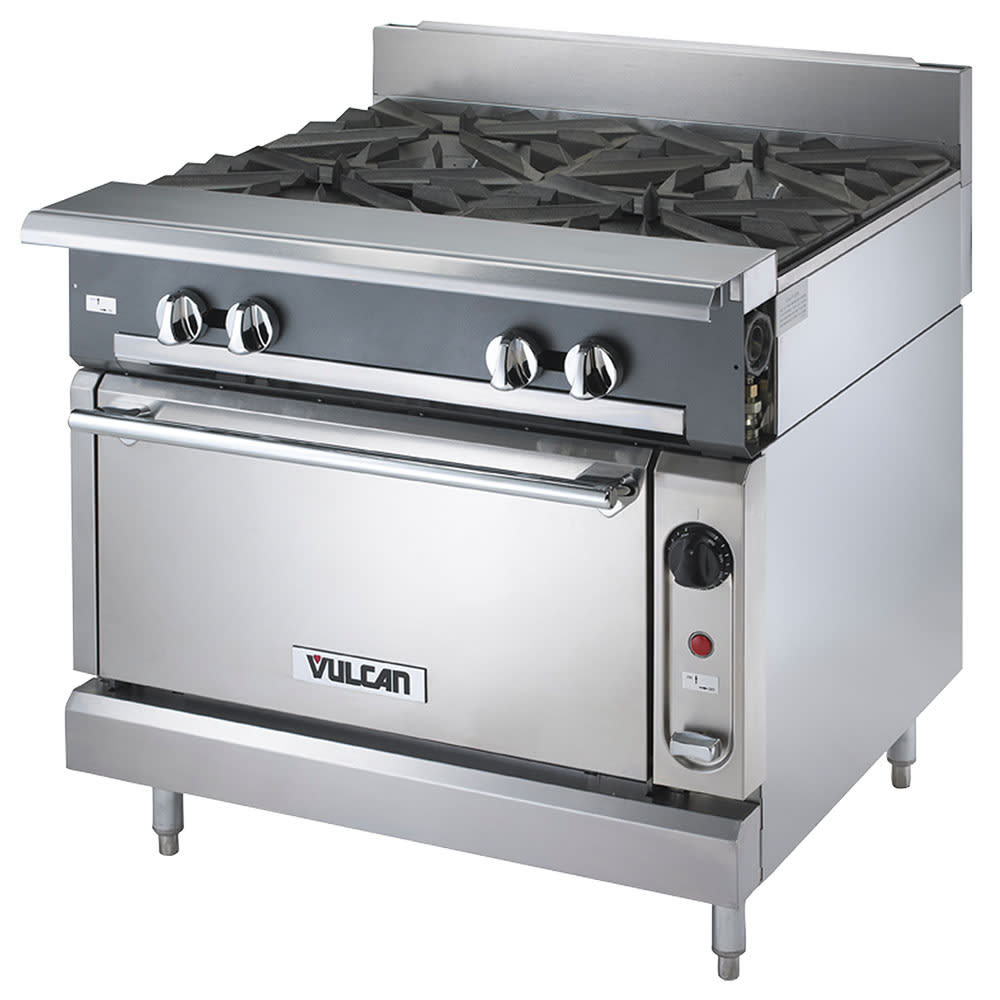

Vulcan V4B36S 36" 4 Burner Gas Range w/ Standard Oven, Liquid Propane
Typically ships in 6 - 8 weeks
Retail Price: $33,143.00
$12,047.36 /Each
Selected Gas Type: Liquid Propane
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Vulcan V4B36S Description
The Vulcan V4B36S V-series heavy-duty gas range has four burners, and to speed up cooking, each one has 35,000-BTU heat production capacity. These burners have individual pilot lights and separate heat control knobs. Grates sit over these burners, and their cast iron construction absorbs and retains heat well. Because the grates can be removed, they provide access to the burners underneath for cleaning and maintenance. So it can be connected to other units, the gas manifold on this range is on the front instead of the rear.
The base of this Vulcan V4B36S gas range is configured with a standard oven. Without a fan, this type of oven does not heat as evenly or quickly as a convection oven, though it works well for melting and browning dishes. Employees can adjust the oven temperature on the thermostat between 150 and 550 degrees Fahrenheit. It comes with one oven rack, and the interior is made of porcelain to ease cleaning and resist corrosion.
- (4) 35,000-BTU open-top, lift-off burners
- Burners have individual pilots and heat controls
- Lift-off cast iron grates
- Extra-deep stainless steel crumb tray
- Stainless steel front plating ledge
- 4-in. stainless steel stub riser prevents crumbs from falling behind the range
- Stainless steel front, sides, and base
- 6-in. adjustable legs
- 190,000 total BTU
- Specify altitude when ordering if above 2,000 ft. by calling customer care at (800) 541-8683
- Adjustable thermostat suits different applications
- Temperature range: 150-550 degrees F
- Porcelain sides, bottom, and door panel
- 1 rack with a 3-position guide
- Heavy-duty door has counterweight hinges
- 50,000 oven BTU
- Front grates: 17 in. W x 11 in. D
- Rear grates: 17 in. W x 14 in. D
- Oven interior: 27 in. W x 27 in. D x 13 in. H
- Overall: 36 in. W x 41 7⁄8 in. D x 40 1⁄2 in. H
- LP gas powered
- 1 1⁄4-in. front gas manifold
- 1 1⁄4-in. rear gas connection
*Image may not depict product color, inclusions or accessories.
*Free shipping on Vulcan V4B36S within the 48 contiguous states.
- Comparing Commercial Range Configurations
- Learn How to Choose the Right Commercial Range
- Base Options for Commercial Ranges
- What to Know Before Buying a Commercial Gas Range
- Cleaning Your Commercial Hood
- Gas vs Electric Ranges
- Natural Gas vs Propane
- Range Cleaning and Maintenance Tips
- What is a Commercial Range?
- Choosing the Right Range Configuration
- Commercial Range Repair and Troubleshooting
From The Manufacturer
V Series Heavy Duty Range, gas, 36", (4) 35,000 BTU open burners, cast iron grates, standard oven, stainless steel front, front top ledge, sides, base, burner box & stub back, 190,000 BTU, 6" adjustable legs, CSA, NSF
Watch a video about this product
Vulcan V4B36S Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Vulcan |
| Additional Info | Contact Customer Service for altitudes above 2,000 feet |
| Application | Heavy Duty |
| Base | Standard Oven |
| BTU / Burner | 35000 |
| Burner Configuration | Standard |
| Burner Style | Grates |
| Burner Type(s) | Open |
| Controls | Thermostatic |
| Depth (in) | 36.75 |
| Gas Inlet Size | 1.25 |
| Gas Type | LP |
| Heat | Gas |
| Height (in) | 36 |
| Installation Type | Freestanding |
| Max Temp | 550 |
| Number of Burners | 4 |
| Number of Ovens | Single |
| Open Burner BTU (ea) | 35000 |
| Product | Gas Ranges |
| Product Type | Cooking Equipment |
| Rack Positions per Standard Oven | 3 |
| Racks per Standard Oven | 1 |
| Range Configuration | Burners |
| Rating | Best |
| Series | V Series |
| Standard Oven BTU/hr | 32000 |
| Standard Oven Dimensions | 27"W x 27"D x 13"H |
| Total BTU | 190000 |
| Vent | Stub Riser |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 36 |
| Weight | 675.00 |
