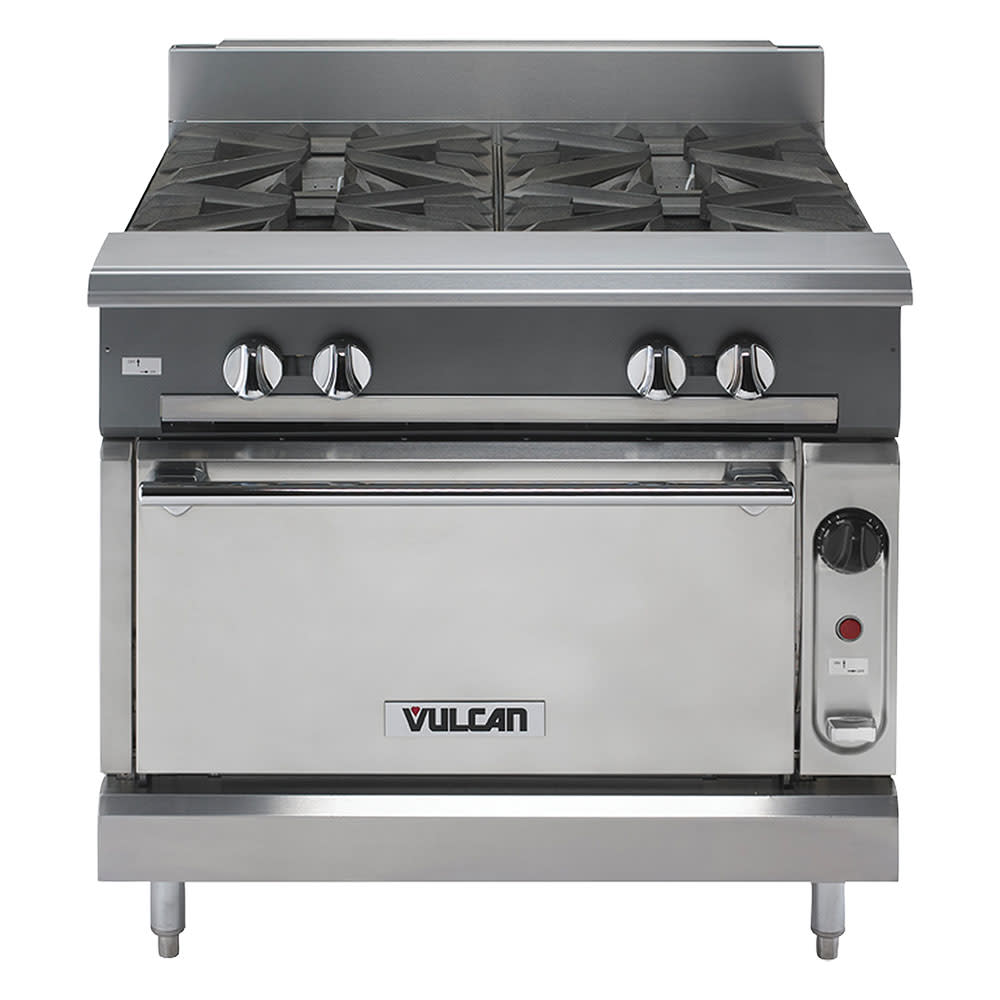

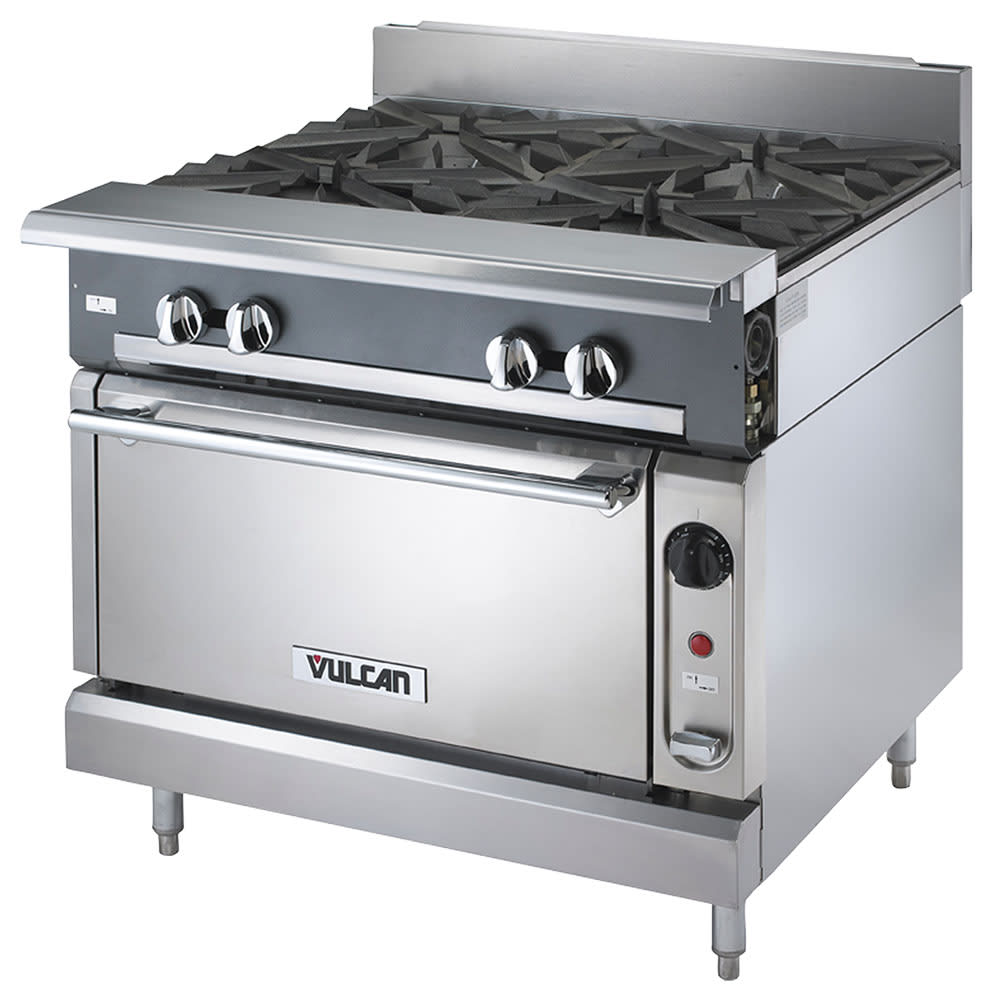

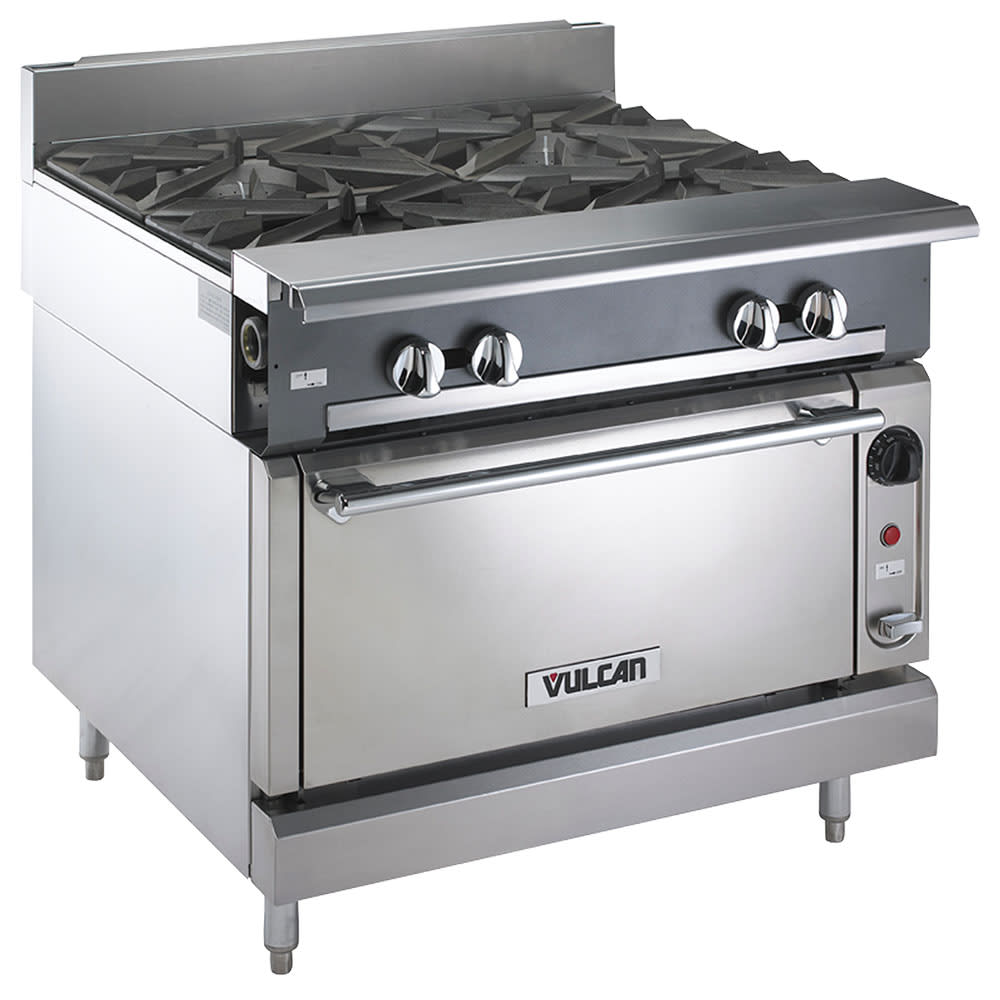

Vulcan V4B36C 36" 4 Burner Gas Range w/ Convection Oven, Natural Gas
Typically ships in 6 - 8 weeks
Retail Price: $44,834.00
$18,456.00 /Each
Selected Gas Type: Natural Gas
Vulcan V4B36C Description
The Vulcan V4B36C gas range has four open-top burners on the top that can be used to cook almost anything that is placed in a pot or pan. Grates support the cookware, holding it directly over the burner flame, which is adjustable based on the heat setting on the control knob. Made of cast iron, the grates are durable, and the rear grates are deeper to accommodate stock pots and other large pots. A crumb tray sits under this cooking area to keep debris contained. With a plate ledge on the front, operators can conveniently plate cooked food.
In the base of this Vulcan V4B36C commercial gas range, a convection oven provides a place for cooking other product. This oven is similar to a standard conventional oven that uses radiant heat, but it also has a fan in the cavity. Because a fan circulates heat, food is cooked quicker and more product can be placed in the unit at a time. The temperature in the oven is adjustable on the adjustable thermostat, with a range between 175 and 550 degrees Fahrenheit. Adjustable to three positions, two oven racks are included. The oven interior is porcelain—a material that is slick and prevents food from building up to ease the cleaning process.
- (4) 35,000 BTU open-top burners
- Lift-off burner heads
- Burners each have an individual pilot and heat control knob
- Durable cast iron grates hold pots and pans over the burner flames
- Grates are separate from the aeration bowls to facilitate cleaning
- Extra-deep, stainless steel crumb tray catches food particles under the range top
- Stainless steel front ledge holds plates
- Stainless steel front, sides, and 4-in. rear stub riser
- Adjustable, 6-in. stainless steel legs
- 172,000 total BTU
- Adjustable thermostat
- Temperature range: 175-550 degrees F
- 2 oven racks can be adjusted to 3 positions
- Porcelain sides, bottom, and interior door panel have slick surfaces that prevent food and bacteria from building up
- Heavy-duty door has counterweight hinges
- 32,000 BTU
- Front grates: 17 in. W x 11 in. D
- Rear grates: 17 in. W x 14 in. D
- Oven interior: 27 in. W x 27 in. D x 13 in. H
- Overall: 36 in. W x 41 7⁄8 in. D x 40 1⁄2 in. H
- Uses natural gas
- 4 A
- 115 V, 6-ft. cord with a plug
*Image may not depict product color, inclusions or accessories.
*Free shipping on Vulcan V4B36C within the 48 contiguous states.
- Comparing Commercial Range Configurations
- Learn How to Choose the Right Commercial Range
- Base Options for Commercial Ranges
- What to Know Before Buying a Commercial Gas Range
- Cleaning Your Commercial Hood
- Gas vs Electric Ranges
- Natural Gas vs Propane
- Range Cleaning and Maintenance Tips
- What is a Commercial Range?
- Choosing the Right Range Configuration
- Commercial Range Repair and Troubleshooting
From The Manufacturer
V Series Heavy Duty Range, gas, 36", (4) 35,000 BTU open burners, cast iron grates, convection oven, stainless steel front, front top ledge, sides, base, burner box & stub back, 172,000 BTU, 6" adjustable legs, CSA, NSF
Vulcan V4B36C Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Vulcan |
| Additional Info | Contact Customer Service for altitudes above 2,000 feet |
| Application | Heavy Duty |
| Base | Convection Oven |
| BTU / Burner | 35000 |
| Burner Configuration | Standard |
| Burner Style | Grates |
| Burner Type(s) | Open |
| Controls | Thermostatic |
| Convection Oven BTU/hr | 32000 |
| Convection Oven Dimensions | 27"W x 27"D x 13"H |
| Depth (in) | 36.75 |
| Gas Inlet Size | 1.25 |
| Gas Type | NG |
| Heat | Gas/Electric |
| Height (in) | 36 |
| Hertz | 60 |
| Installation Type | Freestanding |
| Max Temp | 550 |
| Number of Burners | 4 |
| Number of Ovens | Single |
| Open Burner BTU (ea) | 35000 |
| Phase | 1 |
| Product | Gas Ranges |
| Product Type | Cooking Equipment |
| Rack Positions per Convection Oven | 3 |
| Racks per Convection Oven | 2 |
| Range Configuration | Burners |
| Rating | Best |
| Series | V Series |
| Total BTU | 172000 |
| Vent | Stub Riser |
| Voltage | 115 |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 36 |
| Weight | 715.00 |
