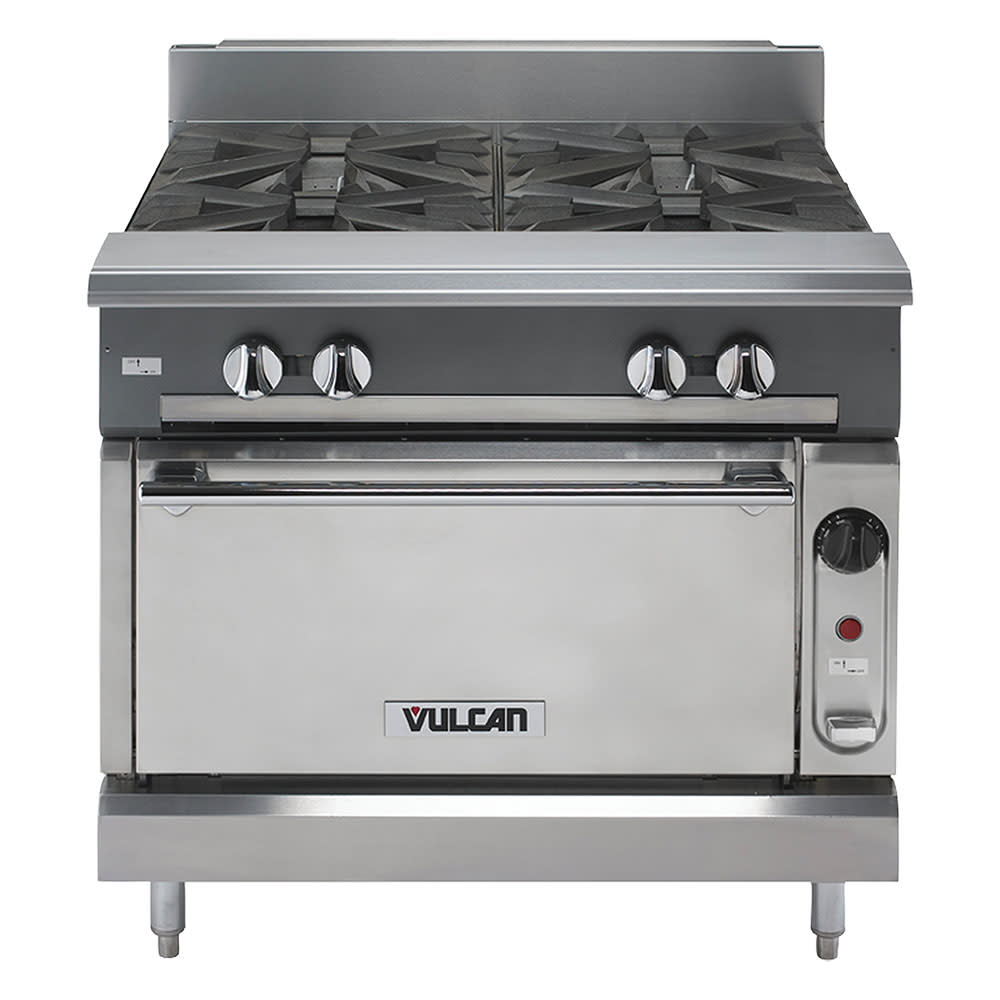

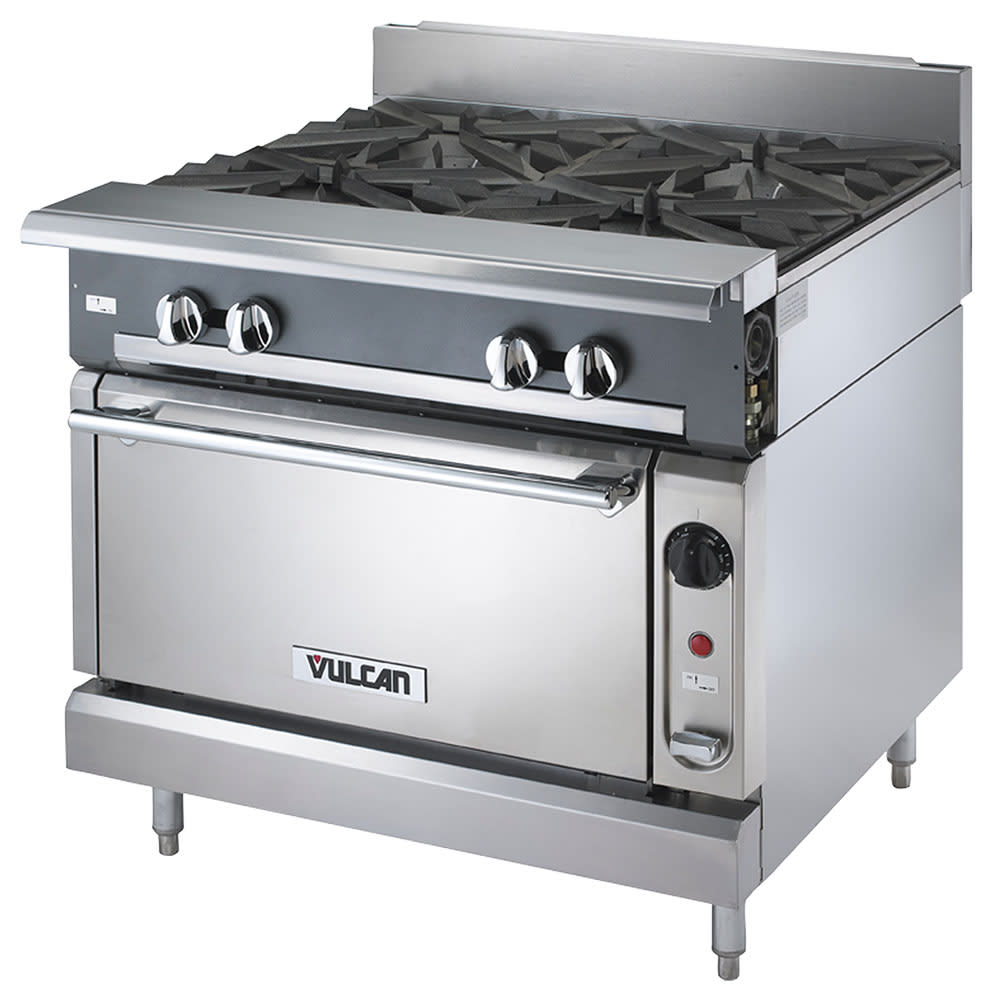

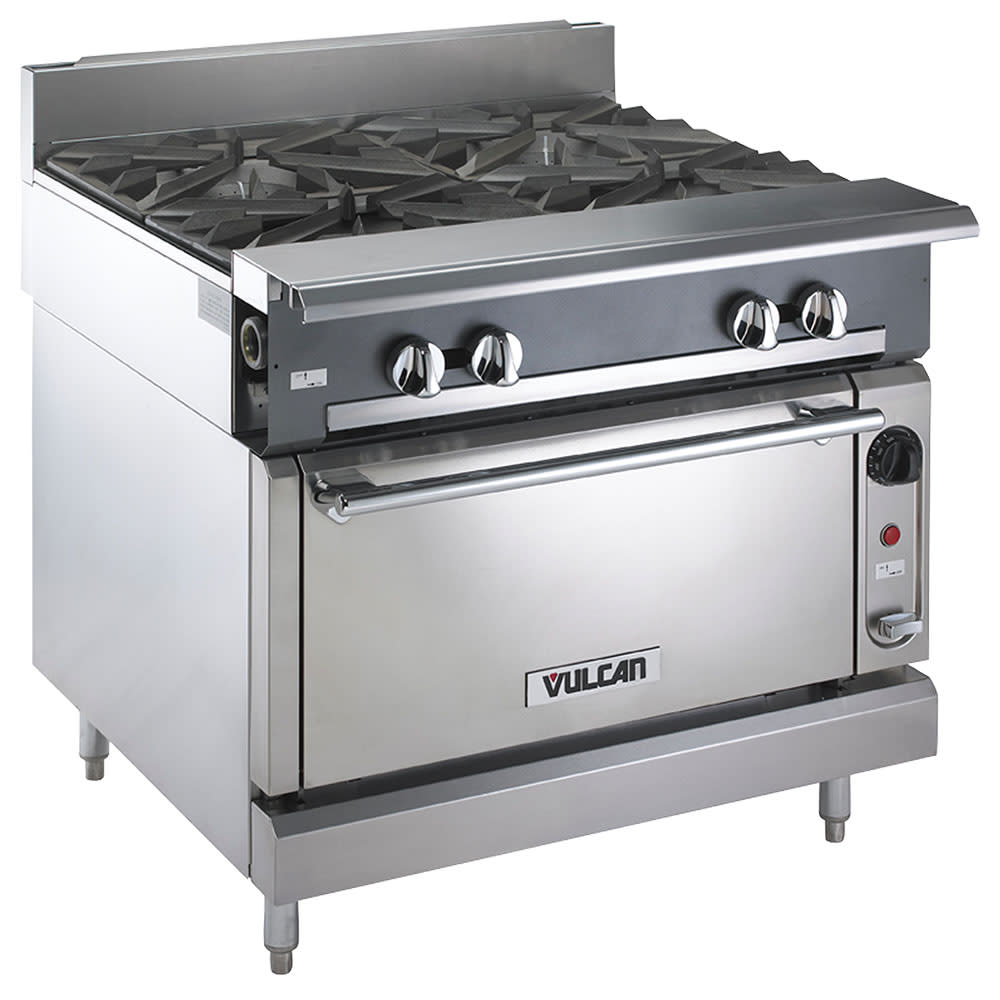

Vulcan V4B36C 36" 4 Burner Gas Range w/ Convection Oven, Liquid Propane
Typically ships in 6 - 8 weeks
Retail Price: $44,834.00
$18,456.00 /Each
Selected Gas Type: Liquid Propane
Vulcan V4B36C Description
The Vulcan V4B36C V-series gas range has four lift-off burners, each providing 35,000 BTU of heating power, and cast iron grates are mounted over the burners to support cookware as it is heated. During cleaning, the grates can be lifted off, and to further ease the process, the crumb tray under the cooking area catches debris. Because this range is heavy duty, its gas manifold is on the front, enabling the operator to bank it with other range units.
This Vulcan V4B36C heavy-duty range has a convection oven in the base, and this type of oven has a fan that moves heat throughout the cavity. Since evenly distributing the heat speeds up the cooking process, this design is helpful for high-volume. Employees can adjust the oven temperature to suit different products because it has a range between 175 and 550 degrees Fahrenheit. The interior of this oven is porcelain—a corrosion-resistant material that is easier to clean than stainless steel because food does not stick to it. Two racks come inside the oven and are adjustable into three different positions.
- (4) 35,000-BTU open burners have lift-off heads
- Each burner has an individual pilot and heat control
- Lift-off cast iron grates
- Extra-deep stainless steel crumb tray
- Stainless steel front plating ledge
- 4-in. stainless steel stub riser at the back prevents crumbs from falling behind the range
- Stainless steel front, sides, and base
- 6-in. adjustable legs
- 172,000 total BTU
- Specify altitude when ordering if above 2,000 ft. by calling customer care at (800) 541-8683
- Thermostat is adjustable to suit different applications
- Temperature range: 175-550 degrees F
- Porcelain sides, bottom, and door panel
- 2 racks with a 3-position guide
- Heavy-duty door has counterweight hinges
- 32,000 oven BTU
- Front grates: 17 in. W x 11 in. D
- Rear grates: 17 in. W x 14 in. D
- Oven interior: 27 in. W x 27 in. D x 13 in. H
- Overall: 36 in. W x 41 7⁄8 in. D x 40 1⁄2 in. H
- LP gas powered
- 1 1⁄4-in. front gas manifold
- 1 1⁄4-in. rear gas connection
- 120 V/60 Hz/1 ph, 7-ft. cord with plug
*Image may not depict product color, inclusions or accessories.
*Free shipping on Vulcan V4B36C within the 48 contiguous states.
- Comparing Commercial Range Configurations
- Learn How to Choose the Right Commercial Range
- Base Options for Commercial Ranges
- What to Know Before Buying a Commercial Gas Range
- Cleaning Your Commercial Hood
- Gas vs Electric Ranges
- Natural Gas vs Propane
- Range Cleaning and Maintenance Tips
- What is a Commercial Range?
- Choosing the Right Range Configuration
- Commercial Range Repair and Troubleshooting
From The Manufacturer
V Series Heavy Duty Range, gas, 36", (4) 35,000 BTU open burners, cast iron grates, convection oven, stainless steel front, front top ledge, sides, base, burner box & stub back, 172,000 BTU, 6" adjustable legs, CSA, NSF
Vulcan V4B36C Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Vulcan |
| Additional Info | Contact Customer Service for altitudes above 2,000 feet |
| Application | Heavy Duty |
| Base | Convection Oven |
| BTU / Burner | 35000 |
| Burner Configuration | Standard |
| Burner Style | Grates |
| Burner Type(s) | Open |
| Controls | Thermostatic |
| Convection Oven BTU/hr | 32000 |
| Convection Oven Dimensions | 27"W x 27"D x 13"H |
| Depth (in) | 36.75 |
| Gas Inlet Size | 1.25 |
| Gas Type | LP |
| Heat | Gas/Electric |
| Height (in) | 36 |
| Hertz | 60 |
| Installation Type | Freestanding |
| Max Temp | 550 |
| Number of Burners | 4 |
| Number of Ovens | Single |
| Open Burner BTU (ea) | 35000 |
| Phase | 1 |
| Product | Gas Ranges |
| Product Type | Cooking Equipment |
| Rack Positions per Convection Oven | 3 |
| Racks per Convection Oven | 2 |
| Range Configuration | Burners |
| Rating | Best |
| Series | V Series |
| Total BTU | 172000 |
| Vent | Stub Riser |
| Voltage | 115 |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 36 |
| Weight | 715.00 |
