Vulcan V336HB 36" Gas Range w/ (3) Hot Tops & Storage Base, Natural Gas
Typically ships in 4 - 6 weeks
Free Shipping Item
$11,238.00 /Each
Low price guarantee - call us!
Selected Gas Type: Natural Gas
Liquid Propane
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Attention: Order by 06-01-2025 to save before the price increases!
Vulcan V336HB Description

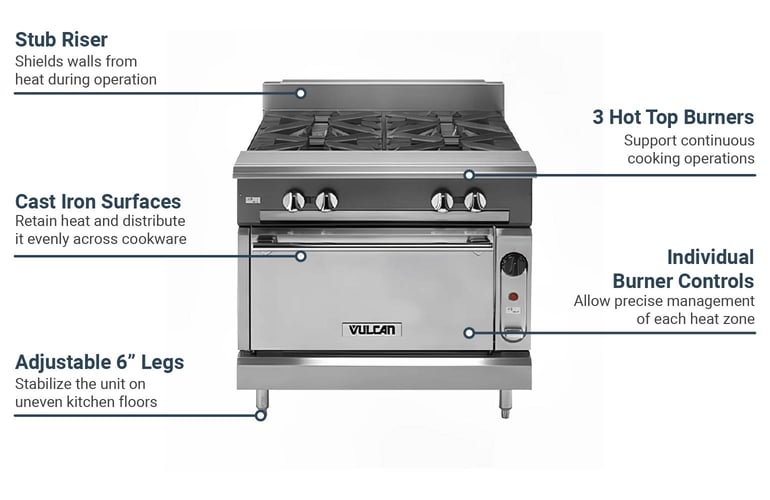

Outfitted with three solid-top hot burners, the Vulcan V336HB 36-inch gas range uses natural gas to generate a total of 90,000 BTU, providing steady heat for demanding cooking environments. Each 30,000-BTU hot top distributes heat evenly across the cast iron surface, which retains thermal energy to support simmering, boiling, and holding large pots of food. The stainless steel construction on the front, sides, base, burner box, and top ledge resists denting and corrosion, helping extend the unit’s service life in busy kitchens.
The Vulcan V336HB heavy-duty range includes a cabinet base enclosed by two stainless steel doors, with a removable interior shelf that helps organize stored cookware and utensils. Each hot top burner is independently operated using dedicated pilots and controls, giving staff flexible heat management across the cooktop. A 11⁄4-inch front gas manifold and capped rear gas connection are integrated for streamlined setup, while the 4-inch stub riser protects adjacent walls from radiant heat. The adjustable 6-inch legs help level the unit on uneven flooring.
Product Details
- Part of the V Series
- Constructed of stainless steel
- (3) 30,000 BTU hot tops
- Heavy-duty cast iron hot top surfaces
- Independent burner pilots and controls
- Cabinet base with 2 stainless steel doors and 1 removable shelf
- 11⁄4-in. front gas manifold and capped rear gas connection
- 4-in. stainless steel stub riser
- 6-in. adjustable legs
Dimensions & Utilities
- 36 in. W x 417⁄8 in. D x 401⁄2 in. H
- Powered by natural gas
- 90,000 total BTU
Product Features
*Free shipping on Vulcan V336HB within the 48 contiguous states.
From The Manufacturer
V Series Heavy Duty Range, gas, 36", (3) hot tops, cabinet base, stainless steel front, front top ledge, sides, base, burner box & stub back, 6" adjustable legs, 90,000 BTU, CSA, NSF
*Image may not depict product color, inclusions or accessories.
1-year Limited Parts & Labor
Vulcan V336HB Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Vulcan |
| Application | Heavy Duty |
| Base | Storage |
| BTU / Burner | 30000 |
| Burner Configuration | Standard |
| Burner Style | None |
| Burner Type(s) | None |
| Depth (in) | 41.87 |
| Gas Type | NG |
| Heat | Gas |
| Height (in) | 40.5 |
| Installation Type | Freestanding |
| Number of Burners | None |
| Number of Ovens | No Oven |
| Product | Gas Ranges |
| Product Type | Cooking Equipment |
| Range Configuration | Hot Top |
| Rating | Best |
| Series | V Series |
| Total BTU | 90000 |
| Vent | Stub Back |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 36 |
| Weight | 550.00 |
Residential Users: This unit is not to be installed or operated in a residential or other non-commercial setting. Check local codes to ensure your foodservice kitchen is properly equipped for this piece. Use in an improper setting will void the warranty and the manufacturer will not provide parts or labor coverage for damage, failure, or other issues with the product. While this product may be covered by a manufacturer's warranty, vendor assumes no liability for product failure or any damages/injuries.
