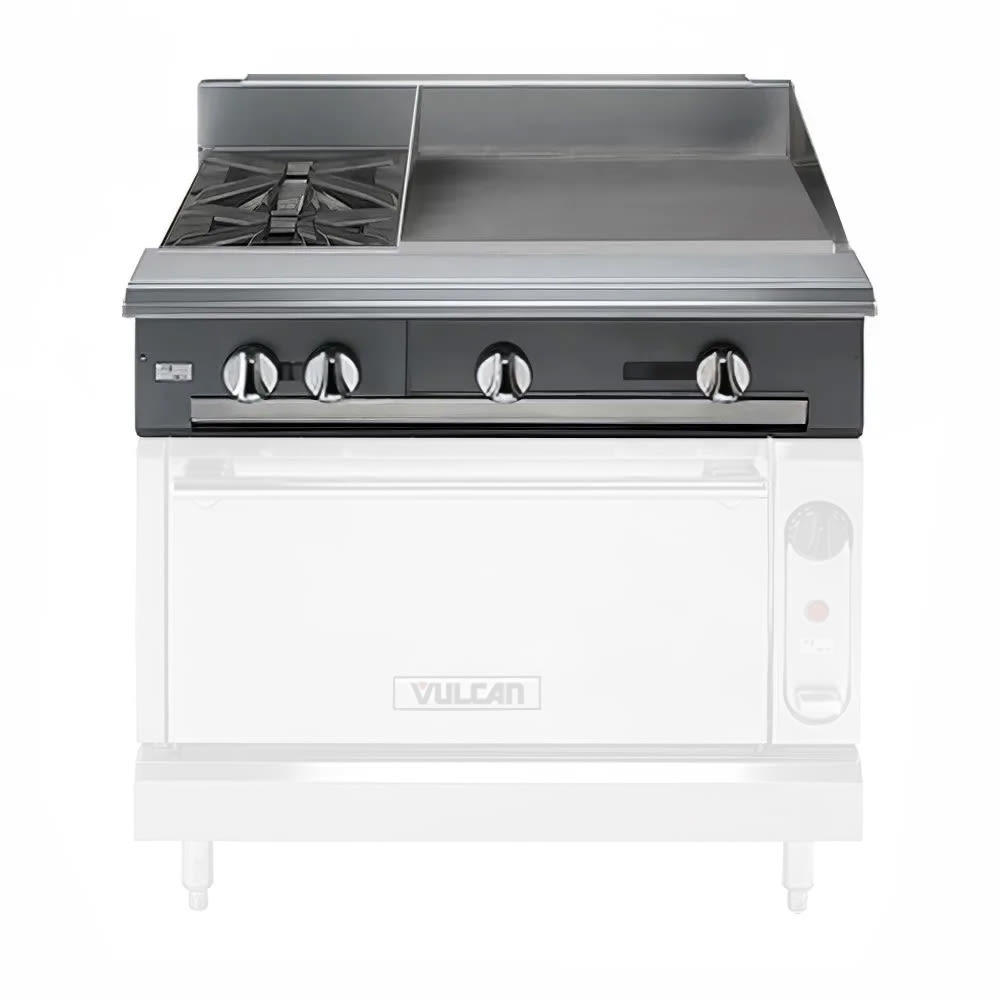

Vulcan V2BG24 36" 2 Burner Gas Range Top w/ Griddle - Modular, Natural Gas
Typically ships in 4 - 6 weeks
Free Shipping Item
$9,437.00 /Each
Low price guarantee - call us!
Selected Gas Type: Natural Gas
Liquid Propane
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Attention: Order by 06-01-2025 to save before the price increases!
Vulcan V2BG24 Description

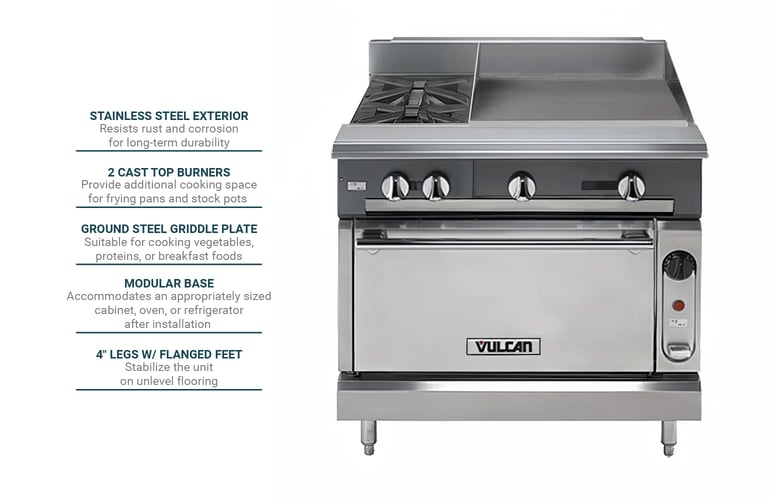

Great for boiling, pan-frying, or grilling various menu items, the Vulcan V2BG24 natural gas range features two open cast burners and two griddle burners. Made of durable ground steel, the manual griddle plate measures 24 inches long by 3⁄4 inches thick for rapid heat conduction, while the open grates are constructed of heavy-duty cast iron and measure 11 inches by 17 inches in the front and 14 inches by 17 inches in the back. To maximize temperature control, each burner has independent pilots and adjustable thermostats. For lasting durability, its 4-inch stub riser, crumb tray, front, top ledge, burner box, base, stub back, and sides are stainless steel.
To accommodate an appropriately sized cabinet, oven, or refrigerator after installation, the Vulcan V2BG24 restaurant range has a modular base. It's mounted on 4-inch legs with flanged feet for stabilization, and for proper operation it requires a 1⁄4-inch-diameter front gas manifold and 11⁄4-inch rear gas connection. Overall, this unit measures 36 inches wide by 417/8 inches deep by 401⁄2 inches high.
Product Details
- Featured in Vulcan's V series
- Stainless steel front, front top ledge, burner box, base, sides, and stub back
- (2) 35,000 BTU cast burners with lift-off heads
- (2) 30,000 BTU griddle burners
- Individual burner pilots and controls
- Stainless steel extra-deep crumb tray
- Heavy-duty cast grates
- 4-in. stainless steel stub riser
- 11-in. x 17-in. front grate
- 14-in. x 17-in. rear plate
- 24-in. ground steel manual griddle
- 3⁄4-in.-thick griddle plate
- Modular base
- 4-in. legs and flanged feet
Dimensions & Utilities
- Overall: 36 in. W x 417/8 in. D x 401⁄2 in. H
- Powered by natural gas
- 1⁄4-in. diameter front gas manifold
- 11⁄4-in. diameter rear gas connection
- 130,000 BTU
Product Features
*Free shipping on Vulcan V2BG24 within the 48 contiguous states.
From The Manufacturer
V Series Heavy Duty Range, gas, 36", modular, (2) 35,000 BTU open burners, (1) 24" griddle, stainless steel front, front top ledge, sides, base, burner box & stub back, 4" flanged feet, 130,000 BTU, CSA Flame, CSA Star, NSF
*Image may not depict product color, inclusions or accessories.
1-year Limited Parts & Labor
Vulcan V2BG24 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Vulcan |
| Application | Heavy Duty |
| Base | Modular |
| BTU / Burner | 35000 |
| Burner Configuration | Standard |
| Burner Style | Grates |
| Burner Type(s) | Open |
| Depth (in) | 41.87 |
| Gas Type | NG |
| Griddle Width (in) | 24 |
| Heat | Gas |
| Height (in) | 40.5 |
| Installation Type | Freestanding |
| Number of Burners | 2 |
| Number of Ovens | No Oven |
| Plate Thickness (in) | 3/4 |
| Product | Gas Ranges |
| Product Type | Cooking Equipment |
| Range Configuration | Burners/Griddle |
| Rating | Best |
| Series | V Series |
| Total BTU | 130000 |
| Vent | Stub Back |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 36 |
| Weight | 367.00 |
Residential Users: This unit is not to be installed or operated in a residential or other non-commercial setting. Check local codes to ensure your foodservice kitchen is properly equipped for this piece. Use in an improper setting will void the warranty and the manufacturer will not provide parts or labor coverage for damage, failure, or other issues with the product. While this product may be covered by a manufacturer's warranty, vendor assumes no liability for product failure or any damages/injuries.
WARNING: Important Prop 65 information for California residents.
