Vulcan V2BG24 36" 2 Burner Gas Range Top w/ Griddle - Modular, Liquid Propane
Typically ships in 4 - 6 weeks
$9,437.00 /Each
Low price guarantee - call us!
Selected Gas Type: Liquid Propane
Natural Gas
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.

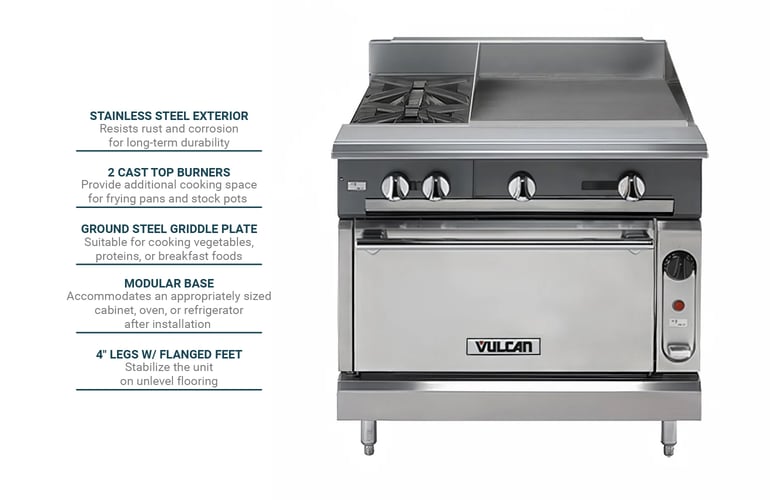

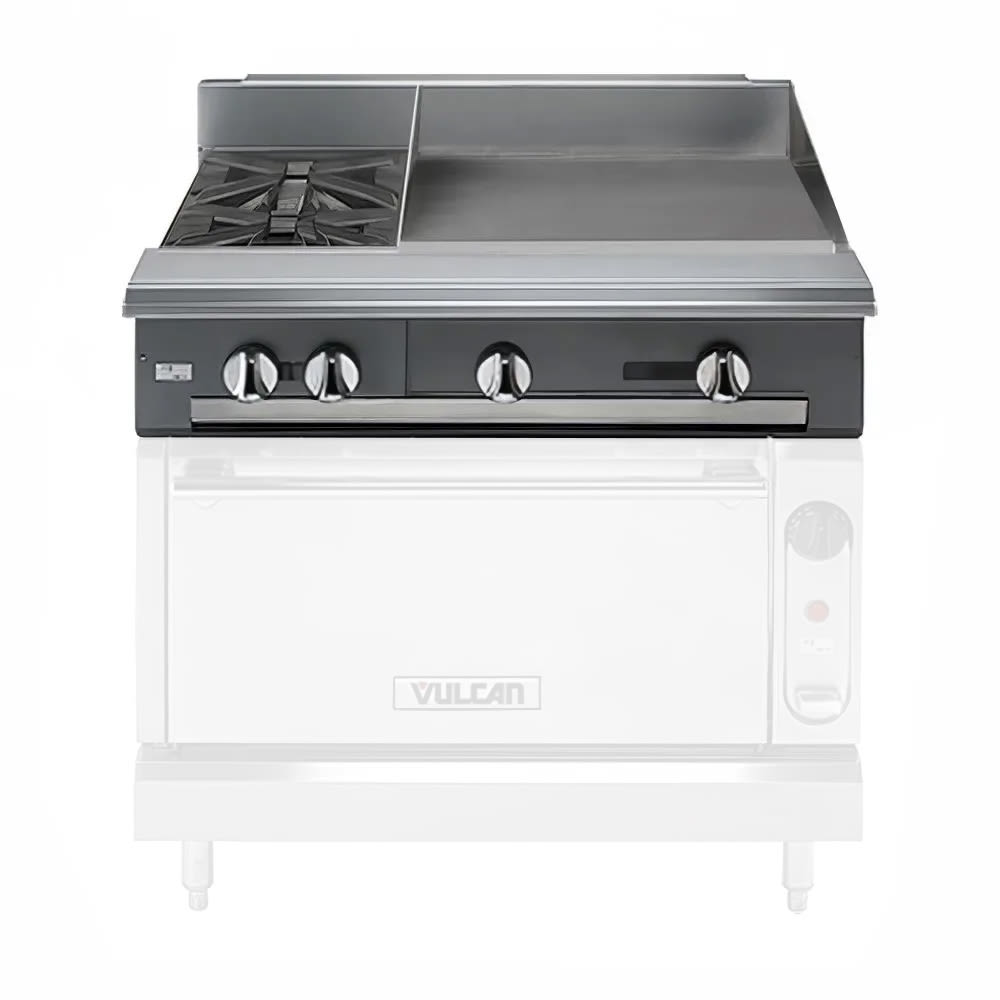

Vulcan V2BG24 Description
The Vulcan V2BG24 V-series heavy-duty gas range's front, top ledge, burner box, base, stub back, and sides are constructed of durable, corrosion-resistant stainless steel. For versatility, it features a dual-range top with two open cast burners and two griddle burners, each of which have independent pilots and dials. To simplify cleaning, the cast iron grates are removable and the 4-inch stub riser and crumb tray are constructed of rust-resistant stainless steel. Ideal for pan-frying, boiling, and grilling, this unit has an 11-inch by 17-inch front grate and a 14-inch by 17-inch rear grate alongside a manual, ground steel griddle plate measuring 24 inches long by 3⁄4 of an inch thick.
For adaptability, the Vulcan V2BG24C range has a modular base that can accommodate an appropriately sized cabinet, oven, or refrigerator after installation. To level the unit on uneven flooring, it's mounted on 4-inch legs with flanged feet, and because it operates using LP gas, it requires a 1⁄4-inch-diameter front gas manifold and 11⁄4-inch rear gas connection. This unit measures 36 inches wide by 417/8 inches deep by 401⁄2 inches high overall.
Product Details
- Part of the V series
- Stainless steel front, front top ledge, base, sides, burner box, and stub back
- (2) 35,000 BTU cast burners with lift-off heads
- (2) 30,000 BTU griddle burners
- Individual burner pilots and controls
- Heavy-duty cast grates
- Stainless steel extra-deep crumb tray
- 4-in. stainless steel stub riser
- 11-in. x 17-in. front grate
- 14-in. x 17-in. rear plate
- 24-in. manual ground steel griddle with 3⁄4-in.-thick plate
- Modular base with 4-in. legs and flanged feet
Dimensions & Utilities
- Overall: 36 in. W x 417/8 in. D x 401⁄2 in. H
- Powered by LP gas
- 1⁄4-in.-diameter front gas manifold
- 11⁄4-in.-diameter rear gas connection
- 130,000 BTU
Product Features
From The Manufacturer
V Series Heavy Duty Range, gas, 36", modular, (2) 35,000 BTU open burners, (1) 24" griddle, stainless steel front, front top ledge, sides, base, burner box & stub back, 4" flanged feet, 130,000 BTU, CSA Flame, CSA Star, NSF
*Image may not depict product color, inclusions or accessories.
Vulcan V2BG24 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Vulcan |
| Application | Heavy Duty |
| Base | Modular |
| Total BTU | 130000 |
| BTU / Burner | 35000 |
| Depth (in) | 41.87 |
| Gas Type | LP |
| Heat | Gas |
| Height (in) | 40.5 |
| Number of Ovens | No Oven |
| Range Configuration | Burners/Griddle |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 36 |
| Series | V Series |
| Plate Thickness (in) | 3/4 inch |
| Burner Type(s) | Open |
| Rating | Best |
| Product | Gas Ranges |
| Product Type | Cooking Equipment |
| Installation Type | Freestanding |
| Burner Style | Grates |
| Number of Burners | 2 |
| Griddle Width (in) | 24 |
| Vent | Stub Back |
| Burner Configuration | Standard |
| Weight | 367.00 |
