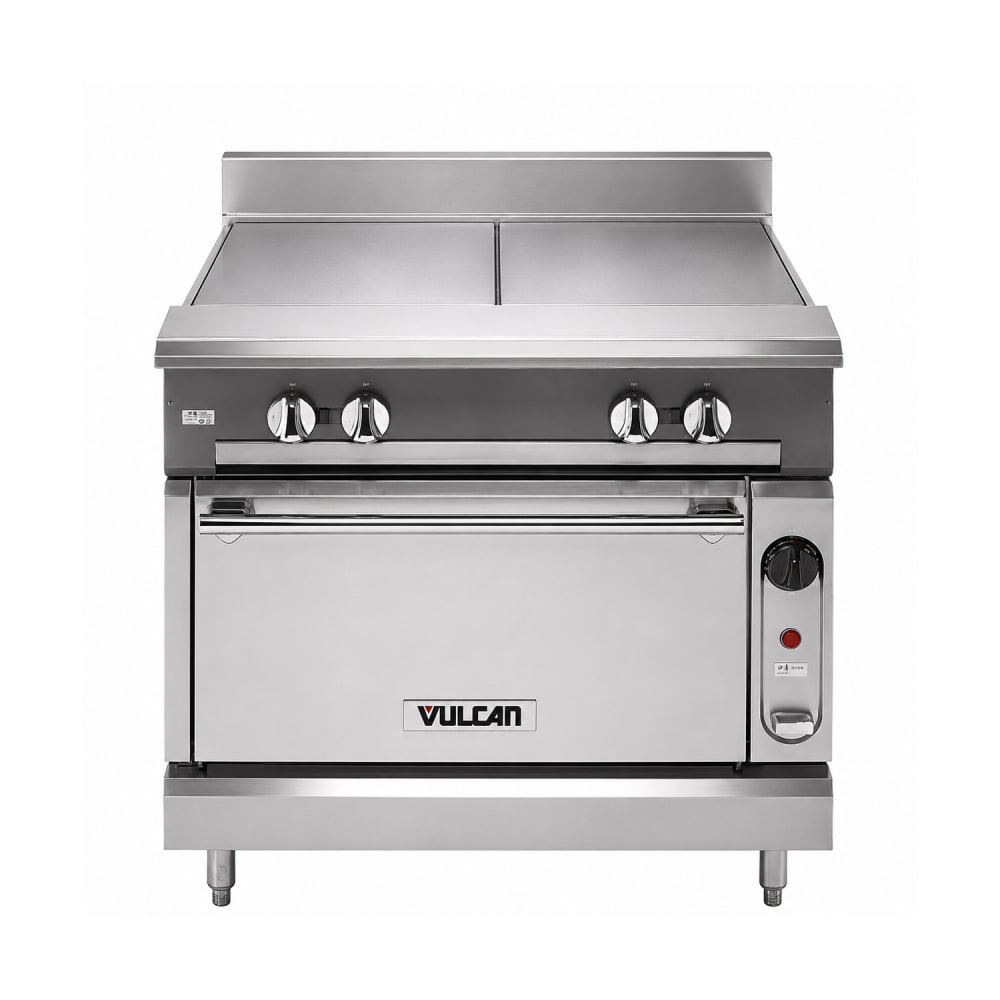

Vulcan V236HS 36" Gas Range w/ (2) Hot Tops & Standard Oven, Natural Gas
Typically ships in 4 - 6 weeks
Free Shipping Item
$14,092.00 /Each
Low price guarantee - call us!
Selected Gas Type: Natural Gas
Liquid Propane
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Attention: Order by 06-01-2025 to save before the price increases!
Vulcan V236HS Description

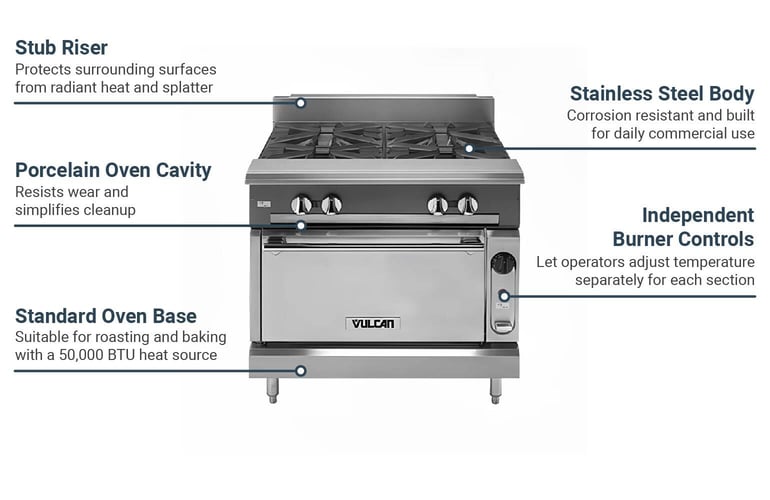

Built with two hot top sections, the Vulcan V236HS 36-inch gas range distributes surface heat through separate 30,000 BTU burners beneath heavy-duty cast iron plates. These hot tops retain and spread heat evenly across a 3⁄4-inch ground steel plate—ideal for simmering and holding food items. Each burner is controlled independently with its own front-mounted pilot and knob for flexible temperature management during service.
Paired with the cooktop, the Vulcan V236HS range features a standard oven powered by a 50,000 BTU burner, fitted with a porcelain-coated cavity and one oven rack that can be adjusted to three different postions. This freestanding unit is constructed of stainless steel on the front, top ledge, sides, base, burner box, and stub back for corrosion resistance. A 4-inch stub riser protects the wall behind the range, while 6-inch adjustable legs help level the unit. A 1⁄4-inch front gas manifold connects to a capped rear outlet to accommodate natural gas installations.
Product Details
- Part of the V Series
- Stainless steel exterior
- Includes 2 hot top sections
- Cast iron hot tops
- 3⁄4-in. thick ground steel plate
- 2 burners rated at 30,000 BTU
- Standard oven base
- 50,000 BTU oven burner
- 3 rack positions with 1 oven rack included
- Porcelain-coated oven interior
- Each burner has an individual pilot and control
- 1⁄4-in.-dia. front gas manifold
- Capped rear gas outlet
- 4-in. stainless steel stub riser
- Mounted on 6-in. adjustable stainless steel legs
Dimensions & Utilities
- 36 in. W x 417⁄8 in. D x 401⁄2 in. H
- Powered by natural gas
- 110,000 total BTU
Product Features
*Free shipping on Vulcan V236HS within the 48 contiguous states.
From The Manufacturer
V Series Heavy Duty Range, gas, 36", (2) hot tops, standard oven, includes (1) rack, stainless steel front, front top ledge, sides, base, burner box & stub back, 6" adjustable legs, 110,000 BTU, CSA, NSF
*Image may not depict product color, inclusions or accessories.
1-year Limited Parts & Labor
Vulcan V236HS Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Vulcan |
| Application | Heavy Duty |
| Base | Standard Oven |
| BTU / Burner | 30000 |
| Burner Configuration | Standard |
| Burner Style | None |
| Burner Type(s) | None |
| Depth (in) | 41.88 |
| Gas Type | NG |
| Heat | Gas |
| Height (in) | 36 |
| Installation Type | Freestanding |
| Number of Burners | None |
| Number of Ovens | Single |
| Product | Gas Ranges |
| Product Type | Cooking Equipment |
| Rack Positions per Standard Oven | 3 |
| Racks per Standard Oven | 1 |
| Range Configuration | Hot Top |
| Rating | Best |
| Series | V Series |
| Total BTU | 110000 |
| Vent | Stub Back |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 36 |
| Weight | 615.00 |
Residential Users: This unit is not to be installed or operated in a residential or other non-commercial setting. Check local codes to ensure your foodservice kitchen is properly equipped for this piece. Use in an improper setting will void the warranty and the manufacturer will not provide parts or labor coverage for damage, failure, or other issues with the product. While this product may be covered by a manufacturer's warranty, vendor assumes no liability for product failure or any damages/injuries.
