Vulcan started producing equipment in Louisville Ky., more than 150 years ago. Today, the brand produces state-of-the-art cooking appliances, including fryers, ovens, and everything in between. The brand is owned by Illinois Tool Works, a global manufacturing leader.

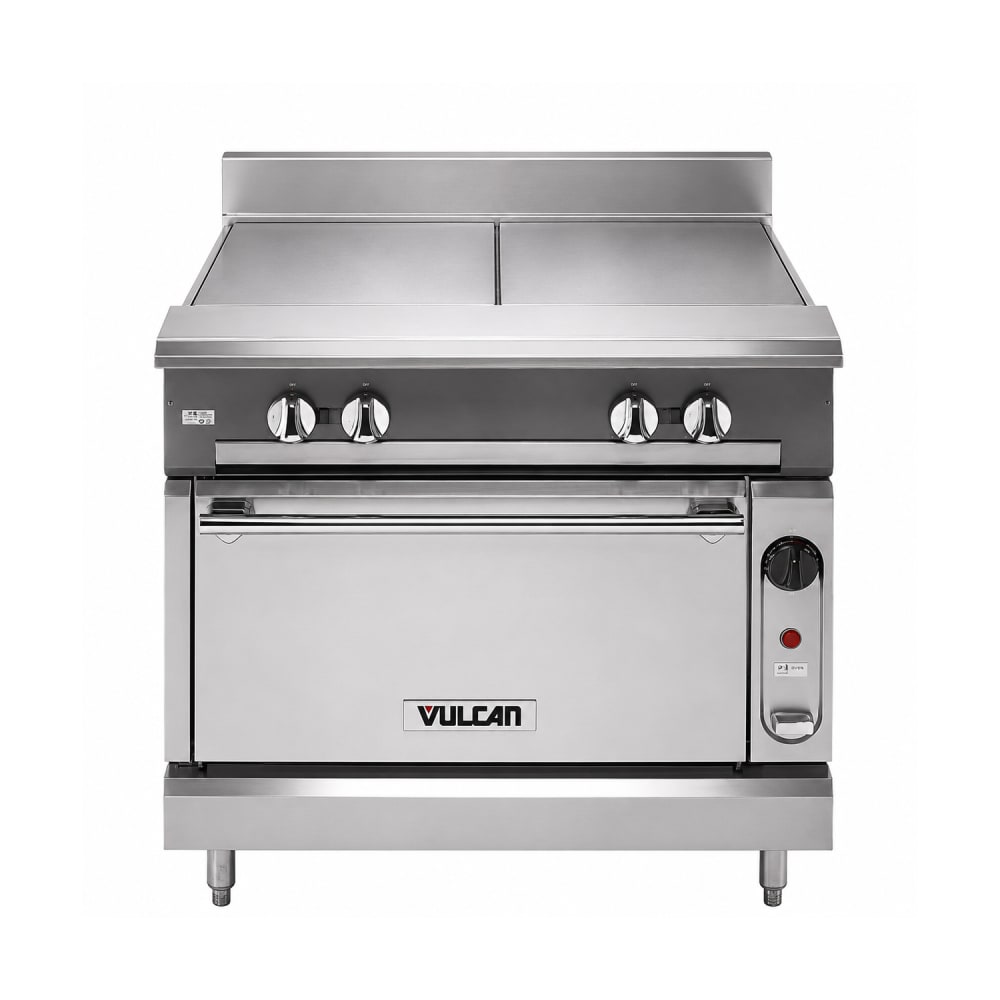

Vulcan V236HS 36" Gas Range w/ (2) Hot Tops & Standard Oven, Liquid Propane
Typically ships in 4 - 6 weeks
Free Shipping Item
$14,092.00 /Each
Low price guarantee - call us!
Selected Gas Type: Liquid Propane
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Attention: Order by 06-01-2025 to save before the price increases!
Vulcan V236HS Description
Designed with a standard oven base, the Vulcan V236HS 36-inch gas range includes three rack positions and one oven rack inside a porcelain-coated cavity powered by a 50,000 BTU burner. This lower section is suitable for roasting, baking, or holding food in commercial kitchens. Above the oven, two hot top sections provide even surface heat using separate 30,000 BTU burners. Each hot top is built with heavy-duty cast iron plates and supported by a 3⁄4-inch-thick ground steel plate to help maintain consistent thermal transfer during extended use.
Built for durability and stability, the Vulcan V236HS gas range stands on 6-inch adjustable stainless steel legs and includes a 4-inch stub riser to protect the wall behind it from heat and splatter. The unit's front, top ledge, sides, base, burner box, and stub back are all constructed of stainless steel for corrosion resistance in heavy-duty environments. Burner operation is managed through individual front-mounted pilots and controls. Fuel is delivered through a 1⁄4-inch front gas manifold, with a capped rear gas connection for flexible installation using liquid propane.
Product Details
- Part of the V Series
- Stainless steel exterior
- Includes 2 hot top sections
- Cast iron hot tops
- 3⁄4-in. thick ground steel plate
- (2) burners at 30,000 BTU each
- Standard oven base
- 50,000 BTU oven burner
- 3 oven rack positions with 1 rack included
- Porcelain-coated oven interior
- Each burner has an individual pilot and control
- 1⁄4-in. dia. front gas manifold
- Rear gas outlet capped at factory
- 4-in. stainless steel stub riser
- Mounted on 6-in. adjustable stainless steel legs
Dimensions & Utilities
- 36 in. W x 417⁄8 in. D x 401⁄2 in. H
- Powered by LP gas
- 110,000 total BTU
Product Features
*Free shipping on Vulcan V236HS within the 48 contiguous states.
From The Manufacturer
V Series Heavy Duty Range, gas, 36", (2) hot tops, standard oven, includes (1) rack, stainless steel front, front top ledge, sides, base, burner box & stub back, 6" adjustable legs, 110,000 BTU, CSA, NSF
*Image may not depict product color, inclusions or accessories.
1-year Limited Parts & Labor
Vulcan V236HS Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Vulcan |
| Application | Heavy Duty |
| Base | Standard Oven |
| BTU / Burner | 30000 |
| Burner Configuration | Standard |
| Burner Style | None |
| Burner Type(s) | None |
| Depth (in) | 41.88 |
| Gas Type | LP |
| Heat | Gas |
| Height (in) | 36 |
| Installation Type | Freestanding |
| Number of Burners | None |
| Number of Ovens | Single |
| Product | Gas Ranges |
| Product Type | Cooking Equipment |
| Rack Positions per Standard Oven | 3 |
| Racks per Standard Oven | 1 |
| Range Configuration | Hot Top |
| Rating | Best |
| Series | V Series |
| Total BTU | 110000 |
| Vent | Stub Back |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 36 |
| Weight | 615.00 |
Residential Users: This unit is not to be installed or operated in a residential or other non-commercial setting. Check local codes to ensure your foodservice kitchen is properly equipped for this piece. Use in an improper setting will void the warranty and the manufacturer will not provide parts or labor coverage for damage, failure, or other issues with the product. While this product may be covered by a manufacturer's warranty, vendor assumes no liability for product failure or any damages/injuries.
WARNING: Important Prop 65 information for California residents.
