Vulcan V236H 36" Gas Range Top w/ (2) Hot Tops - Modular, Natural Gas
Typically ships in 4 - 6 weeks
Free Shipping Item
$8,944.00 /Each
Low price guarantee - call us!
Selected Gas Type: Natural Gas
Liquid Propane
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Attention: Order by 06-01-2025 to save before the price increases!
Vulcan V236H Description

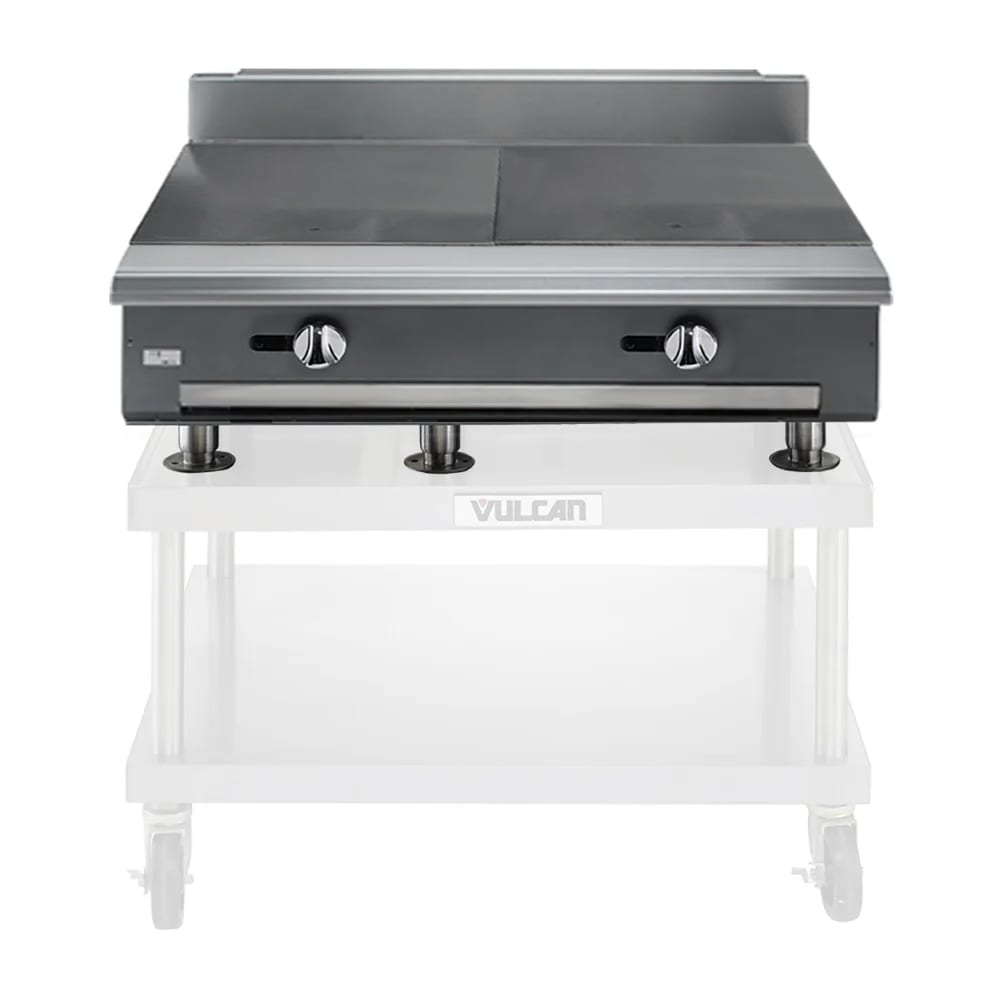

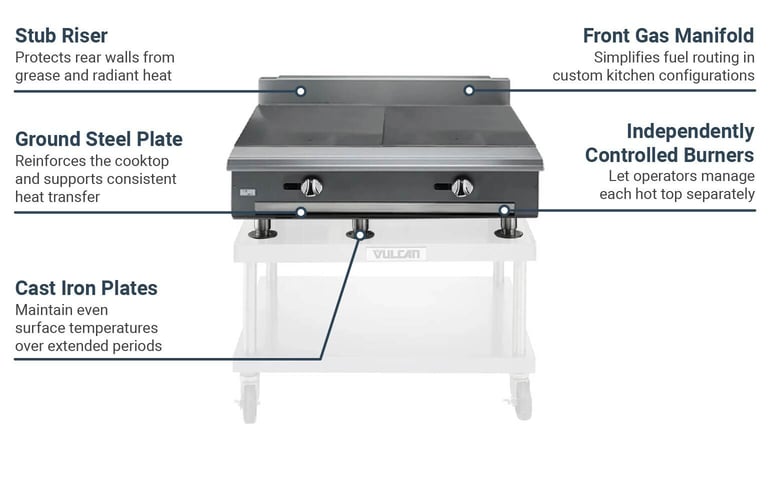

Outfitted with a pair of individually controlled hot top sections, the Vulcan V236H 36-inch gas range top delivers a combined 60,000 BTU across its heavy-duty cast iron plates. Each section uses a 30,000 BTU burner to maintain steady surface temperatures, while a 3⁄4-inch-thick ground steel plate beneath the surface supports consistent thermal transfer. The burners are managed by separate front-mounted controls and pilot systems, giving operators the ability to independently manage multiple cooking zones at once.
Designed for modular kitchen setups, the Vulcan V236H range top stands on 4-inch flanged feet and is constructed with stainless steel throughout the front, top ledge, sides, base, burner box, and stub back. Its 4-inch stub riser protects nearby walls from heat and debris, and gas flows through a 1⁄4-inch front manifold with a capped rear outlet for flexible hookup. With a 36-inch width, this V Series unit integrates into custom configurations where full-size bases are not required.
Product Details
- Part of the V Series
- Stainless steel exterior
- Includes 2 hot top sections
- Cast iron plates on hot tops
- 3⁄4-in. thick ground steel plate
- 2 burners rated at 30,000 BTU each
- Each burner has its own pilot and control
- 1⁄4-in. front gas manifold
- Capped rear gas connection
- 4-in. stub riser at rear
- 4-in. flanged feet for modular setup
Dimensions & Utilities
- 36 in. W x 417⁄8 in. D x 401⁄2 in. H
- Powered by natural gas
- 60,000 total BTU
Product Features
*Free shipping on Vulcan V236H within the 48 contiguous states.
From The Manufacturer
V Series Heavy Duty Range, gas, 36", modular, (2) hot tops, stainless steel front, front top ledge, sides, base, burner box & stub back, 4" flanged feet, 60,000 BTU, CSA, NSF
*Image may not depict product color, inclusions or accessories.
1-year Limited Parts & Labor
Vulcan V236H Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Vulcan |
| Application | Heavy Duty |
| Base | Modular |
| BTU / Burner | 30000 |
| Burner Configuration | Standard |
| Burner Style | None |
| Burner Type(s) | None |
| Depth (in) | 41.88 |
| Gas Type | NG |
| Heat | Gas |
| Height (in) | 36 |
| Installation Type | Freestanding |
| Number of Burners | None |
| Number of Ovens | No Oven |
| Product | Gas Ranges |
| Product Type | Cooking Equipment |
| Range Configuration | Hot Top |
| Rating | Best |
| Series | V Series |
| Total BTU | 60000 |
| Vent | Stub Back |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 36 |
| Weight | 280.00 |
Residential Users: This unit is not to be installed or operated in a residential or other non-commercial setting. Check local codes to ensure your foodservice kitchen is properly equipped for this piece. Use in an improper setting will void the warranty and the manufacturer will not provide parts or labor coverage for damage, failure, or other issues with the product. While this product may be covered by a manufacturer's warranty, vendor assumes no liability for product failure or any damages/injuries.
