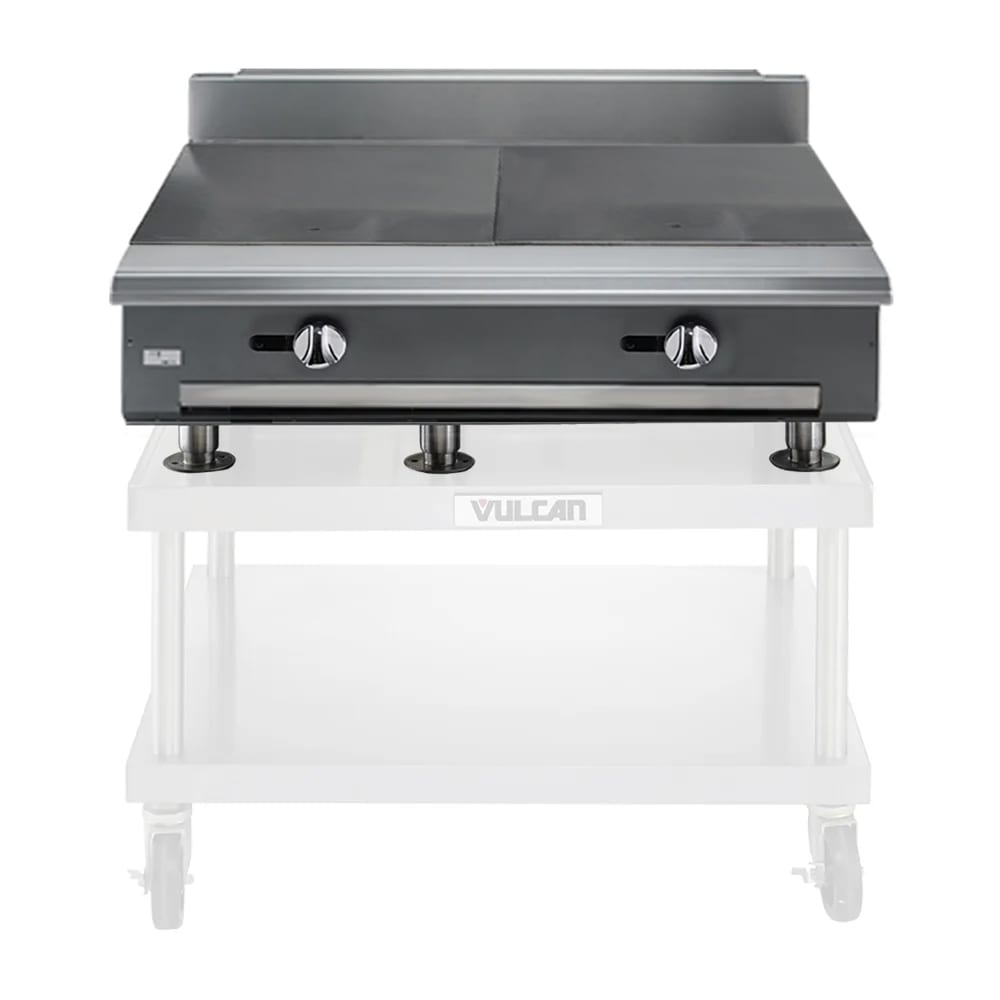

Vulcan V236H 36" Gas Range Top w/ 2 Hot Tops - Modular, Liquid Propane
Retail Price: $22,105.00
$7,552.23 /Each
Selected Gas Type: Liquid Propane
Attention: Order by 12-01-2026 to save before the price increases!
Vulcan V236H Description
Outfitted with a pair of full-width hot tops, the Vulcan V236H 36-inch gas range top is designed for modular installations where flexible layout is essential. Each section is powered by a 30,000 BTU burner, delivering steady heat beneath heavy-duty cast iron plates. These surfaces retain and distribute heat efficiently for continuous-use applications. Operators can adjust each burner independently using front-mounted pilots and controls. The tops are supported by a 3⁄4-inch-thick ground steel plate that enhances strength and heat consistency.
The Vulcan V236H V series range is constructed of stainless steel throughout the front, top ledge, base, sides, burner box, and stub back to ensure corrosion resistance in demanding environments. A 4-inch stub riser protects the wall behind the unit, and 4-inch flanged feet keep the range stable when mounted on a countertop or stand. Fuel is delivered through a 1⁄4-inch-diameter front manifold, and a capped rear connection supports different utility configurations.
- Part of the V Series
- Stainless steel exterior
- Includes (2) hot top sections
- Cast iron hot top plates
- 3⁄4-in.-thick ground steel plate
- Equipped with (2) 30,000 BTU burners
- Individual pilots and controls
- Front gas manifold measuring 1⁄4 in. dia.
- Rear gas connection capped at factory
- 4-in. stub riser on rear
- Mounted on 4-in. flanged feet
- 36 in. W x 41 7⁄8 in. D x 40 1⁄2 in. H
- Powered by liquid propane
- 60,000 total BTU
*Image may not depict product color, inclusions or accessories.
*Free shipping on Vulcan V236H within the 48 contiguous states.
- Comparing Commercial Range Configurations
- Learn How to Choose the Right Commercial Range
- Base Options for Commercial Ranges
- What to Know Before Buying a Commercial Gas Range
- Cleaning Your Commercial Hood
- Gas vs Electric Ranges
- Natural Gas vs Propane
- Range Cleaning and Maintenance Tips
- What is a Commercial Range?
- Choosing the Right Range Configuration
- Commercial Range Repair and Troubleshooting
From The Manufacturer
Vulcan V236H Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Vulcan |
| Application | Heavy Duty |
| Base | Modular |
| BTU / Burner | 30000 |
| Burner Configuration | Standard |
| Burner Style | None |
| Burner Type(s) | None |
| Depth (in) | 41.88 |
| Gas Type | LP |
| Heat | Gas |
| Height (in) | 36 |
| Installation Type | Freestanding |
| Number of Burners | None |
| Number of Ovens | No Oven |
| Product | Gas Ranges |
| Product Type | Cooking Equipment |
| Range Configuration | Hot Top |
| Rating | Best |
| Series | V Series |
| Total BTU | 60000 |
| Vent | Stub Back |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 36 |
| Weight | 280.00 |
