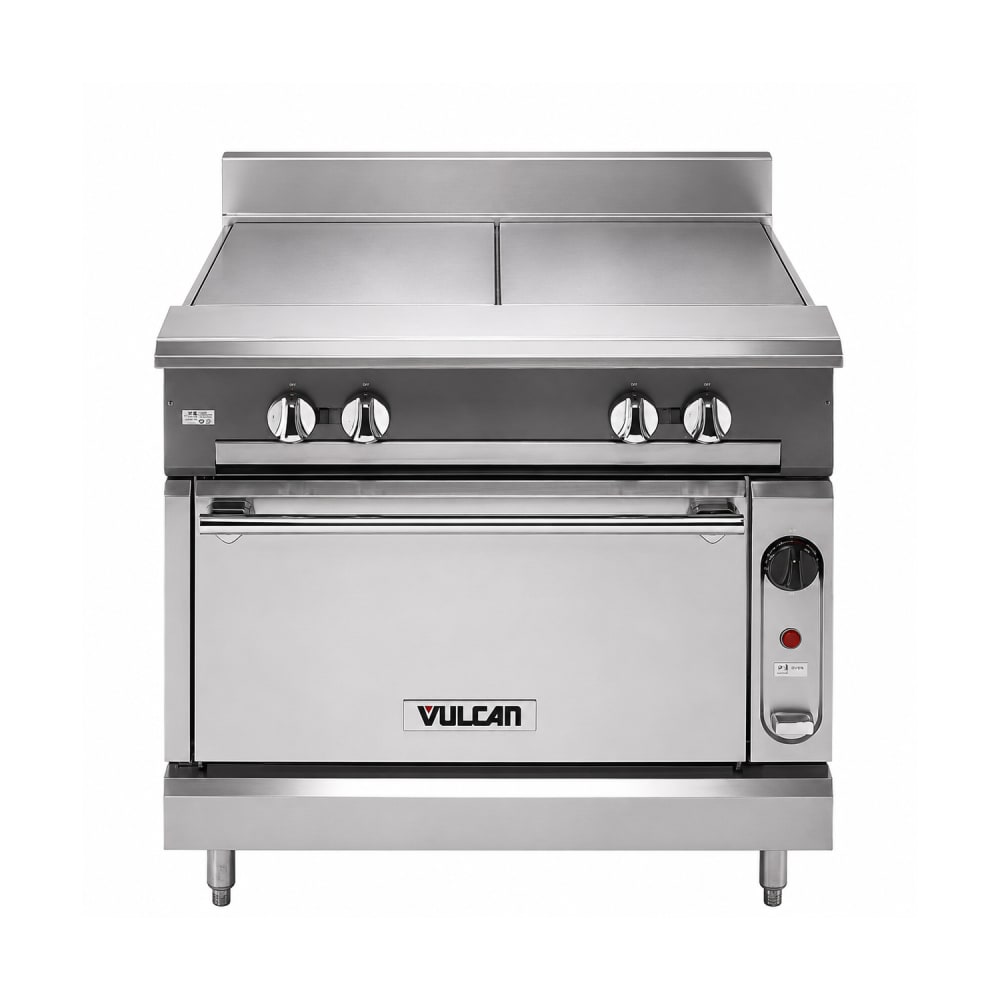

Vulcan V236HC 36" Gas Range w/ 2 Hot Tops & Convection Oven, Natural Gas
Retail Price: $45,950.00
$15,380.46 /Each
Selected Gas Type: Natural Gas
Attention: Order by 12-01-2026 to save before the price increases!
Vulcan V236HC Description
Combining a convection oven base with dual hot tops, the Vulcan V236HC 36-inch gas range supports both surface cooking and efficient baking in one unit. The two 30,000 BTU hot top burners sit beneath heavy-duty cast iron plates that retain and distribute heat across a flat surface. Each burner is equipped with its own pilot and control system for independent adjustment. A 3⁄4-inch-thick ground steel plate under the tops offers structural reinforcement and consistent heating during extended use. The oven burner delivers 32,000 BTU to a porcelain-coated cavity with three rack positions and two included racks.
Built for durability, the Vulcan V236HC range features a corrosion-resistant stainless steel body, including the front, sides, base, top ledge, burner box, and stub back. A 4-inch stainless steel stub riser protects the rear wall from grease and radiant heat, and 6-inch adjustable stainless steel legs provide a stable footprint on uneven surfaces. Natural gas flows through a 1⁄4-inch-diameter front manifold, while the capped rear connection gives flexibility during installation. This model is part of the high-performance V Series for heavy-duty commercial applications.
- Part of the V Series
- Manufactured of stainless steel
- 2 hot top sections
- Heavy-duty cast hot top plates
- 3⁄4-in. ground steel griddle plate
- (2) 30,000 BTU hot top burners
- Convection oven base
- 32,000 BTU convection oven burner
- 3 rack positions with 2 oven racks included
- Porcelain-coated oven cavity
- Individual pilots and burner controls
- 1⁄4-in.-dia. front gas manifold
- Capped rear gas connection
- 4-in. stainless steel stub riser
- Mounted on 6-in. adjustable stainless steel legs
- 36 in. W x 41 7⁄8 in. D x 40 1⁄2 in. H
- Powered by natural gas
- 92,000 total BTU
*Image may not depict product color, inclusions or accessories.
*Free shipping on Vulcan V236HC within the 48 contiguous states.
- Comparing Commercial Range Configurations
- Learn How to Choose the Right Commercial Range
- Base Options for Commercial Ranges
- What to Know Before Buying a Commercial Gas Range
- Cleaning Your Commercial Hood
- Gas vs Electric Ranges
- Natural Gas vs Propane
- Range Cleaning and Maintenance Tips
- What is a Commercial Range?
- Choosing the Right Range Configuration
- Commercial Range Repair and Troubleshooting
From The Manufacturer
Vulcan V236HC Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Vulcan |
| Application | Heavy Duty |
| Base | Convection Oven |
| BTU / Burner | 30000 |
| Burner Configuration | Standard |
| Burner Style | None |
| Burner Type(s) | None |
| Depth (in) | 41.88 |
| Gas Type | NG |
| Heat | Gas |
| Height (in) | 40.5 |
| Installation Type | Freestanding |
| Number of Burners | None |
| Number of Ovens | Single |
| Product | Gas Ranges |
| Product Type | Cooking Equipment |
| Rack Positions per Convection Oven | 3 |
| Racks per Convection Oven | 2 |
| Range Configuration | Hot Top |
| Rating | Best |
| Series | V Series |
| Total BTU | 92000 |
| Vent | Stub Back |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 36 |
| Weight | 665.00 |
