Vulcan started producing equipment in Louisville Ky., more than 150 years ago. Today, the brand produces state-of-the-art cooking appliances, including fryers, ovens, and everything in between. The brand is owned by Illinois Tool Works, a global manufacturing leader.

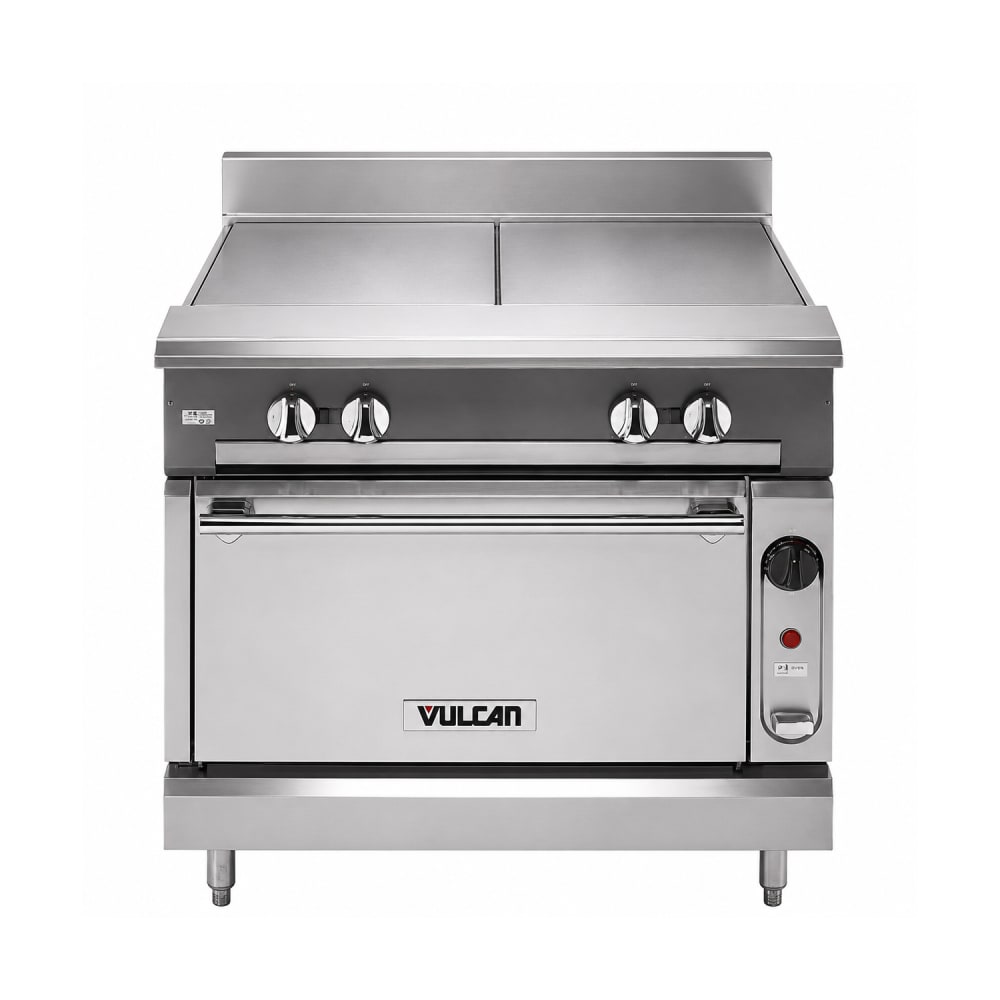

Vulcan V236HC 36" Gas Range w/ (2) Hot Tops & Convection Oven, Liquid Propane
Typically ships in 4 - 6 weeks
Free Shipping Item
$18,592.00 /Each
Low price guarantee - call us!
Selected Gas Type: Liquid Propane
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Attention: Order by 06-01-2025 to save before the price increases!
Vulcan V236HC Description

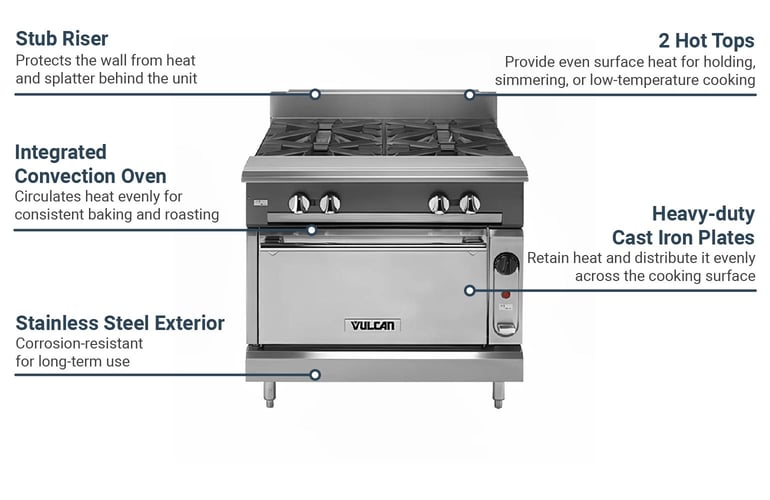

Designed with an integrated convection oven, the Vulcan V236HC gas range combines two powerful hot tops with a high-efficiency oven base. The convection oven includes two racks and accommodates up to three rack positions inside a porcelain-coated cavity. Powered by a 32,000 BTU burner, the oven circulates heat evenly for consistent baking, roasting, or reheating results. For high-output cooklines, the oven base is paired with two full-width hot tops, each constructed of heavy-duty cast iron for maximum heat retention and distribution.
Constructed of stainless steel, the Vulcan V236HC gas range is built for durability in demanding kitchens. A 4-inch stub riser shields the wall behind the unit from heat and grease, and 6-inch adjustable stainless steel legs stabilize the unit on uneven floors. Each burner is operated independently via front-mounted pilot valves and controls for precision temperature management. A 1⁄4-inch-diameter front gas manifold supplies fuel to the unit, and a capped rear connection is included to support flexible installation.
Product Details
- Part of the V series
- Made of stainless steel
- 2 hot top sections
- Heavy-duty cast hot top plates
- 3⁄4-in. ground steel griddle plate
- (2) 30,000 BTU burners
- Convection oven base
- 3 rack positions with 2 oven racks included
- Porcelain-coated oven cavity
- Individual pilots and burner controls
- 1⁄4-in.-diameter front gas manifold
- Capped rear gas connection
- 4-in. stub riser
- Mounted on 6-in. adjustable legs
Dimensions & Utilities
- 36 in. W x 417⁄8 in. D x 401⁄2 in. H
- 92,000 total BTU
- Powered by LP gas
Product Features
*Free shipping on Vulcan V236HC within the 48 contiguous states.
From The Manufacturer
V Series Heavy Duty Range, gas, 36", (2) hot tops, convection oven, includes (2) racks, stainless steel front, front top ledge, sides, base, burner box & stub back, 6" adjustable legs, 92,000 BTU, CSA, NSF
*Image may not depict product color, inclusions or accessories.
1-year Limited Parts & Labor
Vulcan V236HC Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Vulcan |
| Application | Heavy Duty |
| Base | Convection Oven |
| BTU / Burner | 30000 |
| Burner Configuration | Standard |
| Burner Style | None |
| Burner Type(s) | None |
| Depth (in) | 41.88 |
| Gas Type | LP |
| Heat | Gas |
| Height (in) | 40.5 |
| Installation Type | Freestanding |
| Number of Burners | None |
| Number of Ovens | Single |
| Product | Gas Ranges |
| Product Type | Cooking Equipment |
| Rack Positions per Convection Oven | 3 |
| Racks per Convection Oven | 2 |
| Range Configuration | Hot Top |
| Rating | Best |
| Series | V Series |
| Total BTU | 92000 |
| Vent | Stub Back |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 36 |
| Weight | 665.00 |
Residential Users: This unit is not to be installed or operated in a residential or other non-commercial setting. Check local codes to ensure your foodservice kitchen is properly equipped for this piece. Use in an improper setting will void the warranty and the manufacturer will not provide parts or labor coverage for damage, failure, or other issues with the product. While this product may be covered by a manufacturer's warranty, vendor assumes no liability for product failure or any damages/injuries.
