Vulcan started producing equipment in Louisville Ky., more than 150 years ago. Today, the brand produces state-of-the-art cooking appliances, including fryers, ovens, and everything in between. The brand is owned by Illinois Tool Works, a global manufacturing leader.

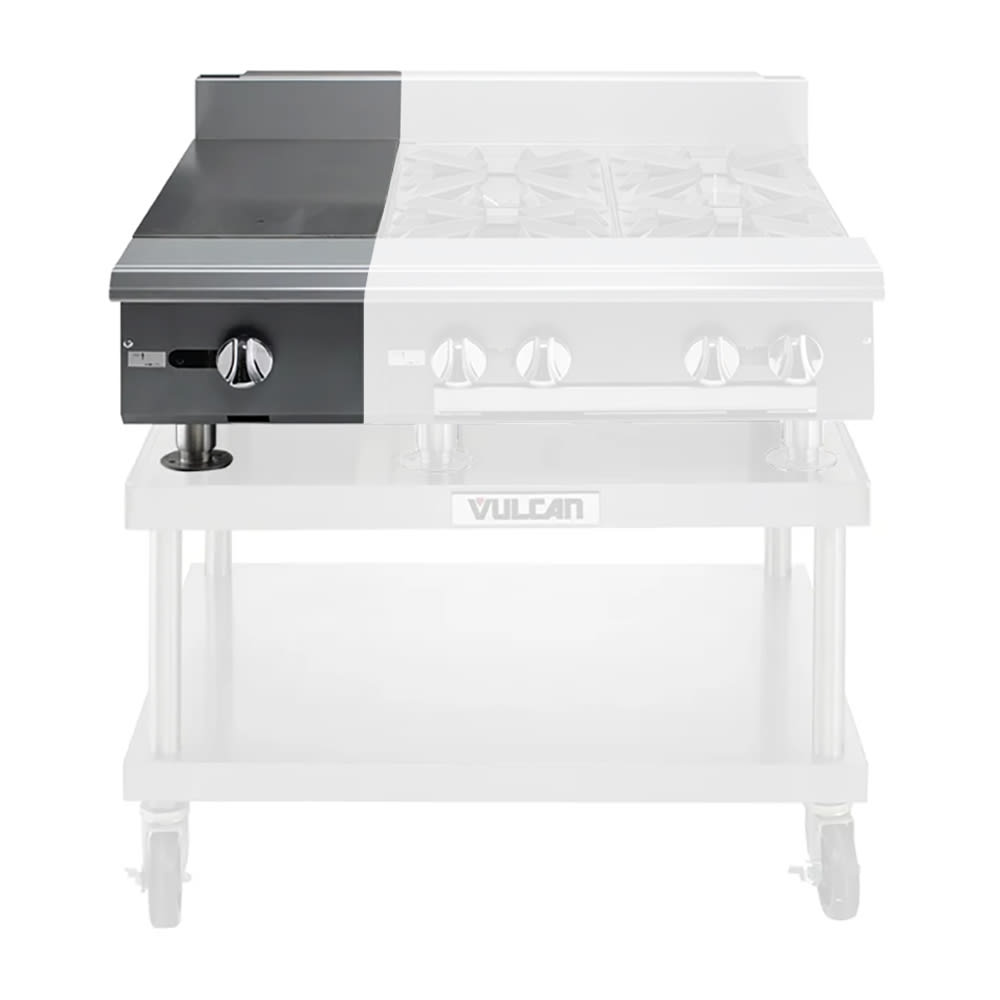

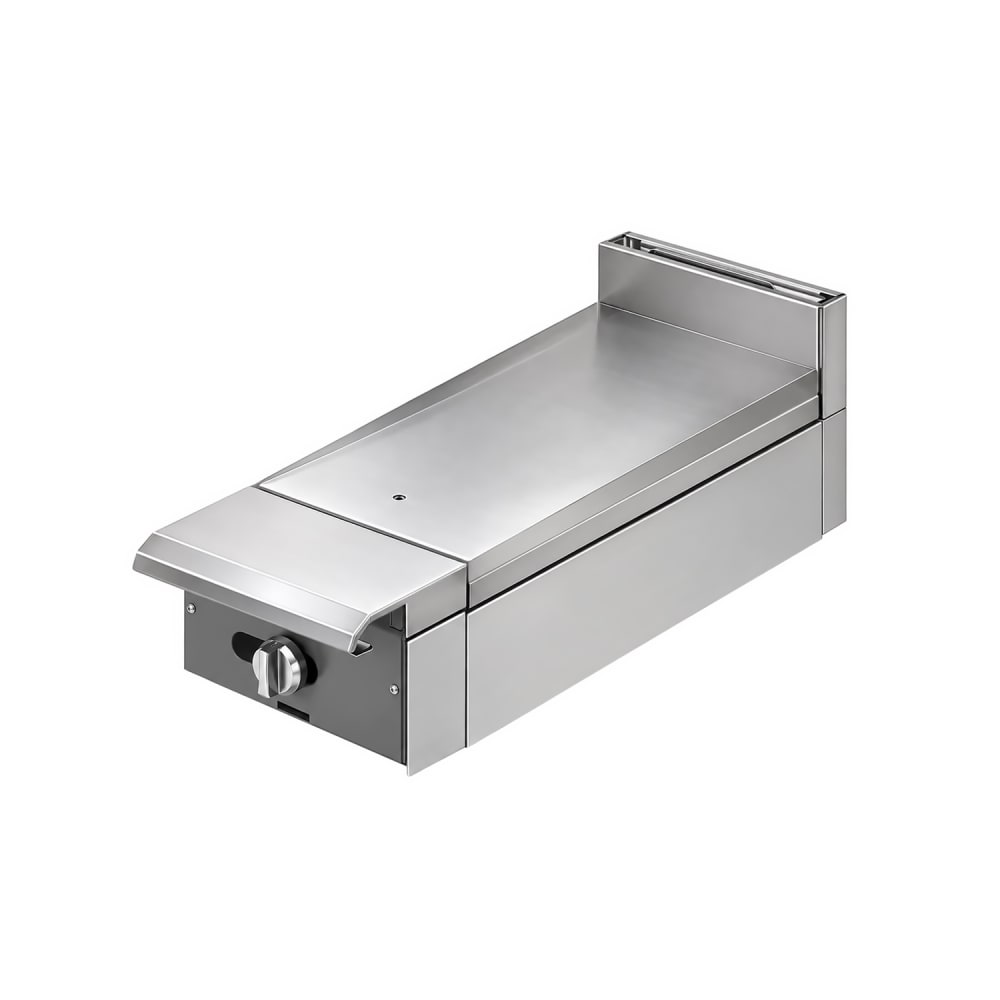

Vulcan V112H 12" Gas Range Top w/ (1) Hot Top - Modular, Natural Gas
Typically ships in 4 - 6 weeks
Free Shipping Item
$4,716.00 /Each
Low price guarantee - call us!
Selected Gas Type: Natural Gas
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Attention: Order by 06-01-2025 to save before the price increases!
Vulcan V112H Description
Suited to low-heat applications, the Vulcan V112H modular gas range top operates on natural gas and features a full hot top made from polished cast iron. Its 30,000 BTU burner delivers even surface heating, which is ideal for simmering sauces, holding food, or gentle warming. Flanged feet provide a sturdy, fixed base.
The Vulcan V112H 12-inch gas range top features a rugged modular frame and stainless steel surfaces for strength and durability. A single pilot and control valve help manage heat output precisely, and the cast iron top retains heat between uses. A 11⁄4-in. gas manifold at the front simplifies connection to your existing line.
Product Details

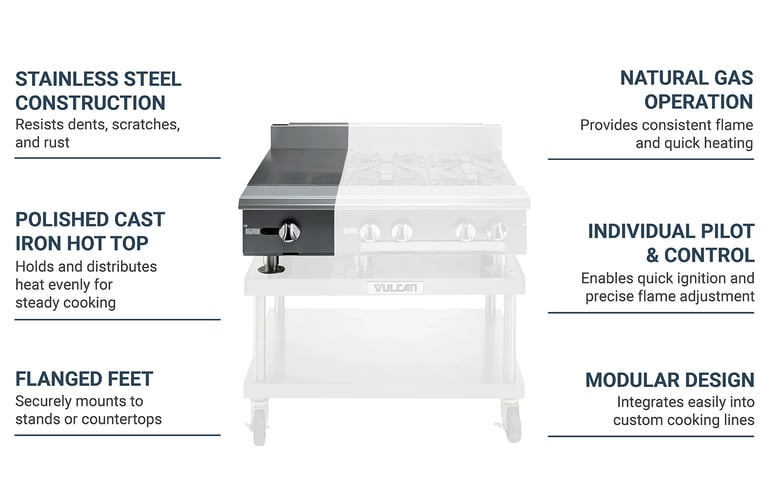

- V Series
- Stainless steel front, top ledge, sides, base, burner box, and stub back
- 12-in. full hot top with polished cast iron surface
- Individual pilot and burner control
- Heavy-duty top castings
- Modular base with 4-in. flanged feet
Dimensions & Utilities
- 12 in. W x 363⁄4 in. D x 401⁄2 in. H
- Natural gas
- 30,000 BTU/hr. input
- Front connection with 11⁄4-in. diameter gas manifold
Product Features
*Free shipping on Vulcan V112H within the 48 contiguous states.
From The Manufacturer
V Series Heavy Duty Range, gas, 12", (1) 30,000 BTU hot top, polished cast iron, modular frame, stainless steel front, front top ledge, sides, base, burner box & stub back, 4" flanged feet, CSA, NSF
*Image may not depict product color, inclusions or accessories.
1-year Limited Parts & Labor
Vulcan V112H Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Vulcan |
| Application | Heavy Duty |
| Base | Modular |
| BTU / Burner | 30000 |
| Burner Configuration | Standard |
| Burner Style | None |
| Burner Type(s) | None |
| Depth (in) | 36.75 |
| Gas Type | NG |
| Heat | Gas |
| Height (in) | 40.5 |
| Installation Type | Freestanding |
| Number of Burners | None |
| Number of Ovens | No Oven |
| Product | Gas Ranges |
| Product Type | Cooking Equipment |
| Range Configuration | Hot Top |
| Rating | Best |
| Series | V Series |
| Total BTU | 30000 |
| Vent | Stub Back |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 12 |
| Weight | 165.00 |
Residential Users: This unit is not to be installed or operated in a residential or other non-commercial setting. Check local codes to ensure your foodservice kitchen is properly equipped for this piece. Use in an improper setting will void the warranty and the manufacturer will not provide parts or labor coverage for damage, failure, or other issues with the product. While this product may be covered by a manufacturer's warranty, vendor assumes no liability for product failure or any damages/injuries.
WARNING: Important Prop 65 information for California residents.
