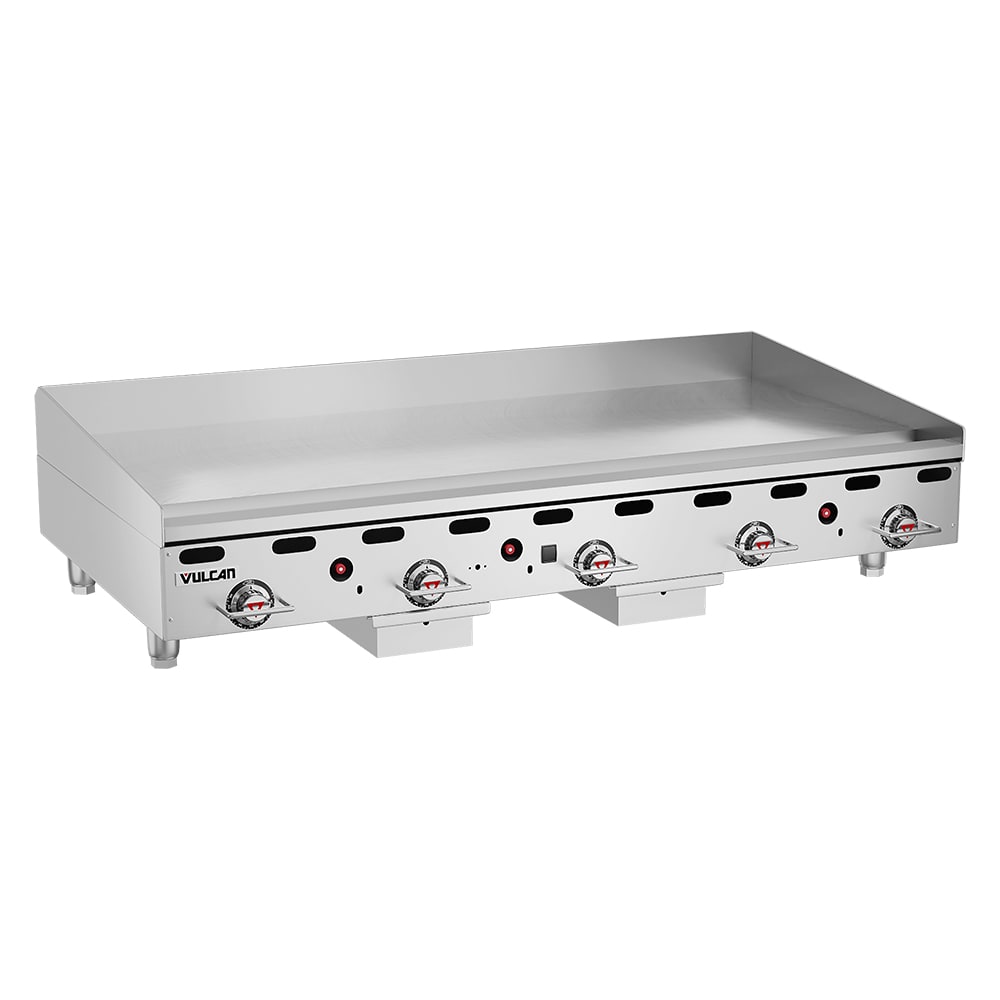

Vulcan MSA60 60" Gas Griddle - Thermostatic, 1" Steel Plate, NG

Image may not depict product color, inclusions or accessories.

KaTom #: 207-MSA60NG • MPN: MSA60 NG
Ships Free

Typically ships within 1 - 3 business days

(0 reviews)Write a Review
Price: $5,555.00

Selected Gas Type: Natural Gas

Image may not depict product color, inclusions or accessories.

Vulcan MSA60 Description

Vulcan

The Vulcan MSA60 griddle has a polished steel plate that is 1 inch thick to withstand regularly heating up and cooling down without warping. Each 12-inch section of plate uses one U-shaped burner with its own thermostat to cook at different temperatures at once. These thermostats have a range of 200 to 550 degrees Fahrenheit and include chrome guards for added protection. If the flame ever goes out, gas is shut off by the pilot safety valves to prevent dangerous gas leaks. A pressure regulator and a 34-inch connector are included to facilitate gas line hook ups.

The Vulcan MSA60 griddle has stainless steel sides, front, and front top ledge to provide durability and ease cleanup. Its stainless and aluminized steel frame is fully welded for long-lasting strength. Burns are prevented by the bullnose front, which is designed to stay cool to the touch. The grease gutter is wide enough to accommodate most spatulas for a quick clean. Grease is kept from migrating by the fully welded chute and is kept in the 6-quart drawers for disposal during cleanup.

Product Details

  • Heated by natural gas
  • Griddle plate is 1 in. thick to hold up against constant heating up and cooling down
  • Polished steel plate evenly distributes heat
  • 1 U-shaped burner heats every 12-in. section of plate
  • Temperature range: 200-550 degrees F for each burner with a snap action thermostat
  • Chrome thermostat guards protect against damage
  • Ignites manually for optimal control of gas use
  • Pilot safety valves turn off the gas if the flame goes out
  • Stainless steel, tapered side splashes and backsplash keep food and grease on the plate
  • 312 in. W grease gutter can accommodate a spatula for cleanup
  • Fully welded grease chute resists migration
  • (2) 6-qt. drawers collect and ease disposal of grease
  • Stainless steel sides, front, and front top ledge resist damage and facilitate cleaning
  • Heavy-duty frame is constructed of fully welded aluminized steel and stainless steel
  • Front stays cool to the touch with its bullnose design
  • Bottom shields deflect heat for improved comfort and safety
  • 4-in. legs adjust for installation on non-level surfaces
  • Includes gas pressure regulator and 34-in. rear gas connection
  • 135,000 BTU
  • Overall dimensions: 60 in. W x 33 in. D x 1514 in. H
  • CSA listed; NSF certified

For more information on commercial griddles, check out our griddle buyers' guide

Heavy Duty Griddle, countertop, natural gas, 60" W x 24" D cooking surface, 1" thick polished steel griddle plate, embedded mechanical snap action thermostat every 12", millivolt pilot safety, manual ignition, low profile, stainless steel front, sides, front grease trough, 4" back & tapered side splashes, 4" adjustable legs, 135,000 BTU, CSA, NSF

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Warning Small Important Prop 65 information for California residents.

Vulcan MSA60 Specifications

PDF Spec Sheet
Manufacturer Vulcan
Control Thermostatic
Application Heavy Duty
Plate Material Steel
Heat Gas
Gas Type NG
BTU / Burner 27000
Overall Width (in) 60
Cooking Area Depth (in) 24
Plate Thickness (in) 1
Control Spacing (in) 12
Specialty Options Snap Action
Specialty Options Front Grease Trough
Warranty 1 year limited warranty
Overall Depth (in) 31.50
Product Type Countertop Cooking Equipment
Product Griddle
Weight 655.00
Vulcan MSA60 Certifications
  • NSF
