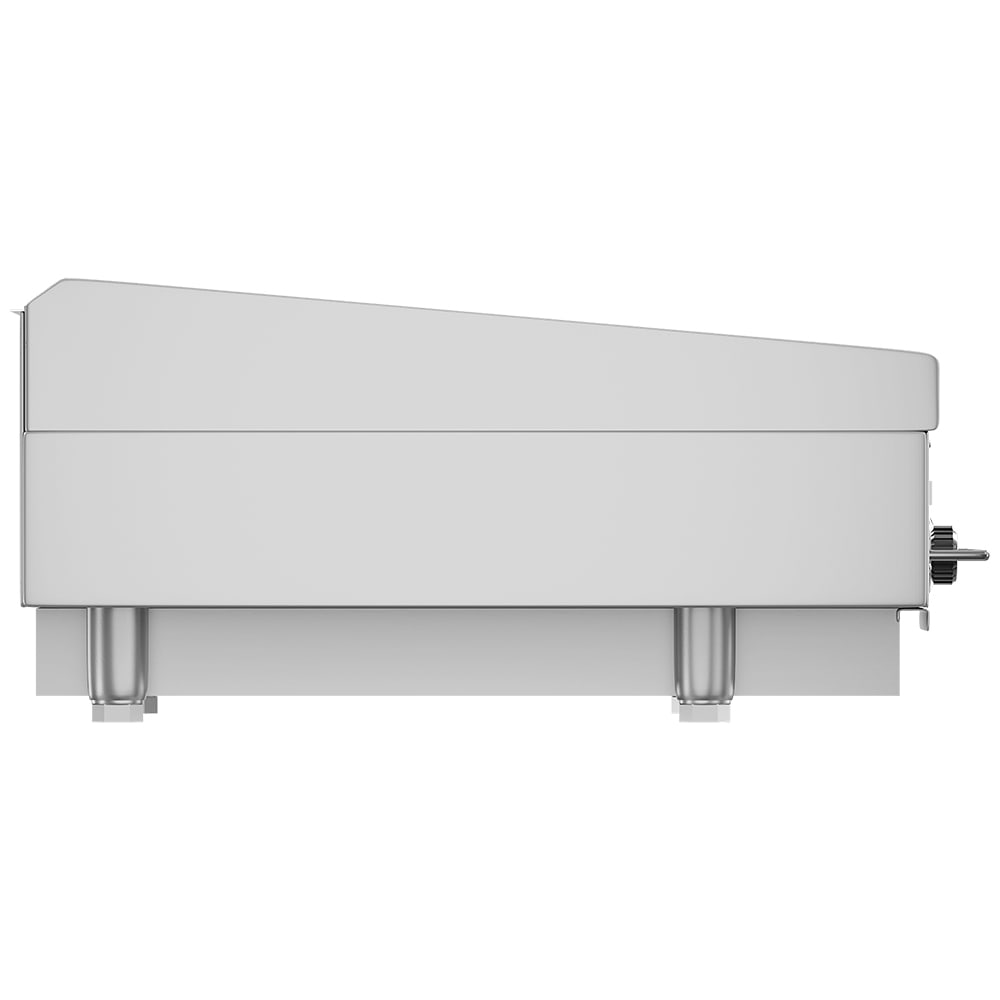

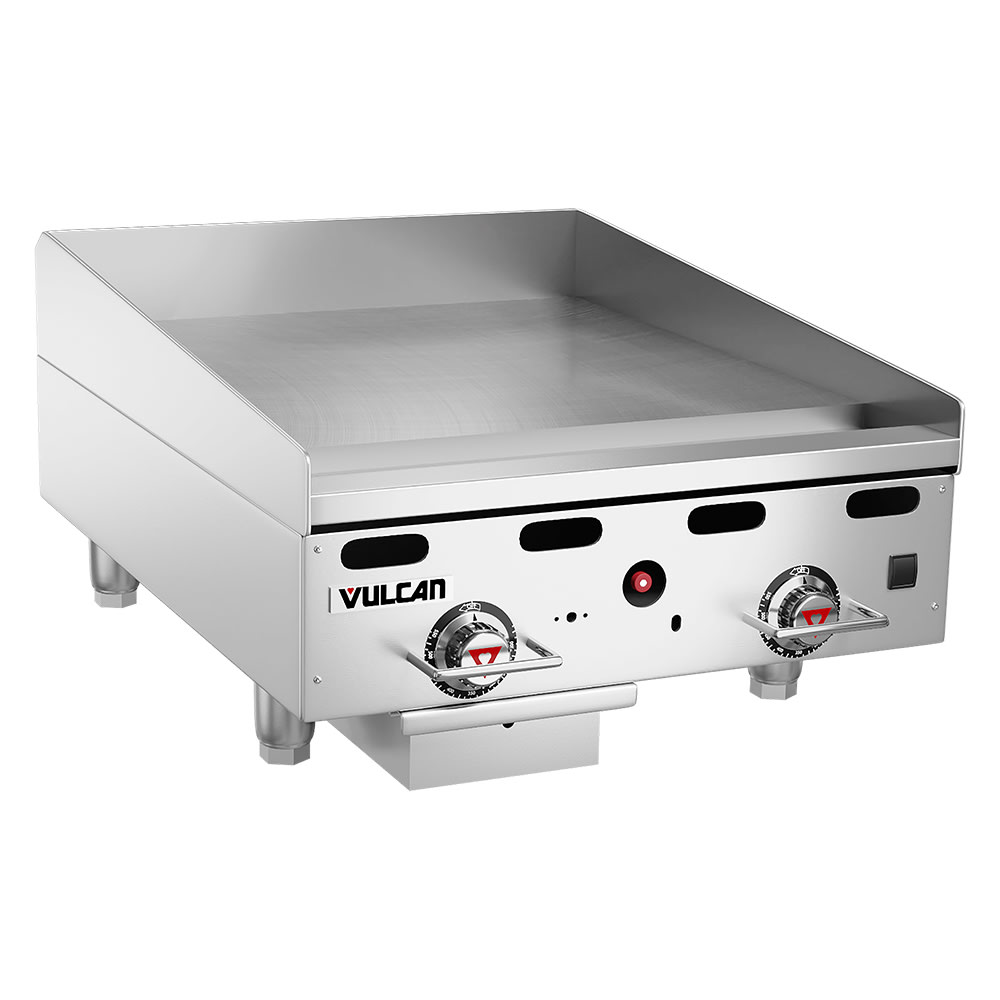

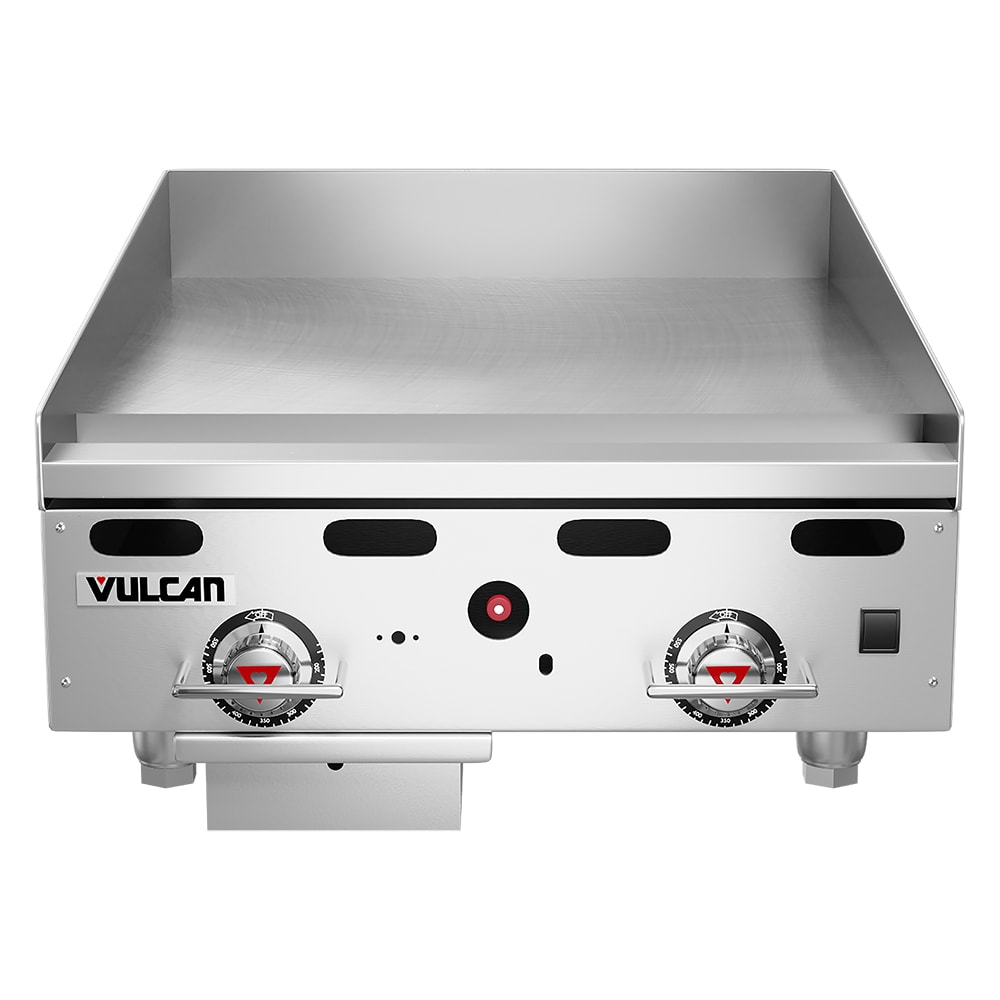

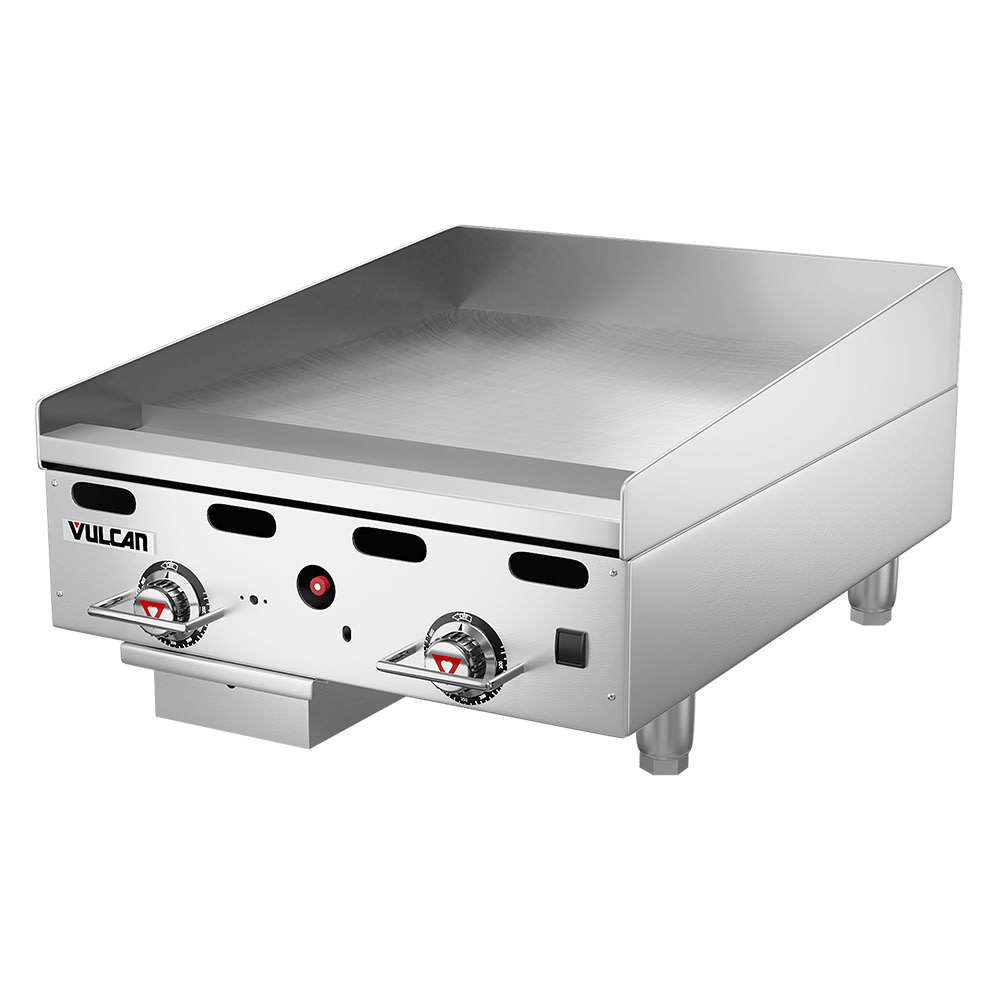

Vulcan MSA24 24" Gas Griddle - Thermostatic, 1" Steel Plate, LP

Image may not depict product color, inclusions or accessories.

KaTom #: 207-MSA24LP • MPN: MSA24 LP
Ships Free

Typically ships within 1 - 3 business days

(0 reviews)Write a Review
Price: $3,120.00

Selected Gas Type: Liquid Propane

Image may not depict product color, inclusions or accessories.

Vulcan MSA24 Description


The Vulcan MSA24 gas griddle has a 1-inch-thick plate that resists warping after repeated heating and cooling. Under the plate are two U-shaped burners with individual thermostats that have a temperature range of 200 to 550 degrees Fahrenheit. Most of the unit is constructed of stainless steel to resist scratches, dents, and corrosion. The back and side splashes help contain food and grease to prevent messes. Grease is collected by the grease gutter and sent to the drawer via the fully welded chute. The drawer has a 6-gallon capacity and simplifies disposing of old grease. The Vulcan MSA24 gas griddle has a bull-nose front that prevents burns by staying cool on the surface.

Product Details

  • Heated with propane
  • 1-in.-thick warp-resistant plate is made of polished steel
  • (2) 27,000-BTU burners have individual snap-action thermostats for full temperature control
  • Temperature range: 200-550 degrees F
  • Chrome knob guards provide a professional look
  • Stainless steel sides, front, and front top ledge resist corrosion, scratches, and dents
  • Back and side splashes prevent oil, grease, and food debris from spreading to surrounding area
  • Bull-nose front stays cool to prevent burns
  • Fully welded chassis frame is made of aluminized and stainless steel
  • 312-in.-wide grease gutter collects runoff and sends it to the grease drawer
  • 6-qt. grease drawer makes it easy to dispose of grease
  • Migration-resistant chute is totally welded
  • Manual ignition enables control of gas use
  • Safety valve shuts down gas feed when the flame is extinguished
  • Protects against intense heat with bottom heat guards
  • Pressure regulator and 34-in. rear gas connection for installation
  • Compatible with Vulcan clamshells for two-sided grilling (sold separately)
  • 54,000 BTU
  • Overall dimensions: 24 in. W x 3112 in. D x 1514 in. H
  • CSA listed; NSF certified

Check out our griddle buyers' guide for additional information on griddles.

Heavy Duty Griddle, countertop, LP gas, 24" W x 24" D cooking surface, 1" thick polished steel griddle plate, embedded mechanical snap action thermostat every 12", millivolt pilot safety, manual ignition, low profile, stainless steel front, sides, front grease trough, 4" back & tapered side splashes, 4" adjustable legs, 54,000 BTU, CSA, NSF

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Warning Small Important Prop 65 information for California residents.

Vulcan MSA24 Specifications

PDF Spec Sheet
Manufacturer Vulcan
Control Thermostatic
Application Heavy Duty
Plate Material Steel
Heat Gas
Gas Type LP
BTU / Burner 27000
Overall Width (in) 24
Cooking Area Depth (in) 24
Plate Thickness (in) 1
Control Spacing (in) 12
Specialty Options Snap Action
Specialty Options Front Grease Trough
Warranty 1 year limited warranty
Overall Depth (in) 31.50
Product Type Countertop Cooking Equipment
Product Griddle
Weight 265.00
Vulcan MSA24 Certifications
  • NSF
