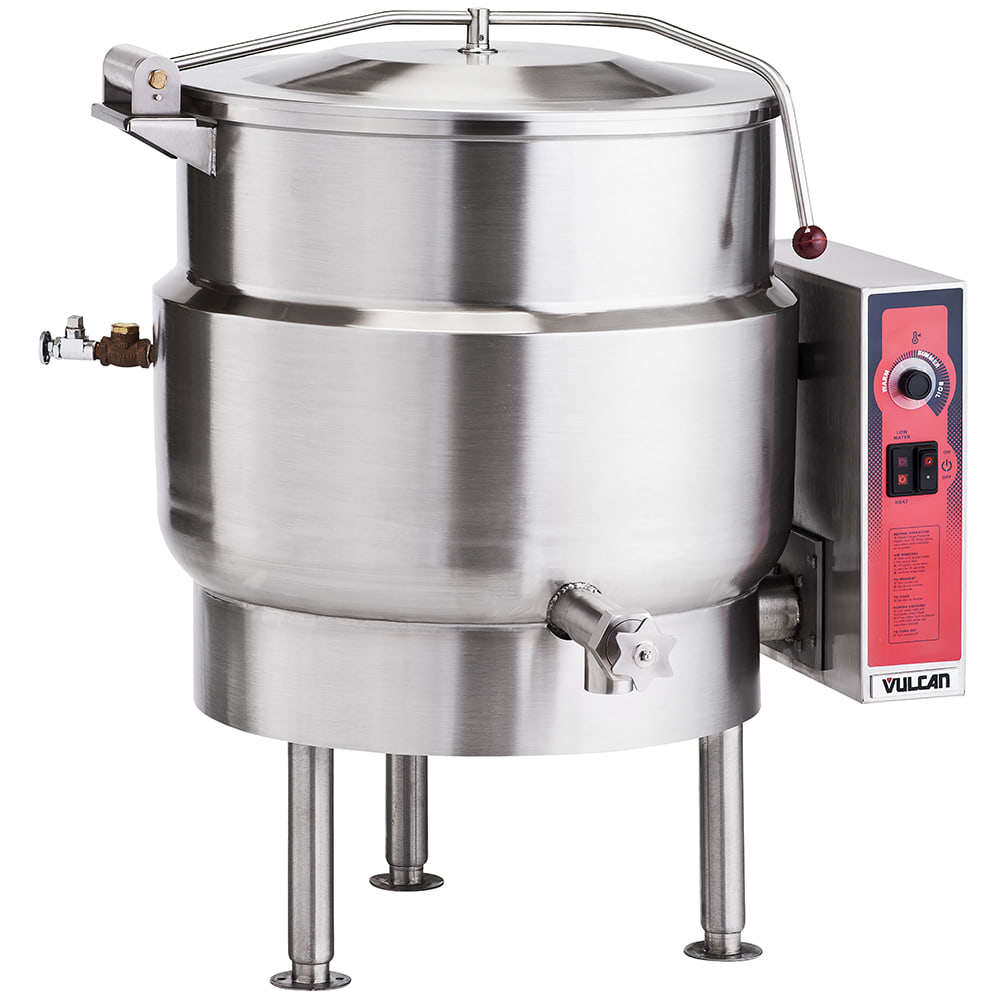

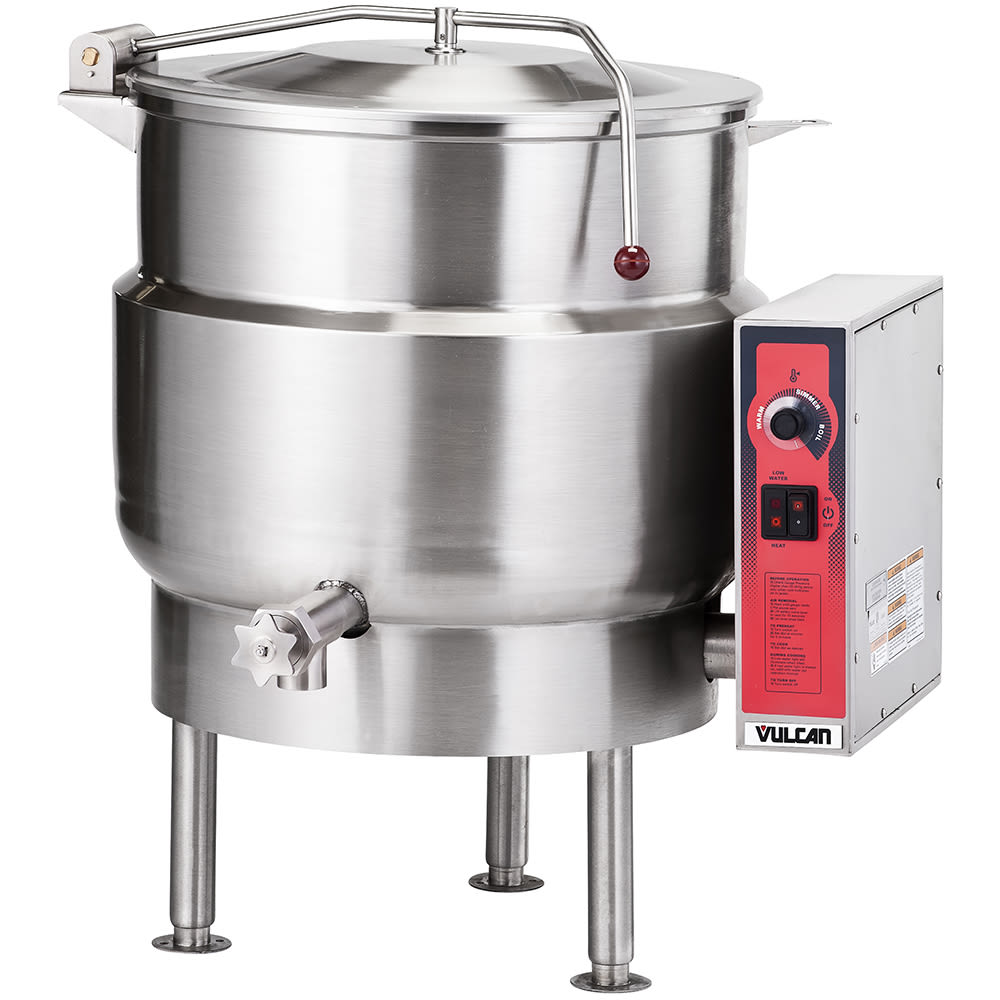

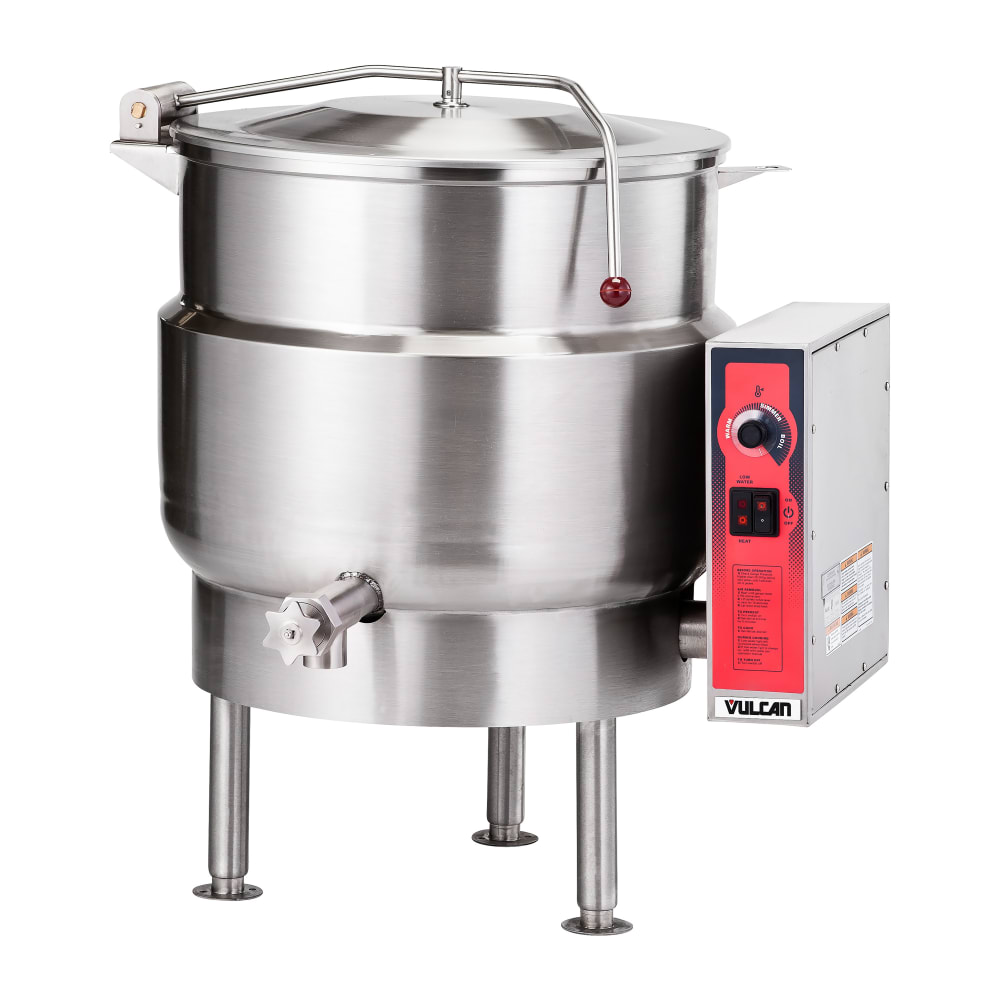

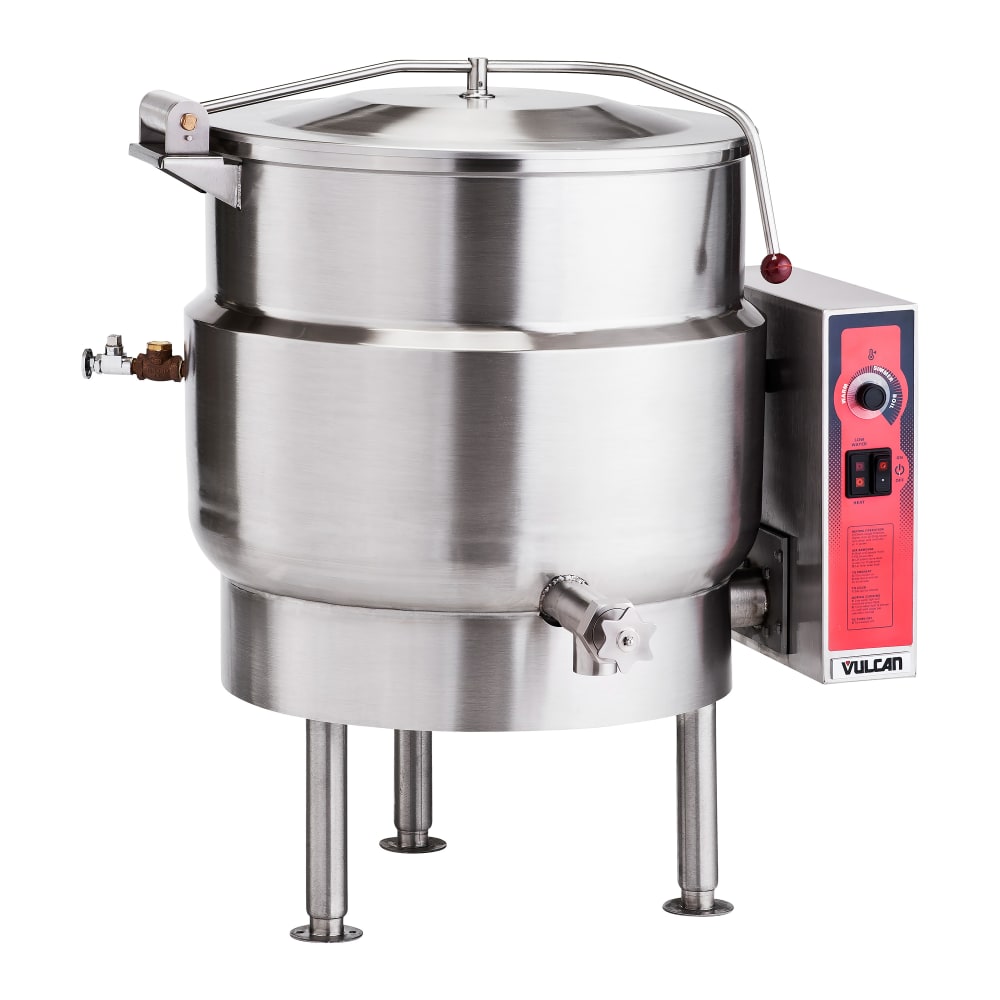

Vulcan K40EL Stationary Kettle w/ 40 Gallon Capacity, Spring Cover, 240/3 V

Image may not depict product color, inclusions or accessories.

KaTom #: 207-K40EL2403 • MPN: K40EL 2403
Ships Free

Extended Lead Time (14+ days)

(0 reviews)Write a Review
Price: $15,037.00

Image may not depict product color, inclusions or accessories.

Vulcan K40EL Description


Vulcan's K40EL 2403 electric kettle features a spring-assisted cover and a drop-down handle for easily opening and closing the equipment. The kettle is built for safety with its low-water cutoff, pressure relief valve, and waterproof casing. The steam-jacketed kettle features easy-to-understand controls with a solid-state temperature dial and a pressure gauge.

Product Details

  • 40-gal. capacity
  • 23 jacketed
  • Kettle liner is formed and fully welded with an ellipsoidal shape for maximum structural integrity
  • Heavy-duty, 38 in. x 1 in. bar rim lends strength
  • Kettle interior is embossed with both gallon and liter markings for operator convenience

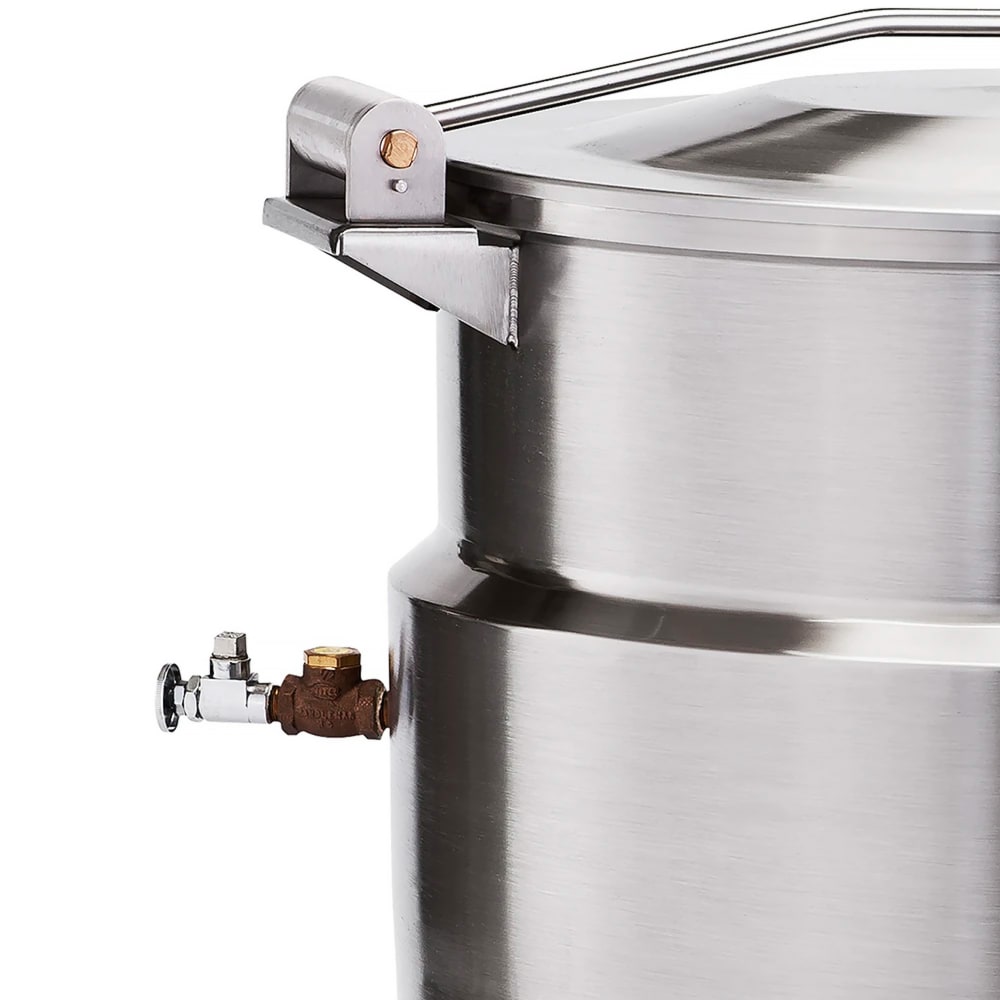

  • Includes faucet bracket for conveniently-mounted faucet
  • Rated for up to 50 psi pressure
  • Stainless steel cover opens easily with spring-assist hinge and drop-down lift handle
  • Condensate ring around lid helps avoid potential messes

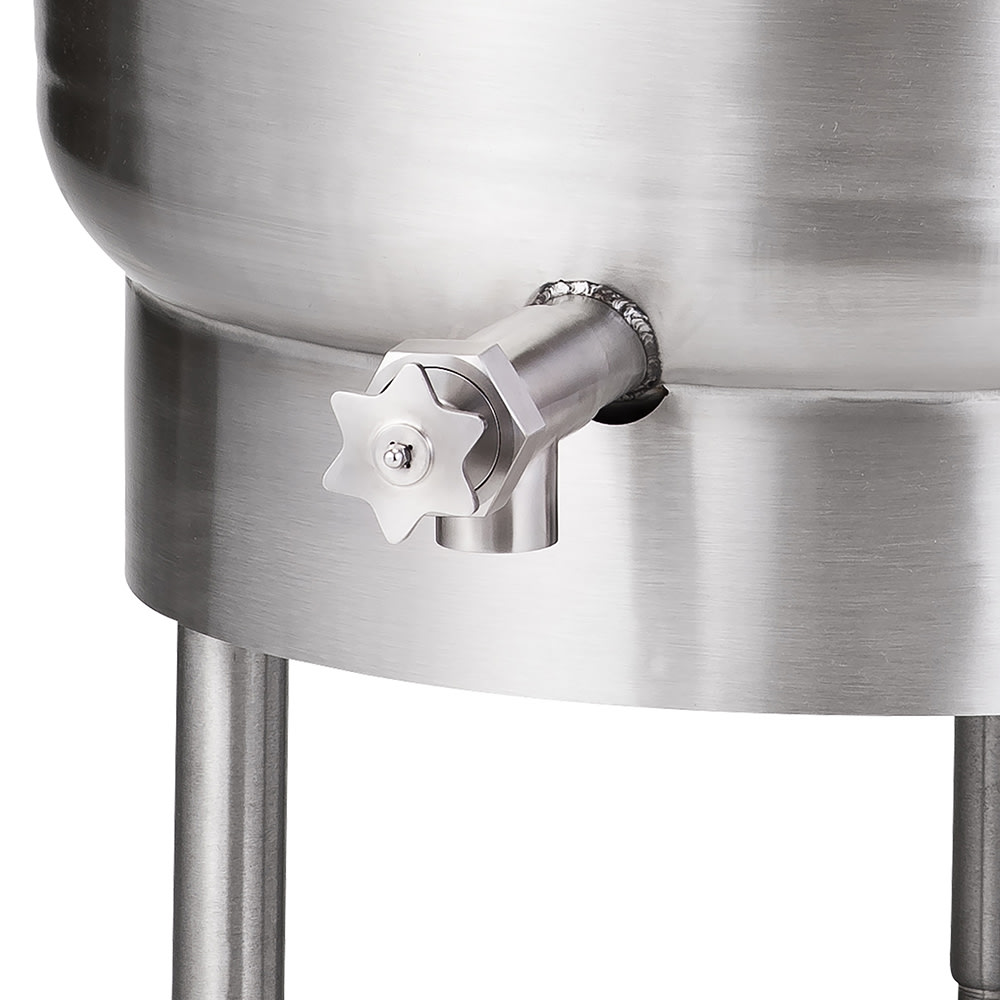

  • 2-in. compression tangent draw-off valve with perforated strainer for easily emptying and cleaning kettle
  • Tubular, stainless steel legs and with flanged feet allow for stable installation and can be bolted down for safety
  • Low-water cutoff prevents damage from elements running while kettle is empty
  • Pressure relief valve prevents accidents from unsafe levels of pressure
  • Controls are sealed in watertight casing
  • 240 V/60 Hz/3-ph, 18kW, must be hardwired by a qualified electrician
  • Overall Dimensions: 37.7 in. W x 35.25 in. D x 37.1 in. H
  • cULus and Ul-EPH Listed

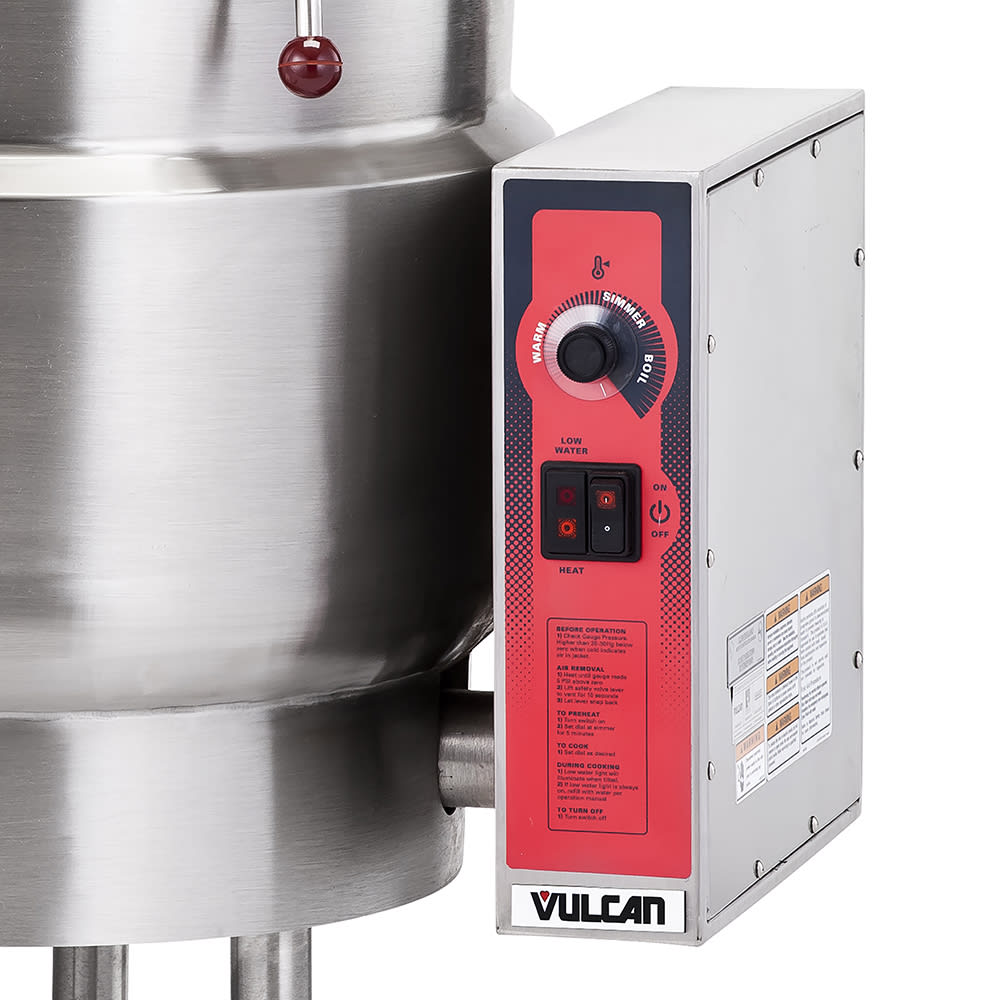

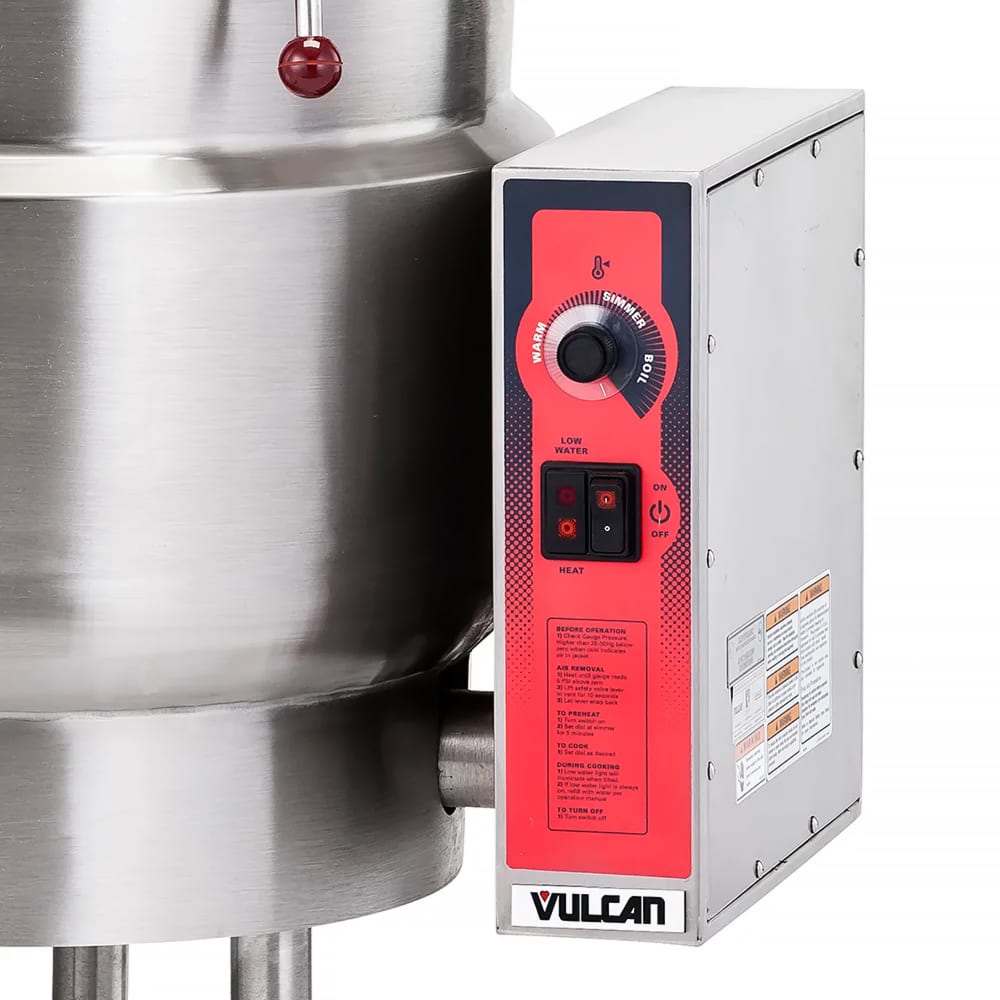

Easy-to-Use Controls

  • On/Off power switch
  • Power "On" Light
  • Solid-state temperature dial
  • Vacuum/Pressure gauge
  • "Low Water" light

Stationary Kettle, Electric, 40-gallon true working capacity, 2/3 jacketed, Ellipsoidal bottom design, spring assist cover with condensate ring, 2" compression draw-off valve with perforated strainer, faucet bracket 130 right of draw-off, stainless steel construction, tri-leg base, 18 kw, cULus, ULeph, ANSI/NSF, ASME, 240/3v

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Warning Small Important Prop 65 information for California residents.

Vulcan K40EL Specifications

PDF Spec Sheet
Manufacturer Vulcan
Warranty Limited 1-year
Product Type Cooking Equipment
Product Steam Kettle
Weight 255.00
