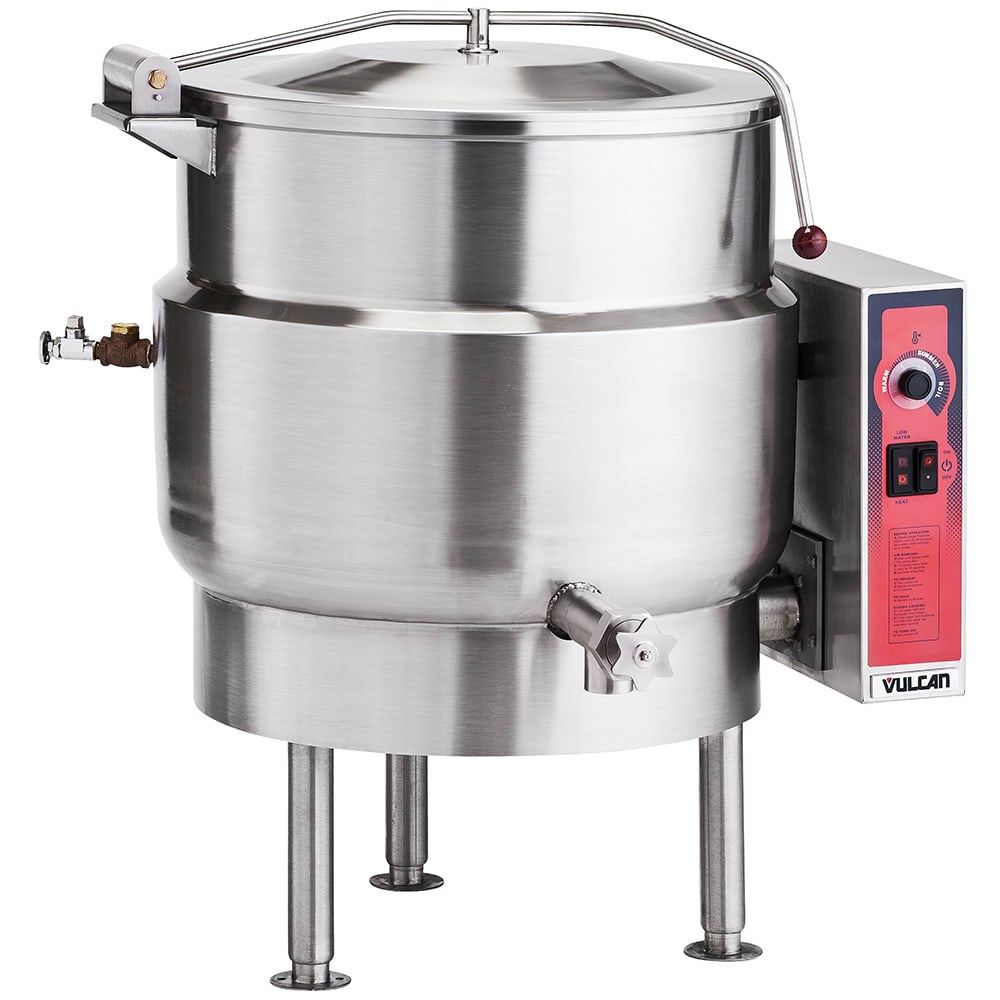

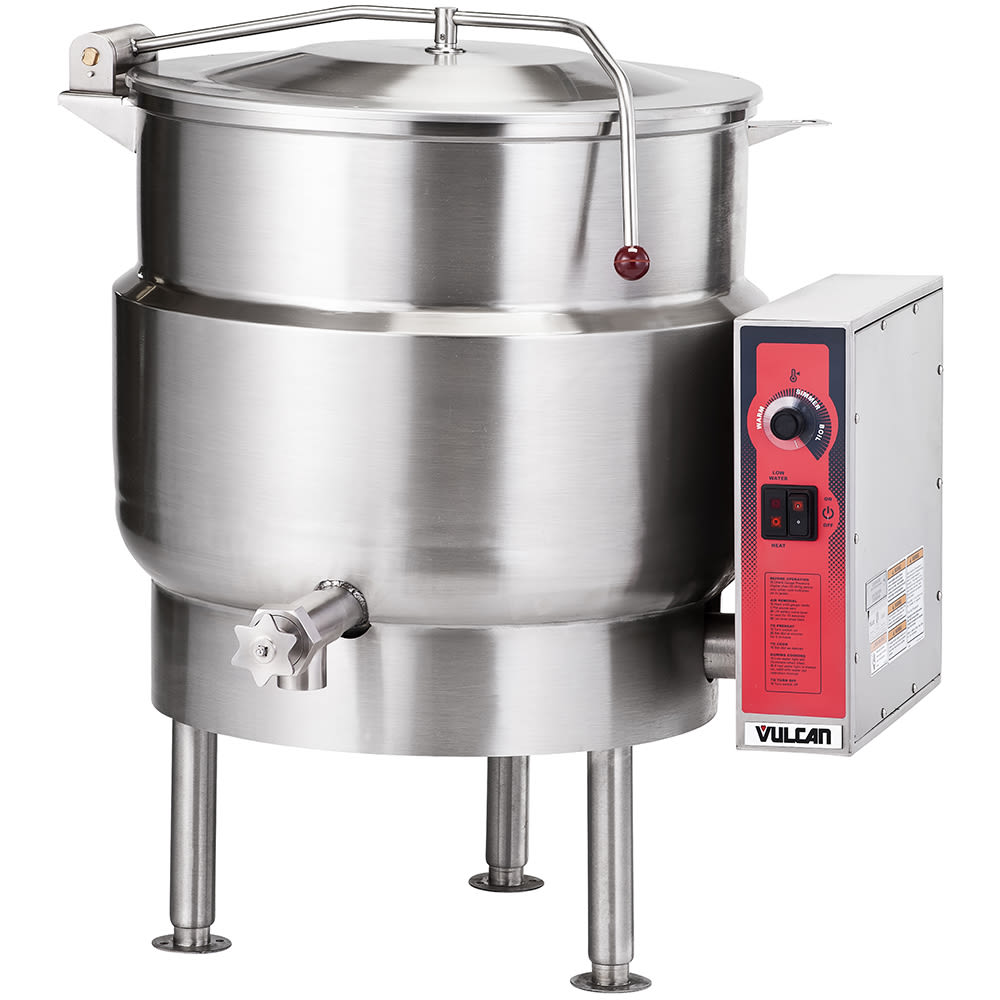

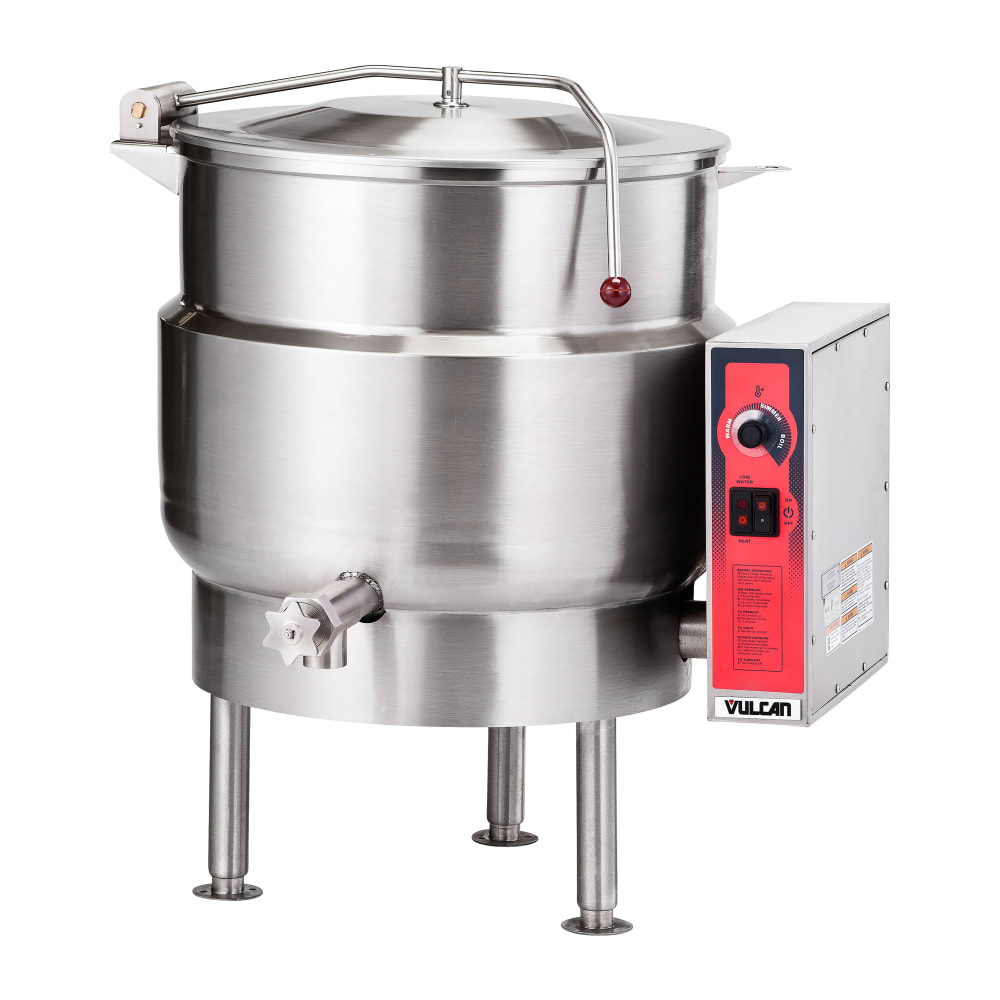

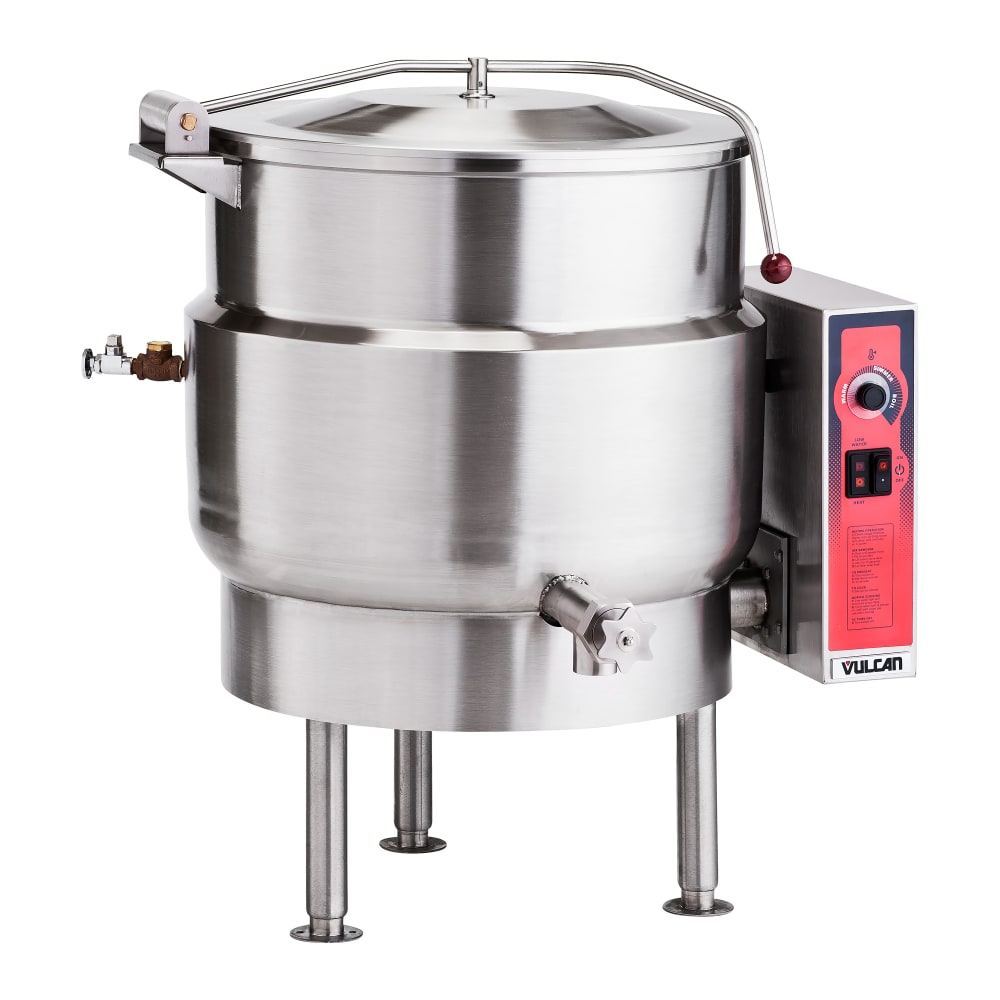

Vulcan K40EL 40 gal Steam Kettle - Stationary, 2/3 Jacket, 208v/3ph
Typically ships in 3 - 4 weeks
Retail Price: $62,653.00
$25,791.00 /Each
Selected Voltage: 208V, 3 Phase
| 208V, 3 Phase |
| 240V, 3 Phase |
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Vulcan K40EL Description
The Vulcan K40EL electric stationary kettle's 40-gallon true working capacity accommodates large-scale food preparation, while the ellipsoidal bottom enhances thermal efficiency. A spring-assist hinged stainless steel cover with a condensate ring and a drop-down lift handle helps retain heat and moisture. This kettle features a stainless steel enclosure that houses water-resistant controls, including a power switch, solid state temperature control, vacuum/pressure gauge, and pressure relief valve. A 2-inch compression tangent drawoff valve with a perforated strainer facilitates smooth product flow, while embossed gallon and liter markings provide easy measurement. The tubular legs with flanged feet provide stability.
Product Details
- 40-gal. capacity
- Stainless steel construction
- 2⁄3-jacketed design
- Ellipsoidal bottom
- Spring-assist hinged cover with condensate ring
- Drop-down handle with heavy-duty pivot assembly

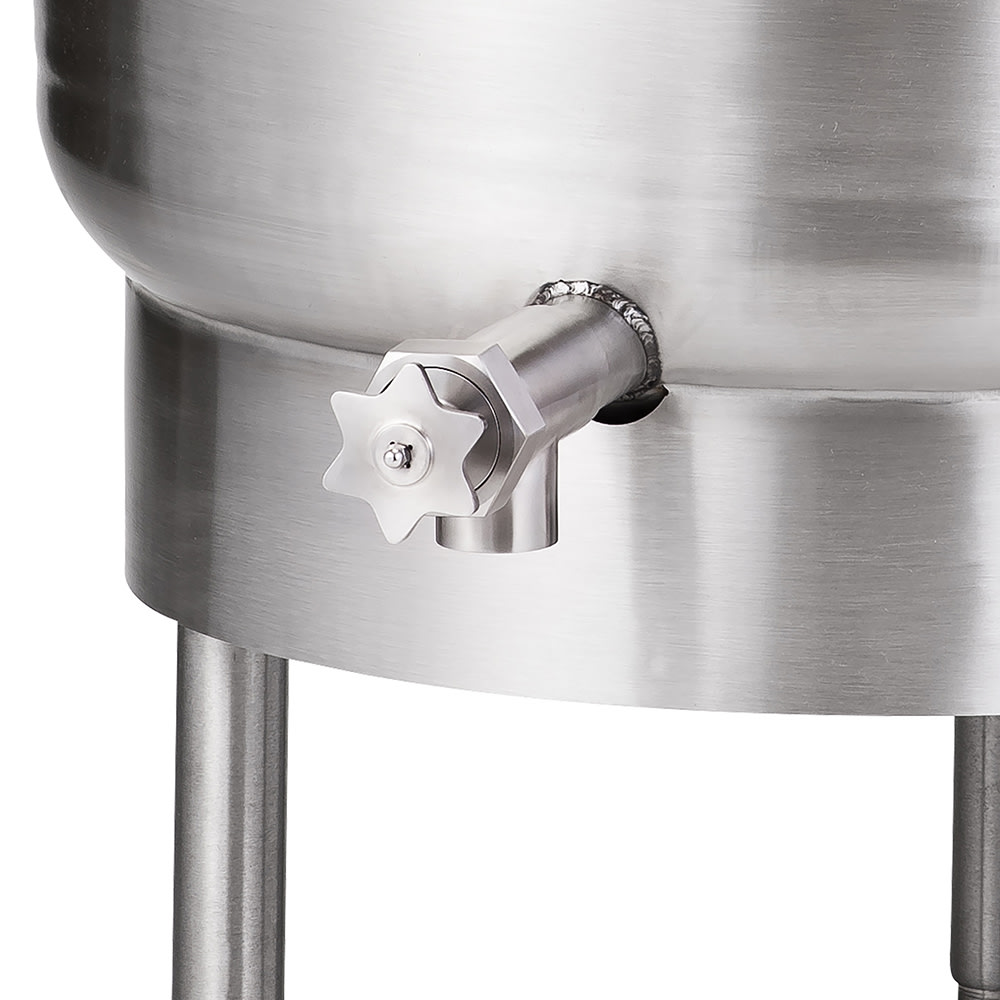

- 2-in. compression tangent drawoff valve with perforated strainer
- Embossed gallon and liter markings
- Faucet bracket positioned at 130 degrees
- Tri-leg base with tubular legs and flanged feet

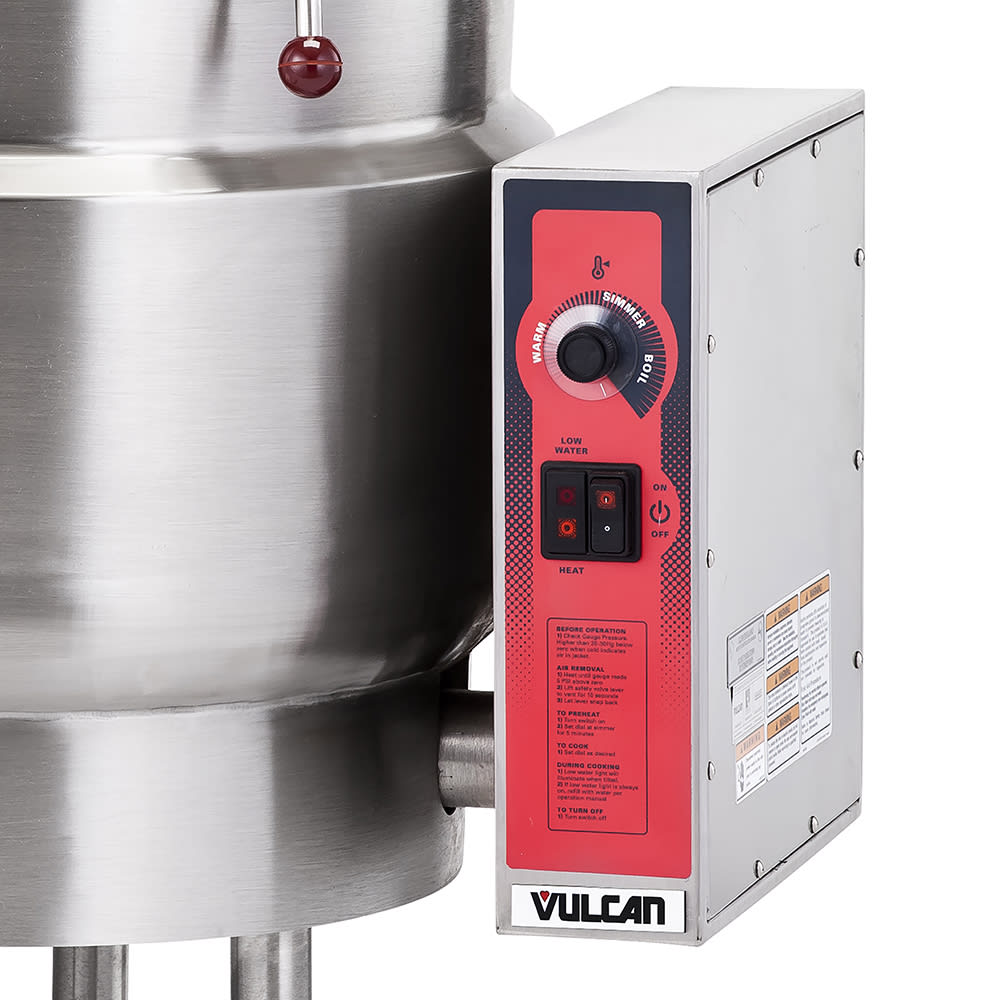

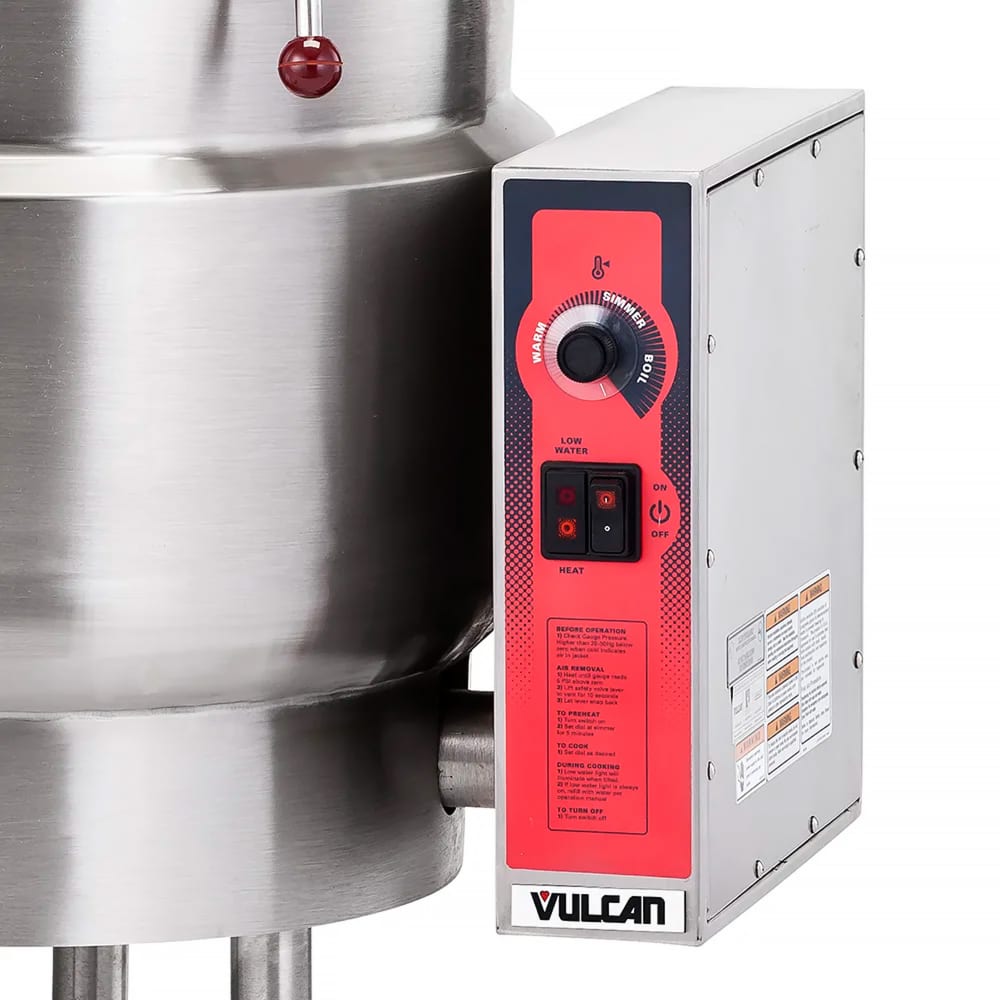

- Stainless steel enclosure for water-resistant controls
- Power switch with power-on light
- Solid state temperature control
- Vacuum/pressure gauge
- Pressure relief valve
- Low water light and low water shutoff
- 50 PSI steam jacket rating
- 208 V/60 Hz/3 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Vulcan K40EL within the 48 contiguous states.
From The Manufacturer
Stationary Kettle, Electric, 40-gallon true working capacity, 2/3 jacketed, 316 series stainless steel liner with ellipsoidal bottom, spring assist cover with condensate ring, 2" compression draw-off valve with perforated strainer, faucet bracket 130° right of draw-off, stainless steel construction, tri-leg base, cULus, UL EPH, ANSI/NSF 4, ASME
Vulcan K40EL Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Vulcan |
| Base | Tri Leg |
| Capacity (gallons) | 40 |
| Design | 2/3 Jacket |
| Heat | Electric |
| Hertz | 60 |
| No. of Kettles | 1 |
| Phase | 3 |
| Series | KEL Series |
| Tilt Mechanism | Stationary |
| Type | Floor Model |
| Voltage | 208 |
| Warranty | 1-year Limited Parts & Labor |
| Weight | 255.00 |
