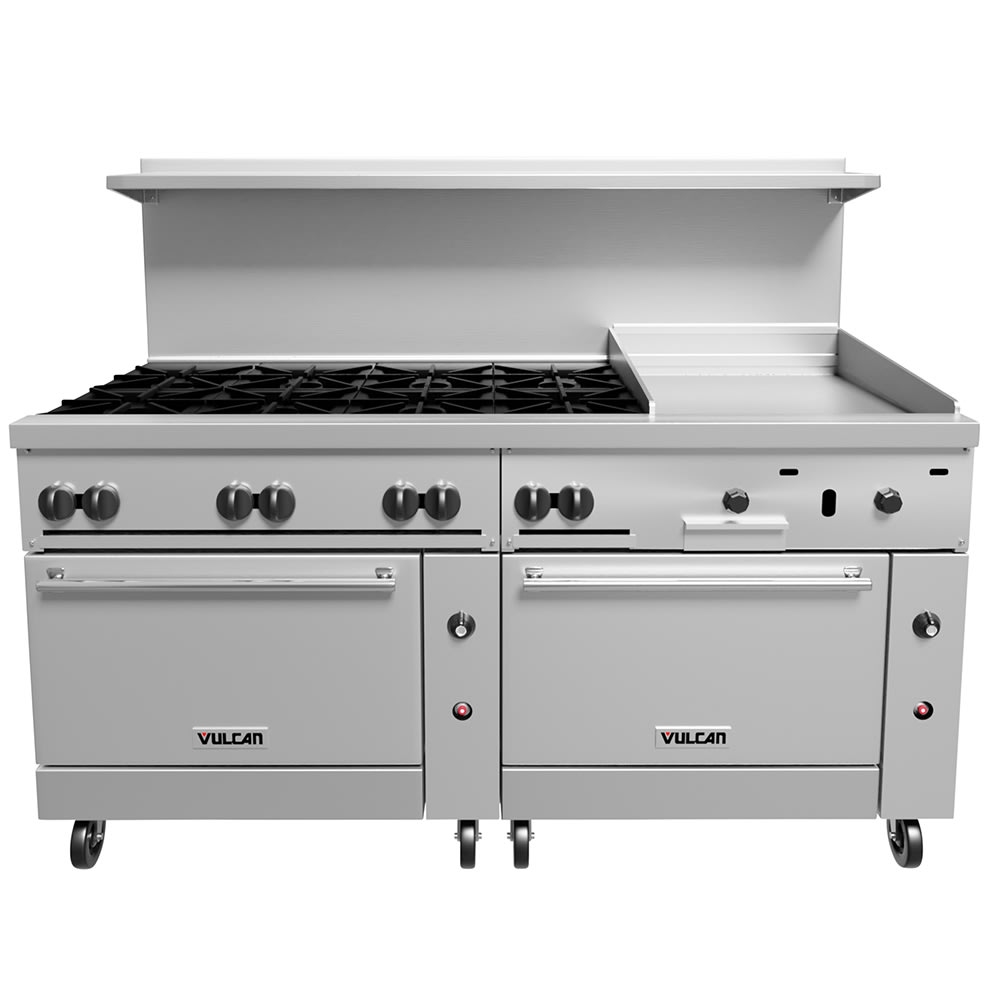

Vulcan 72SS-8B24G 72" 8 Burner Gas Range w/ Griddle & (2) Standard Ovens, Natural Gas

KaTom #: 207-72SS8B24GNG • MPN: 72SS-8B24G NG
  • 207-72SS8B24GNG Primary Thumbnail Image
  • 207-72SS8B24GNG Multiple Thumbnail Image #1
  • 207-72SS8B24GNG Multiple Thumbnail Image #2
  • 207-72SS8B24GNG Multiple Thumbnail Image #3
  • 207-72SS8B24GNG Multiple Thumbnail Image #4
  • 207-72SS8B24GNG Multiple Thumbnail Image #5
  • 207-72SS8B24GNG Multiple Thumbnail Image #6
  • 207-72SS8B24GNG Multiple Thumbnail Image #7
Free Shipping Item

Retail Price: $39,578.00

$16,292.00 /Each

Add-ons & Options

  • Protect Your Product
  • Coverage starting at $125.25
  • Edit Remove

Selected Gas Type: Natural Gas

Liquid PropaneLiquid Propane
tony wall User Image
Ask a Foodservice Equipment Specialist

Vulcan 72SS-8B24G Description

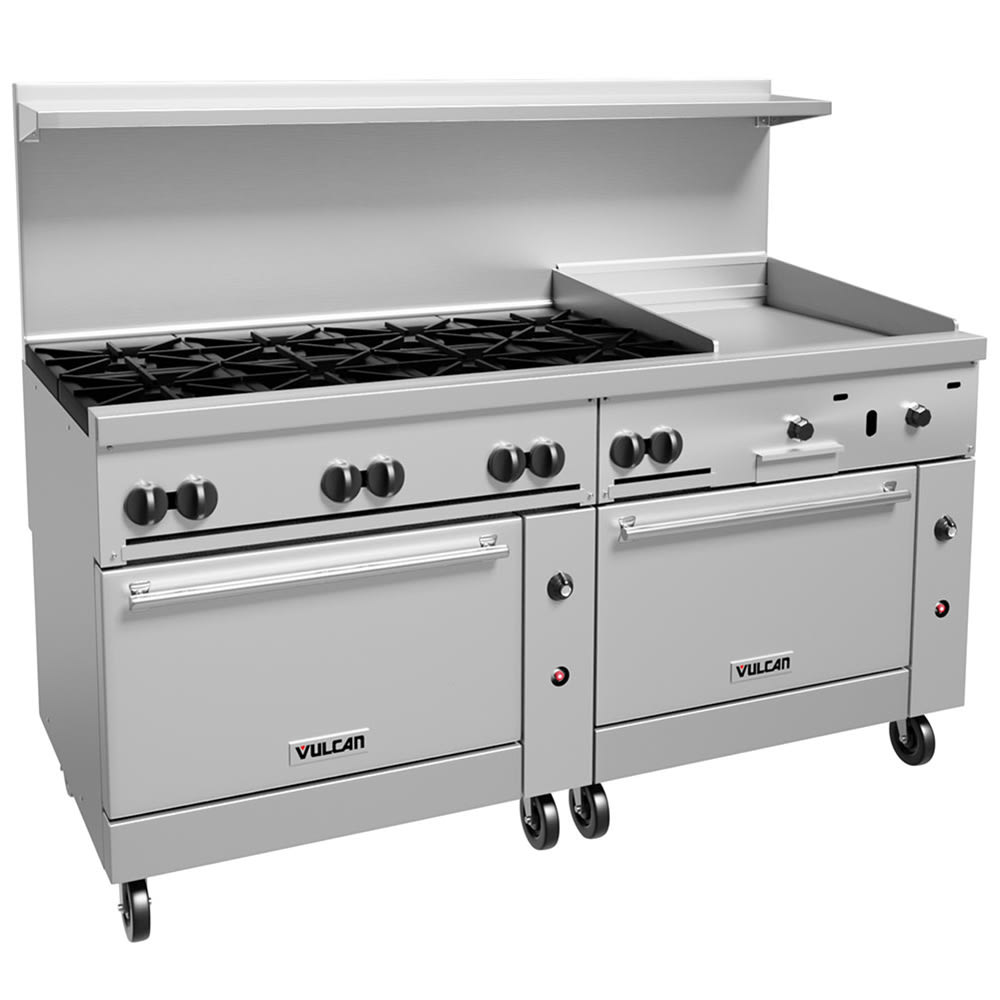

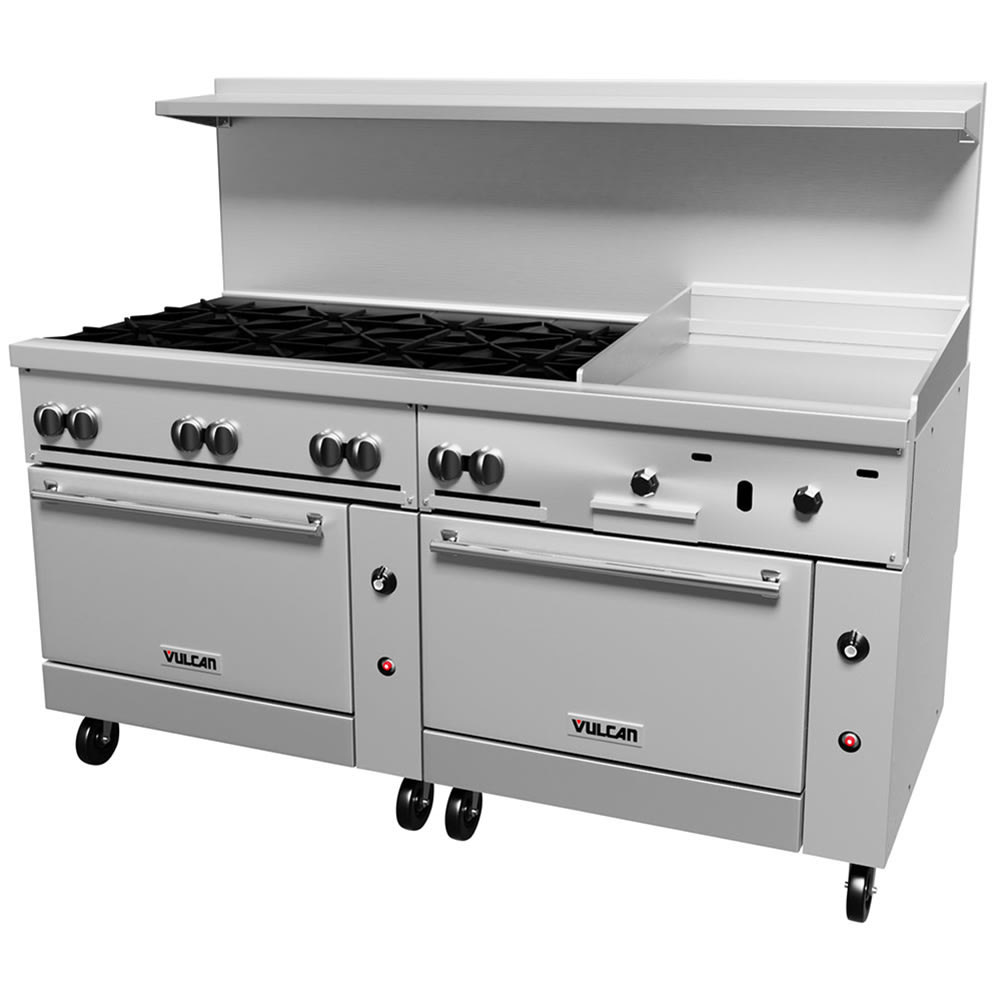

To save space in kitchens and eliminate the need to purchase individual pieces of cooking equipment, the Vulcan 72SS-8B24G Endurance™ natural-gas-powered restaurant range measures 72 inches wide by 34 inches deep by 58 inches tall and features eight open-top burners, a 24-inch-wide griddle, and two standard ovens. Its front, sides, backriser, and lift-off high shelf are made of durable, rust- and corrosion-resistant stainless steel, while its fully MIG-welded frame is aluminized steel for additional strength. So this unit remains stable on uneven surfaces, its 6-inch legs can be raised or lowered. This 350,000-BTU range operates with natural gas, uses a 1-inch rear gas connection, and includes a rear manifold and pressure regulator.

The 72-inch-wide surface features burners on the left side with a griddle on the right side. The eight burners are powered with four shrouded flashtube pilot systems to minimize gas consumption. To adjust burner heat, staff members can rotate the cool-to-the-touch burner knobs. Each burner outputs 30,000 BTUs per hour and includes a lift-off head, heavy-duty cast grate, and aeration bowl for enhanced efficiency. While the four rear cast grates measure 12 inches by 14 1⁄2 inches to support large cookware, the four front grates are 12 inches by 12 1⁄2 inches to accommodate small- or medium-size cookware. To ease cleaning, the grates can be lifted off and the crumb tray pulled out.

On the surface's right side, the griddle spans 24 inches, providing ample space for cooking proteins, pancakes, or eggs. Its 7⁄8-inch-thick plate is durable enough to endure high-volume heating and cooling, and to reduce rebound time, the surface retains generated heat. Users can easily modify the unit's surface heat with the manual controls. When residual oil needs to be removed, operators can access the 4-inch-wide front-mounted grease trough.

The two ovens beneath the Vulcan 72SS-8B24G commercial range's top section can both be set from 250 to 500 degrees Fahrenheit to accommodate various baking requirements. These ovens rely on radiant heat to broil, roast, and bake products uniformly. Each baker's-depth oven measures 26 3⁄8 inches wide by 27 inches deep by 14 inches high, accommodating 18-inch by 26-inch pans side to side or front to back. The ovens' two included racks can be placed in four different positions to achieve desired results, and because their doors are hinged and feature cool-to-the-touch handles, they simplify loading and retrieving pans. For simplified cleaning, their door panels and bases are made of porcelain.

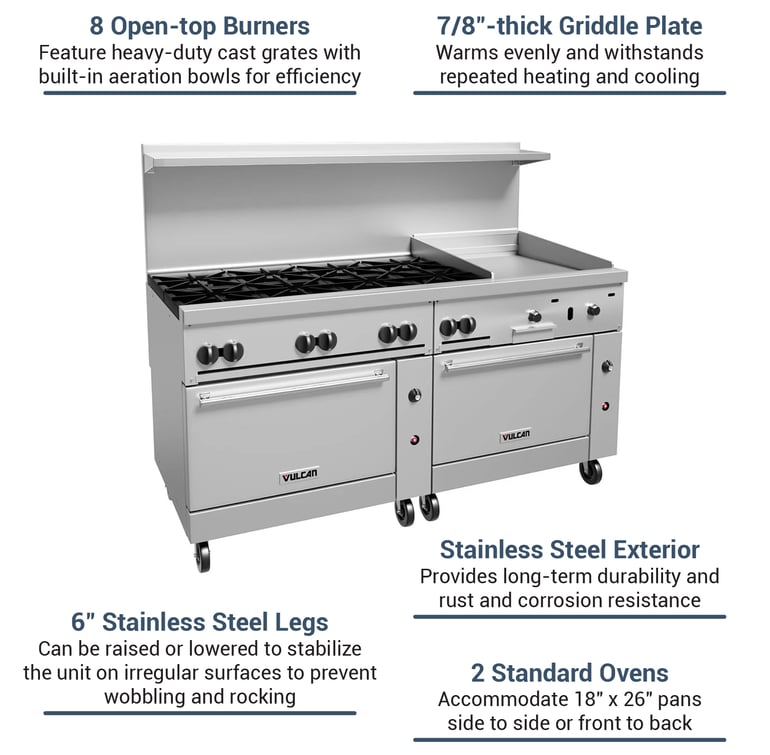

  • Part of the Vulcan Endurance line
  • Stainless steel front, sides, backriser, and lift-off high shelf
  • Fully MIG-welded aluminized steel frame
  • Left side features (8) 30,000-BTU open-top burners with lift-off heads
  • 1 shrouded flashtube pilot ignition system for every two burners (4 total)
  • 8 heavy-duty lift-off cast grates with aeration bowls
  • (4) 12- in. x 12 1⁄2-in. front grates
  • (4) 12-in. x 14 1⁄2-in. rear grates
  • Cool-to-the-touch burner knobs
  • Extra-deep pull-out crumb tray with welded corners
  • Right side features 24-in.-wide griddle with 7⁄8-in.-thick griddle plate
  • Manual controls
  • 4-in.-wide front-mounted grease trough

  • (2) 35,000-BTU standard baker's-depth ovens
  • Accommodate 18-in. x 26-in. pans inserted side to side or front to back for flexibility
  • 2 oven racks with 2 rack guide sets and 4 rack positions per oven
  • Operating temperature: 250-500 degrees F
  • Can be set to low
  • Porcelain oven bases and door panels ease cleaning
  • 2 hinged oven doors with cool-to-the-touch oven door handles
  • 6-in. adjustable stainless steel legs

  • Standard oven interiors: (2) 26 3⁄8 in. W x 27 in. D x 14 in. H
  • Overall: 72 in. W x 34 in. D x 58 in. H
  • Powered natural gas
  • 1-in. rear gas connection
  • 350,000 BTU

*Image may not depict product color, inclusions or accessories.

*Free shipping on Vulcan 72SS-8B24G within the 48 contiguous states.

Additional Product Information

Additional Product Information

From The Manufacturer

Endurance™ Restaurant Range, natural gas, 72", (8) 30,000 BTU burners with lift-off burner heads, (1) 24" manual griddle, 3/4" thick, 4" wide front grease trough, (2) standard oven bases, stainless steel front, sides, backriser & high shelf, fully MIG welded frame, 6" adjustable legs, 350,000 BTU, CSA Flame, CSA Star, NSF

Warranty Icon
1-year Limited Against Defects in Material & Workmanship; 90-day Replacement Parts

Vulcan 72SS-8B24G Specifications

Residential Users: This unit is not to be installed or operated in a residential or other non-commercial setting. Check local codes to ensure your foodservice kitchen is properly equipped for this piece. Use in an improper setting will void the warranty and the manufacturer will not provide parts or labor coverage for damage, failure, or other issues with the product. While this product may be covered by a manufacturer's warranty, vendor assumes no liability for product failure or any damages/injuries.
