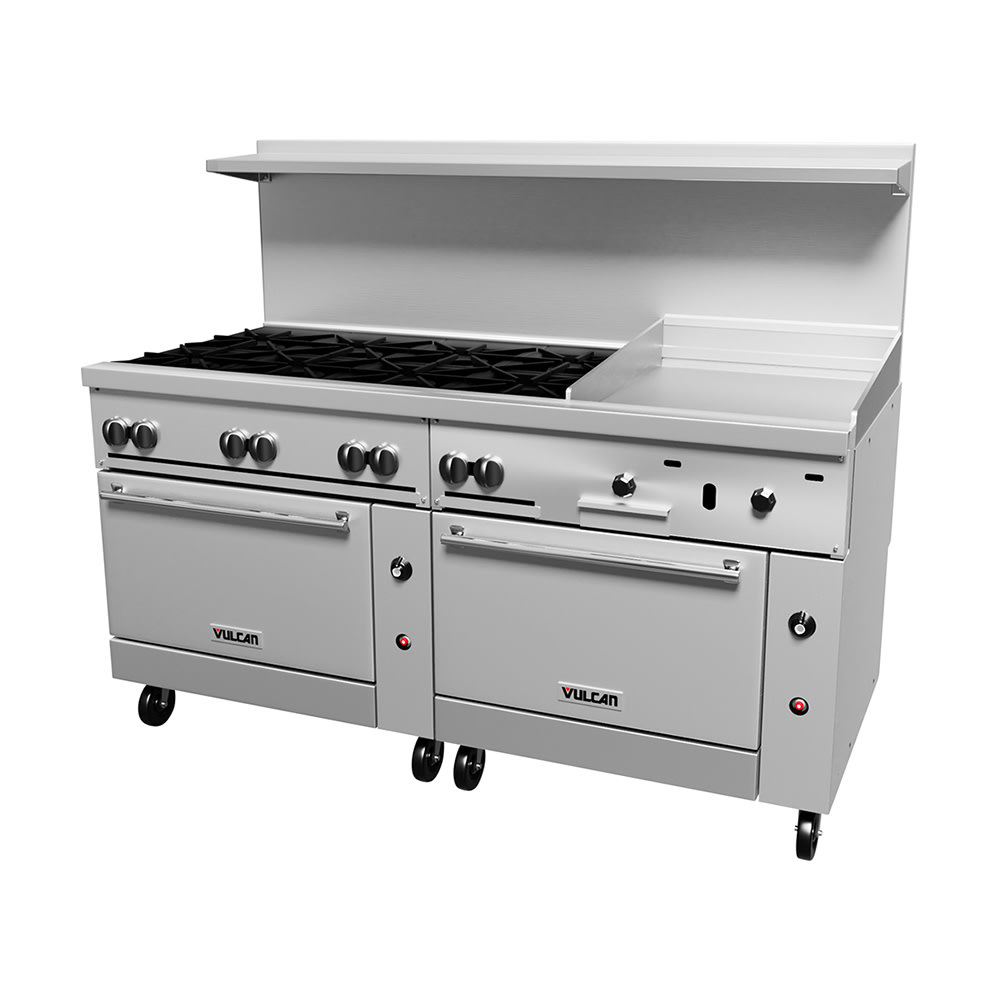

Vulcan 72SS-8B24G 72" 8 Burner Gas Range w/ Griddle & (2) Standard Ovens, Liquid Propane

To perform a range of cooking tasks with one unit, the Vulcan 72SS-8B24G Endurance™ LP-gas-powered restaurant range features a 24-inch-wide griddle, eight open-top burners, and two standard ovens. Its 72-inch-wide by 34-inch-deep by 58-inch-tall body can fit compact kitchens, and for lasting durability and resistance to rust and corrosion, its sides, front, backriser, and lift-off high shelf are made of rust- and corrosion-resistant stainless steel. To enhance strength, its aluminized steel frame is fully MIG welded. This unit is positioned on 6-inch-tall stainless steel legs that can be adjusted on irregular flooring.

The ⁷⁄₈-inch-thick griddle plate heats uniformly and is durable enough to withstand repeated temperature changes. Operators can adjust the griddle's heat with the manual controls, and to remove grease buildup, it features a 4-inch-wide front grease trough. Four shrouded flashtube pilot systems power the burners to reduce gas usage, and staff can adjust the burners' heat with the burner knobs, which remain cool to the touch through use. To enhance efficiency, each burner includes a lift-off head, lift-off heavy-duty cast grate, and aeration bowl. So differently sized cookware can be used on its surface, the four rear grates measure 12 inches by 14¹⁄₂ inches, and the four front grates are 12 inches by 12¹⁄₂ inches.

The Vulcan 72SS-8B24G commercial range's two standard ovens beneath the top section can bake, broil, or roast various dishes with their 250- to 500-degree-Fahrenheit thermostat range. These baker's-depth ovens both measure 26³⁄₈ inches wide by 27 inches deep by 24 inches high to accommodate 18-inch by 26-inch pans side to side or front to back. Each oven has two racks that can be raised or lowered in four positions. So operators can easily and safely insert and remove pans, the oven doors are hinged, and their handles remain cool to the touch. Because their door panels and bases are made of porcelain, they're simple to clean.

Range Details

• Part of the Endurance series
• Rust- and corrosion-resistant stainless steel front, sides, backriser, and lift-off high shelf
• Strong, fully MIG-welded aluminized steel frame
• (8) 30,000-BTU open-top burners with lift-off heads on left side
• 4 shrouded flashtube pilot ignition systems (1 pilot per 2 burners)
• 8 heavy-duty lift-off cast grates featuring aeration bowls
• (4) 12- in. x 12¹⁄₂-in. front grates for small- or medium-size cookware
• (4) 12-in. x 14¹⁄₂-in. rear grates for large cookware
• Cool-to-the-touch burner knobs protect users
• Extra-deep pull-out crumb tray
• Right side features 24-in.-wide griddle
• ⁷⁄₈-in.-thick griddle plate
• Manual griddle controls
• 4-in.-wide front-mounted grease trough

Oven Details

• (2) 35,000-BTU standard ovens with baker's-depth cavities
• Each oven accepts 18-in. x 26-in. pans side to side or front to back
• Both ovens have 2 racks with 2 rack guide sets and 4 rack positions
• Operating temperature: 250-500 degrees F
• Low-heat option
• Porcelain oven bases and door panels ease cleaning
• 2 hinged oven doors with cool-to-the-touch oven door handles
• 6-in. adjustable stainless steel legs

Dimensions & Utilities

• Standard oven interiors: (2) 26³⁄₈ in. W x 27 in. D x 14 in. H
• Overall: 72 in. W x 34 in. D x 58 in. H
• Powered by LP gas
• 1-in. rear gas connection
• 350,000 BTU

Product Features

From The Manufacturer

Endurance™ Restaurant Range, LP gas, 72", (8) 30,000 BTU burners with lift-off burner heads, (1) 24" manual griddle, 3/4" thick, 4" wide front grease trough, (2) standard oven bases, stainless steel front, sides, backriser & high shelf, fully MIG welded frame, 6" adjustable legs, 350,000 BTU, CSA Flame, CSA Star, NSF

*Image may not depict product color, inclusions or accessories.

1-year Limited Against Defects in Material & Workmanship; 90-day Limited Replacement Parts
