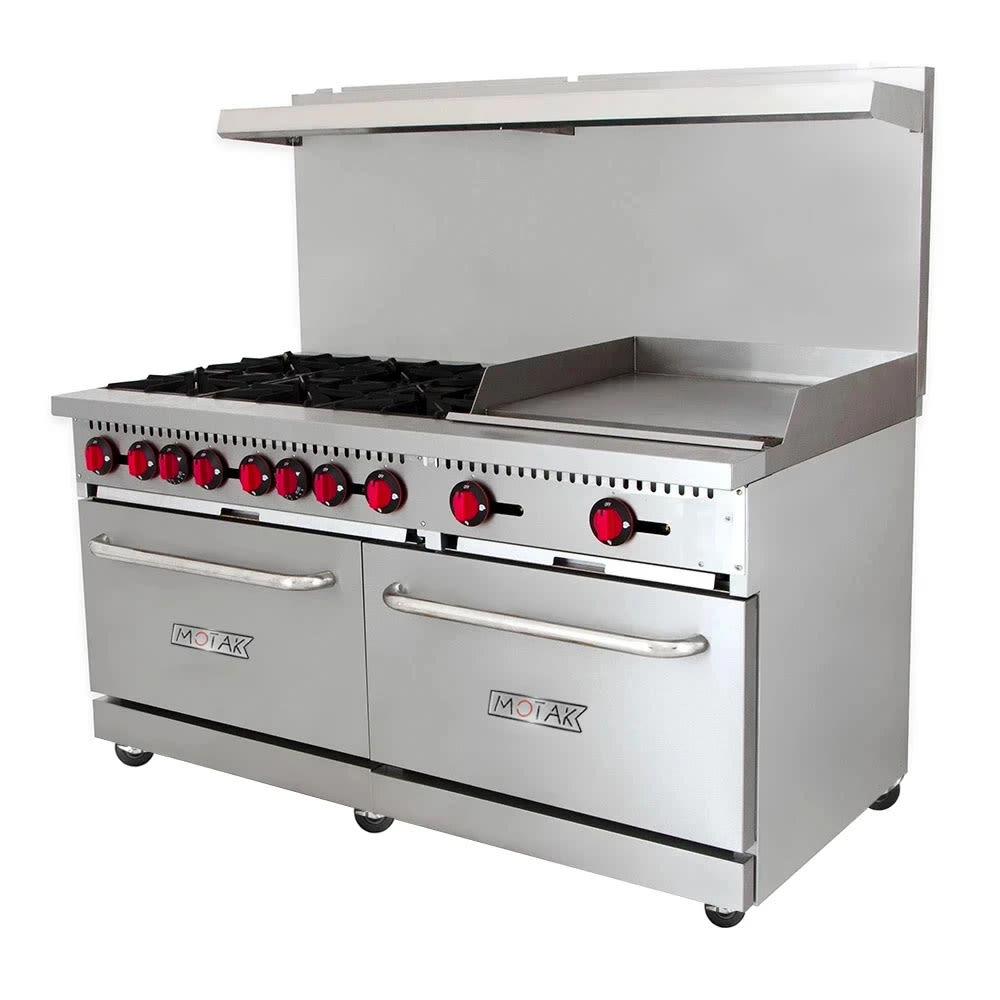

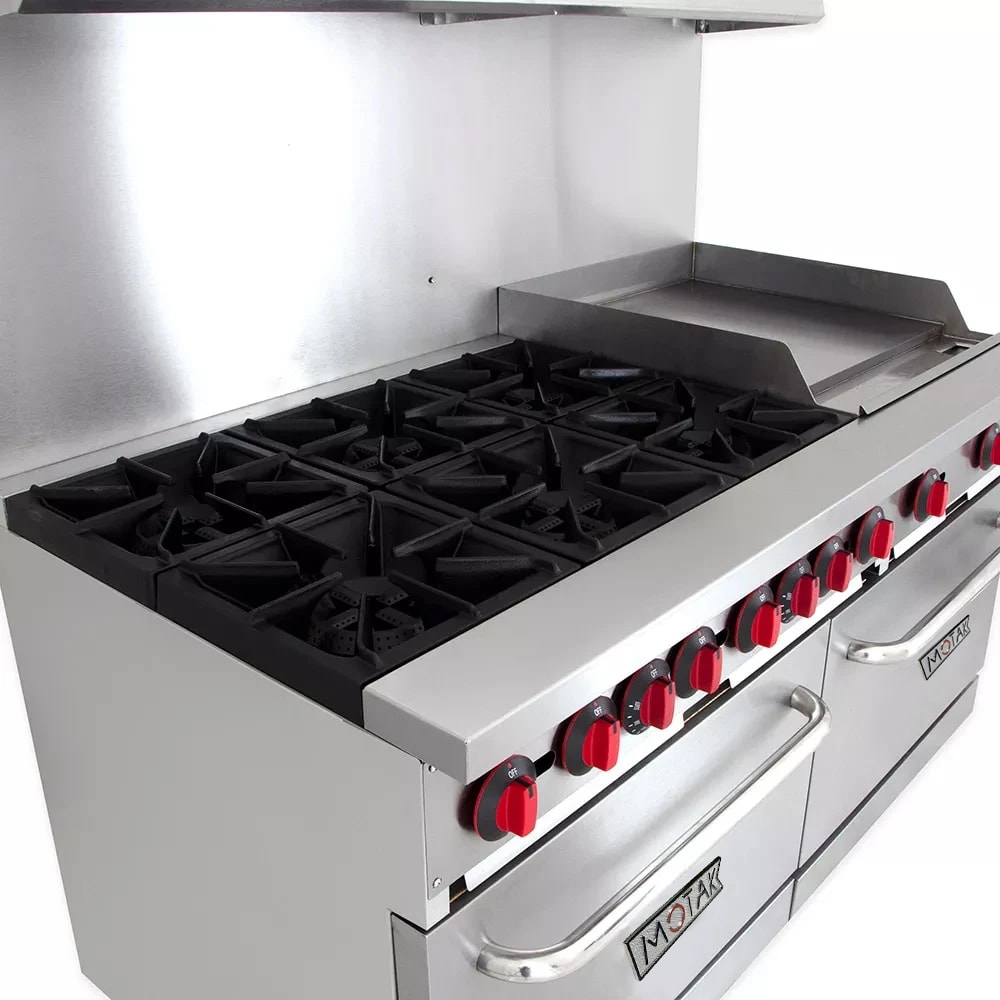

The eQuipped R10-G24 gas range has six top burners, a griddle, and two full-size ovens in the base. The burners are made of durable cast iron with individual standing pilot lights. Push-in knobs make it easy to control the burners in a high-low system. The 12-inch-by-12-inch grates are removable for simple cleaning. On the griddle, operators can prepare pancakes, fried eggs, burners, and more. The 3⁄4-inch-thick griddle plate distributes heat evenly and resists warping from repeated heating and cooling . Built-in side shields on the griddle keeps grease contained to the plate.
In the base of this eQuipped R10-G24 gas range, the full-size ovens operate from 200 to 450 degrees Fahrenheit. Included are two removable, adjustable that can accommodate various products. There is a porcelain liner in the oven that resists corrosion and is easy to clean. Most of the unit is constructed of stainless steel; door handles are also made of stainless steel that stay cool to prevent burns. The unit's 6-inch adjustable legs can accommodate uneven surfaces.
- 6 cast iron burners are heated with natural gas
- 6 individual standing pilot lights

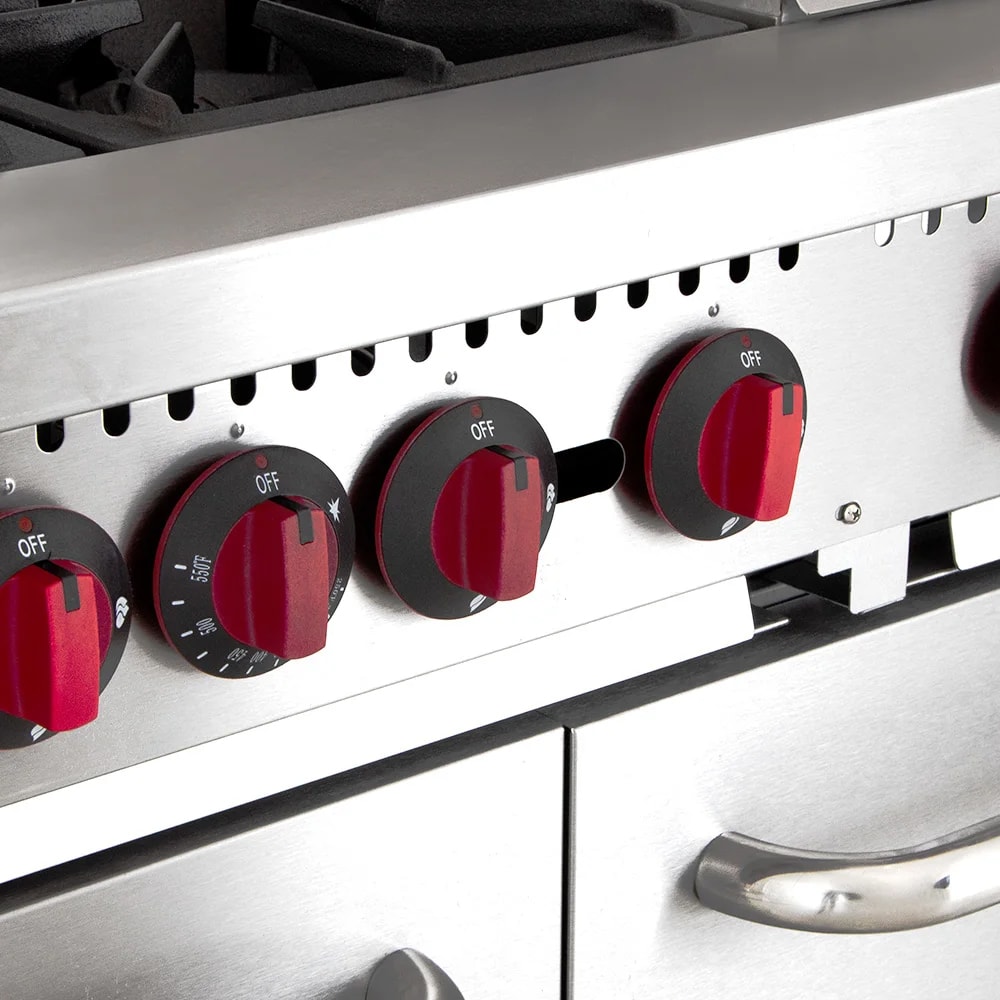

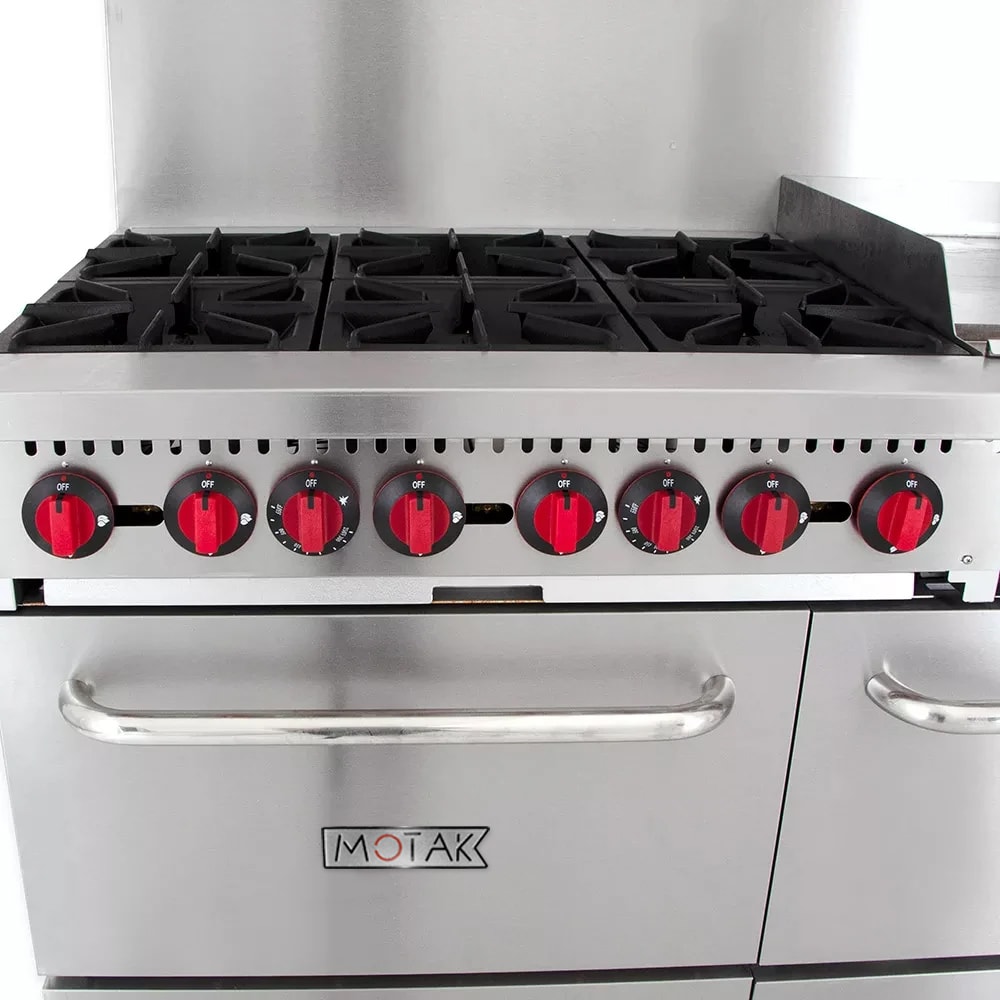

- Push-in knobs control the burners in a high-low system
- 12-in. x 12-in. grates can be removed for cleaning
- Removable crumb tray collects food particles

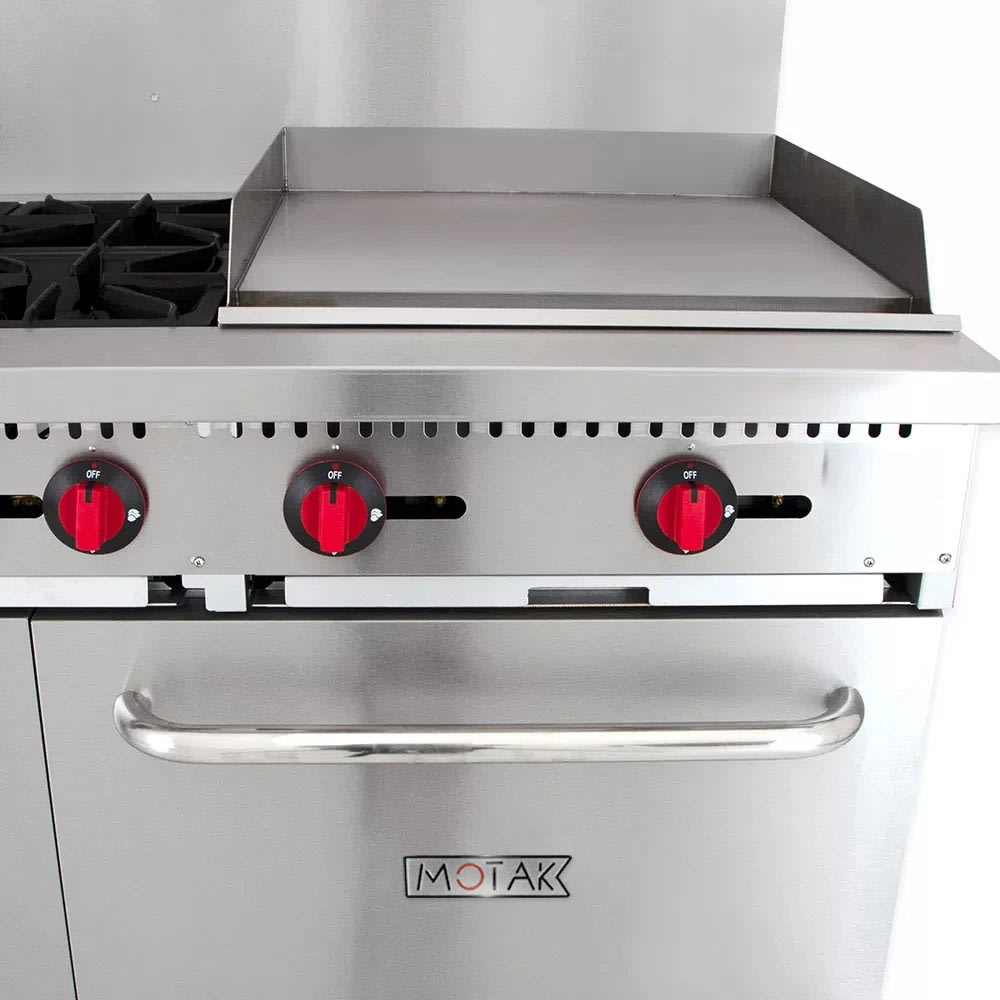

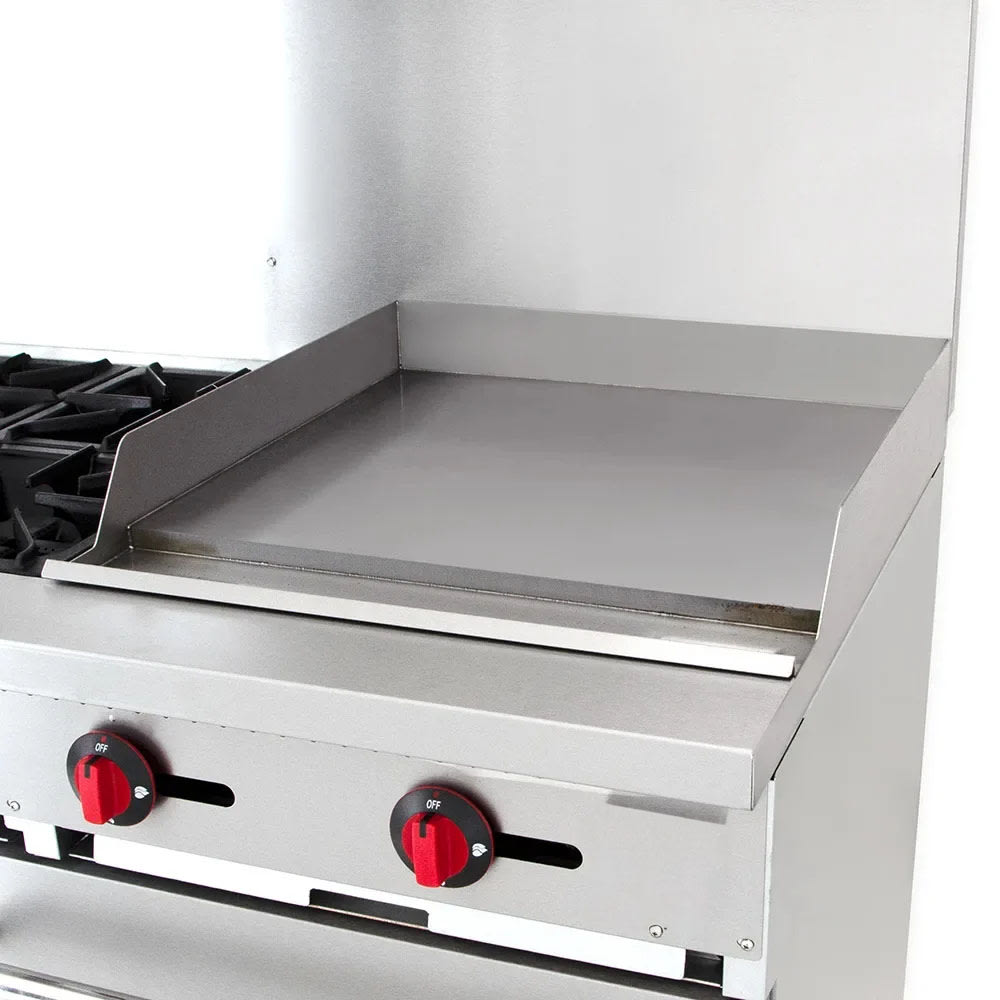

- 23.88-in. griddle is heated with 2 U-shaped burners that are controlled every 12 in.
- 3⁄4-in.-thick griddle plate distributes heat evenly and resists wear and tear
- 4-in. welded side shields contain grease splashes to the griddle cooktop

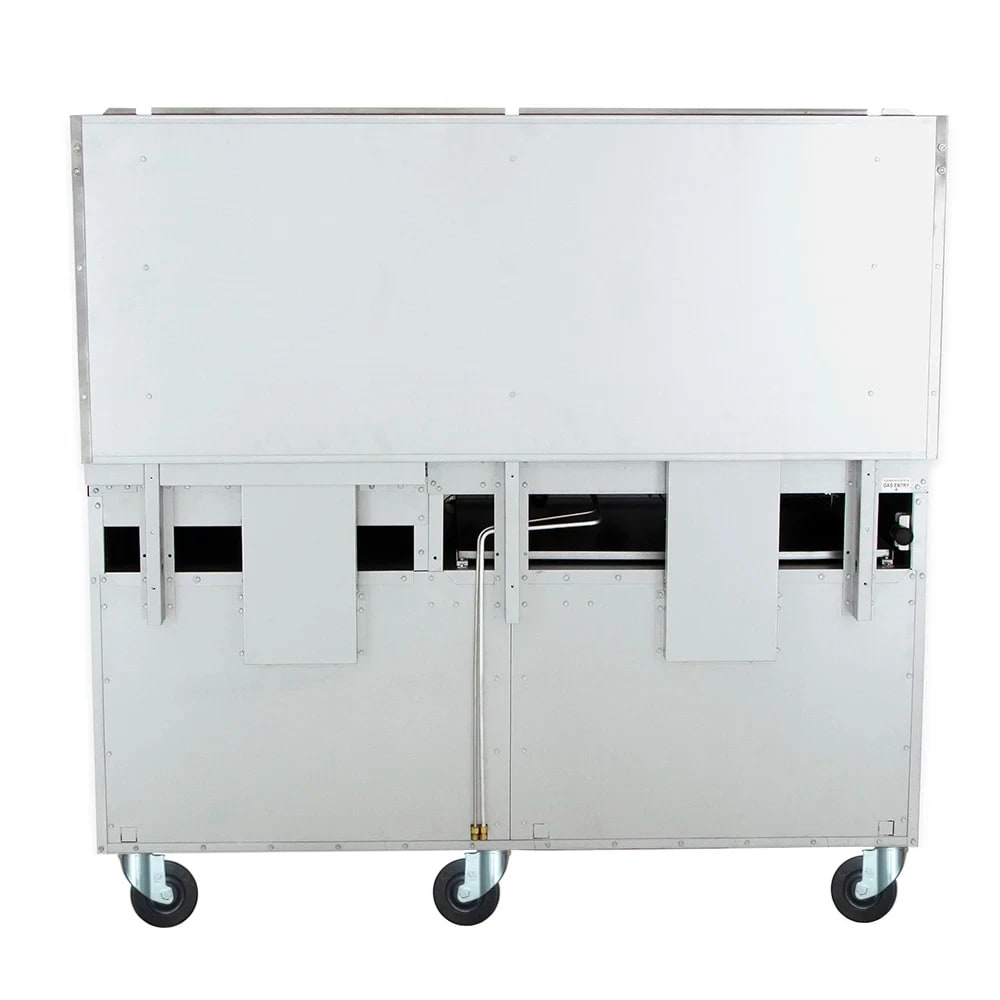

- 6-in. stainless steel legs adjust for use on uneven floors

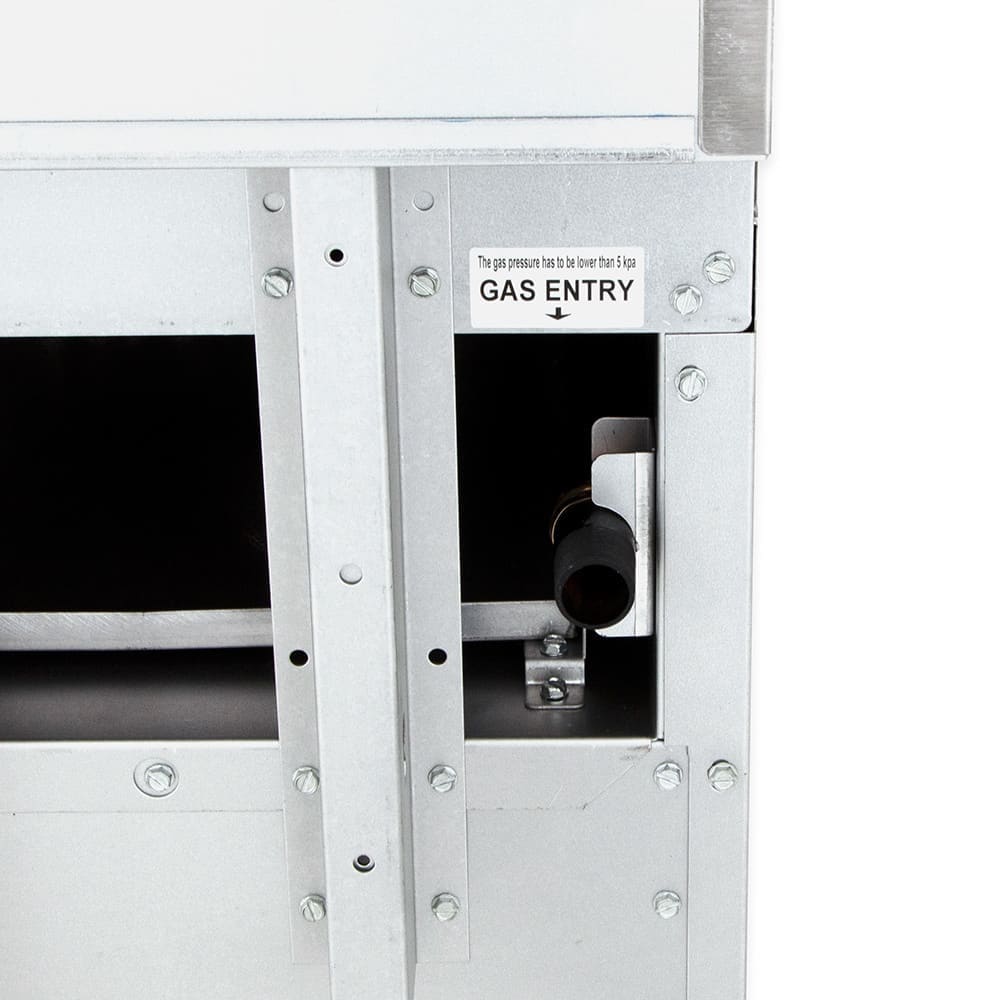

- 3⁄4-in. rear NPT gas connection
- 360,000 total BTU
- Overall dimensions: 60 in. W x 32.5 in. D x 60.5 in. H
- cETLus and ETL-Sanitation listed
Two Full-size Ovens
- Temperature range: 200-450 degrees F

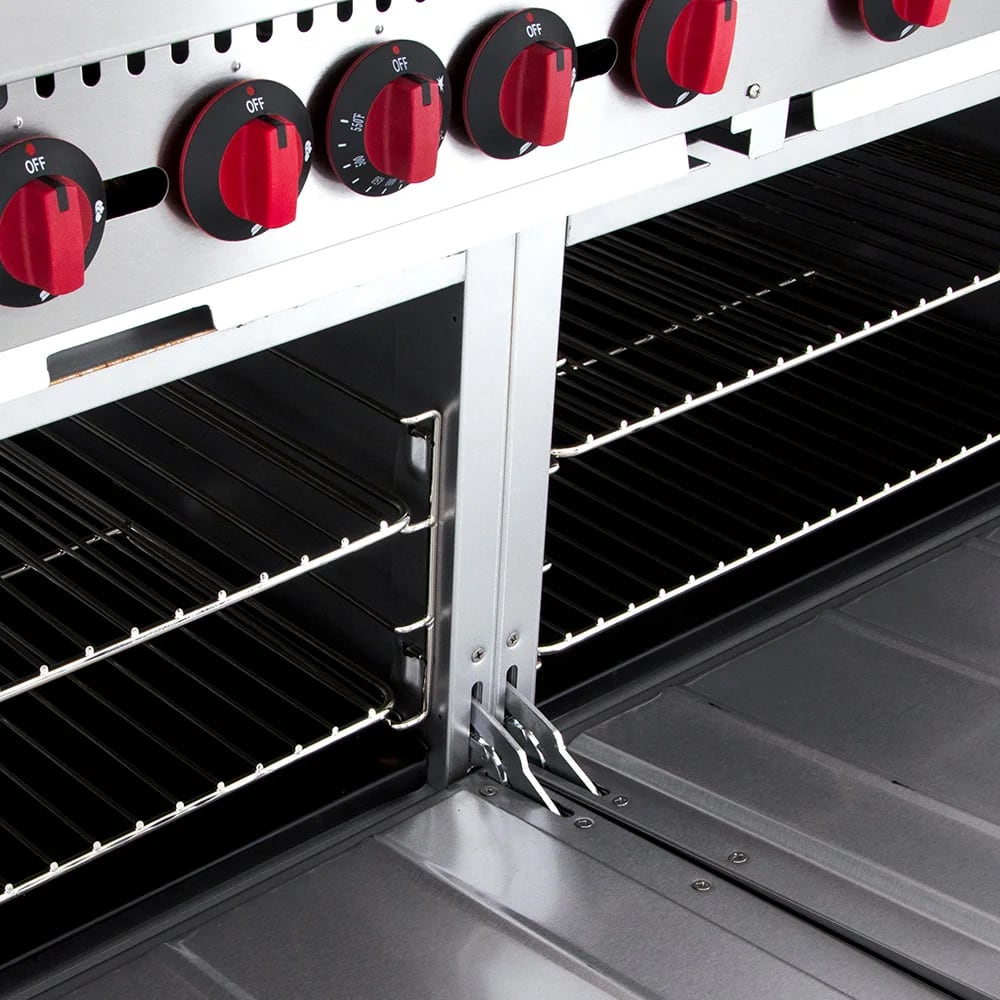

- 2 adjustable, removable oven racks
- Easy-to-clean porcelain oven liner resists corrosion
- Durable steel door and side liner
- Stainless steel oven door handles stay cool to the touch
- Flame failure safety device shuts off the flow of gas if the pilot goes out
- 30,000 BTU per oven
- Oven interior dimensions: 26.88 in. W x 25.8 in. D x 13.8 in. H
Our ranges and ovens buyers' guide has additional information on different types of ranges and ovens.
Centaur® Commercial Range with Griddle, natural gas, 60"W, (6) 30,000 BTU cast iron burners, 12" x 12" removable grates, manual controls, (1) 23-8/9" griddle with 3/4" thick plate, U-style burners, 4" welded side shields, (2) full-size 30,000 BTU ovens, (2) adjustable racks, removable crumb tray, steel frame, stainless steel front & 24-3/4" backriser with shelf, 280,000 BTU, ETL-Sanitation, cETLus
*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.
eQuipped R10-G24 SpecificationsPDF Spec Sheet
|BTU / Burner||30000|
|Width (in) Range||50 - 69 in|
