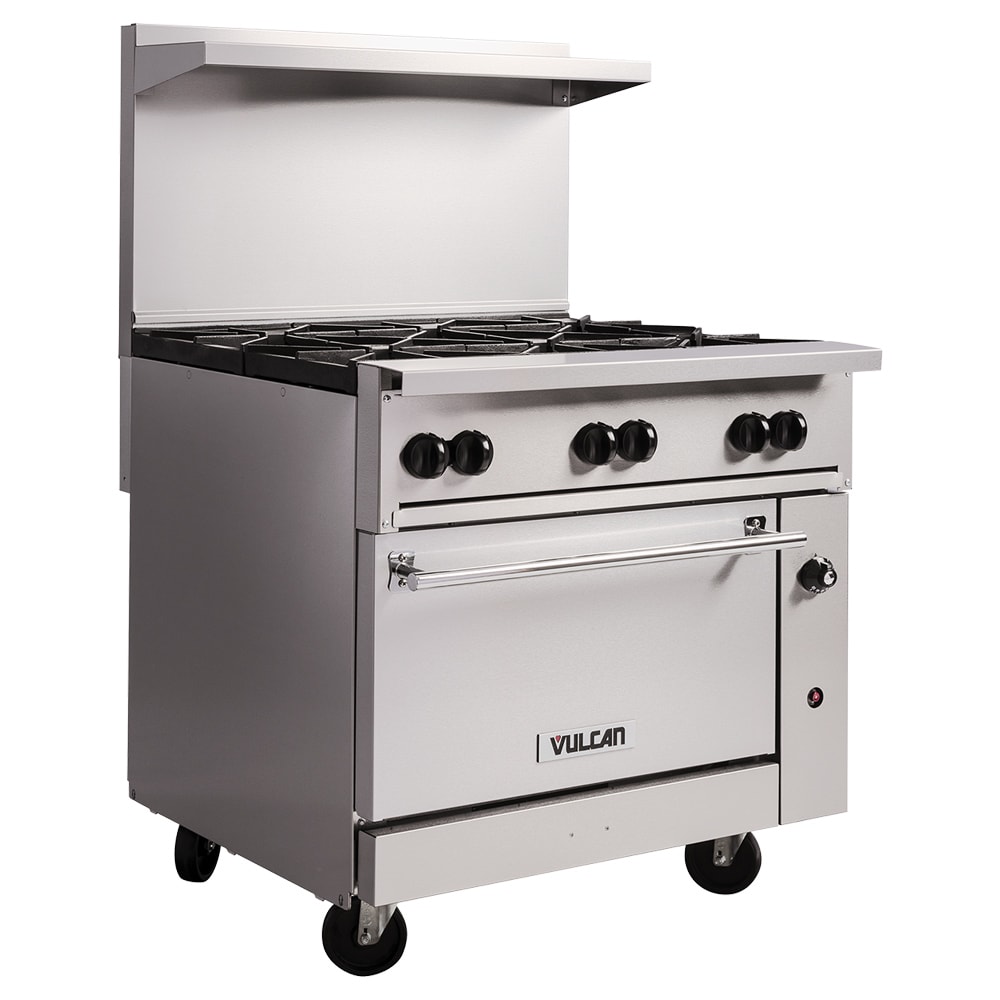

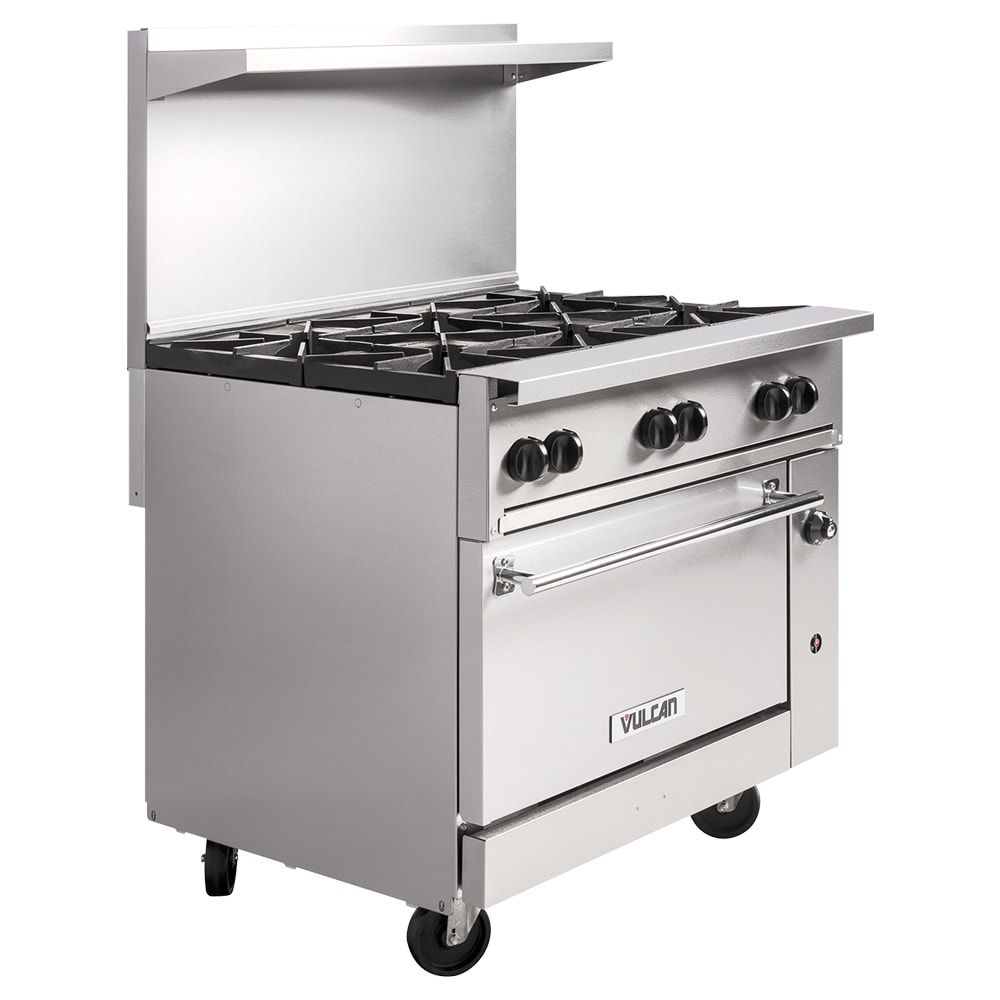

Vulcan 36C-6B 36" 6 Burner Gas Range w/ Convection Oven, Liquid Propane

Equipped with six open-top burners and a convection oven, the Vulcan 36C-6BP Endurance™ gas restaurant range enables chefs to saute, fry, and bake foods simultaneously to accommodate busy restaurants. One pilot light accommodates two burners, and each pilot features a shrouded flash-tube ignition system that prevents energy loss and reduces gas usage. Operators can adjust burners using the burner knobs, which remain cool to the touch throughout heating to reduce injury risks. Heavy-duty cast grates measuring 12 inches by 12¹⁄₂ inches are built atop the three front burners, while 12-inch by 14¹⁄₂-inch grates integrated on the back burners accommodate large pots and pans. The grates' built-in aeration bowls improve heat circulation, and to simplify cleaning, the grates can be removed.

The Vulcan 36C-6BP restaurant range's convection oven uses a fan to circulate heat around product, expediting baking. With its 26³⁄₈-inch width by 24-inch depth by 13⁷⁄₈-inch height, this oven's interior accommodates a full-size sheet pan in a side-to-side configuration, while its two oven racks can be situated in four rack positions on the rack guides. To access the oven's interior with ease, its heavy-duty door features an integrated spring mechanism. Users can modify temperatures from 250 to 500 degrees Fahrenheit using its thermostat.

Constructed of stainless steel with a fully welded MIG frame, this restaurant range resists rust and corrosion while withstanding high-volume use. Operators can clean the range thoroughly by removing the extra-deep pull-out crumb tray, and the oven's porcelain bottom and door panel are simple to wipe clean. To prevent rocking or wobbling on irregular surfaces, this 36-inch-wide by 34-inch-deep by 58-inch-high unit is furnished with 6-inch adjustable legs.

Product Details

• (6) 30,000-BTU open-top burners with lift-off heads
• Shrouded, energy-efficient flash-tube pilot system
• 1 pilot per 2 burners
• Cool-to-touch burner knobs
• (3) 12-in. x 12¹⁄₂-in. lift-off cast grates in front
• (3) 12-in. x 14¹⁄₂-in. lift-off cast grates in rear
• Aeration bowls for efficient heat transfer
• Extra-deep pull-out crumb tray with welded corners
• Stainless steel front, sides, backriser, and lift-off high shelf
• Fully welded MIG frame
• 6-in. stainless steel adjustable legs
• 6-in. rear clearance
• 10-in. side clearances
• 180,000 BTU

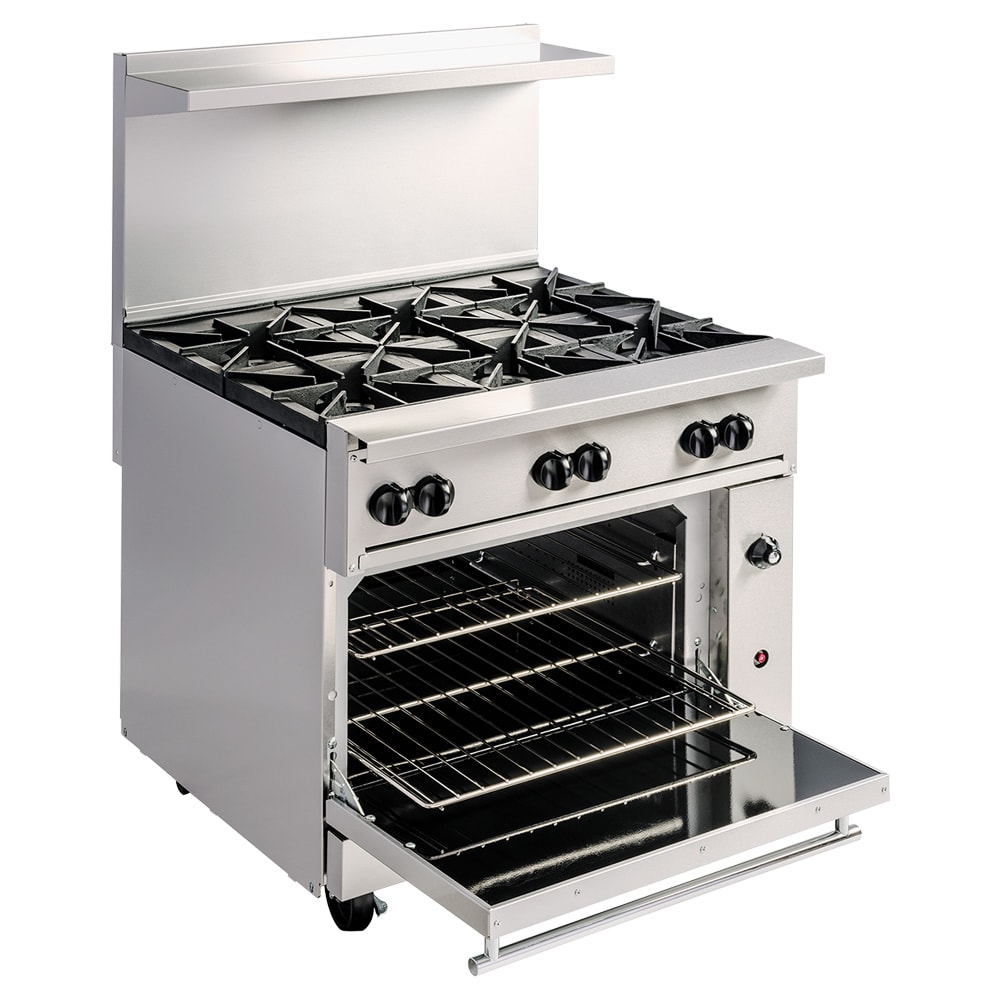

Convection Oven

• 2 racks, 2 rack guide sets, and 4 rack positions
• Full-size sheet pan fits side-to-side
• Porcelain oven bottom and door panel
• Heavy-duty oven door with spring mechanism
• Operating temperature range: 250-500 degrees F
• 35,000 BTU

Dimensions & Utilities

• Oven cavity: 26³⁄₈ in. W x 24 in. D x 13⁷⁄₈ in. H
• Overall: 36 in. W x 34 in. D x 58 in. H
• 4 A
• 115 V/60 Hz/1 ph, includes 6-ft. cord and plug
• Powered by LP gas
• ³⁄₄-in. rear gas connection and pressure regulator

Product Features

*Free shipping on Vulcan 36C-6B within the 48 contiguous states.

From The Manufacturer

Endurance™ Restaurant Range, LP gas, 36", (6) 30,000 BTU burners, lift-off burner heads, convection oven, stainless steel front, sides, backriser & lift-off high shelf, fully MIG welded chassis, 6" adjustable legs, 215,000 BTU, CSA Flame, CSA Star, NSF

*Image may not depict product color, inclusions or accessories.

1-year Limited Against Defects in Material & Workmanship; 90-day Replacement Parts

Vulcan 36C-6B Specifications

Vulcan started producing equipment in Louisville Ky., more than 150 years ago. Today, the brand produces state-of-the-art cooking appliances, including fryers, ovens, and everything in between. The brand is owned by Illinois Tool Works, a global manufacturing leader.
