The Vulcan 24S-4B gas range offers a direct heat to the cooking instruments with four 30,000 BTU, open top burners. A shrouded flash tube pilot system uses two pilots to light the four burners, reducing gas use and saving energy. The 12-inch by 121⁄2-inch front grates can be lifted off to make it simple to clean and service. To accommodate large pots and pans, the rear grates measure 12 inches wide by 141⁄2 inches deep. Heat is accurately directed to the pots and pans by integrated aeration bowls. There is a pull-out crumb tray with an extra-deep design and welded corners.
Since the oven in the Vulcan 24S-4B gas range’s base has a heavy-duty door construction, it can be used in commercial establishments. The interior measures 201⁄4 inches wide by 261⁄4 inches deep by 14 inches tall so full-size sheet pans fit front to back on the two oven racks. Adjusting to four positions, the racks provide a variety of cooking options. There is a temperature range of 200 to 500 degrees Fahrenheit, and a low setting for cooking delicate products.
- Heated by natural gas

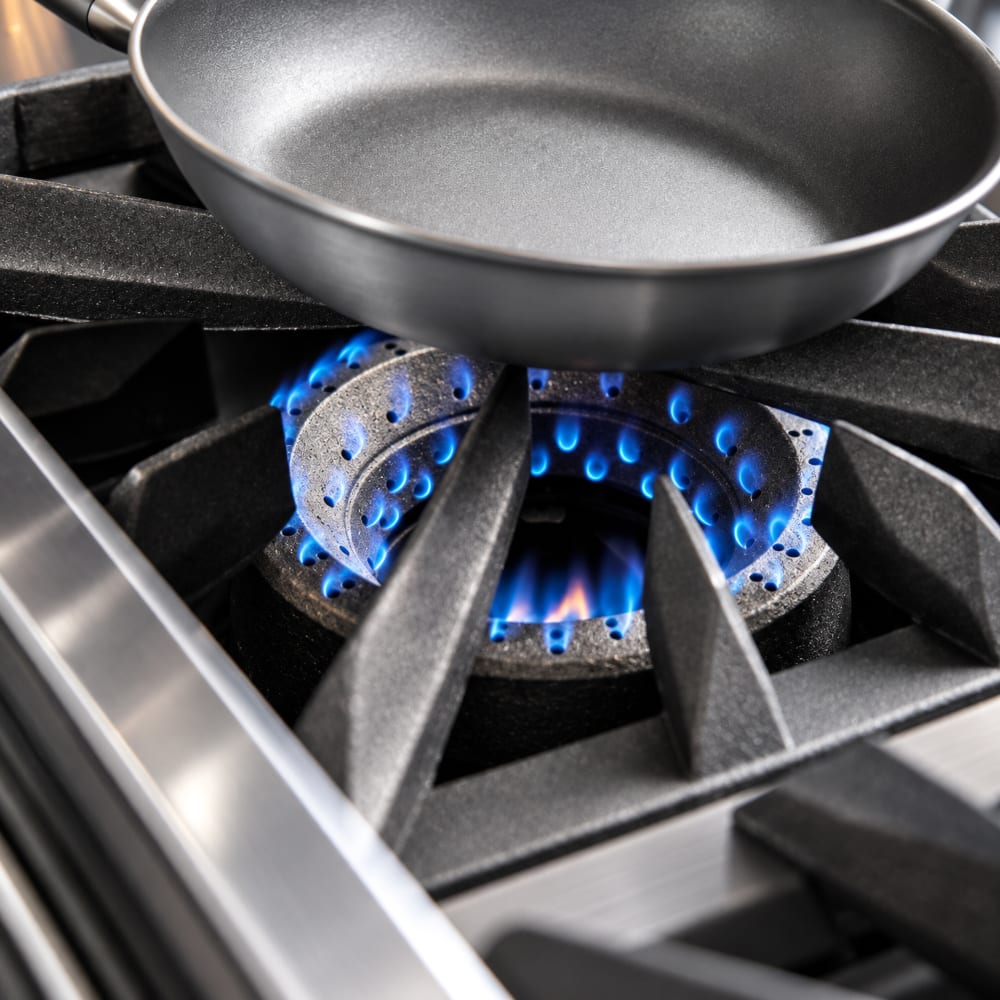

- (4) 30,000 BTU open-top burners offer a direct heat to the cooking instruments
- Lift-off heads on the burners make them easy to clean
- 4 burners have 2 pilots to reduce gas use with a shrouded flash tube pilot system

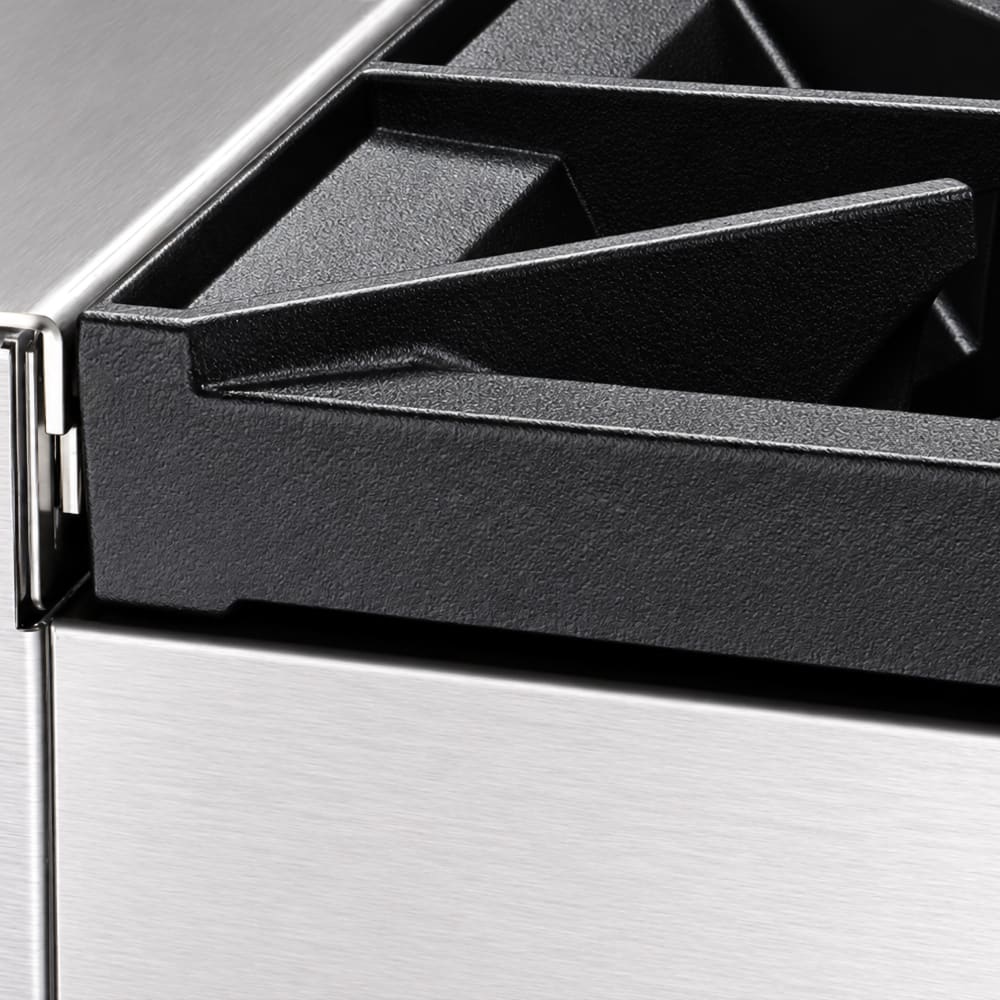

- Front grates measure 12 in. W x 121⁄2 in. D and can be lifted off for servicing and cleanup
- Rear grates measure 12 in. W x 141⁄2 in. D and accommodate large pots and pans
- Aeration bowls are integrated into each crate to ensure heat is directed accurately
- Durability is added to the grates’ fingers by the aeration bowls
- Pull-out crumb tray has an extra-deep design and welded corners
- 6-in. stainless steel legs adjust to accommodate uneven ground
- Stainless steel high shelf, backriser, front, and sides are durable and resist corrosion
- Steel frame is aluminized and fully MIG welded
- 3⁄4-in. rear gas connection and pressure regulator
- 143,000 BTU
- Overall Dimensions: 24 in. W x 34 in. D x 58 in. H
- CSA listed; NSF certified
- 250-500 degree F temperature range
- Low setting can be used to prepare delicate menu items
- 2 oven racks accommodate 18-in. x 26-in. full-size sheet pans front to back
- 4 rack positions allow for cooking of a variety of products
- Door is heavy duty for use in commercial establishments
- Interior Dimensions: 201⁄4 in. W x 261⁄4 in. D x 14 in. H

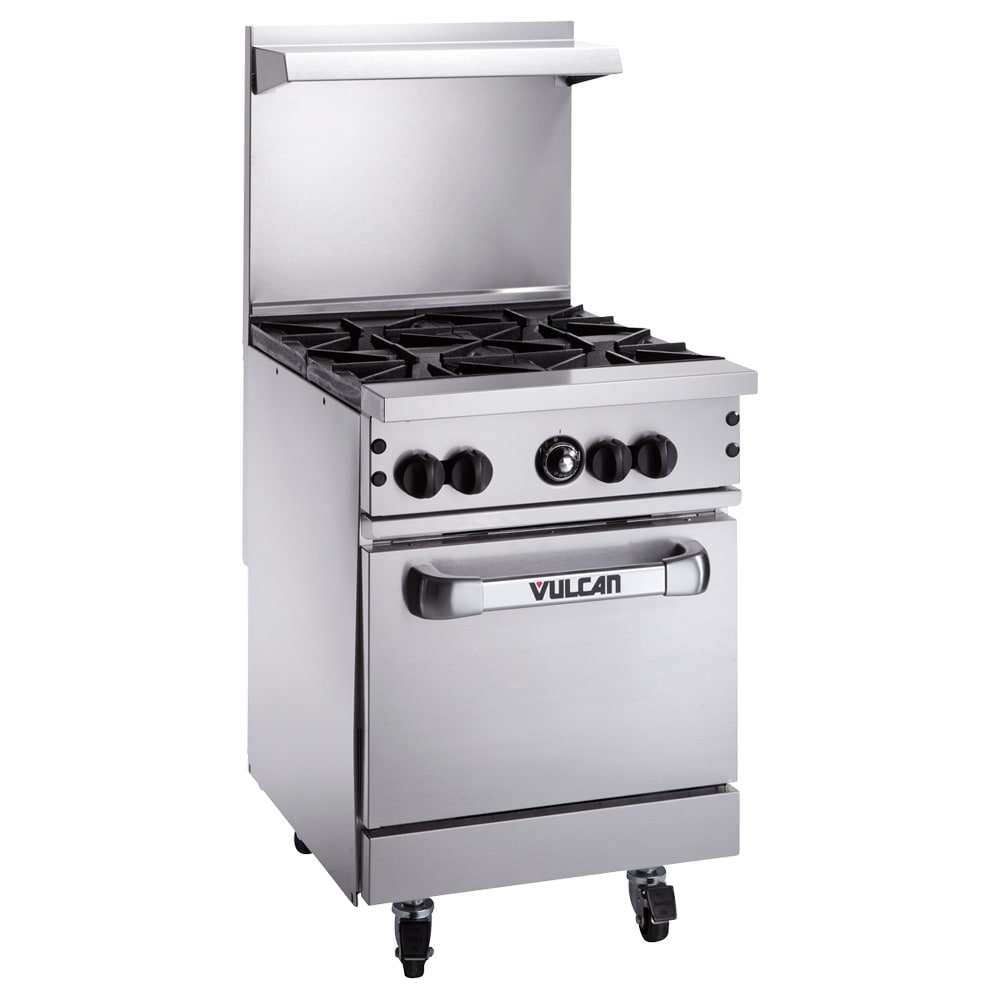

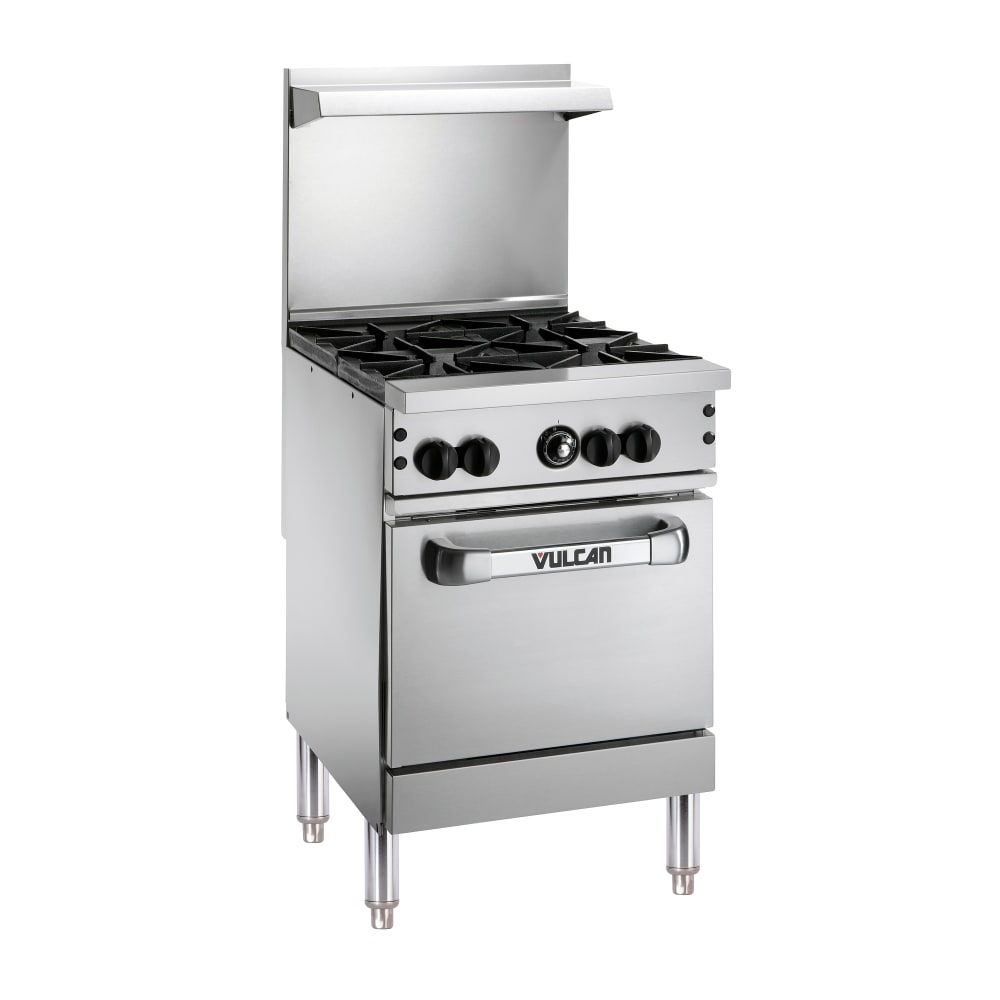

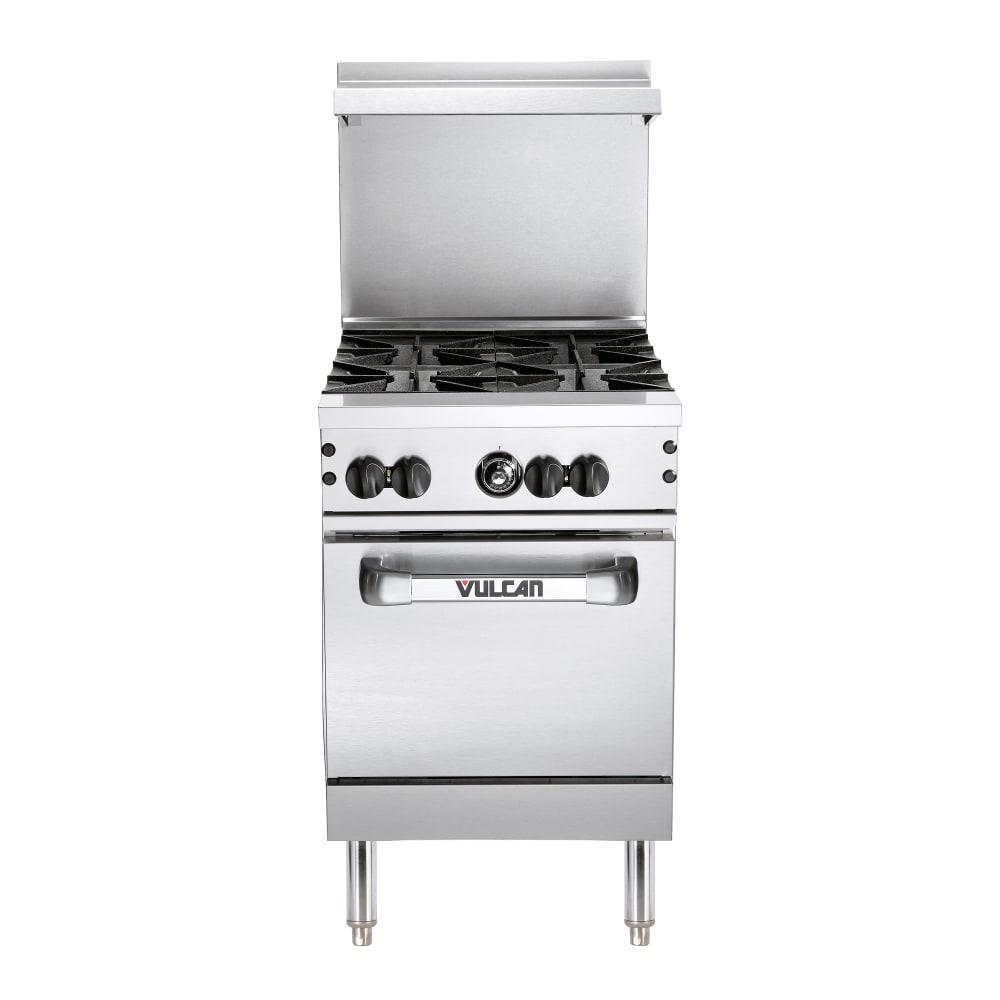

Endurance™ Restaurant Range, NG gas, 24", (4) 30,000 BTU burners, standard oven, stainless steel front, sides, backriser & lift-off high shelf, fully welded chassis, 6" adjustable legs, 143,000 BTU, CSA, NSF
*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.
Important Prop 65 information for California residents.
Vulcan 24S-4B SpecificationsPDF Spec Sheet
|BTU / Burner||30000|
|Warranty||1 year limited parts and labor|
|Width (in) Range||12 - 29 in|
