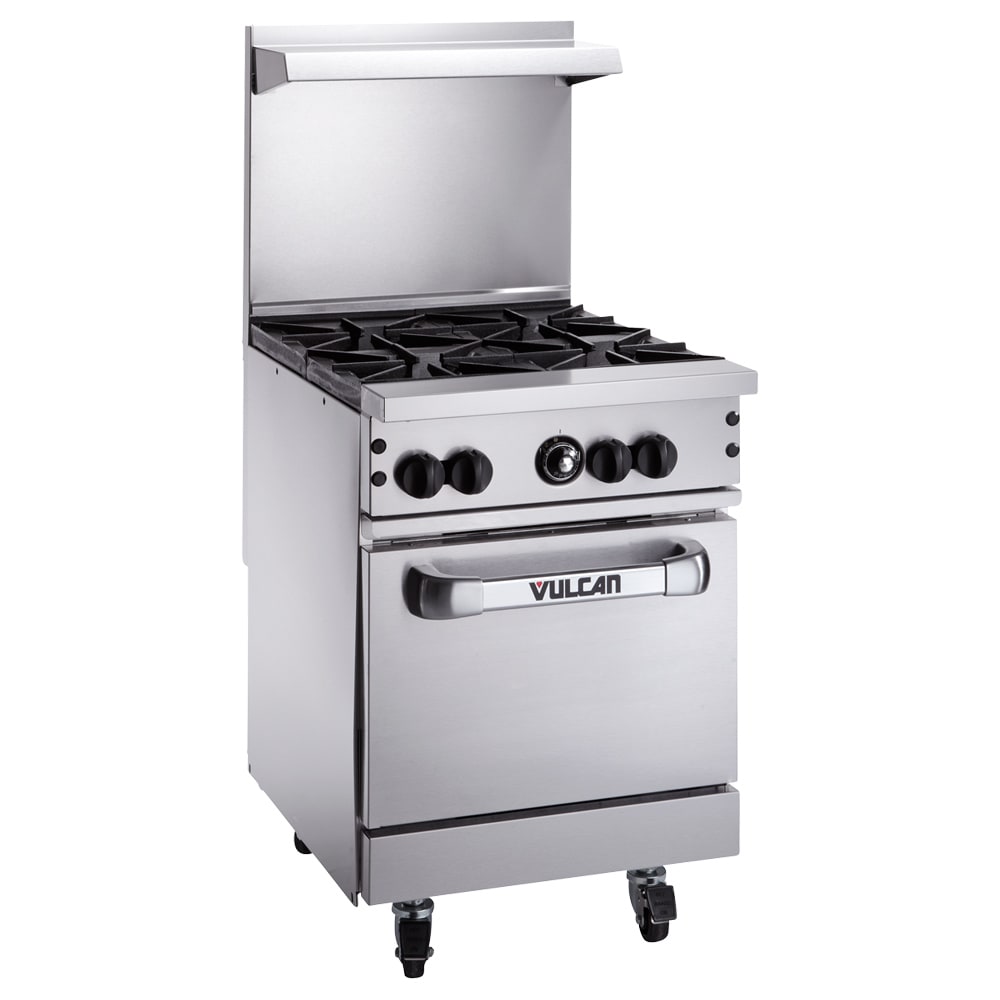

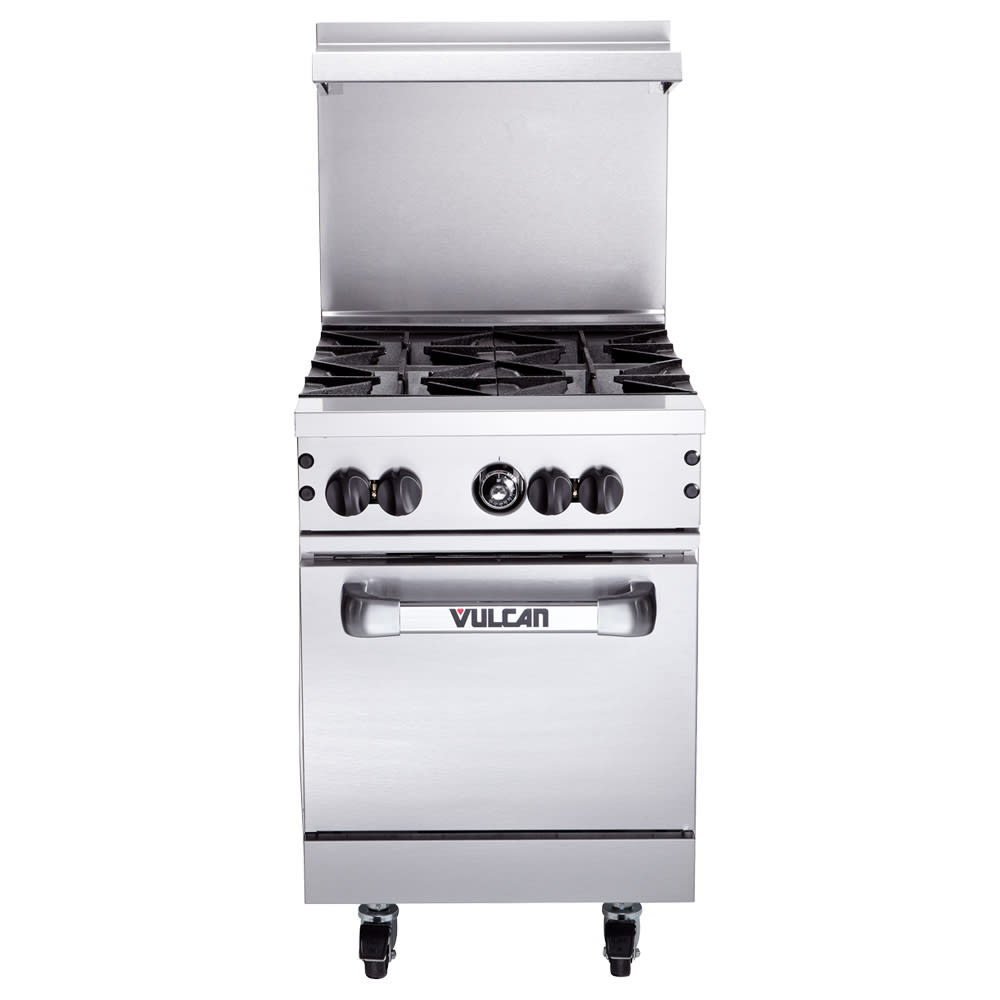

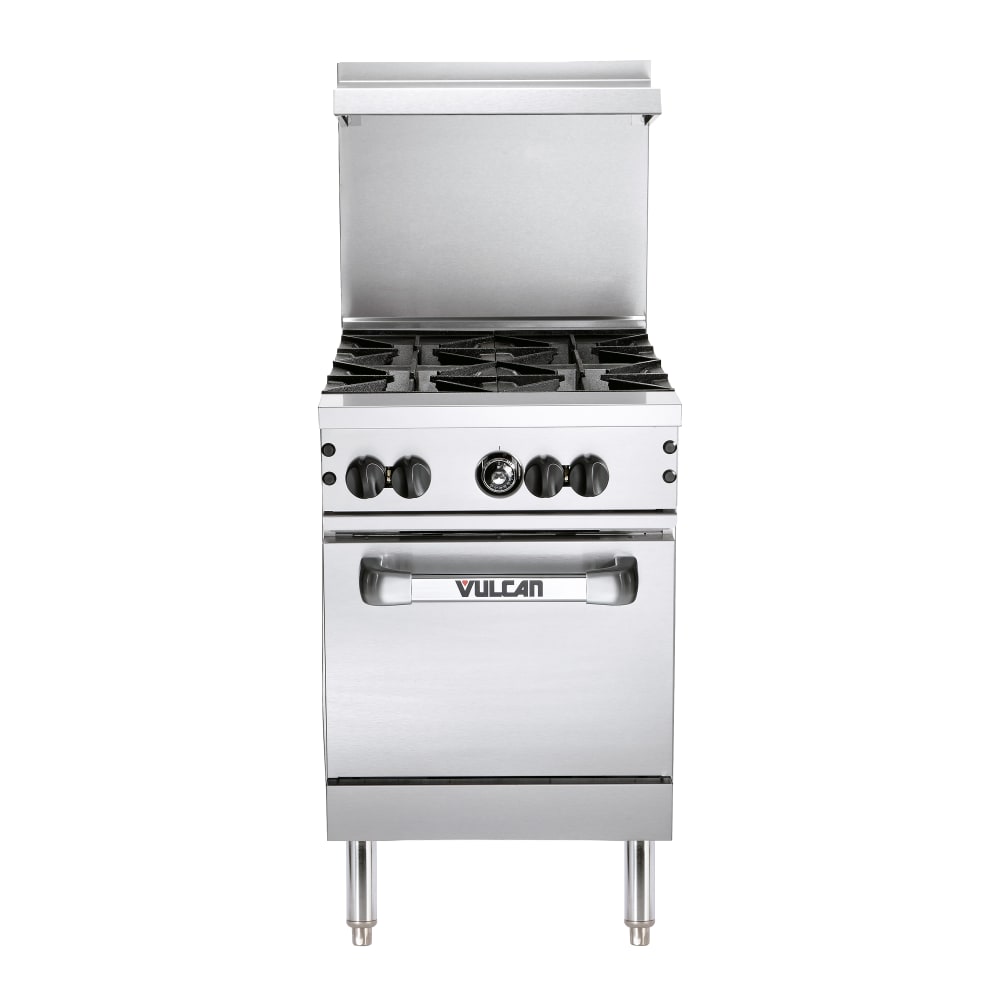

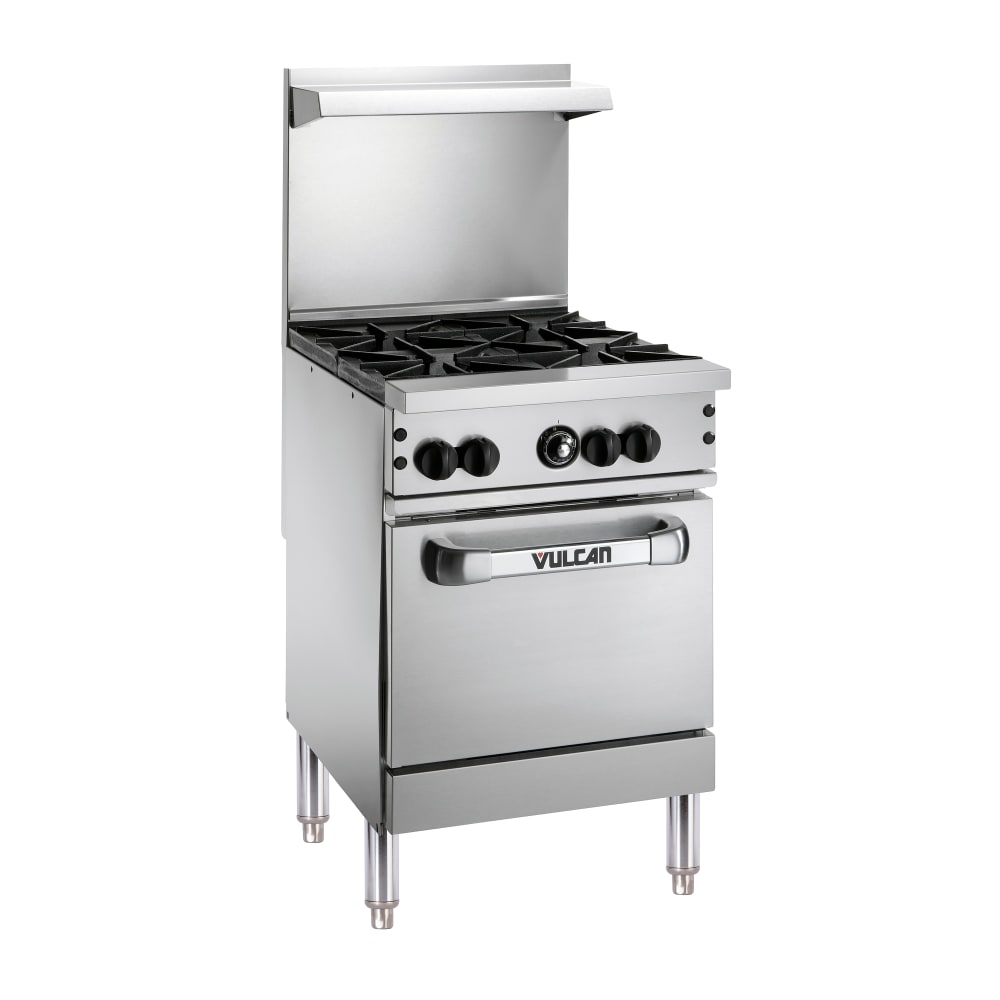

Vulcan 24S-4B 24" 4 Burner Gas Range w/ Standard Oven, Liquid Propane
Typically ships in 4 - 8 Business Days
$4,010.00 /Each
Selected Gas Type: Liquid Propane
Natural Gas
White Glove Delivery
Contact your sales rep for availability
Vulcan 24S-4B Description
The Vulcan 24S-4B gas range has four 30,000 BTU burners powered by propane. The lift-off heads on the burners provide access to the components for maintenance and cleanup. There are two pilots for the four burners with a shrouded flash tube pilot system, minimizing gas use to save energy. The front grates measure 12 inches wide by 121⁄2 inches deep and can be lifted off to easily clean underneath them. Stock pots and large pans fit on the rear burners since they measure 12 inches wide by 141⁄2 inches deep. An aeration bowl is integrated into each grate to direct heat toward pots and pans.
The standard oven can accommodate two full-size sheet pans front to back on two racks. They can be adjusted to four positions to offer a variety of cooking options. The temperature can be set between 250 and 500 degrees Fahrenheit and has a low setting for delicate products. The Vulcan 24S-4B gas range has a full MIG-welded, aluminized steel frame to add strength and structure. With its stainless steel high shelf, backriser, front, and sides, the range resists minor damage and is heavy duty for frequent commercial use.
Product Details
- (4) 30,000 BTU burners have lift-off heads so they are easy to clean
- 2 pilots for the 4 burners reduce gas use with a shrouded flash tube pilot system

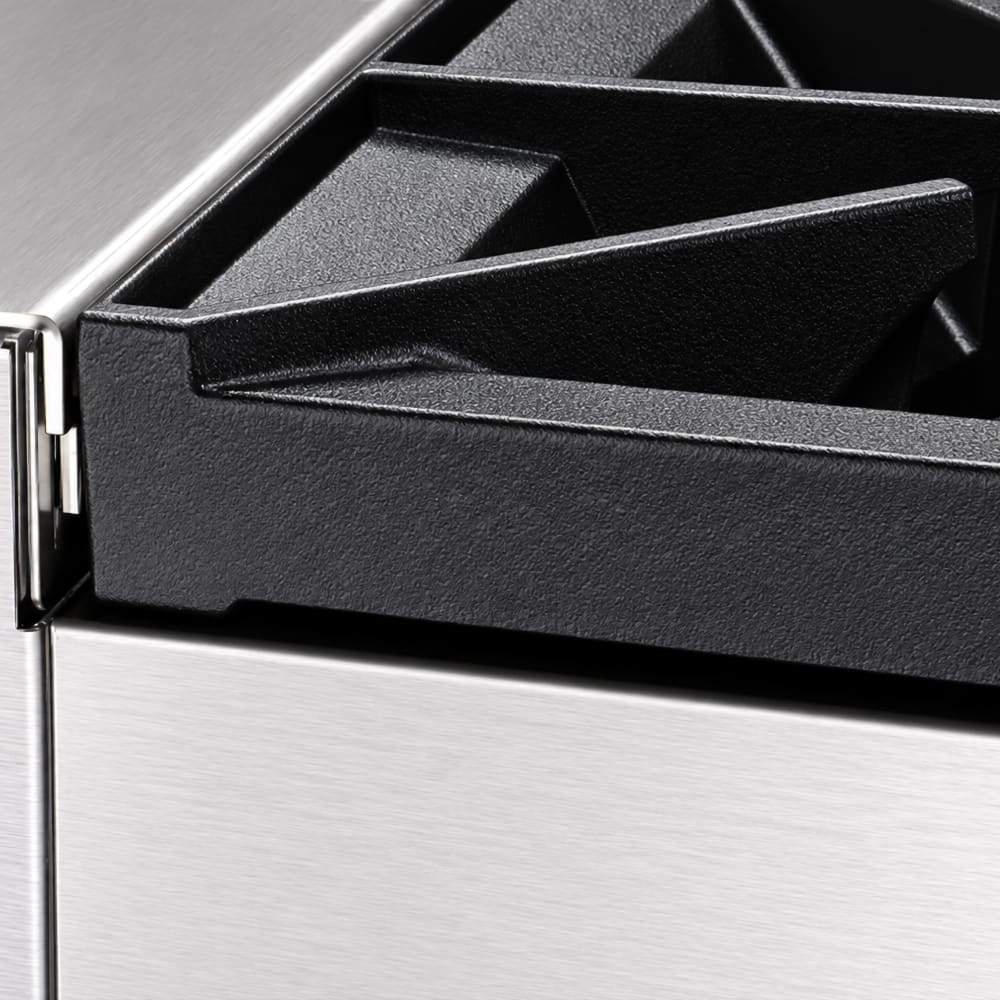

- 12-in. x 121⁄2-in. front grates lift off for servicing and cleanup
- 12-in. x 141⁄2-in. rear grates hold large stock pots and pans

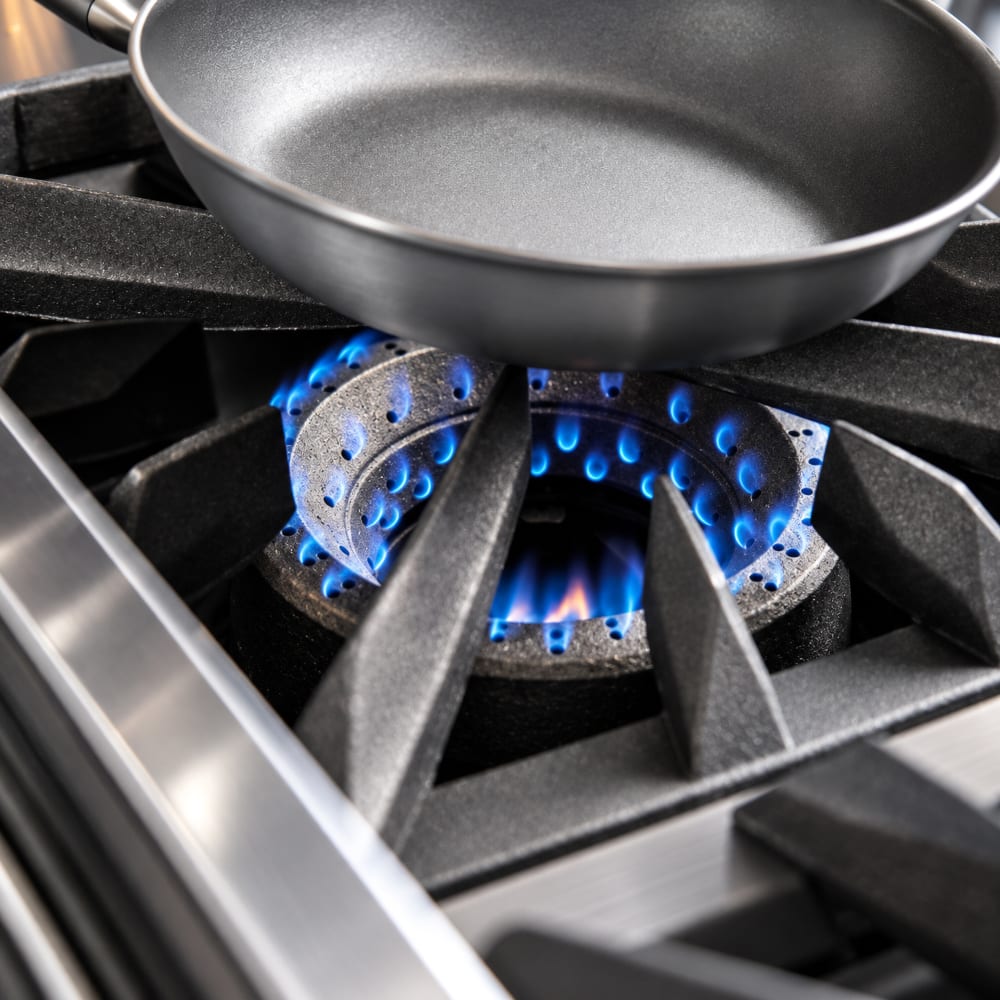

- Each grate has an integrated aeration bowl to direct heat towards the pots and pans
- Pull-out crumb tray has welded corners and an extra deep design
- Stainless steel high shelf, backriser, front, and sides are durable and resist corrosion
- Steel frame is aluminized and fully MIG-welded for durability
- 6-in. stainless steel legs can be adjusted
- 3⁄4-in. rear gas connection and pressure regulator
- 143,000 BTU
Product Features
Standard Oven
- 2 oven racks accommodate 2 full-size sheet pans front to back
- Racks adjust to 4 positions for a variety of cooking options
- Temperature range: 250-500 degrees F
- Low setting prepares delicate menu items
- Door is heavy duty for commercial applications
Dimensions & Utilities
- Oven Interior: 201⁄4 in. W x 261⁄4 in. D x 14 in. H
- Overall: 24 in. W x 34 in. D x 58 in. H
- Heated by LP gas
*Free shipping on Vulcan 24S-4B within the 48 contiguous states.
From The Manufacturer
Endurance™ Restaurant Range, liquid propane gas, 24", (4) 30,000 BTU burners, standard oven, stainless steel front, sides, backriser & lift-off high shelf, fully welded chassis, 6" adjustable legs, 143,000 BTU, CSA, NSF
*Image may not depict product color, inclusions or accessories.
Vulcan 24S-4B Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Vulcan |
| Additional Info | Contact Customer Service for altitudes above 2,000 feet |
| Application | Restaurant |
| Base | Standard Oven |
| BTU / Burner | 30000 |
| Burner Configuration | Standard |
| Burner Style | Grates |
| Burner Type(s) | Open |
| Controls | Manual |
| Depth (in) | 34 |
| Gas Inlet Size | 0.75 |
| Gas Type | LP |
| Heat | Gas |
| Height (in) | 58 |
| Installation Type | Freestanding |
| Max Temp | 500 |
| Number of Burners | 4 |
| Number of Ovens | Single |
| Open Burner BTU (ea) | 30000 |
| Product | Gas Ranges |
| Product Type | Cooking Equipment |
| Rack Positions per Standard Oven | 4 |
| Racks per Standard Oven | 1 |
| Range Configuration | Burners |
| Rating | Better |
| Series | Endurance™ |
| Standard Oven BTU/hr | 23000 |
| Standard Oven Dimensions | 20-1/4"W x 26-1/4"D x 14"H |
| Total BTU | 143000 |
| Vent | Backriser w/ hi-shelf |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 24 |
| Weight | 350.00 |
