Traulsen G30010 76 3/10" Three Section Reach In Refrigerator, 3 Left/Right Hinge Solid Doors, 115v
Typically ships in 2 - 3 weeks
$9,674.00 /Each
Attention: Order by 12-01-2026 to save before the price increases!
Traulsen G30010 Description

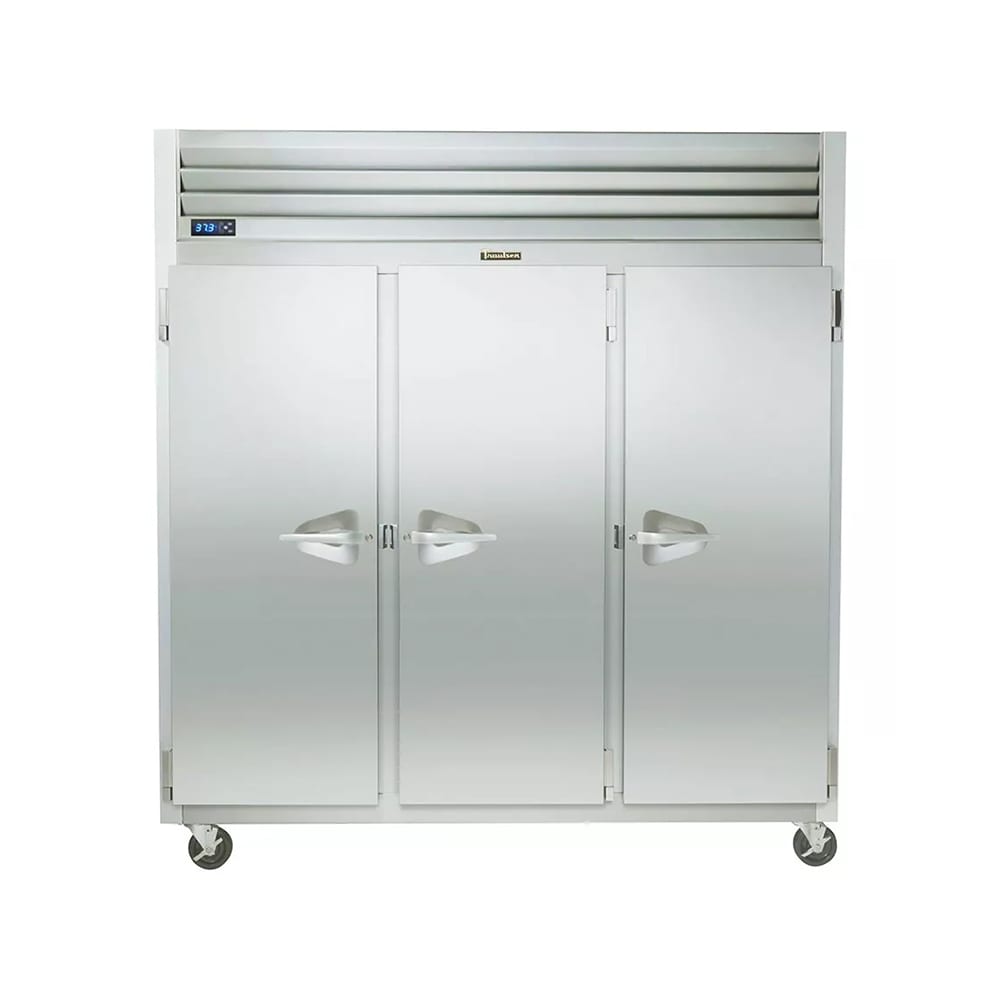

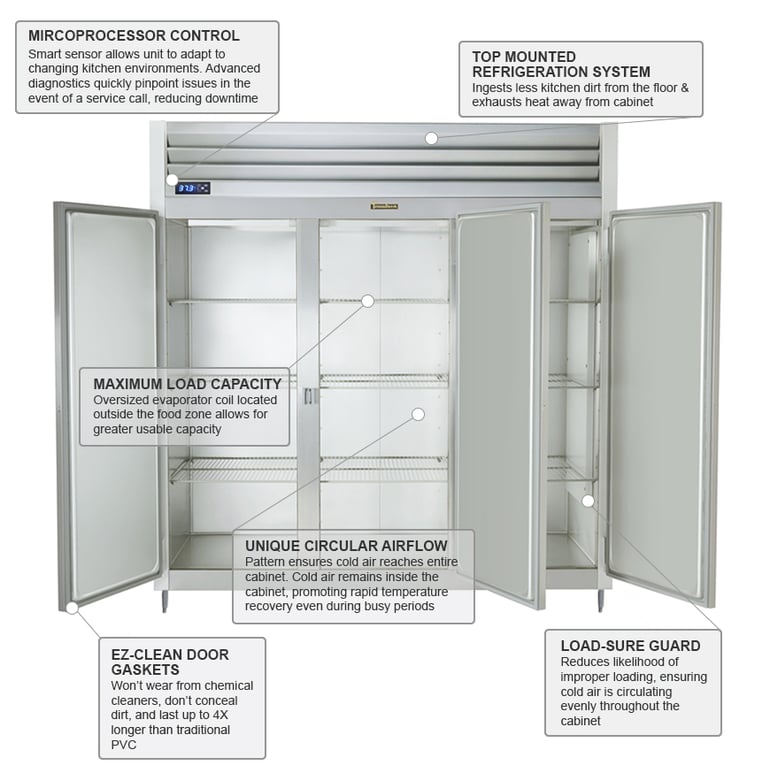

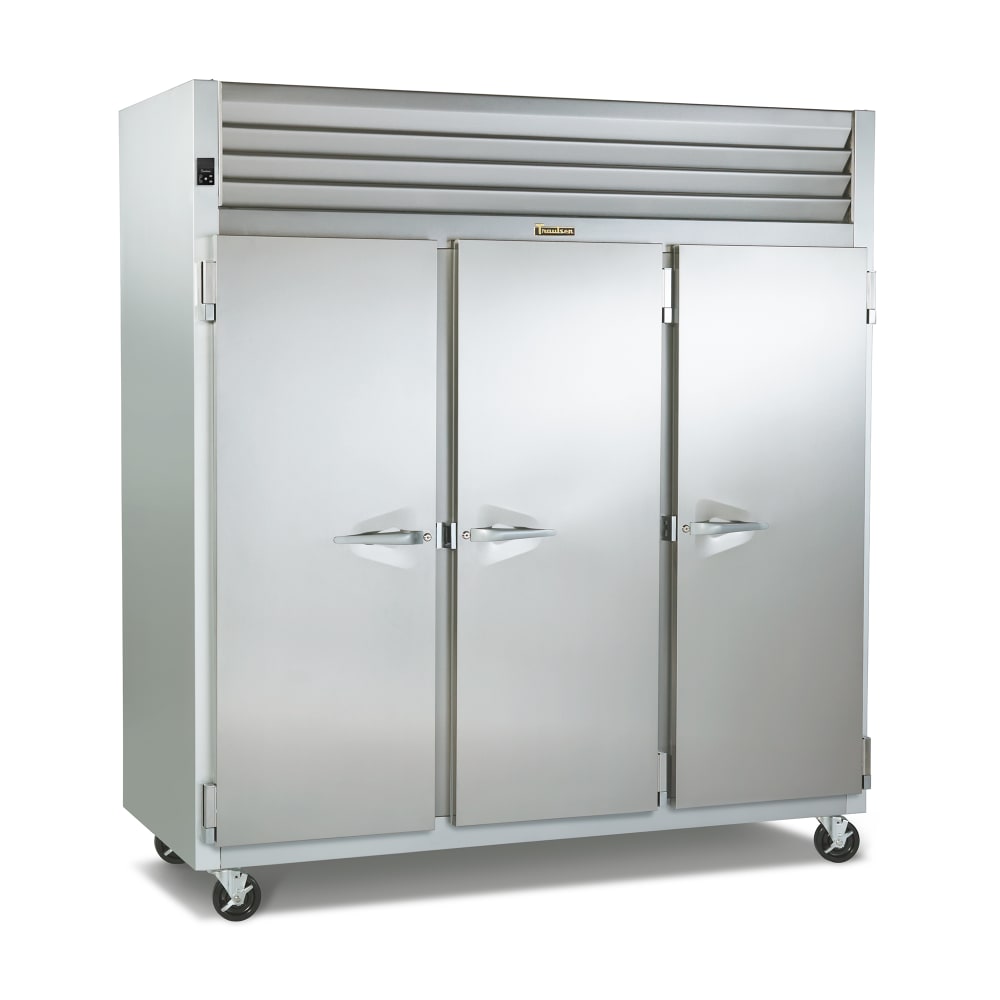

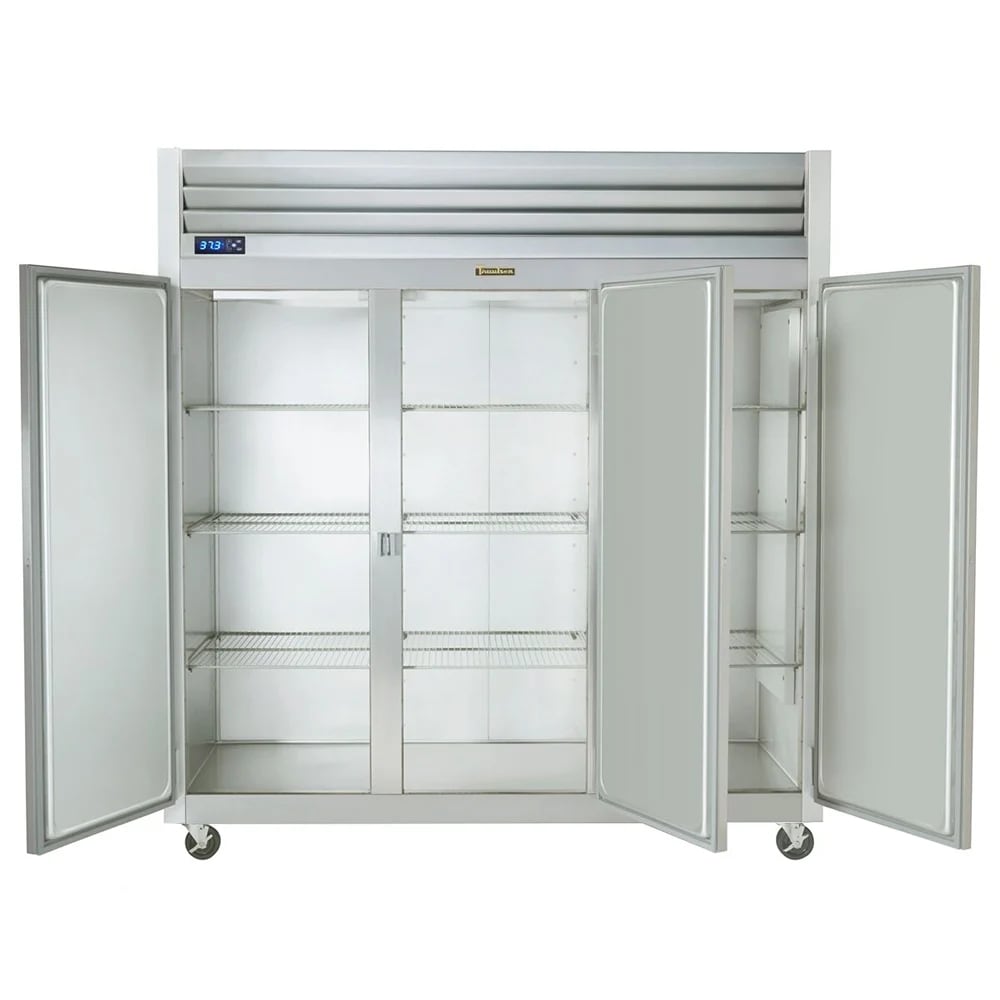

The Traulsen G30010 three-section reach-in refrigerator holds product on nine epoxy-coated shelves. To protect against improper loading that could affect cold airflow, the Load-Sure guard prevents products from being stored too close to the wall. LED lighting shines on products to provide visibility, and the doors have durable gaskets and stay open past 120 degrees. This refrigerator is made of stainless steel and anodized aluminum for durability and corrosion resistance. It sits on 6-inch-diameter casters with locks.
Temperatures in the Traulsen G30010 reach-in refrigerator stay between 34 and 38 degrees Fahrenheit, and the water-resistant microcompressor control has an LED temperature display. Operators can set the temperature at a level that works best for the stored products. The refrigeration system is top mounted, keeping it separate from floor dirt and debris, but this placement can be harder on the condenser because heat rises. Because the evaporator coil is located outside the food zone, it creates more usable space in the cabinet.
- 69.35-cu.-ft. interior space
- 9 epoxy-coated shelves
- Load-Sure guard ensures proper airflow by keeping 2 in. of space between product and the walls
- LED lighting inside the cabinet shines on product
- All-metal construction with a stainless steel front/doors and aluminum interior and sides
- 3 doors stay open past 120 degrees for loading and unloading
- EZ Clean door gaskets are durable
- 2-in.-thick polyurethane insulation creates structure
- 6-in. locking casters
- 4,610 BTU
- Part of the G-Series
- Temperature holding range: 34-38 degrees F
- Water-resistant microcompressor control
- 3-digit LED temperature display can show in Fahrenheit or Celsius
- Evaporator coil is located outside the food zone to provide more usable space in the cabinet
- Condenser coil is front facing to provide access for maintenance
- Uses R290 refrigerant
- Top mounted away from dirt and debris on the floor
- System is located behind the 1-piece louver assembly
- Doors: 21 1⁄8 in. W x 57 5⁄8 in. H
- Overall: 76 5⁄16 in. W x 35 in. D x 83 7⁄16 in. H
- 8.4 A, 3.38 kW, 1⁄2 HP
- 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-15P plug
*Nominal cubic footage measurements sometimes provided by refrigeration manufacturers may not indicate actual usable space. If you require a specific capacity, please call one of our customer care representatives to ensure the unit you order meets your needs.
*Image may not depict product color, inclusions or accessories.
*Free shipping on Traulsen G30010 within the 48 contiguous states.
From The Manufacturer
Watch a video about this product
Traulsen G30010 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Traulsen |
| Additional Info | Contact Customer Service for Additional Information; model available with R290 refrigerant as 206-G30010032 |
| Color | Silver |
| Compressor Location | Top |
| Cubic Feet | 69.3 |
| Depth (in) | 35 |
| Door Type | Solid |
| Doors | Full |
| Evaporator Type | Expansion Valve |
| Height (in) | 83.44 |
| Hertz | 60 |
| Hinge Configuration | Left/Right |
| Interior Material | Aluminum |
| NEMA | 5-15P |
| No. of Doors | 3 |
| Number of Shelves | 9 |
| Phase | 1 |
| Product | Reach-In Refrigerators |
| Product Type | Commercial Refrigeration |
| Rating | Better |
| Refrigerant | R290 (Hydrocarbon) |
| Sections | 3 |
| Series | Dealer's Choice |
| Special Features | Casters Included - Uninstalled |
| Supports | Casters |
| Thermometer Type | Digital |
| Type | Reach In |
| Voltage | 115 |
| Warranty | 6-year Parts & Labor; 7-year Compressor |
| Width (in) | 76.31 |
| Weight | 630.00 |
Important Prop 65 information for California residents.
- 5
- 4
- 3
- 2
- 1
Review this product!
This the first time we have used a Motak case but it WORKS!
We use the Traulsen lineup of equipment because the equipment is sturdy , maintains product integrity and easy to work on if something does go wrong.
The cabinet provides 69.35 cu. ft. interior capacity.
The unit includes nine epoxy-coated shelves across three sections.
It maintains a 34 to 38°F temperature range.
The Load-Sure™ guard maintains 2 in. space from walls.
The exterior uses stainless steel, and the interior uses aluminum.
The top-mounted system sits above the storage cabinet.
Yes, the LED lights illuminate stored products inside.
The front-facing condenser coil provides direct cleaning access.
It uses 115 V/60 Hz/1 ph with a NEMA 5-15P plug.
This unit provides 69.35 cu. ft. of refrigerated storage across three sections.
This unit measures 76 5⁄16 in. W x 35 in. D x 83 7⁄16 in. H.
This model has full-height solid doors.
It comes with nine epoxy-coated shelves.
It maintains a holding temperature range from 34-38° F.
Yes. The Load-Sure™ guard maintains 2 in. of space between stored products and the cabinet walls.
Yes. The doors stay open past 120 degrees for loading.
It has a stainless steel exterior and an aluminum interior.
The compressor is mounted at the top of the cabinet.
Yes. LED lighting illuminates the cabinet interior.
Yes. The front-facing condenser coil provides direct cleaning access.
Yes. It plugs into a standard outlet with a NEMA 5-15P plug.
It uses R290 hydrocarbon refrigerant.
Yes. Casters are included for repositioning or cleaning access.
This reach-in fits commissaries, hotels, schools, and high-volume kitchens needing concealed refrigerated storage across three sections.
It has three sections and three doors.
