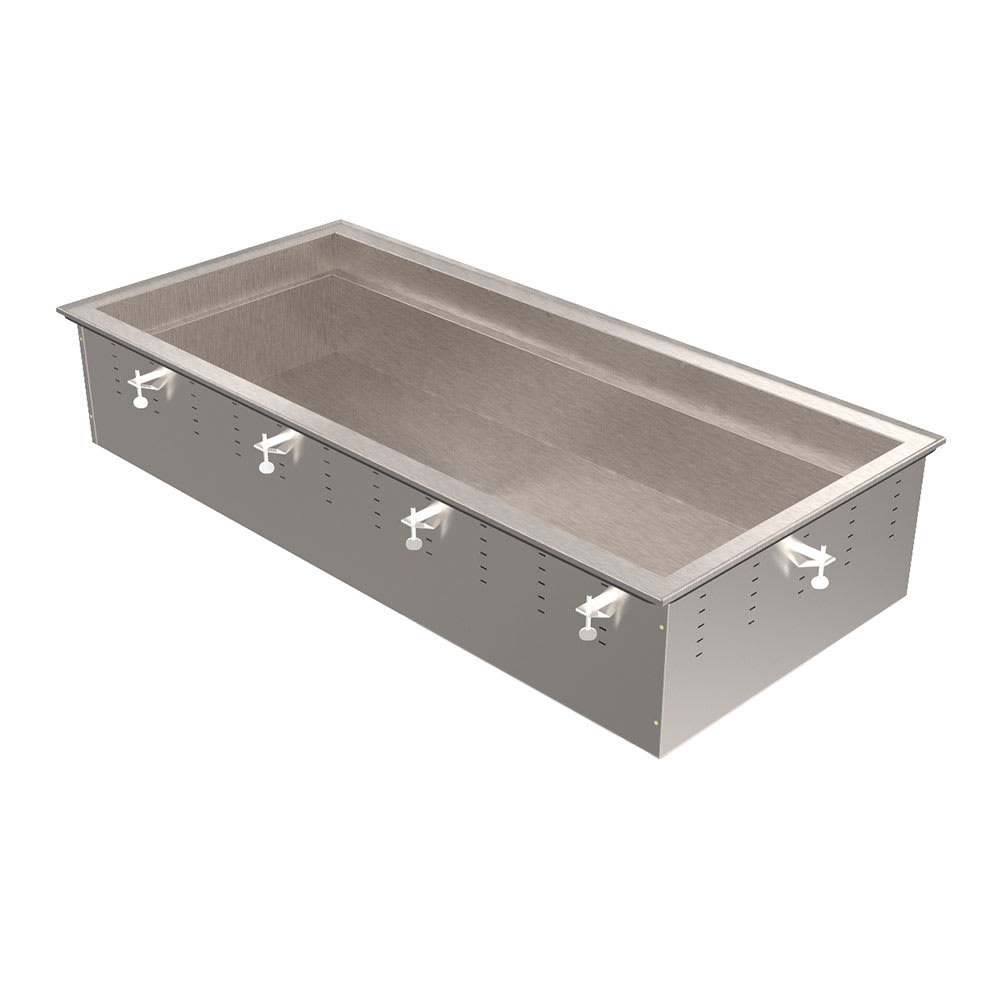

Vollrath 36456R 18" Drop-In Refrigerator w/ (1) Pan Capacity, Cold Wall Cooled, 120v

The Vollrath 36456R drop-in refrigerator has a 6⁵/₈-inch depth that can hold one full-size food pan at its ideal temperature and within arm's reach. Its body is made of galvanized steel and a durable stainless steel blend strengthened with nickel and chromium. For temperature maintenance, it's insulated with a layer of polyurethane foam, while its copper tubes can house an operator-supplied thermostat control. At the bottom of the unit is a hookup designed to connect the refrigerator to a remote compressor (not included). Designed to fit into a 17¹/₄-inch by 25¹/₄-inch countertop cutout, the Vollrath 36456R cold wall refrigerator includes a series of plastic latches to hold it in place. The unit is framed by a liquid-catching rim to reduce messes and cross contamination.

Product Details

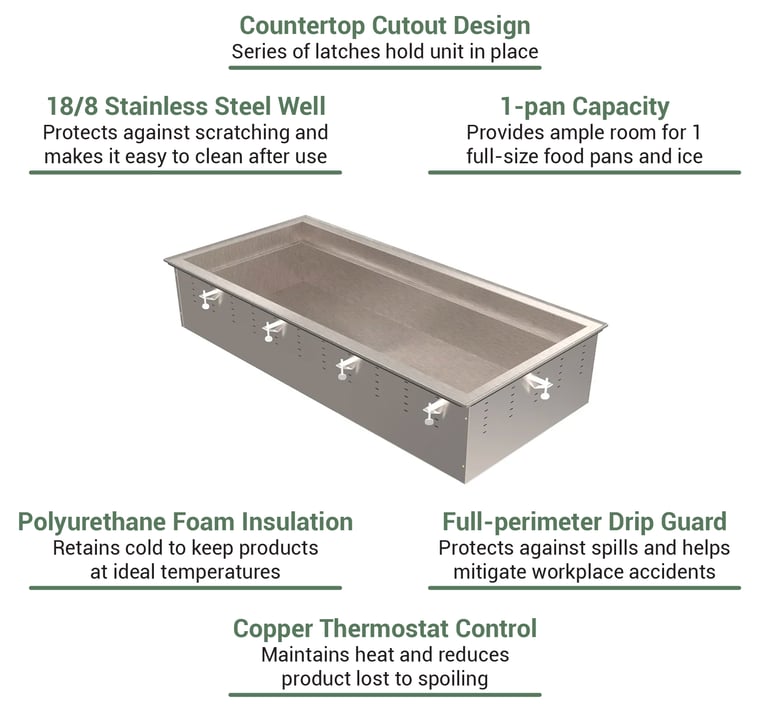

• 18-gauge galvanized steel housing with 18/8 stainless steel well
• 1-pan capacity
• 6⁵/₈-in.-deep well
• Drip-resistant flange
• Polyurethane foam layer for insulation
• Remote compressor hookup through bottom (sold separately)
• Copper tubing designed to be attached to an external thermostat control (not included)
• Fits in a 17¹/₄-in. x 25¹/₄-in. cutout

Dimensions & Utilities

• Well: 12 in. W x 19⁷/₈ in. D x 10³/₄ in. H
• Overall: 18 in. W x 26 in. D x 18¹/₂ in. H
• 120 V/60 Hz/1 ph

Product Features

*Free shipping on Vollrath 36456R within the 48 contiguous states.

From The Manufacturer

1-PAN NSF-7 REMOTE REFRIGERATED COLD PAN DROP-IN, 18/8 stainless steel, 17-1/4" x 25-1/4" cutout, drip-free flange, polyurethane foam insulated, 6-5/8" deep well, NSF & UL listed, Made in U.S.A. (note: remote units do not include compressor), 120v/60/1ph

*Image may not depict product color, inclusions or accessories.

1-year Parts & Labor

Vollrath 36456R Specifications
