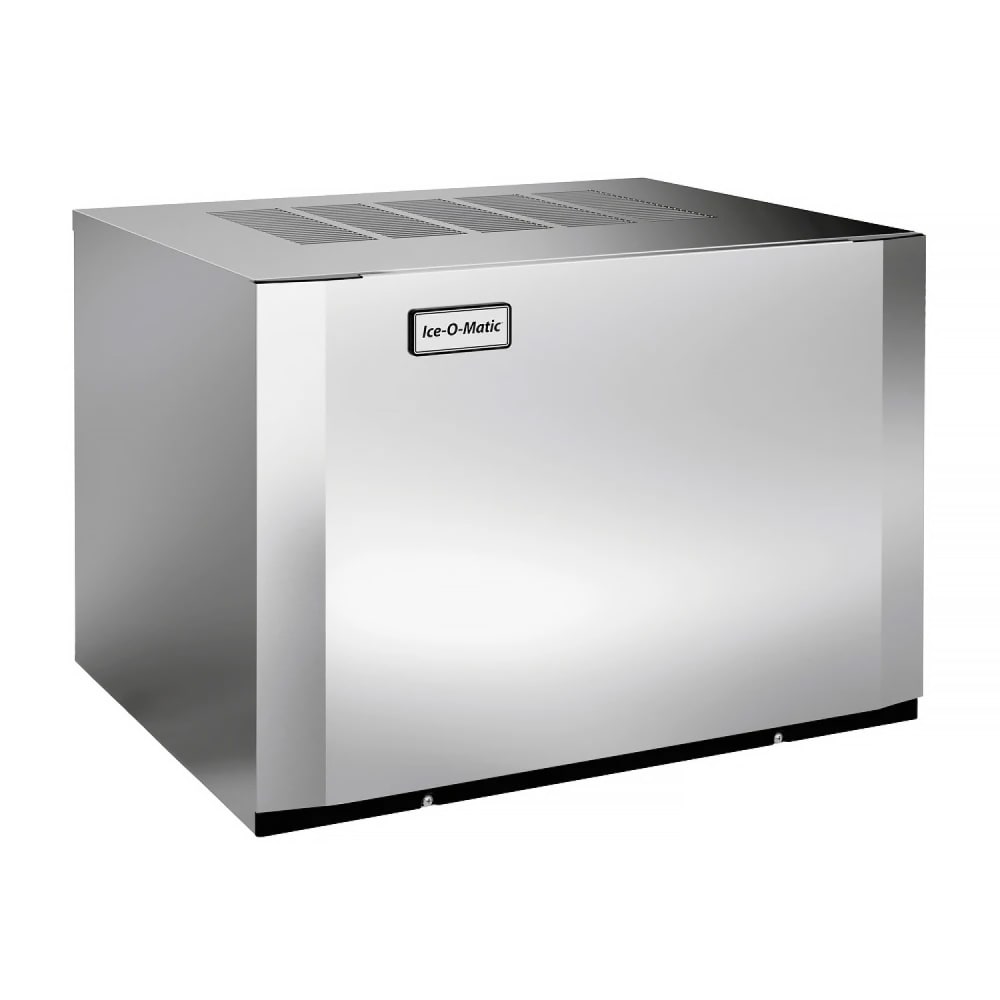

Ice-O-Matic CIM0636FA90/KSI-1 30 1/4" Elevation Series™ Full Cube Ice Machine Head - 600 lb/24 hr, Air Cooled, 208-230v/1ph
$5,142.00 /Each
Selected Compressor Type: Air Cooled
Selected Ice Type: Full Cube
Ice-O-Matic CIM0636FA90/KSI-1 Description
The Ice-O-Matic CIM0636FA90/KSI-1 ice maker makes full-size cubes that are great for serving cocktails and soft drinks. Its air-cooled condenser produces from 455 to 600 pounds of ice daily depending on environmental factors. Because it's self-contained, it's simple to install and access for cleaning. When an LED status display informs users of needed maintenance, they can simply push a button to begin the sanitizing and descaling process. Built-in PURE ICE® antimicrobial agent inhibits the formation of bacteria and other microbes, while the SafeIce UV light sanitizes interior components to reduce yeast, viruses, and microorganisms during ice production.
The plastic food zone in the Ice-O-Matic CIM0636FA90/KSI-1 full-cube ice machine doesn't contain hard-to-reach crevices that dust can become lodged in, making it simple to wipe clean. The components can also be removed and placed in a dishwasher if needed. Featuring a dual exhaust, this unit discharges air from the top and side, enabling safe installation against a kitchen wall. Overall, this structure measures 30 1⁄4 inches wide by 24 1⁄4 inches deep by 21 1⁄4 inches high.
- Part of the Elevation Series™
- Air-cooled, self-contained condenser
- 600-lb. maximum daily ice production
- 455-lb. AHRI-certified daily ice production
- Creates full-size ice cubes
- Full-size cube size: 0.88 in. x 0.88 in. x 0.88 in.
- Removable food zone components are dishwasher safe
- Dual exhaust vents air from side and top
- Plastic food zone streamlines cleaning
- R290 refrigerant
- Built-in PURE ICE antimicrobial slows bacterial growth
- LED status display with 1-touch sanitizing
- SafeIce UV light sanitizes interior components
- Ideal ambient air temperature: 50-100 degrees F
- Ideal incoming water temperature: 40-100 degrees F
- Ideal incoming water pressure: 20-80 PSIG
- 8,600-BTU heat transfer capacity
- Must be paired with an ice bin or dispenser (sold separately)
- 30 1⁄4 in. W x 24 1⁄4 in. D x 21 1⁄4 in. H
- 9.20 A, 5.63 kW
- 208-230 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Ice-O-Matic CIM0636FA90/KSI-1 within the 48 contiguous states.
From The Manufacturer
Elevation Series™ Modular Cube Ice Maker w/ SafeIce Upgrade Kit, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 30" W, approximately 600 lb production/24 hours at 70°/50° (455 lb at 90°/70°), full-size cubes, PURE ICE® built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, R290 refrigerant, cULus, NSF, CE, BPA Free, ENERGY STAR®
Ice-O-Matic CIM0636FA90/KSI-1 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Ice-O-Matic |
| 24 Hr. Production (lb) | 600 |
| Also Known As | CIM0636FA |
| Compressor Type | Air Cooled |
| Depth (in) | 24.25 |
| Height (in) | 21.25 |
| Ice Type | Full Cube |
| Phase | 1 |
| Product | Ice Machine Heads |
| Product Type | Ice Makers & Bins |
| Rating | Better |
| Refrigerant | R290 (Hydrocarbon) |
| Series | Elevation Series™ |
| Suggested Use | Commercial |
| Voltage | 208/230 |
| Warranty | 3-year Parts & Labor; 5-year Evaporator & Compressor Parts |
| Water Inlet (in) | 0.38 |
| Width (in) | 30.25 |
| Weight | 139.00 |
