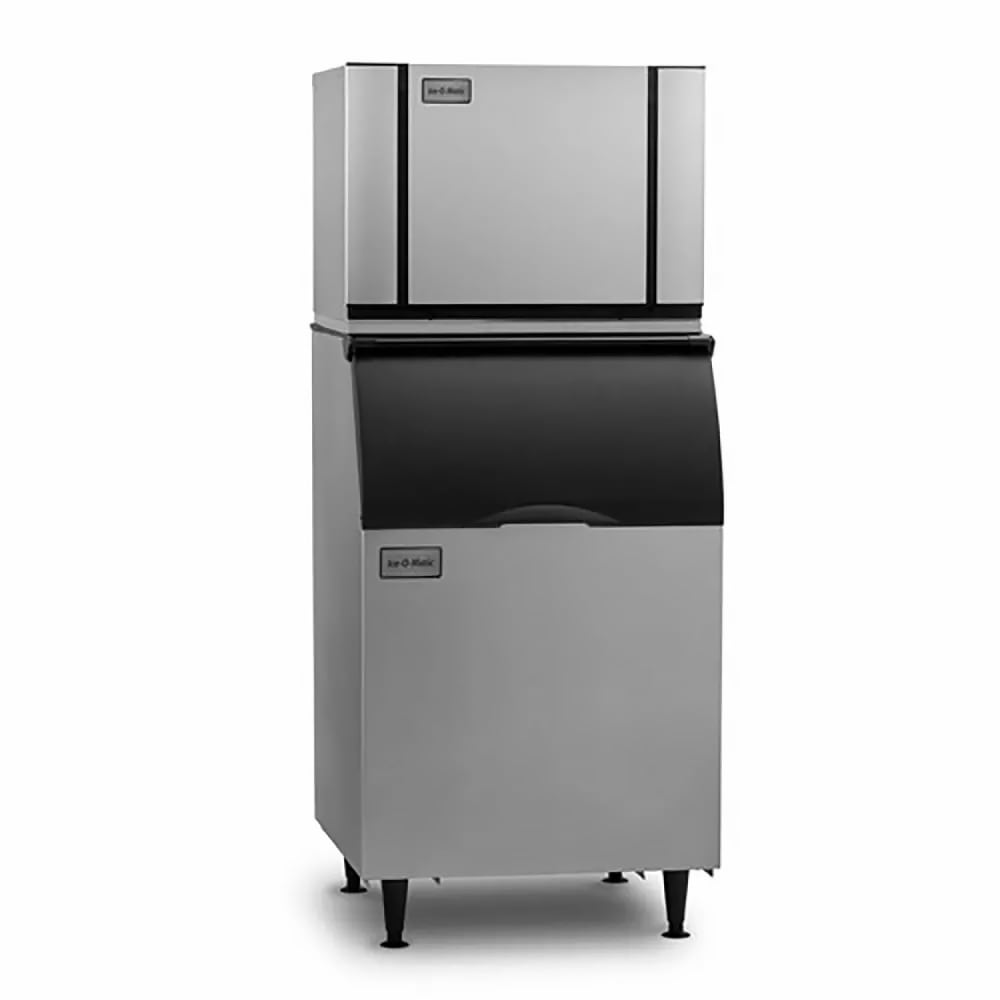

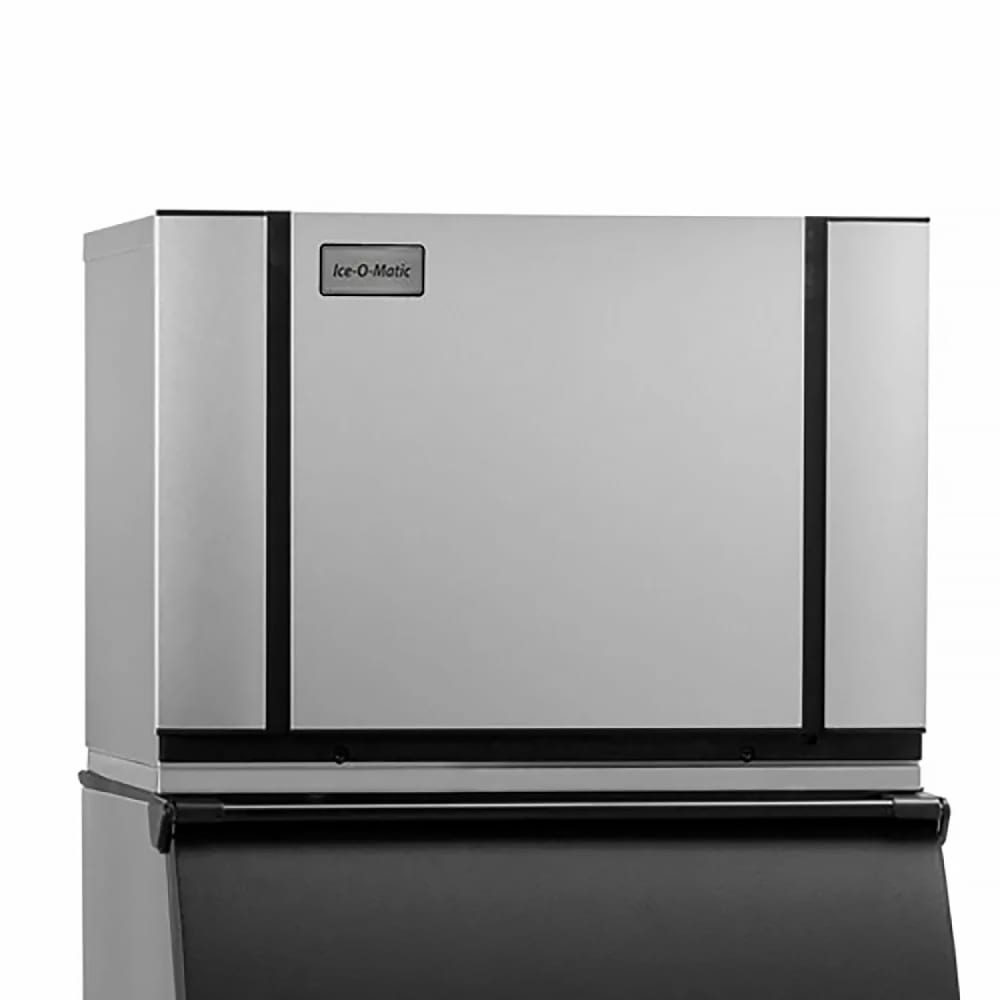

Ice-O-Matic CIM0636FR 30 1/4" Elevation Series™ Full Cube Ice Machine Head - 615 lb/24 hr, Remote Cooled, 208-230v/1ph
$5,340.00 /Each
Selected Compressor Type: Remote Cooled
Selected Ice Type: Full Cube
Ice-O-Matic CIM0636FR Description
Designed with a unique dual exhaust system, the Ice-O-Matic CIM0636FR Elevation Series™ modular ice machine enables hot air to discharge from both the side and top, maximizing installation flexibility. This unit produces up to 615 pounds of full-size ice cubes per day. The Universal Smart Harness™ control board streamlines installation and servicing with better access, digital diagnostics, and universal components, improving long-term performance and reliability.
Featuring a plastic food zone, the Ice-O-Matic CIM0636FR ice maker eliminates hard-to-clean crevices, ensuring effortless maintenance. The smart LED status display provides real-time machine updates, indicating operational status and when cleaning is required. A one-touch sanitization and descaling function simplifies maintenance, while BPA-free, snap-in, snap-out components are dishwasher safe for easy cleaning. The integrated PURE ICE® antimicrobial protection helps maintain sanitation, while its remote-cooled condenser enhances efficiency.
- From the Elevation series
- 615-lb. daily ice production
- Produces full-size cube ice
- PURE ICE antimicrobial protection
- Plastic food zone for easy cleaning
- Snap-in, snap-out dishwasher-safe components
- BPA-free plastic and recyclable parts
- Remote-cooled modular ice machine
- Unique dual exhaust system (side and top air discharge)
- Smart LED status display
- 1-touch sanitization and descaling
- Universal Smart Harness control board
- 30 1⁄4 in. W x 24 1⁄4 in. D x 21 1⁄4 in. H
- 10 A, 5.3 kW
- 208-230 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Ice-O-Matic CIM0636FR within the 48 contiguous states.
From The Manufacturer
Elevation Series™ Modular Cube Ice Maker with SafeIce add-on, air-cooled, remote condenser, 30 1/4"W, approximately 615 lb production/24 hours at 70°/50° (535 lb at 90°/70°), full-size cubes, PURE ICE® built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, cULus, NSF, CE, BPA Free, ENERGY STAR®
Ice-O-Matic CIM0636FR Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Ice-O-Matic |
| 24 Hr. Production (lb) | 615 |
| Compressor Type | Remote Cooled |
| Depth (in) | 24.25 |
| Height (in) | 21.25 |
| Ice Type | Full Cube |
| Phase | 1 |
| Product | Ice Machine Heads |
| Product Type | Ice Makers & Bins |
| Rating | Better |
| Refrigerant | R404A |
| Series | Elevation Series™ |
| Suggested Use | Commercial |
| Voltage | 208/230 |
| Warranty | 3-year Parts & Labor; 5-year Evaporator & Compressor Parts |
| Water Inlet (in) | 0.38 |
| Width (in) | 30.25 |
| Weight | 160.00 |
