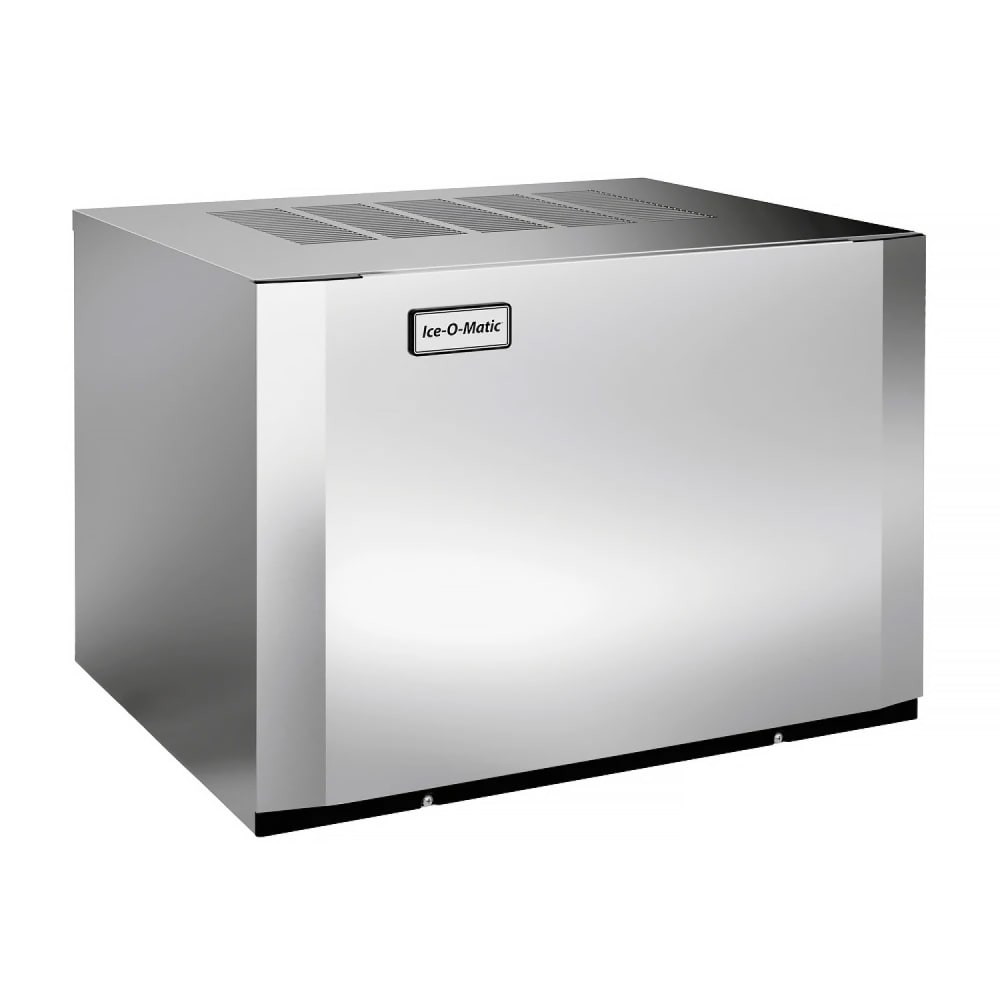

Ice-O-Matic CIM0636HA90/KSI-1 30 1/4" Elevation Series™ Half Cube Ice Machine Head - 600 lb/24 hr, Air Cooled, 208-230v/1ph
QUICK SHIP: Typically ships in 1 - 3 Business Days
$5,142.00 /Each
Selected Compressor Type: Air Cooled
Selected Ice Type: Half Cube
Ice-O-Matic CIM0636HA90/KSI-1 Description
The self-contained, air-cooled condenser in the Ice-O-Matic CIM0636HA90/KSI-1 half-cube ice machine is simple to install and maintain. For cleaning, the food zone is built without crevices that could harbor bacteria, and its parts are dishwasher safe to facilitate thorough cleaning. Users are alerted of needed maintenance with an LED status display, and using one button, they can quickly begin the sanitizing and descaling process.
The Ice-O-Matic CIM0636HA90/KSI-1 ice machine includes built-in PURE ICE® antimicrobial that inhibits microbial formation, ensuring ice remains clean and fresh. This unit also has a SafeIce UV light that sanitizes the interior components to prevent yeast, viruses, and microorganisms from forming during ice production. The machine creates half-cube ice, which is a great option for establishments that serve blended frozen beverages and soft drinks. When environmental conditions are ideal, it makes 600 pounds of ice per day, but if the temperatures rise, it makes closer to 455 pounds of ice daily.
- Part of the Elevation Series™
- Air-cooled, self-contained refrigeration system
- 600-lb. maximum daily ice production
- 455-lb. AHRI-certified daily ice production
- Creates half-size ice cubes
- R290 refrigerant
- Half-size cube size: 3⁄8 in. x 7⁄8 in. x 7⁄8 in.
- Removable food zone components can be cleaned in a dishmachine
- Dual-sided exhaust vents air from side and top
- Plastic food zone can be wiped clean
- PURE ICE antimicrobial treatment slows bacterial growth
- LED status display
- 1-touch sanitizing/descaling

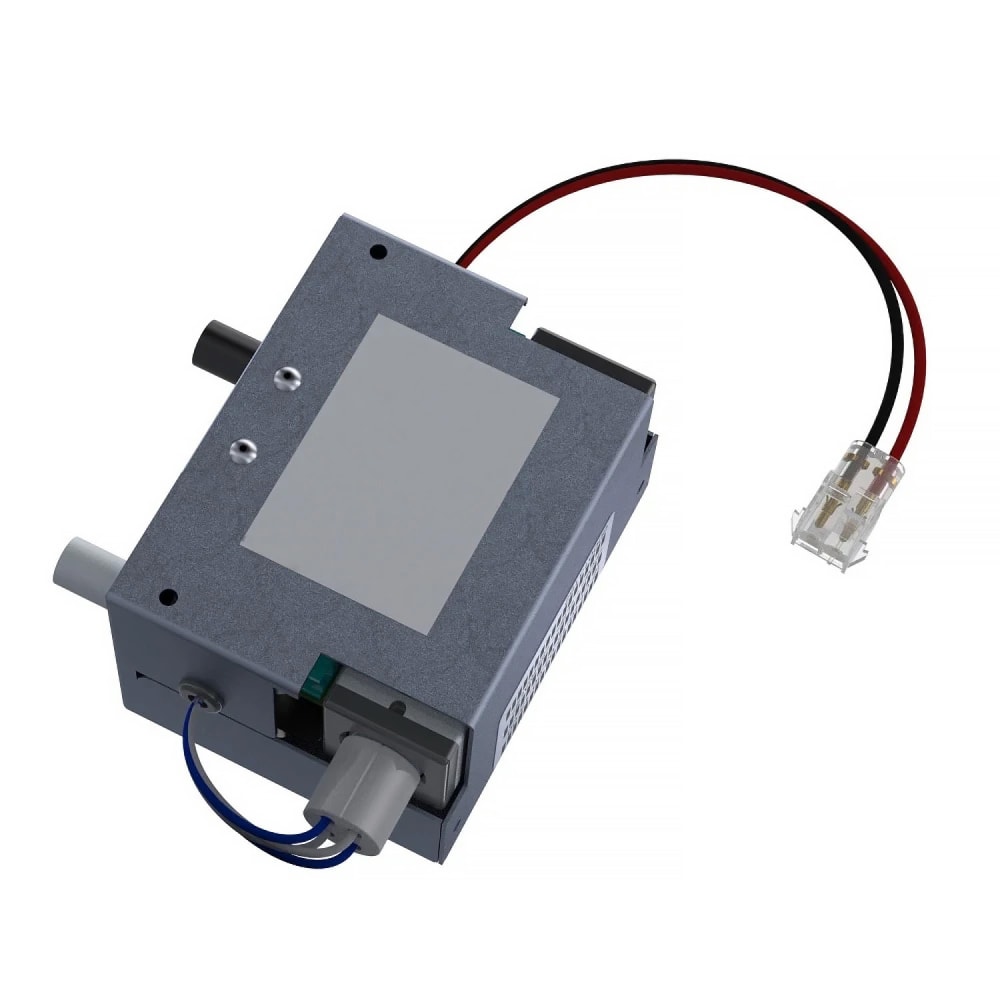

- SafeIce UV light sanitizes interior during ice production
- Ideal ambient air temperature: 50-100 degrees F
- Ideal incoming water temperature: 40-100 degrees F
- Ideal incoming water pressure: 20-80 PSIG
- 8,600-BTU heat transfer capacity
- Must be paired with an ice bin or dispenser (sold separately)
- 30 1⁄4 in. W x 24 1⁄4 in. D x 21 1⁄4 in. H
- 9.20 A, 5.63 kW
- 208-230 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Ice-O-Matic CIM0636HA90/KSI-1 within the 48 contiguous states.
From The Manufacturer
Elevation Series™ Modular Cube Ice Maker w/ SafeIce Upgrade Kit, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 30" W, approximately 600 lb production/24 hours at 70°/50° (455 lb at 90°/70°), half-size cubes, PURE ICE® built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, R290 refrigerant, cULus, NSF, CE, BPA Free, ENERGY STAR®
Ice-O-Matic CIM0636HA90/KSI-1 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Ice-O-Matic |
| 24 Hr. Production (lb) | 600 |
| Also Known As | CIM0636HA |
| Compressor Type | Air Cooled |
| Depth (in) | 24.25 |
| Height (in) | 21.25 |
| Ice Type | Half Cube |
| Phase | 1 |
| Product | Ice Machine Heads |
| Product Type | Ice Makers & Bins |
| Rating | Better |
| Refrigerant | R290 (Hydrocarbon) |
| Series | Elevation Series™ |
| Suggested Use | Commercial |
| Voltage | 208/230 |
| Warranty | 3-year Parts & Labor; 5-year Evaporator & Compressor Parts |
| Water Inlet (in) | 0.38 |
| Width (in) | 30.25 |
| Weight | 139.00 |
