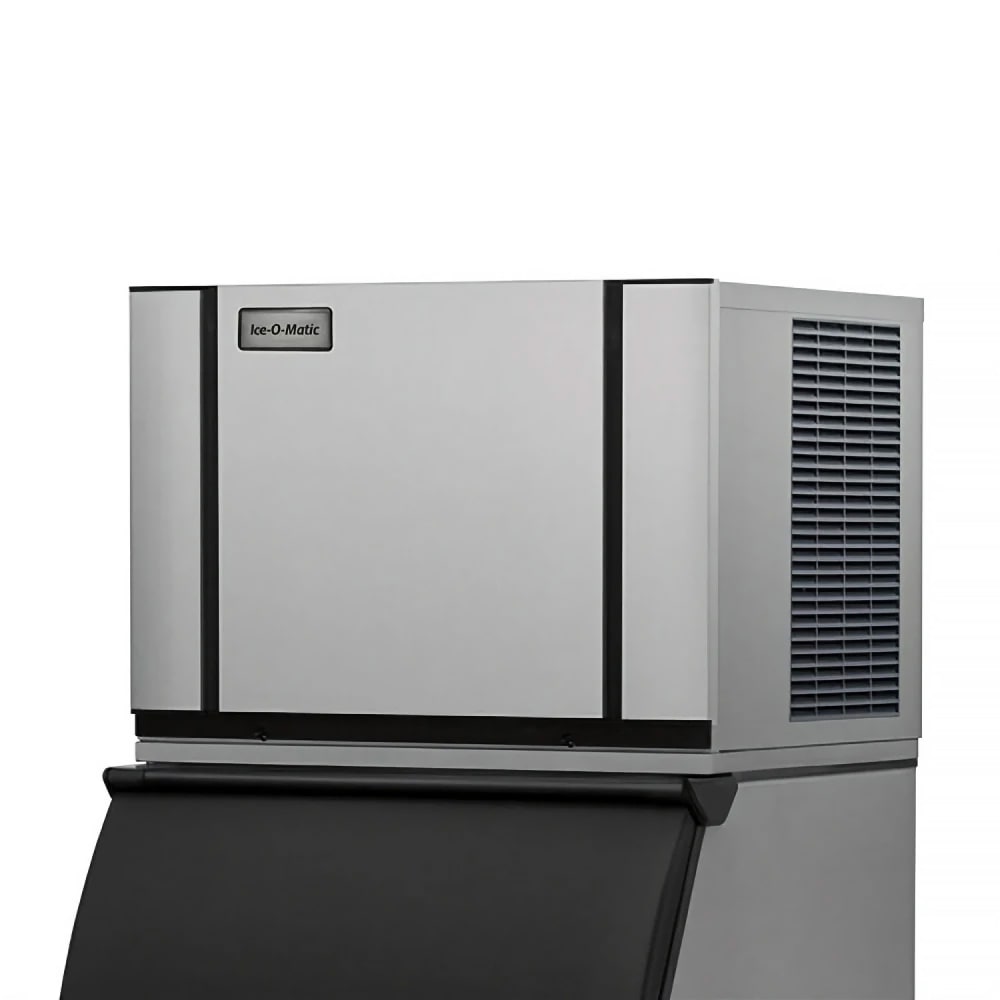

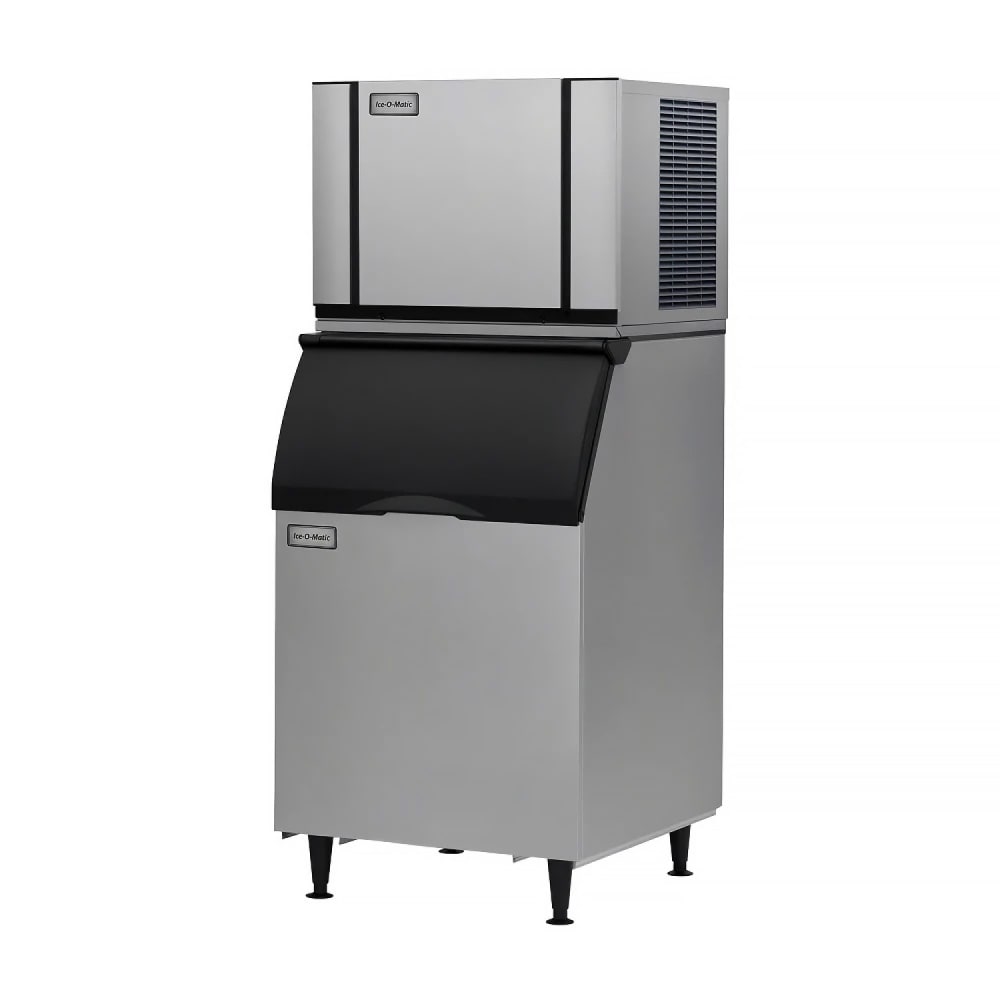

Ice-O-Matic CIM0436HW90 30 1/4" Elevation Series™ Half Cube Ice Machine Head - 500 lb/24 hr, Water Cooled, 208-230v/1ph
Typically ships in 2 - 3 weeks
$4,339.00 /Each
Selected Compressor Type: Water Cooled
Selected Ice Type: Half Cube
Ice-O-Matic CIM0436HW90 Description
Making a maximum of 500 pounds of ice per day, the Ice-O-Matic CIM0436HW90 ice maker head is water cooled with a self-contained condenser. Constructed of plastic, the food zone has removable components that can snap out and be placed in the dishwasher for cleaning.
The Ice-O-Matic CIM0436HW90 half-cube ice machine head has an LED status display that users can monitor to read operation status updates. Coated in PURE ICE® antimicrobial, bacterial growth is slowed to reduce the spread of germs in a busy environment. Descaling and sanitizing can be performed with a single touch of a button.
- Part of the Elevation Series™
- 500-lb. daily ice production
- Makes half-size cubes
- Half-size cube size: 7⁄8 in. W x 7⁄8 in. D x 7⁄8 in. H
- Self-contained, water-cooled condenser
- LED status display
- Plastic food zone
- Uses R290 refrigerant
- Removable, dishwasher-safe food zone components
- 1-touch descaling and sanitizing controls
- PURE ICE antimicrobial agent
- Ideal incoming water pressure: 20-80 PSIG
- Ideal incoming water temperature: 40-100 degrees F
- Ideal ambient temperature range: 50-100 degrees F
- 5,100-BTU heat transfer capacity
- 30 1⁄4 in. W x 24 1⁄4 in. D x 21 1⁄4 in. H
- 6.1 A, 4.37 kW
- 208-230 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Ice-O-Matic CIM0436HW90 within the 48 contiguous states.
From The Manufacturer
Elevation Series™ Modular Cube Ice Maker, water-cooled, self-contained condenser, 30 1/4"W, approximately 500 lb production/24 hours at 70°/50° (420 lb at 90°/70°), half-size cubes, PURE ICE® built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, cULus, NSF, CE, BPA Free
Ice-O-Matic CIM0436HW90 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Ice-O-Matic |
| 24 Hr. Production (lb) | 500 |
| Also Known As | CIM0436HW |
| Compressor Type | Water Cooled |
| Depth (in) | 24.25 |
| Height (in) | 21.25 |
| Ice Type | Half Cube |
| Phase | 1 |
| Product | Ice Machine Heads |
| Product Type | Ice Makers & Bins |
| Rating | Better |
| Refrigerant | R290 (Hydrocarbon) |
| Series | Elevation Series™ |
| Suggested Use | Commercial |
| Voltage | 208/230 |
| Warranty | 3-year Parts & Labor; 5-year Evaporator & Compressor Parts |
| Water Inlet (in) | 0.38 |
| Width (in) | 30.25 |
| Weight | 165.00 |
