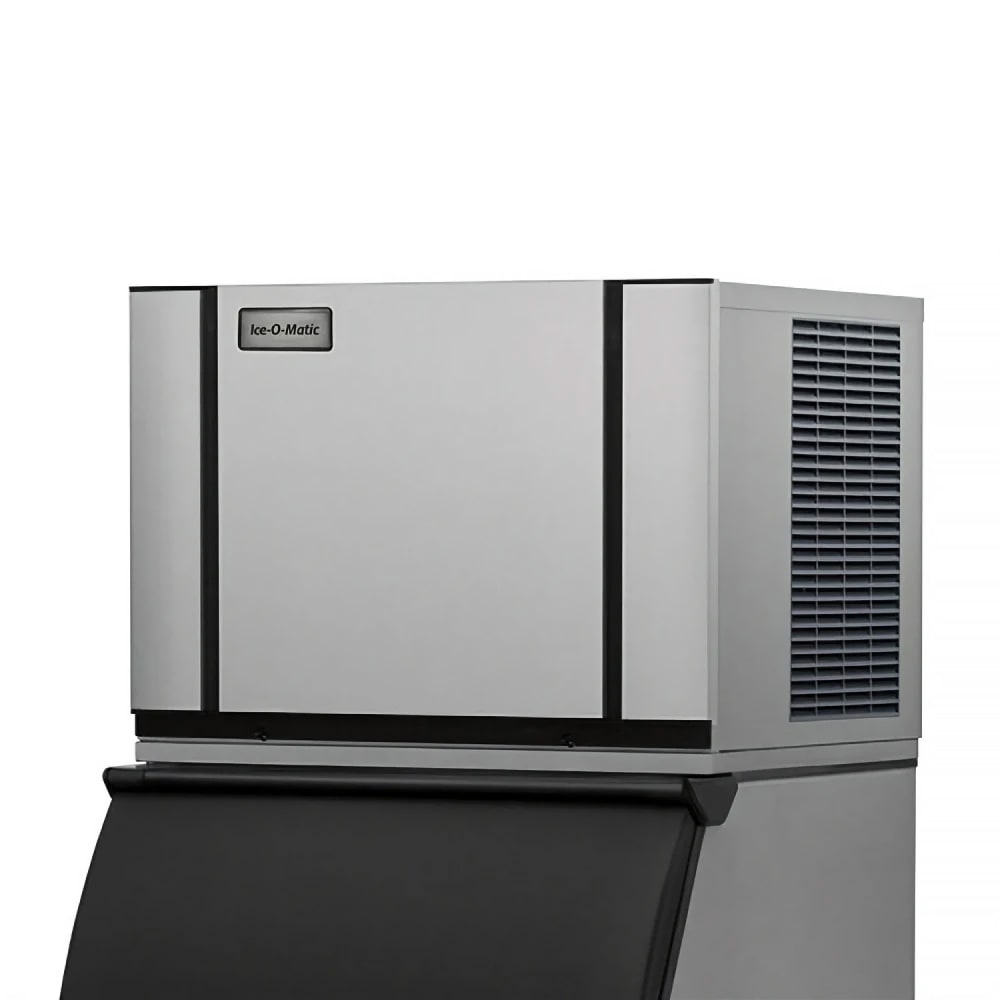

Ice-O-Matic CIM0436FW90 30 1/4" Elevation Series™ Full Cube Ice Machine Head - 500 lb/24 hr, Water Cooled, 208-230v/1ph
Typically ships in 2 - 3 weeks
$4,339.00 /Each
Selected Compressor Type: Water Cooled
Selected Ice Type: Full Cube
Ice-O-Matic CIM0436FW90 Description
Producing full-size ice cubes, the Ice-O-Matic CIM0436FW90 ice machine head has a water-cooled condenser. Easing installation and reducing cross-contamination risks, this condenser is self-contained. When ambient conditions are ideal, it can make as much as 500 pounds daily. Slowing microbe growth, the unit has PURE ICE® antimicrobial built into it.
The Ice-O-Matic CIM0436FW90 full-cube ice machine head can be cleaned with the push of a button, which starts the descaling and sanitizing process. The food zone components can be removed and placed in the dishwasher for cleaning. Providing status updates for monitoring, this unit has an LED display.
- Part of the Elevation Series™
- 500-lb. daily ice production
- Makes full-size cubes
- Full-size cube size: 7⁄8 in. W x 7⁄8 in. D x 7⁄8 in. H
- Self-contained, water-cooled condenser
- LED display provides status readout
- Removable, snap-out dishwasher-safe food zone components
- Plastic food zone
- R290 refrigerant
- Performs descaling and sanitizing with 1 button
- Built-in PURE ICE antimicrobial protection inhibits microbial growth
- Ideal incoming water pressure: 20-80 PSIG
- Ideal incoming water temperature: 40-100 degrees F
- Ideal ambient temperature range: 50-100 degrees F
- 5,100-BTU heat transfer capacity
- 30 1⁄4 in. W x 24 1⁄4 in. D x 21 1⁄4 in. H
- 6.1 A, 4.37 kW
- 208-230 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Ice-O-Matic CIM0436FW90 within the 48 contiguous states.
From The Manufacturer
Elevation Series™ Modular Cube Ice Maker, water-cooled, self-contained condenser, 30 1/4"W, approximately 500 lb production/24 hours at 70°/50° (420 lb at 90°/70°), full-size cubes, PURE ICE® built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, cULus, NSF, CE, BPA Free
Ice-O-Matic CIM0436FW90 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Ice-O-Matic |
| 24 Hr. Production (lb) | 500 |
| Also Known As | CIM0436FW |
| Compressor Type | Water Cooled |
| Depth (in) | 24.25 |
| Height (in) | 21.25 |
| Ice Type | Full Cube |
| Phase | 1 |
| Product | Ice Machine Heads |
| Product Type | Ice Makers & Bins |
| Rating | Better |
| Refrigerant | R290 (Hydrocarbon) |
| Series | Elevation Series™ |
| Suggested Use | Commercial |
| Voltage | 208/230 |
| Warranty | 3-year Parts & Labor; 5-year Evaporator & Compressor Parts |
| Water Inlet (in) | 0.38 |
| Width (in) | 30.25 |
| Weight | 165.00 |
