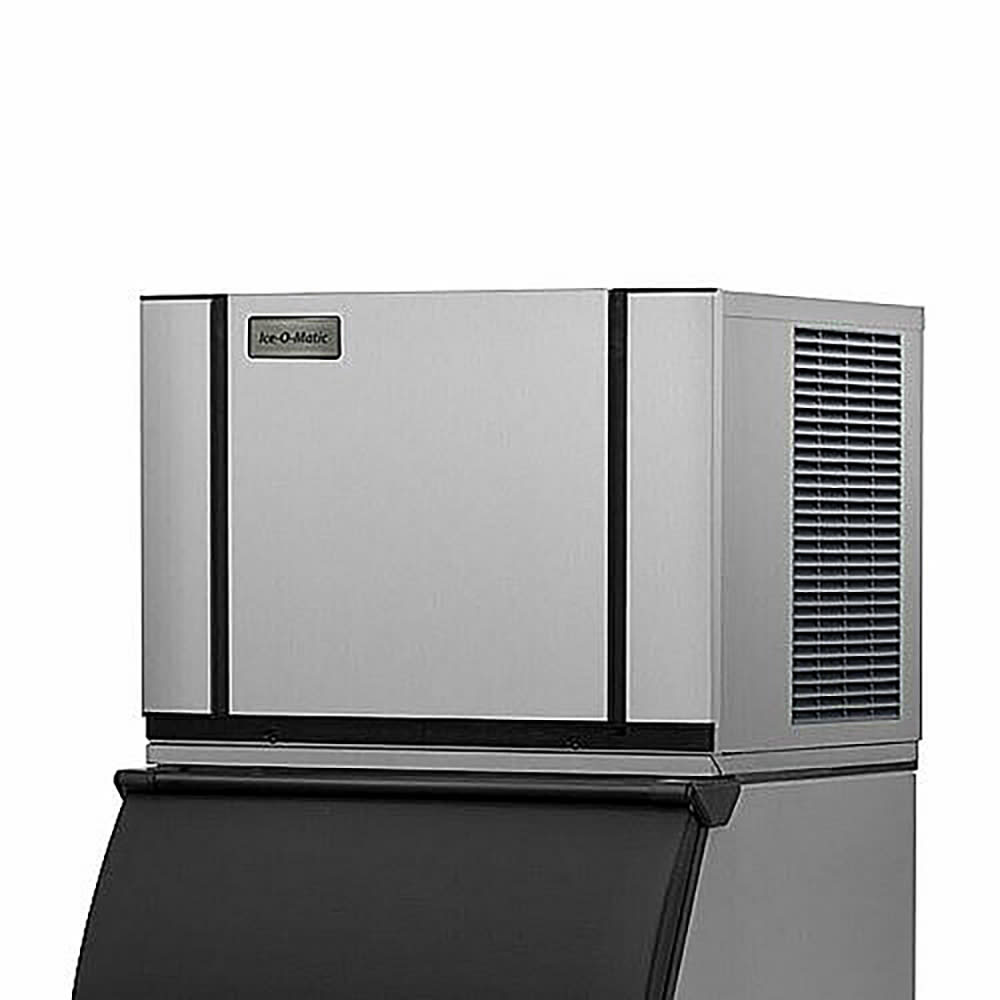

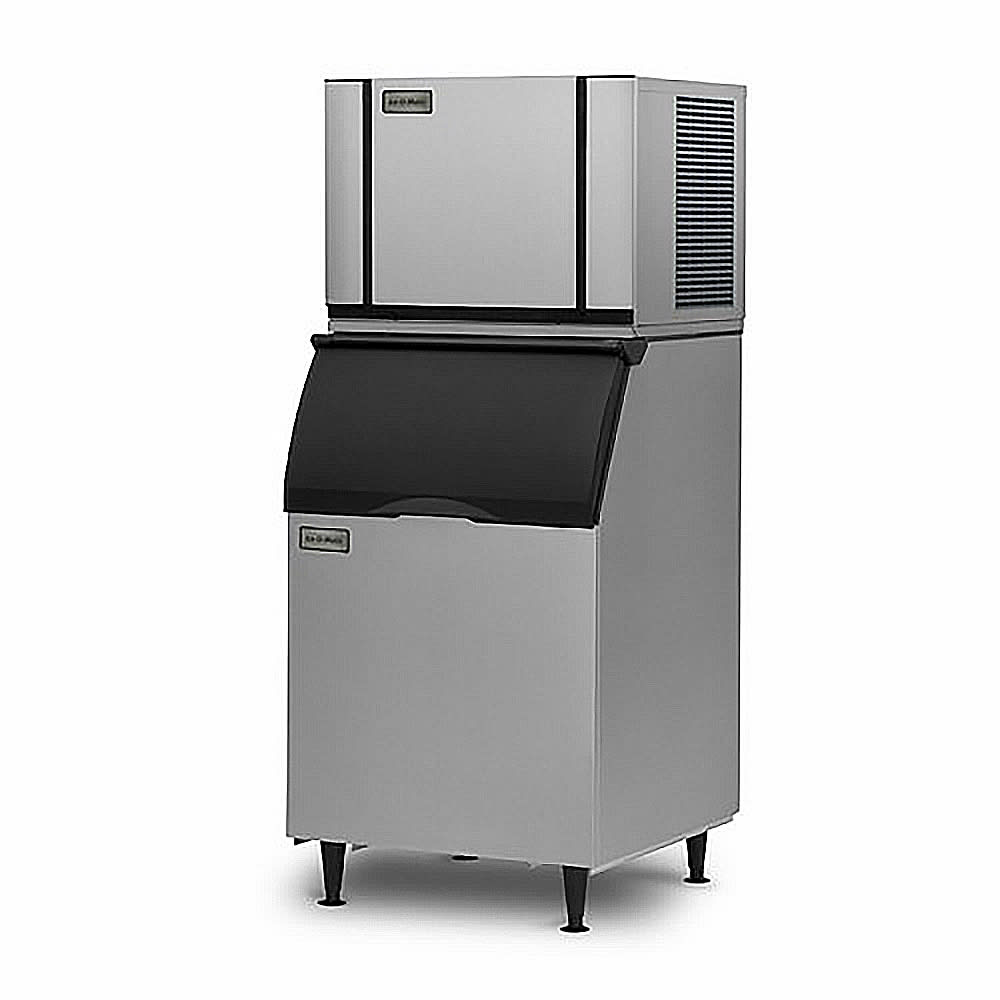

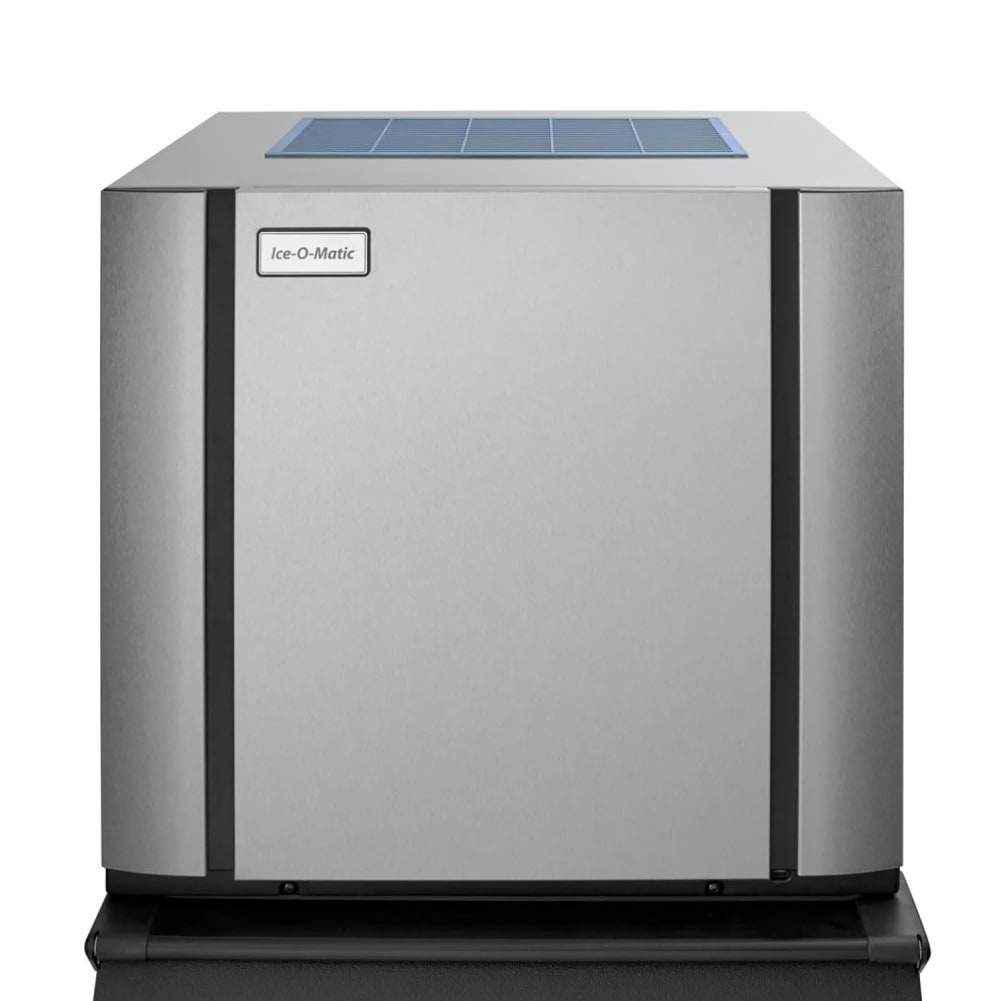

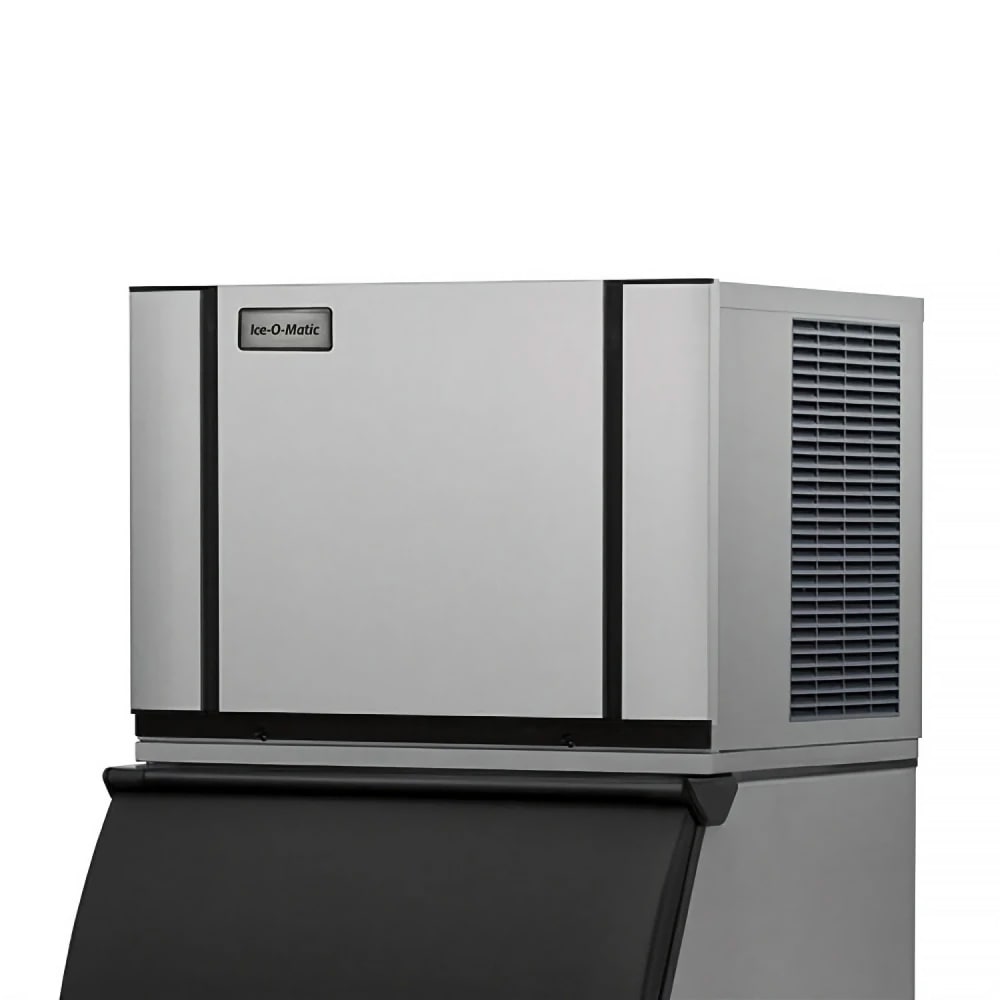

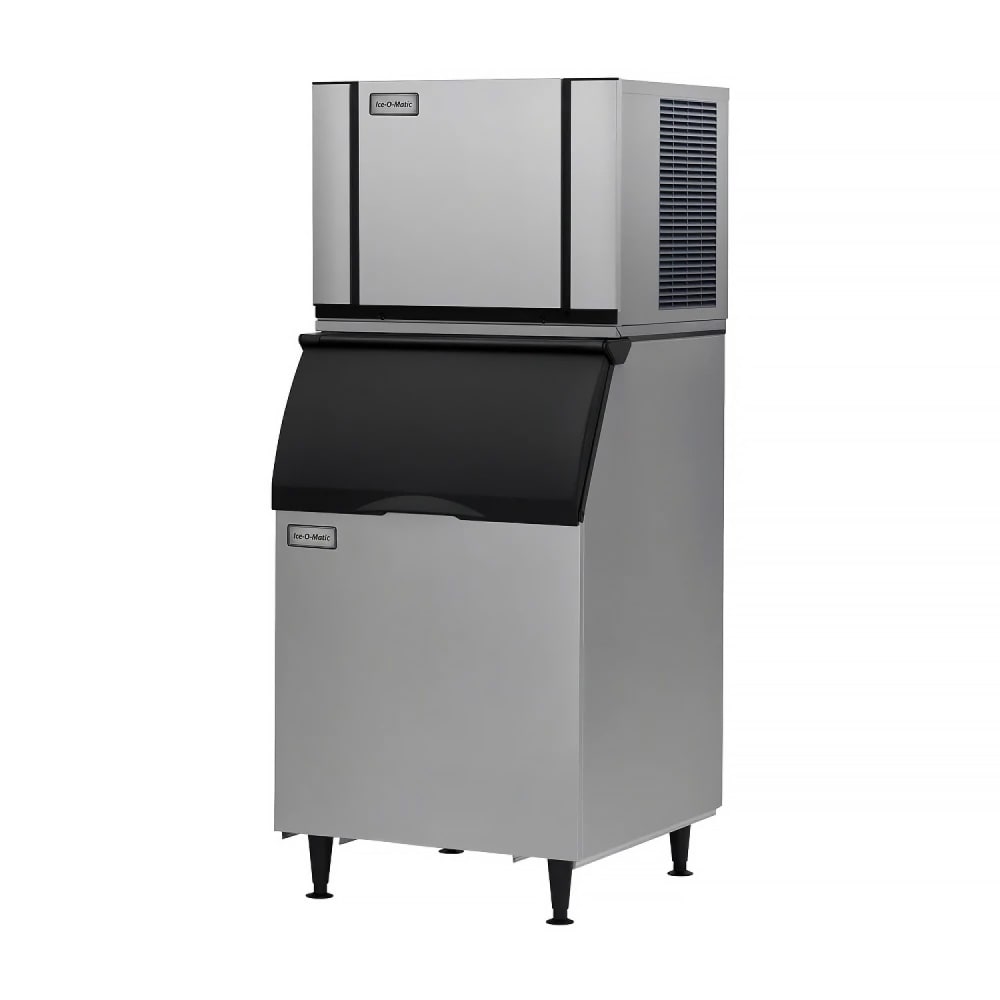

Ice-O-Matic CIM0436FA90 30 1/4" Elevation Series™ Full Cube Ice Machine Head - 465 lb/24 hr, Air Cooled, 208-230v/1ph
Typically ships in 2 - 3 weeks
$4,028.00 /Each
Selected Compressor Type: Air Cooled
Selected Ice Type: Full Cube
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Ice-O-Matic CIM0436FA90 Description
The Ice-O-Matic CIM0436FA90 full-cube ice maker has PURE ICE® antimicrobial built in to slow microbial growth, so when multiple people touch it in a busy environment, germ spread is minimized. A single touch of a button starts the descaling and sanitizing process, while the food zone's components snap out so they can be cleaned in the dishwasher. This unit can make between 350 and 465 pounds of ice each day.
Simplifying installation, the Ice-O-Matic CIM0436FA90 ice maker head has a self-contained condenser. It's air cooled and produces full-size cubes of ice. If employees want to monitor the current operating status of the unit, it has an LED status display that provides a current readout. This unit doesn't include a dispenser or bin, so one will need to be purchased separately.
- Part of the Elevation Series™
- 465-lb. daily ice production
- 350-lb. AHRI daily ice production at 70-90 degrees F
- Makes full-size cubes
- Full-size cube size: 7⁄8 in. W x 7⁄8 in. D x 7⁄8 in. H
- Air-cooled condenser is self-contained
- LED status display provides an operation readout
- Plastic food zone with snap-out, dishwasher-safe parts
- 1-touch sanitizing and descaling controls
- R290 refrigerant
- Built-in PURE ICE antimicrobial protection
- Ideal incoming water pressure: 20-80 PSIG
- Ideal incoming water temperature: 40-100 degrees F
- Ideal ambient temperature range: 50-100 degrees F
- 5,100-BTU heat transfer capacity
- 30 1⁄4 in. W x 24 1⁄4 in. D x 21 1⁄4 in. H
- 6.3 A, 5.46 kW
- 208-230 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Ice-O-Matic CIM0436FA90 within the 48 contiguous states.
From The Manufacturer
Elevation Series™ Modular Cube Ice Maker, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 30 1/4"W, approximately 465 lb production/24 hours at 70°/50° (350 lb at 90°/70°), full-size cubes, PURE ICE® built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, cULus, NSF, CE, BPA Free, ENERGY STAR®
Ice-O-Matic CIM0436FA90 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Ice-O-Matic |
| 24 Hr. Production (lb) | 465 |
| Also Known As | CIM0436FA |
| Compressor Type | Air Cooled |
| Depth (in) | 24.25 |
| Height (in) | 21.25 |
| Ice Type | Full Cube |
| Phase | 1 |
| Product | Ice Machine Heads |
| Product Type | Ice Makers & Bins |
| Rating | Better |
| Refrigerant | R290 (Hydrocarbon) |
| Series | Elevation Series™ |
| Suggested Use | Commercial |
| Voltage | 208/230 |
| Warranty | 3-year Parts & Labor; 5-year Evaporator & Compressor Parts |
| Water Inlet (in) | 0.38 |
| Width (in) | 30.25 |
| Weight | 165.00 |
