Ice-O-Matic CIM0436HA90 30 1/4" Elevation Series™ Half Cube Ice Machine Head - 465 lb/24 hr, Air Cooled, 208-230v/1ph
Typically ships in 2 - 3 weeks
$4,028.00 /Each
Selected Compressor Type: Air Cooled
Selected Ice Type: Half Cube
Ice-O-Matic CIM0436HA90 Description
The Ice-O-Matic CIM0436HA90 ice maker head makes half-size cubes of ice and can make anywhere from 270 to 465 pounds of ice per day depending on environmental conditions. Meaning it just needs to be plugged in to begin operation, the air-cooled condenser is self-contained. Its LED display provides status updates about the unit, and because it doesn't include a bin or dispenser, one will have to be purchased separately for use.

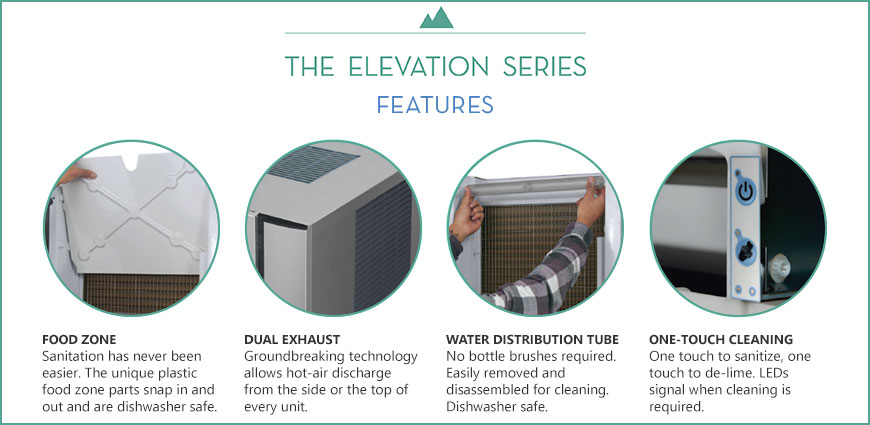

The food zone in the Ice-O-Matic CIM0436HA90 half-cube ice maker is made of plastic, and its components are removable for dishwasher cleaning. By pushing a single button, users can enable the descaling and sanitizing process to keep the unit clean, and to prevent rapid growth of bacteria, it's protected with PURE ICE® antimicrobial.
- Part of the Elevation Series™
- 465-lb. daily ice production
- 270-lb. daily ice production at 70-90 degrees F
- Makes half-size cubes
- Half-size cube size: 7⁄8 in. W x 7⁄8 in. D x 7⁄8 in. H
- Self-contained condenser is air cooled
- LED display provides status updates
- R290 hydrocarbon refrigerant
- Plastic food zone with removable, dishwasher-safe pieces
- Descaling and sanitizing activated with the push of a button
- PURE ICE antimicrobial slows microbial growth
- Ideal incoming water pressure: 20-80 PSIG
- Ideal incoming water temperature: 40-100 degrees F
- Ideal ambient temperature range: 50-100 degrees F
- 5,100-BTU heat transfer capacity
- 30 1⁄4 in. W x 24 1⁄4 in. D x 21 1⁄4 in. H
- 6.3 A, 5.46 kW
- 208-230 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Ice-O-Matic CIM0436HA90 within the 48 contiguous states.
From The Manufacturer
Elevation Series™ Modular Cube Ice Maker, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 30 1/4"W, approximately 465 lb production/24 hours at 70°/50° (270 lb at 90°/70°), half-size cubes, PURE ICE® built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, cULus, NSF, CE, ENERGY STAR®, BPA Free, ENERGY STAR®
Ice-O-Matic CIM0436HA90 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Ice-O-Matic |
| 24 Hr. Production (lb) | 465 |
| Also Known As | CIM0436HA |
| Compressor Type | Air Cooled |
| Depth (in) | 24.25 |
| Height (in) | 21.25 |
| Ice Type | Half Cube |
| Phase | 1 |
| Product | Ice Machine Heads |
| Product Type | Ice Makers & Bins |
| Rating | Better |
| Refrigerant | R290 (Hydrocarbon) |
| Series | Elevation Series™ |
| Suggested Use | Commercial |
| Voltage | 208/230 |
| Warranty | 3-year Parts & Labor; 5-year Evaporator & Compressor Parts |
| Water Inlet (in) | 0.38 |
| Width (in) | 30.25 |
| Weight | 165.00 |
