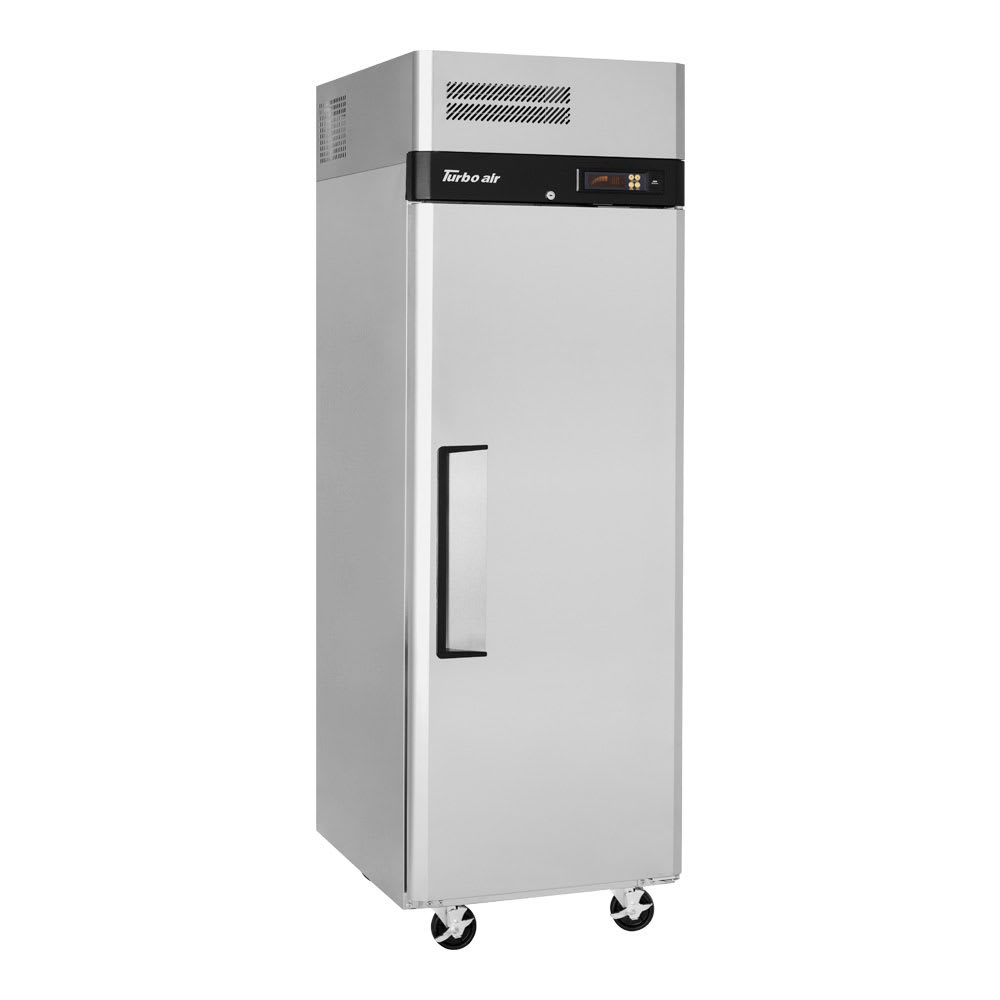

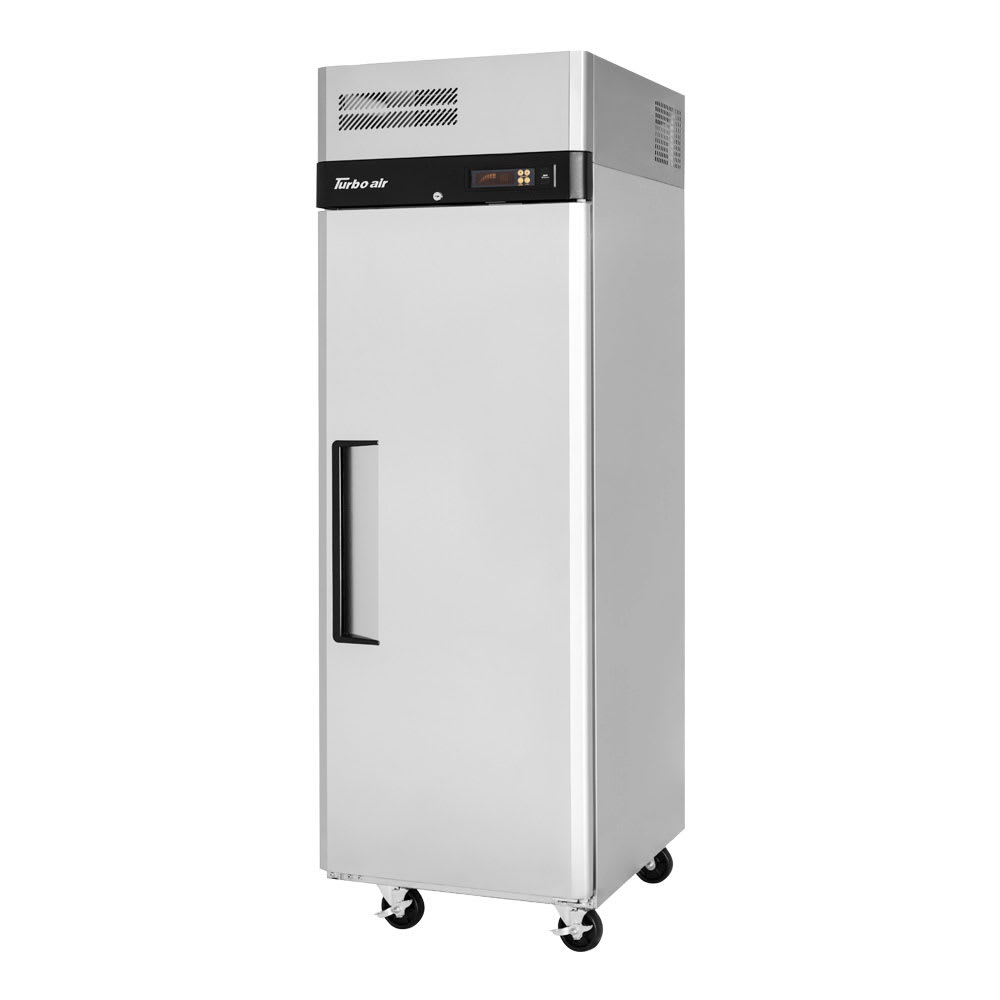

Turbo Air M3R19-1-N 25 1/4" One Section Reach In Refrigerator, (1) Right Hinge Solid Door, 115v

The Turbo Air M3R19-1-N single-section reach-in refrigerator uses R-290 hydrocarbon refrigerant to keep temperatures in the cabinet between 33 and 38 degrees Fahrenheit. Its system is self-contained, so all the components are built together. The condenser is brushed daily by a self-cleaning device, removing dust and preventing a premature system breakdown. Treated to resist corrosion, the hot gas condensate system is made to increase efficiency and prevent condensate water overflow.

There are three polyethylene-coated shelves in the cabinet. Since they are adjustable, the shelves suit a variety of applications. LED lighting inside the refrigerator provides visibility for staff convenience. The interior is made of aluminum with a stainless steel floor, so it is corrosion resistant and easy to clean.

Magnetic door gaskets create a seal between the door and the frame to prevent cold air leaks. If the door is not properly shut, an alarm sounds to notify the operator. The door on the Turbo Air M3R19-1-N one-section reach-in refrigerator uses a pressure relief device to eliminate vacuum pressure, making it easy to open. The door can be reversed in the field to fit into different layouts, and a lock limits cabinet access to prevent tampering and theft.

Product Details

• Comes with 3 polyethylene-coated, adjustable shelves
• Cabinet uses LED lighting for product visibility
• Temperature range: 33-38 degrees F
• Environmentally friendly R290 hydrocarbon refrigerant keeps temperatures cold
• Self-contained system keeps all the components together for maintenance
• Compressor is top mounted, so dust and debris from the floor are not sucked in
• Condenser uses a self-cleaning device to remove harmful dust accumulation every day
• Hot gas condensate system is treated to resist corrosion, increasing efficiency and preventing water overflow
• Foamed-in-place polyurethane insulation adds structure while keeping cold air inside the cabinet
• Aluminum interior provides corrosion, scratch, and dent resistance
• Floor is constructed of stainless steel for durability and simplifying cleanup
• Exterior has a stainless and galvanized steel construction that withstands heavy-duty use
• 4-in. swivel casters can be locked in place

Digital Control System

• Digital display enables the operator to monitor the interior temperature
• Turbo Cool function quickly cools the cabinet by letting the compressor run for 2 hrs. continuously
• Automatic fan motor delay prevents warm air from being sucked inside by shutting the fan off when the door is open
• Alarm alerts the operator if the door is not properly sealed, preventing cold air leaks
• Early warning alarm detects system issues to prevent a malfunction
• Self-diagnosis program is designed to interpret the condition of the refrigeration system

Heavy-duty Door Construction

• Magnetic gaskets seal the door to the frame to prevent cold air leaks
• Pressure relief device enables staff to easily open the door by eliminating vacuum pressure
• Door lock prevents unauthorized cabinet access that can lead to tampering or theft
• Field reversible to fit into any layout

Dimensions & Utilities

• Shelves: 20¹⁄₂ in. W x 23³⁄₄ in. D
• Interior: 21⁵⁄₈ in. W x 27³⁄₈ in. D x 58¹⁄₄ in. H
• Overall: 25¹⁄₄ in. W x 33¹⁄₂ in. D x 77¹⁄₈ in. H
• 3.99 A, ¹⁄₃ HP
• 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-15P plug

Product Features

Note: Nominal cubic footage measurements sometimes provided by refrigeration manufacturers may not indicate actual usable space. If you require a specific capacity, please call one of our customer care representatives to ensure the unit you order meets your needs.

From The Manufacturer

M3 Refrigerator, reach-in, one-section, 18.7 cu. ft., exterior LED digital thermometer, door open beep, self-diagnostic monitoring system, hot gas condensate system, automatic fan motor delays, door pressure release, LED interior lighting, self-cleaning condenser device, (1) hinged solid door with recessed handle & lock, field reversible, (3) PE coated wire shelves, stainless steel front & sides, aluminum interior with stainless steel floor, top mount self-contained compressor, R290 Hydrocarbon refrigerant, 1/3 HP, 115v/60/1-ph, 3.99 amps, NEMA 5-15P, cETLus, ETL-Sanitation, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

Turbo Air M3R19-1-N Specifications

Spec Attribute	Spec Value
Manufacturer	Turbo Air
Additional Info	Contact Customer Service for Additional Information
Color	Silver
Compressor Location	Top
Cubic Feet	18.7
Depth (in)	33.5
Door Type	Solid
Doors	Full
Evaporator Type	Capillary Tube
Height (in)	77.13
Hertz	60
Interior Material	Aluminum
Sections	1
Number of Shelves	3
Supports	Casters
Thermometer Type	Digital
Type	Reach In
Voltage	115
Warranty	5-year Parts & Labor, 7-year Limited Compressor Parts
Width (in)	25.25
Series	M3
Refrigerant	R290 (Hydrocarbon)
No. of Doors	1
Phase	1
Rating	Better
Product	Reach-In Refrigerators
Product Type	Commercial Refrigeration
NEMA	5-15P
Hinge Configuration	Right
Weight	194.00
