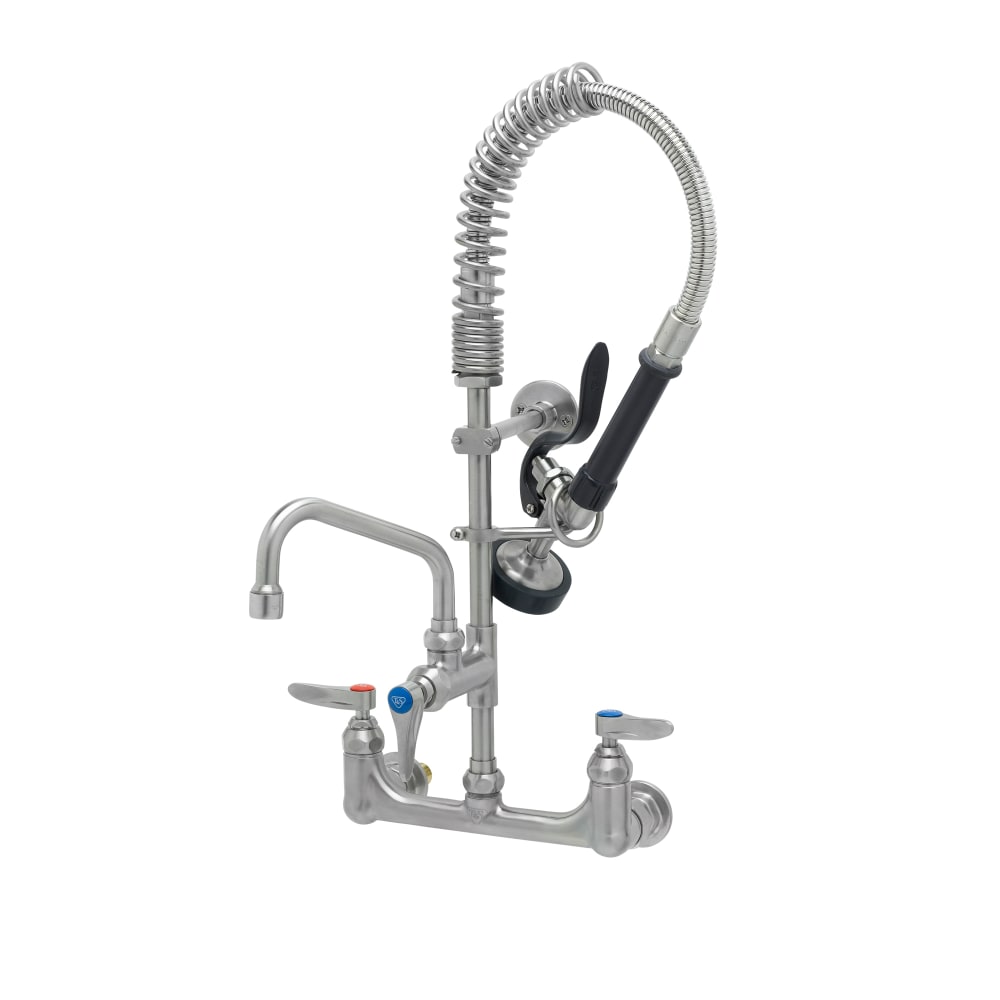

T&S SMPK-8WLN-06 22 1/8"H Wall Mount Pre Rinse Faucet - 1.15 GPM, Base with Nozzle
IN STOCK: Ships in 1 Business Day
Less Than 5 in Stock, Order Soon!
$578.50 /Each
T&S SMPK-8WLN-06 Description
The T&S SMPK-8WLN-06 wall-mount pre-rinse faucet measures 22 1⁄8 inches high overall. The unit’s 8-inch on-center wall-mount allow this versatile piece to be applied to a wall, while the 6-inch adjustable wall bracket adds support. The 8-inch riser, 24-inch flexible hose, and compact spring support the 1.15-gallon-per-minute spray valve; below, the add-on faucet sports a 6-inch swing nozzle. The quarter-turn cartridges with levers regulate the nozzle’s water flow. Once everything is thoroughly put together and applied, the pre-rinse unit supports 20 to 125 PSI water pressure. The entire body is constructed of stainless steel to survive temperatures from 40 to 140 degrees Fahrenheit.
- From the EverSteel series
- 8-in. on-center wall-mount
- Quarter-turn cartridges with spring checks
- Lever handles
- Add-on faucet
- Compact spring condenses and expands spray valve
- 24-in. flexible pre-rinse hose
- 8-in. riser
- 6-in. adjustable wall bracket
- 1.15-GPM spray valve
- Nozzle flow: 9.73 GPM
- Pressure range: 20-125 PSI
- Water temperature range: 40-140 degrees F
- 1⁄2-NPT female eccentric inlets
- Overall dimensions: 12 5⁄8 in. W x 22 1⁄8 in. H
*Image may not depict product color, inclusions or accessories.
*Free shipping on T&S SMPK-8WLN-06 within the 48 contiguous states.
From The Manufacturer
EverSteel Pre-Rinse Unit: EasyInstall 8" Stainless Steel Wall Mount Mixing Faucet, stainless steel quarter-turn eterna cartridges w/ spring checks, ss lever handles, stainless steel add-on faucet w/ stainless steel 6" swing nozzle, stainless steel compact spring, 24" flexible stainless steel hose, stainless steel 1.15 gpm spray valve, stainless steel 6" wall bracket & stainless steel 1/2" npt female inlets, Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9 and NSF 372. 2019 DOE PRSV - Class I compliant.
T&S SMPK-8WLN-06 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | T&S |
| Cartridge | Eterna |
| Faucet Centers (in) | 8 |
| GPM | 1.15 |
| Height (in) | 22.13 |
| Hose Length (in) | 24 |
| Inlets | 1/2" Female |
| Mounting Location | Wall |
| Product | Pre-Rinse Faucets |
| Product Type | Commercial Sinks |
| Rating | Best |
| Series | EverSteel |
| Special Features | Low Lead |
| Special Features | Spray Head Hook |
| Special Features | Trigger Ring |
| Type | Base with Nozzle |
| Warranty | Limited Lifetime Against Defects in Material & Workmanship |
| Weight | 12.00 |
