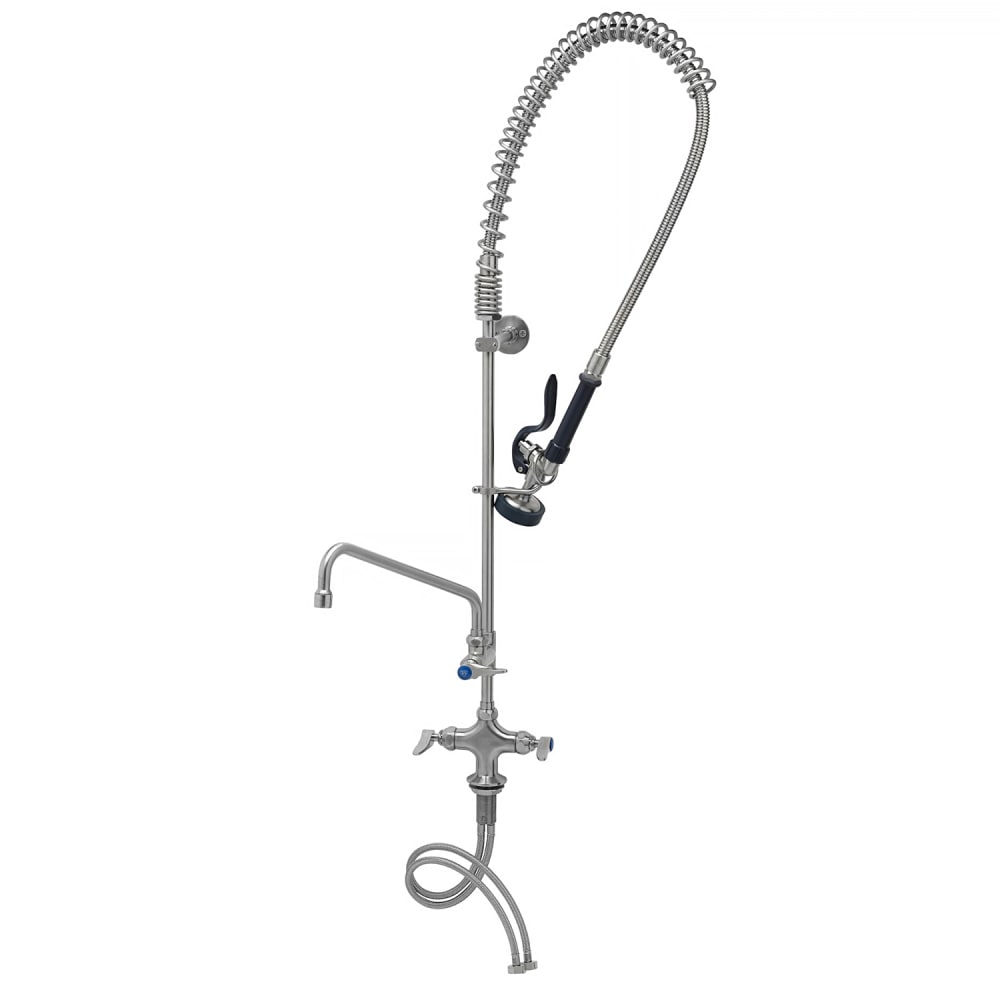

T&S S-0113-A12-B 46 1/4"H Deck Mount Pre Rinse Faucet - 1.15 GPM, Base with Nozzle
$505.63 /Each
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
T&S S-0113-A12-B Description
The T&S S-0113-A12-B pre-rinse unit features two parts for diverse functionality in commercial settings. Its spray valve assembly features a 46 1⁄4-inch height and is constructed of durable, corrosion-resistant stainless steel. A 44-inch hose and 1 3⁄20-gallon-per-minute spray valve remain stable with a 6-inch wall bracket. This hose is finished with a stainless steel overhead spring, while the spray valve includes a heat-resistant handle and hold down ring that enables consistent pressure. This pre-rinse spray valve assembly attaches to the faucet unit with the 3⁄8-inch NPT threading located atop the 24-inch stainless steel riser.
The riser on the T&S S-0113-A12-B pre rinse faucet works to stabilize the spray valve assembly, stainless steel finger hook, and the EasyInstall faucet. Both sides of the faucet have Eterna compression cartridges, spring checks to reduce potential crossflow, and color-coded stainless steel levers. These levers move at quarter turns for simple access and adjustment to water flow, supplying the 12-inch swing nozzle and stream regulator outlet with comfortable water temperatures and steady flow. Additionally, this unit sits on a 2 1⁄4-inch stainless steel deck flange, offering ample grip and security for long-term use.
- EverSteel series
- 44-in. hose is flexible and made of stainless steel
- Hose is finished with heat-resistant handle and hold down ring
- Spray valve constructed of stainless steel
- Stainless steel valve holder and overhead spring
- 6-in. wall bracket is adjustable with stainless steel construction
- Brushed finish
- Spray valve flow: 1 3⁄20 gal. per min.
- EasyInstall faucet is made of corrosion-resistant stainless steel
- 24-in. stainless steel riser has 3⁄8 in. NPT threading
- 2 1⁄4-in. deck flange
- 12-in. swing nozzle with stream regulator outlet
- Stainless steel deck mount with single hole
- Stainless steel finger hook
- 18-in. stainless steel supply hoses are flexible
- Supply hoses feature G1⁄2-in. female swivel connections
- Stainless steel Eterna compression cartridges with spring checks
- Color-coded lever handles with stainless steel structure
- Faucet flow: 5 3⁄5 GPM
- Pressure range: 20-125 PSI
- Water temperature range: 40-140 degrees Fahrenheit
- Overall dimensions: 14 1⁄16 in. D x 16 1⁄4 in. H
*Image may not depict product color, inclusions or accessories.
*Free shipping on T&S S-0113-A12-B within the 48 contiguous states.
From The Manufacturer
EverSteel Pre-Rinse Unit: single hole stainless steel deck mount mixing faucet, stainless steel add-on faucet, stainless steel 12” swing nozzle with stream regulator outlet, stainless steel 24” riser, 44” flexible stainless steel hose with heat resistant handle, stainless steel 1.15 GPM spray valve (S-0107), stainless steel compression cartridges with spring checks, stainless steel lever handles, 18” flexible stainless steel supply hoses with G1/2” female swivel connections, stainless steel 6” adjustable wall bracket, stainless steel spray valve holder, and stainless steel overhead spring. Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9 and NSF 372. 2019 DOE PRSV - Class II compliant.
T&S S-0113-A12-B Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | T&S |
| Cartridge | Eterna |
| GPM | 1.15 |
| Height (in) | 46.25 |
| Hose Length (in) | 44 |
| Mounting Location | Deck |
| Product | Pre-Rinse Faucets |
| Product Type | Commercial Sinks |
| Rating | Best |
| Series | EverSteel |
| Special Features | Low Lead |
| Special Features | Spray Head Hook |
| Special Features | Trigger Ring |
| Type | Base with Nozzle |
| Warranty | Limited Lifetime Against Defects in Material & Workmanship |
| Weight | 13.77 |
