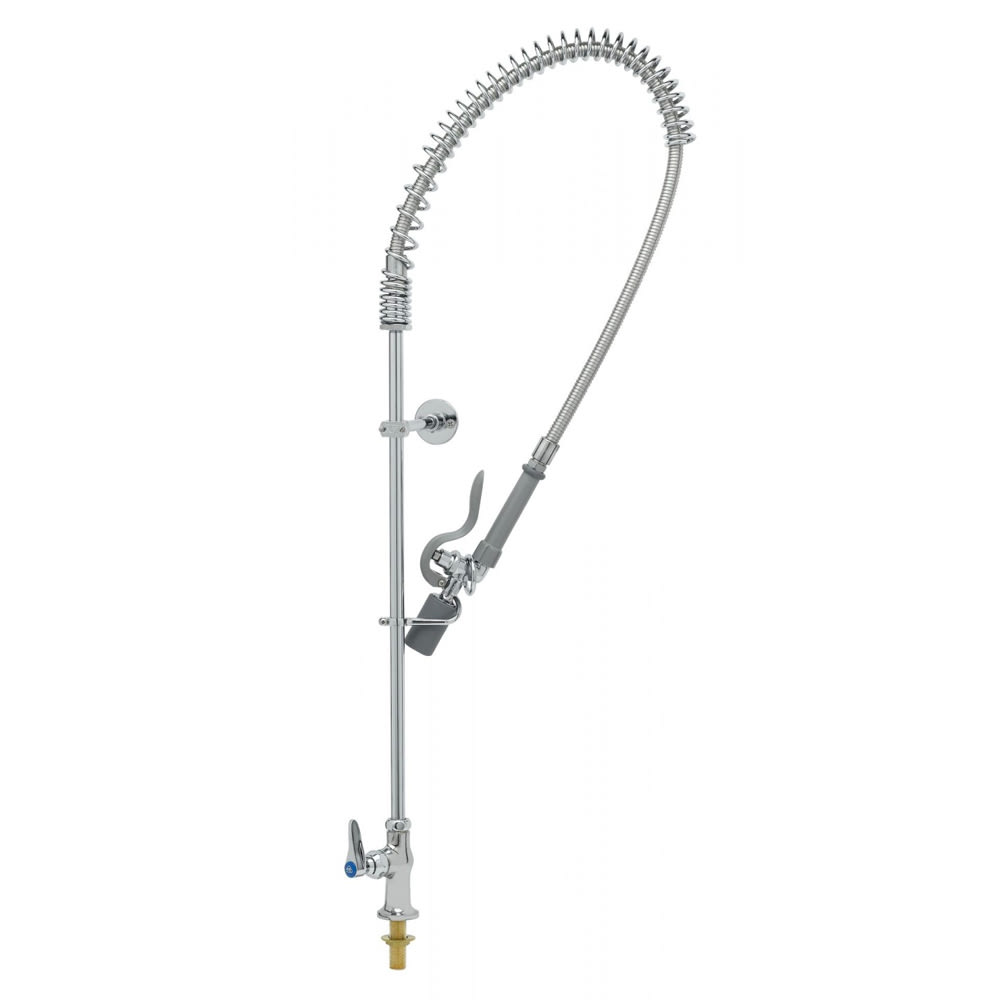

T&S B-2285-BC 42 1/2"H Deck Mount Pre Rinse Faucet - 13/20 GPM, Base with Nozzle
$310.26 /Each
T&S B-2285-BC Description
Outfitted with a 6-inch adjustable wall bracket for added stability during use, the T&S B-2285-BC pre-rinse faucet supports efficient low-flow rinsing with its 0 13⁄20 GPM angled spray valve (B-0107-C). Its lever handle with color-coded index allows quick temperature identification, while the 1⁄2-inch NPSM male inlet and optional 1⁄4-inch NPT tailpiece provide installation flexibility. A quarter-turn Eterna compression cartridge with spring check helps prevent cross flow and ensures dependable operation. This single-temperature, deck-mounted unit includes a 24-inch riser, spring-action gooseneck, and a 44-inch flexible stainless steel hose with a heat-resistant gray handle and hold-down ring.
Product Details
- Deck mount configuration with single-hole base
- 42 1⁄2-in. overall height
- 0 13⁄20 GPM low-flow spray valve (B-0107-C)
- 44-in. flexible stainless steel hose with heat-resistant gray handle and hold-down ring
- Spring-action gooseneck with 24-in. riser
- 6-in. adjustable wall bracket
- Lever handle with color-coded index
- 1⁄2-in. NPSM male inlet
- Optional 1⁄4-in. NPT tailpiece and nut
- Quarter-turn Eterna compression cartridge with spring check
- Operating pressure: 20–125 psi
- Operating temperature: 40–140 degrees F (4 4⁄9 to 60 degrees C)
*Image may not depict product color, inclusions or accessories.
*Free shipping on T&S B-2285-BC within the 48 contiguous states.
From The Manufacturer
Pre-Rinse Unit, deck mounted single control base faucet, 1/2" male NPSM threaded inlet, 24" riser, B-0107-C low flow spray valve, B-0044-H flexible stainless steel hose, B-0109-01 6" wall bracket
T&S B-2285-BC Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | T&S |
| Cartridge | Eterna |
| GPM | 0.65 |
| Height (in) | 42.5 |
| Hose Length (in) | 44 |
| Inlets | 1/2" Male |
| Mounting Location | Deck |
| Product | Pre-Rinse Faucets |
| Product Type | Commercial Sinks |
| Rating | Better |
| Special Features | Low Flow |
| Special Features | Low Lead |
| Special Features | Spray Head Hook |
| Special Features | Trigger Ring |
| Type | Base with Nozzle |
| Warranty | 3-year Limited Against Defects in Material & Workmanship |
| Weight | 10.00 |
