T&S B-0133-01 Pre-Rinse Unit, 18" Riser, 41-3/8"H, 14" Swing Nozzle

KaTom #: 064-B013301 • MPN: B-0133-01

Typically ships within 4 - 8 business days

(0 reviews)Write a Review
Retail Price: $725.00
$365.35 / Each

T&S B-0133-01 Description

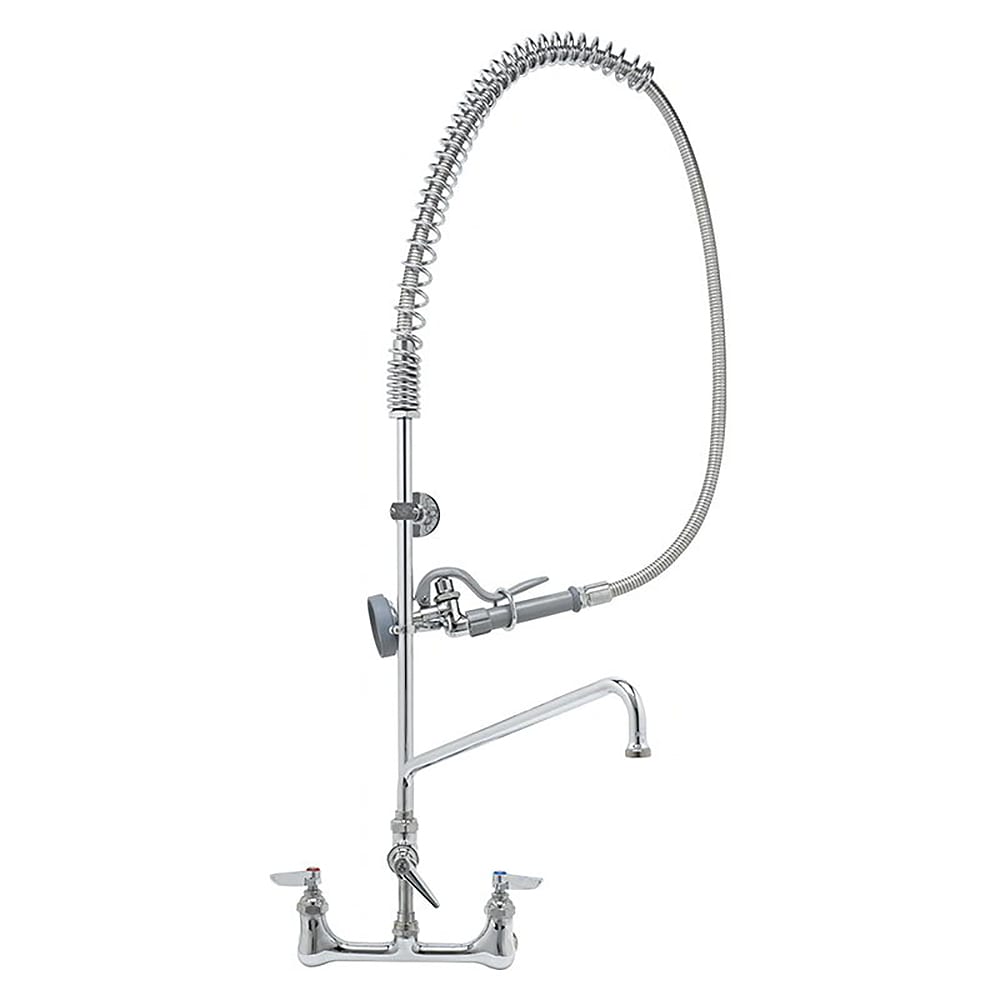

The T&S Brass B-0133-01 pre-rinse unit has an 8-inch wall-mounted, mixing, polished chrome-plated brass faucet. An add-on faucet comes with a compression cartridge and lever handle. To control how the water comes out, there is a 14-inch swing nozzle that is equipped with a stream regulator outlet. To make installing the pre-rinse unit easier, there is an 18-inch riser. Pre-rinsing large kitchenware is simple with the 56-inch, flexible, stainless steel hose that comes with a heat resistant handle.

The hose retains its shape with the overhead support spring, even when you pull it down to rinse the hard-to-reach spots. When you are done with the spray valve on the hose, a finger hook holds it for storage. Water flows through the fixture at 1.42 GPM, so hot water reaches its full temperatures quickly. The compression cartridges have spring checks to prevent water from crossing flows. The T&S Brass B-0133-01 pre-rinse unit is designed for heavy-duty use in a commercial kitchen..

Product Details

  • Spring action pre-rinse unit
  • 8-in. wall mount, mixing, polished chrome plated brass body faucet
  • Compression cartridges control water flow
  • Lever handle
  • 14-in. swing nozzle with a stream regulator outlet
  • 18-in. riser for easy installation
  • EasyInstall add-on, polished chrome plated brass faucet
  • EasyInstall lock nut and bushing
  • 56-in. stainless steel, flexible hose
  • Heat resistant, gray handle with hold down ring on spray valve
  • Overhead support spring keeps hose in place
  • Finger hook holds spray valve when not in use
  • 1.42 GMP spray valve for quick heat up of water
  • Eterna compression cartridges with spring checks to prevent the cross flow of water
  • Color coded indexes on the chrome plated metal lever handles
  • 12-in. NPT male inlets with 2-in.-dia. flanges
  • Centers are adjustable from 734-814-in.
  • 9-in. adjustable wall bracket
  • 38-in. NPT x 18-in. riser
  • Overall Dimensions: 12716 in. W x 141116 in. D x 3758 in. H
  • EPA Compliant; ASME and CSA Listed; NSF Certified

EasyInstall Pre-Rinse Unit, 8" c/c wall mount mixing faucet with spring check cartridges & lever handles, 2" diameter flanges with 1/2" NPT male inlets, add-on faucet with 063X swing nozzle, 41-3/8"H, 18" riser, B-0107 spray valve, 56" flex hose, B109-02 9" wall support

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

**Important Prop 65 information for California residents.

T&S B-0133-01 Specifications

PDF Spec Sheet
Manufacturer T&S
Warranty 3 Years
Weight 14.50
