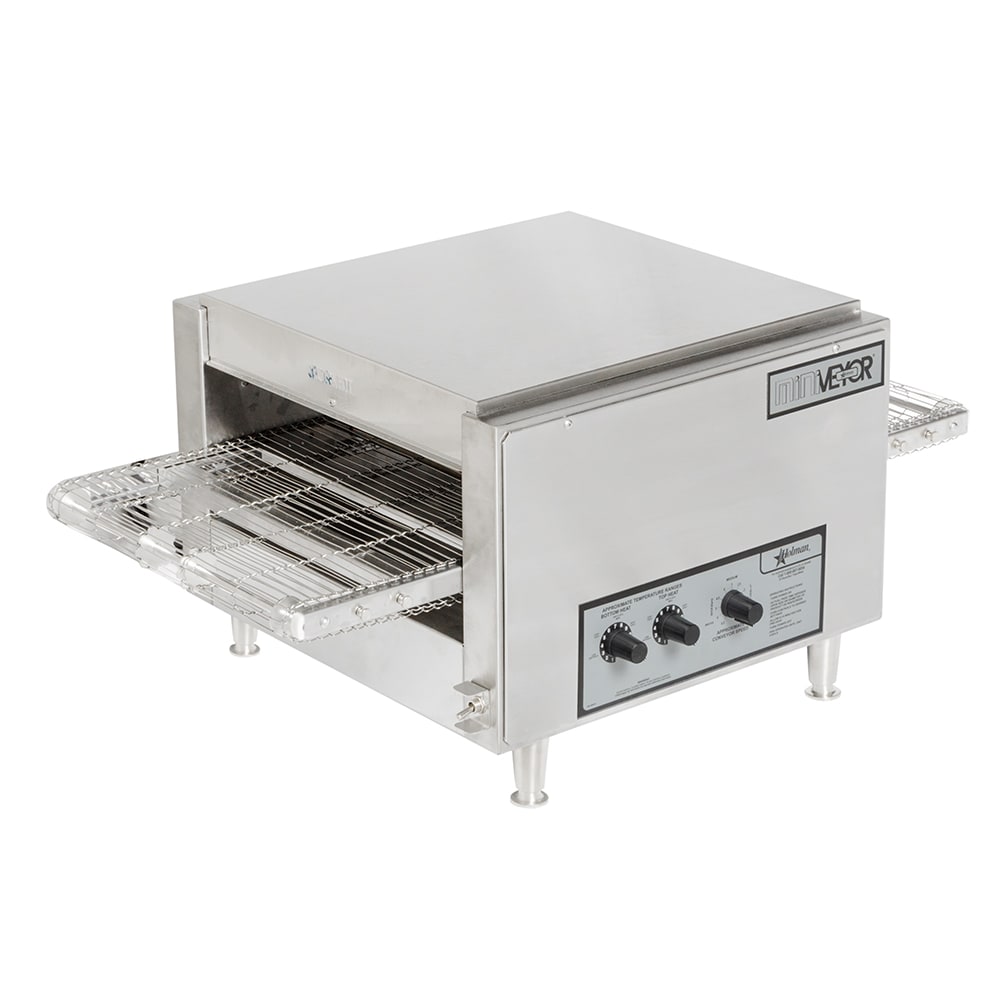

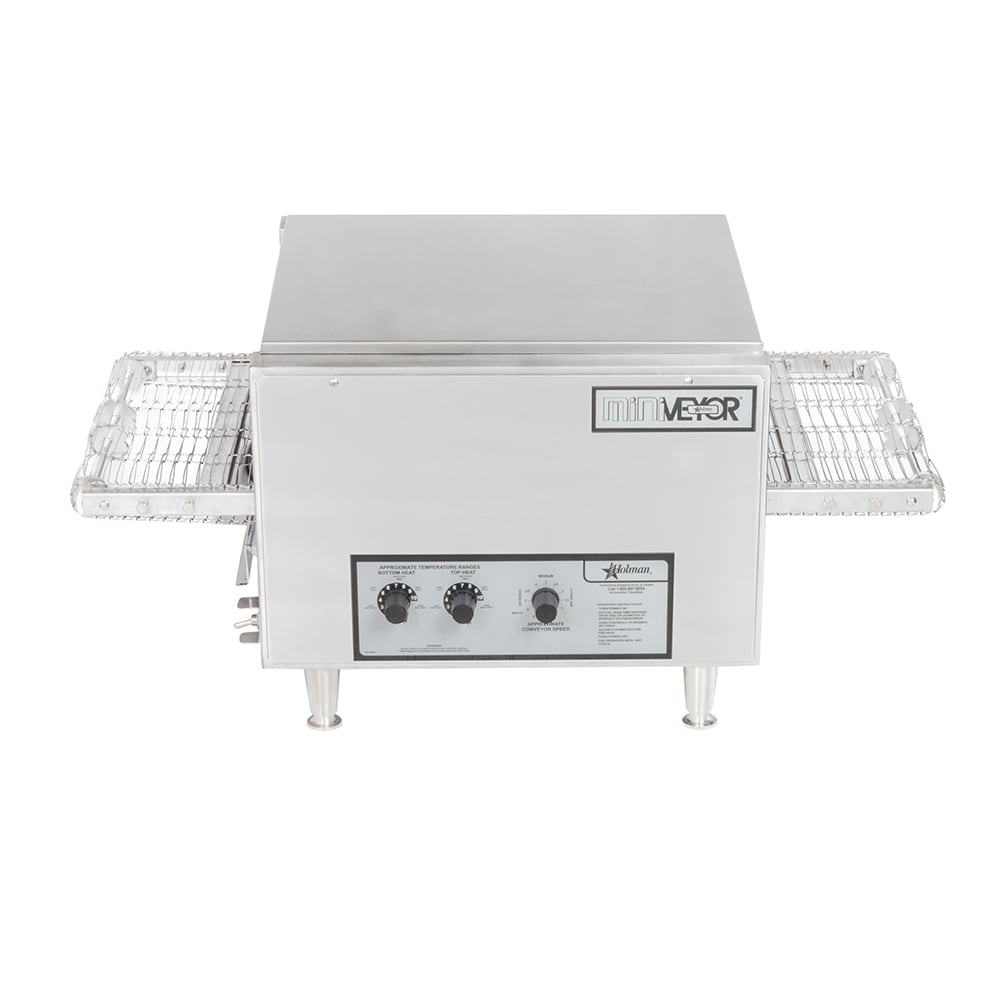

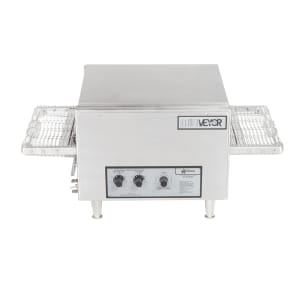

Star 214HX Description
The Star 214HX Miniveyor® conveyor oven can cook (31) 9-inch-diameter pizzas in an hour, and the quartz heating elements are placed above and below the belt for quick and even heating. A forced convection system circulates preheated air in the toasting chamber while keeping the belt cool to the touch. Its analog control system enables operators to adjust the top and bottom heat level and belt speed.

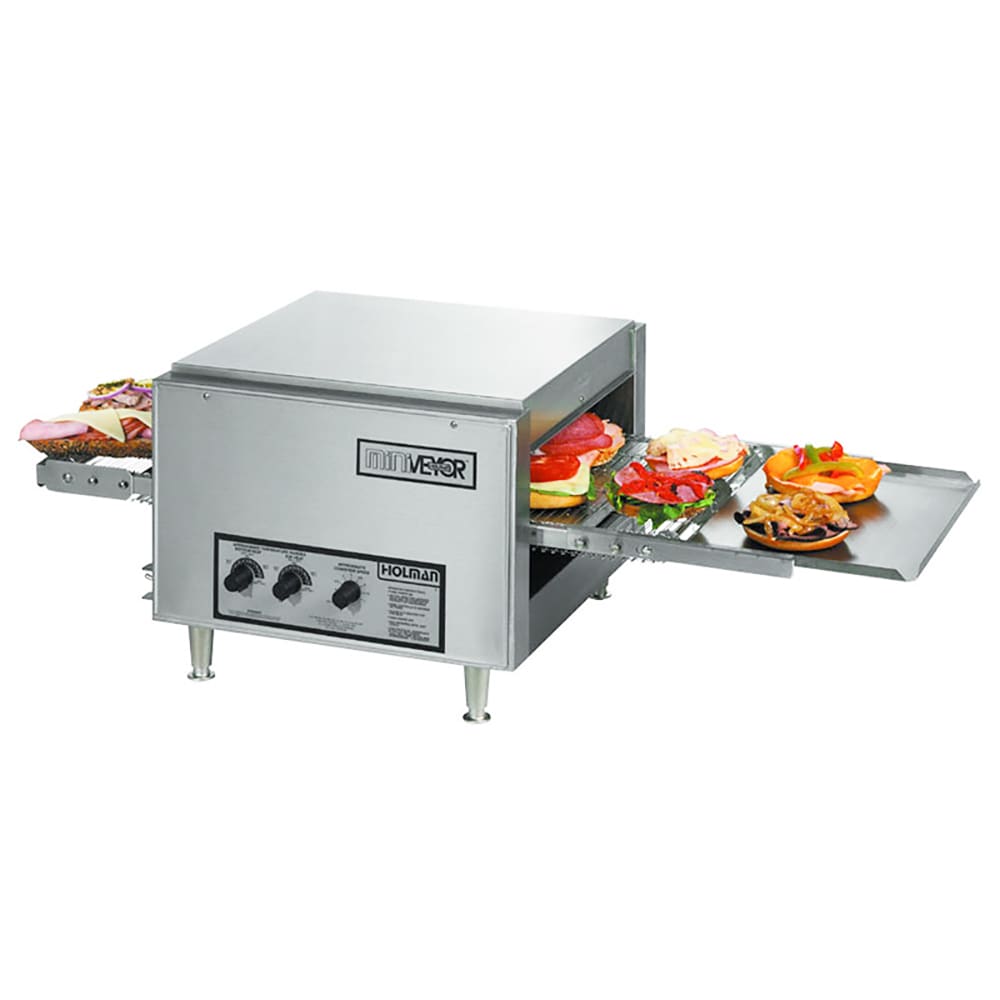

Adjustable from 11/2 inches to 3 inches, the openings in the chamber accommodate pizzas, sandwiches, and other types of products. Extenders on each side ensure convenient loading and unloading, and these pieces are removable to facilitate cleaning. The Star 214HX conveyor oven is elevated off the counter with 21/2-inch legs, so staff can clean under the unit.
Product Details
- Cooks as many as (31) 9-in. pizzas in an hour
- Quartz infrared elements are placed above and below the belt for quick and even heating
- Forced convection system circulates air that is preheated by the toasting chamber
- Convection system ensures the belt stays cool while protecting internal components
- Conveyor system moves from left to right
- Openings in the chamber are adjustable from 11/2 in. to 3 in.

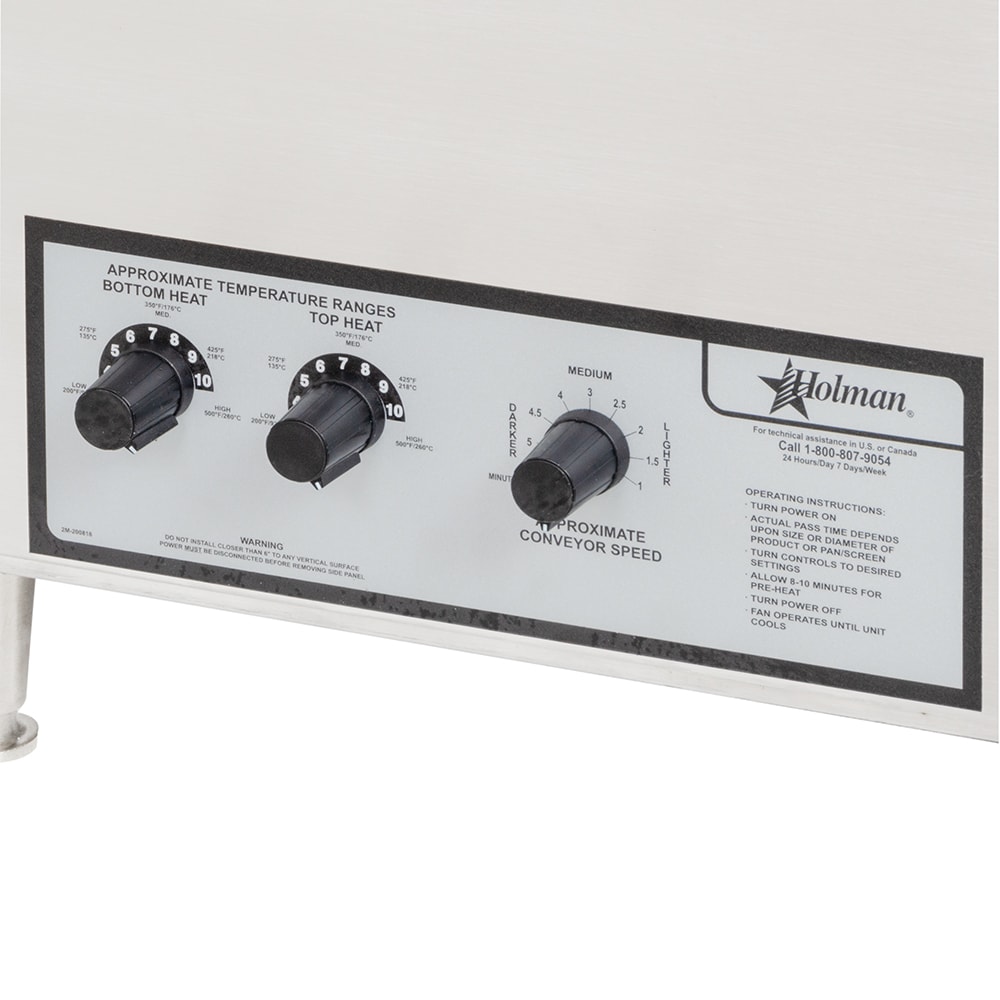

- Analog system adjusts the top and bottom heat and conveyor speed
- Crumb tray removes to simplify cleaning

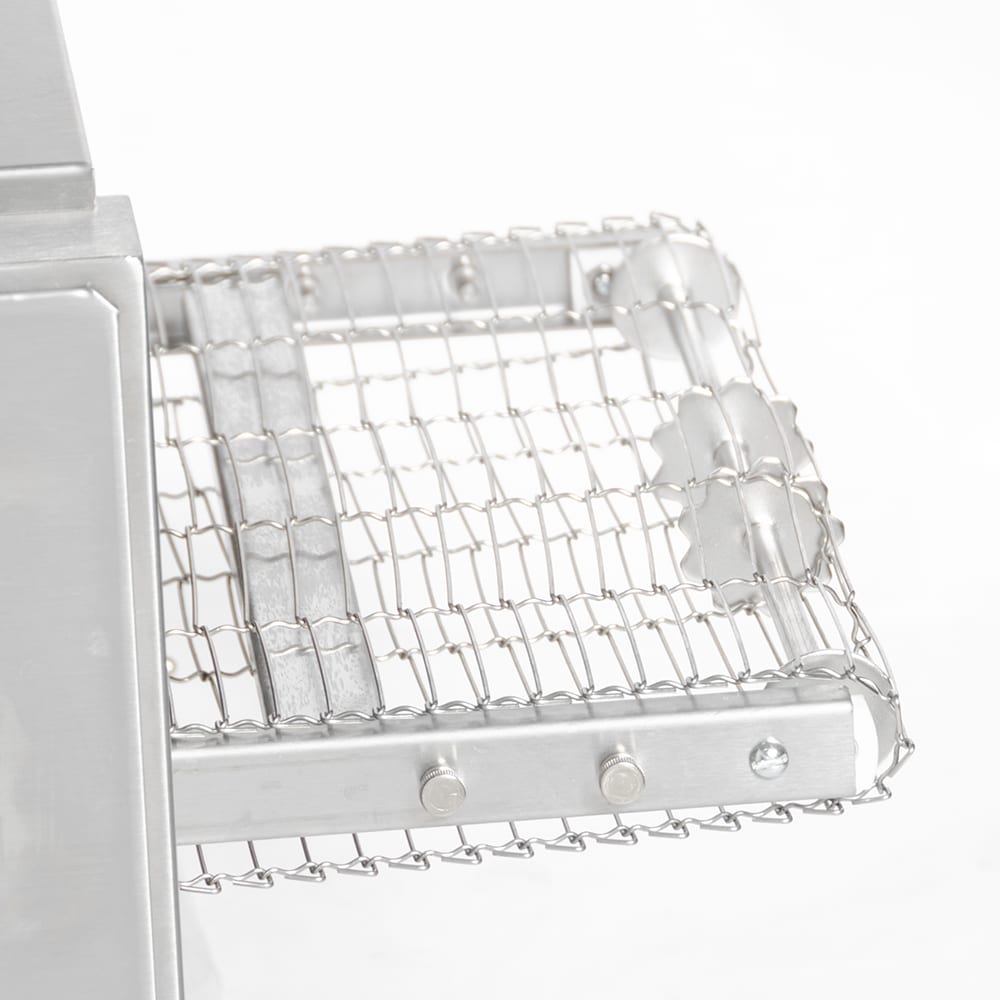

- Removable, 61/2-in. extenders for loading and unloading
- 21/2-in. legs enable staff to clean under the unit
- Can be stacked with another conveyor oven
Dimensions & Utilities
- Belt: 31 in. W x 14 in. D
- Cooking chamber: 169/10 in. W x 143/10 in. D
- Overall: 362/5 in. W x 192/5 in. D x 14 in. H
- 19.3 A, 4000 W

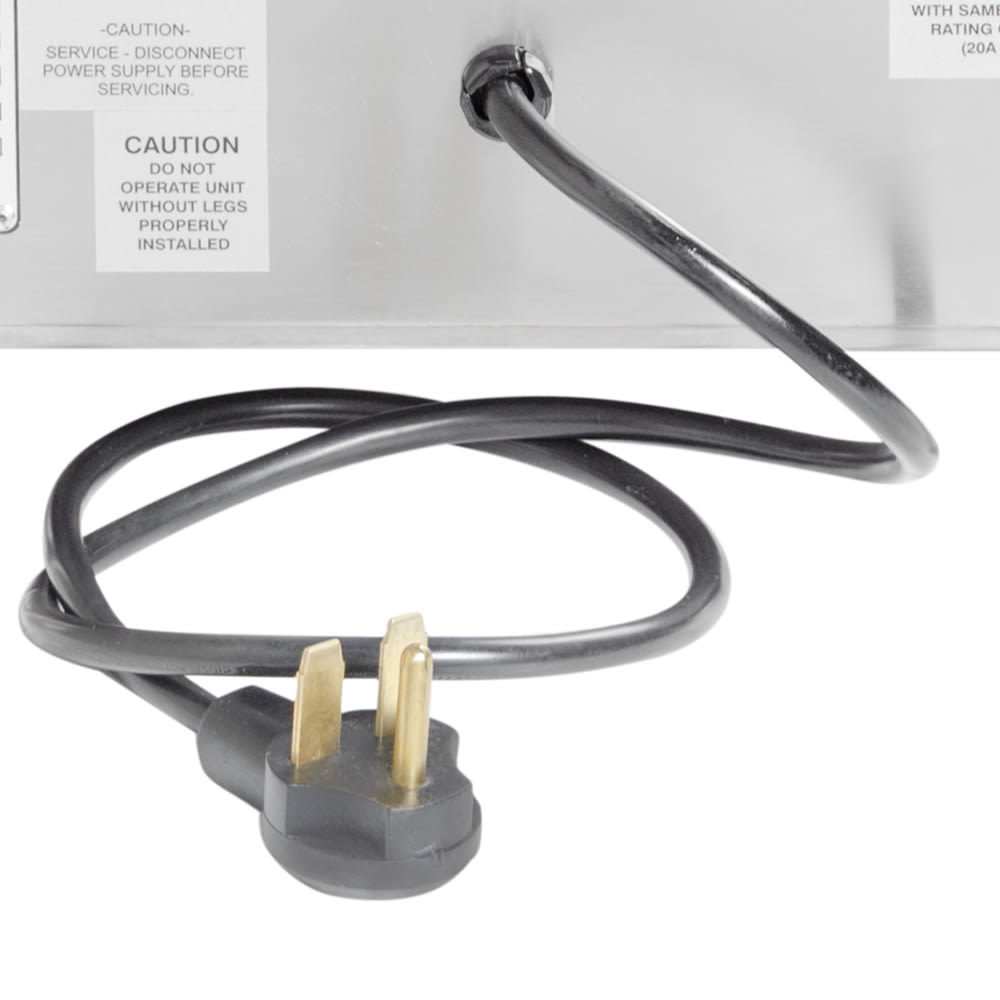

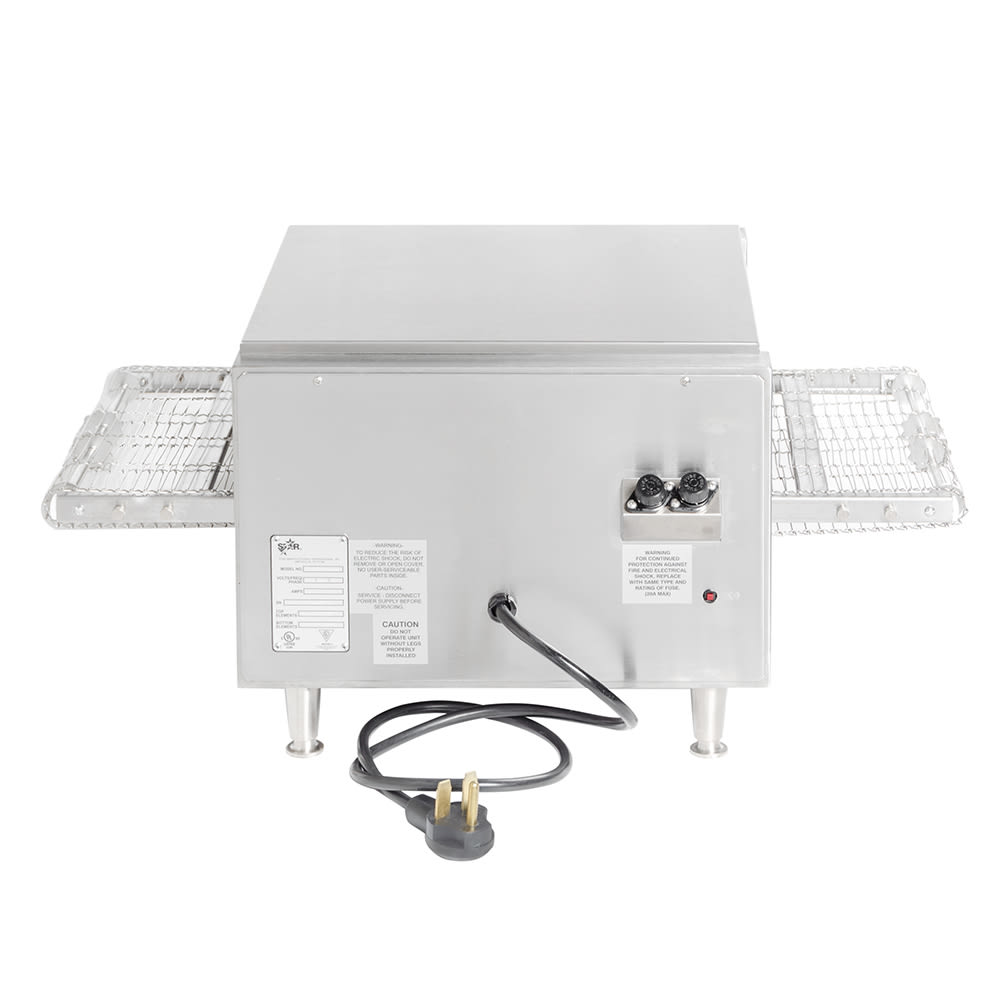

- 208 V/60 Hz/1 ph, NEMA 6-30P plug
Product Features
*Free shipping on Star 214HX within the 48 contiguous states.
From The Manufacturer
Star Miniveyor Conveyor Oven, electric, countertop, analog speed control, independent controls for top & bottom quartz sheathed heater elements, adjustable inlet/exit openings 1-1/2" - 3", 14.31" W belt, conveyor left-to-right standard, stainless steel construction, cULus, UL EPH Classified, Made in USA
*Image may not depict product color, inclusions or accessories.
Star 214HX Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Star |
| Belt Length (in) | 31 |
| Belt Width (in) | 14 |
| Controls | Manual |
| Heat | Electric |
| Heating Style | Convection |
| Hertz | 60 |
| Installation Type | Countertop |
| kW | 4 |
| Maximum Pizza Diameter | 14" |
| NEMA | 6-30P |
| Overall Length (in) | 36 |
| Overall Width (in) | 20 |
| Phase | 1 |
| Product | Conveyor Ovens |
| Product Type | Cooking Equipment |
| Rating | Better |
| Series | Miniveyor® |
| Size | Single |
| Voltage | 208 |
| Warranty | 1-year Limited Parts & Labor |
| Weight | 66.00 |
