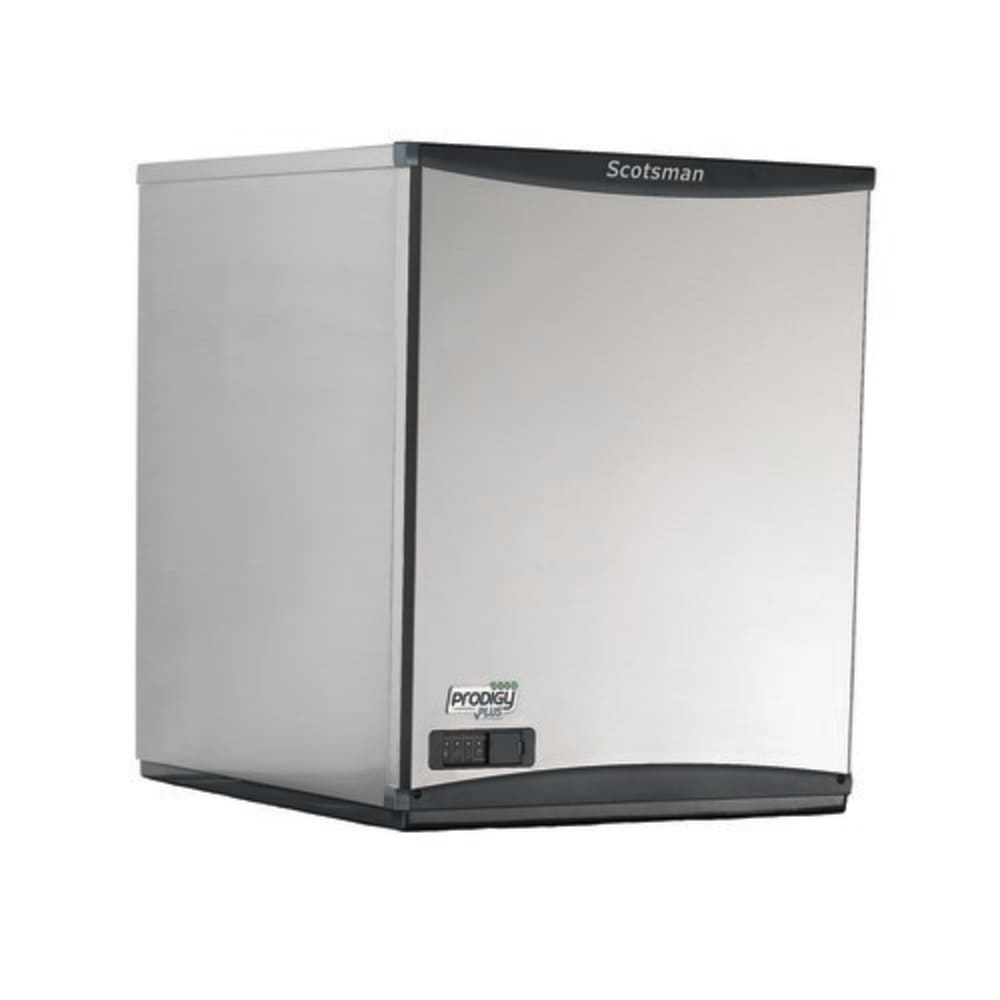

Scotsman NS1322W-32 22" Prodigy Plus® Nugget Ice Machine Head - 1513 lb/24 hr, Water Cooled, 208-230v/1ph

To lower maintenance needs and extend service life, the Scotsman NS1322W-32 Prodigy Plus® nugget ice machine head is equipped with sealed bearings. This unit's evaporator and auger are made of stainless steel for maximized strength, and to enhance visibility, it's equipped with AutoAlert™ indicator lights. Measuring 22⁹/₁₀ inches in width by 24 inches in depth by 27 inches in height, the ice machine head has a small operational footprint.

Providing operators fast access to cleaning guides, service manuals, and warranty history, the Scotsman NS1322W-32 Prodigy Plus ice maker is designed with a unit-specific QR code. Because the unit is front breathing, side clearance isn't required for flexible placement options. The interior is guarded by Antimicrobial protection between cleanings, while airborne contamination is minimized by the sealed refrigeration system.

Product Details

• Part of the Prodigy Plus series
• Nugget-style ice
• 1,513-lb. maximum daily ice production
• 1,129-lb. AHRI-certified daily ice production
• Water cooled
• Self-contained condenser doesn't require additional connections
• Sealed bearings lower maintenance requirements
• AutoAlert indicator lights enhance visibility
• Unit-specific QR code provides access to cleaning guides and service manuals
• Stainless steel auger and evaporator
• 1-touch cleaning system
• Stainless steel exterior
• Antimicrobial protection inhibits spread of germs
• Front-breathing system
• 16,000 BTUs/hour

Product Features

Dimensions & Utilities

• 22⁹/₁₀ in. W x 24 in. D x 27 in. H
• Uses R404A refrigerant
• Ideal ambient air temperature: 50-100 degrees F
• Ideal incoming water temperature: 40-100 degrees F
• Ideal incoming water pressure: 20-80 PSI
• 16.6 A, 3.11 kw
• 208-230 V/60 Hz/1 ph

*Free shipping on Scotsman NS1322W-32 within the 48 contiguous states.

From The Manufacturer

Prodigy Plus® Ice Maker, nugget style, Original Chewable Ice®, water-cooled, self-contained condenser, production capacity up to 1513 lb/24 hours at 70°/50° (1129 lb AHRI certified at 90°/70°), sealed maintenance-free bearings, AutoAlert™ indicating lights, unit specific QR code, stainless auger and evaporator, one-touch cleaning, stainless steel finish, AgION™ antimicrobial protection, R-404A refrigerant, 208-230v/60/1-ph, 16.6 amps, NSF, cULus, engineered and assembled in USA

*Image may not depict product color, inclusions or accessories.

Commercial: 3-year Limited Parts & Labor; 5-year Limited Parts & Labor Evaporator; 5-year Limited Compressor & Condenser Parts; Residential: 1-year Parts & Labor

Scotsman NS1322W-32 Specifications

Scotsman offers one of the largest selections of commercial and residential ice makers. It has innovated the industry and provided customer-friendly service since the 1950s. Scotsman is a major global player with distributors and service agents in more than 100 countries.

Documents

Spec Sheet

Warranty

Parts Breakdown

Manual

Product Info

Brochure
