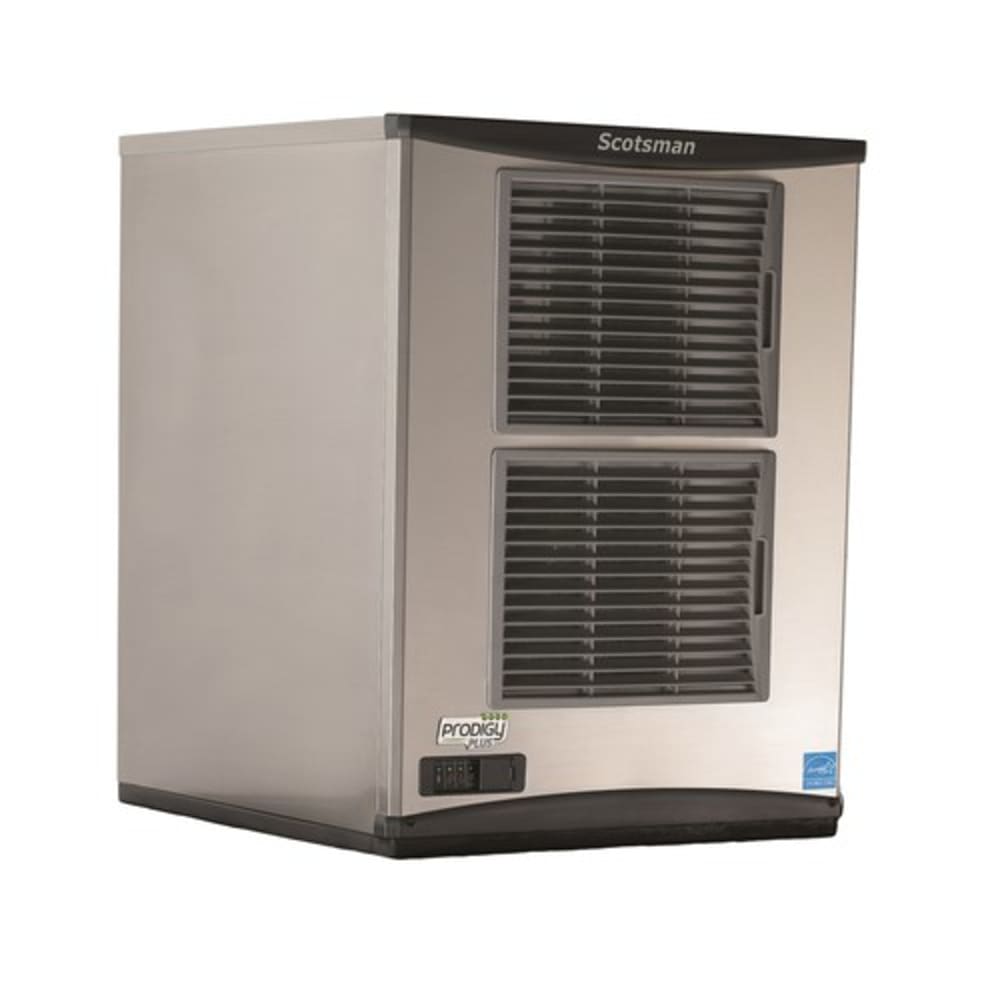

Scotsman NS1322AX-32 22" Prodigy Plus® Nugget Ice Machine Head - 1314 lb/24 hr, Air Cooled, 208-230v/1ph
QUICK SHIP: Typically ships in 1 - 3 Business Days
Retail Price: $25,269.00
$10,360.00 /Each
Selected Ice Type: Soft Nugget
Scotsman NS1322AX-32 Description
The Scotsman NS1322AX-32 Prodigy Plus® nugget ice machine head must be paired with a storage bin or dispenser. In ideal ambient conditions, this unit can produce 1,385 pounds of nugget ice every 24 hours; this chewable form of ice absorbs drinks and displaces liquid to cut beverage costs. This ice machine head is air cooled, so it carries heat away from components by blowing air over them, easing installation and servicing. To extend its service life and reduce maintenance needs, the ice machine head has integral sealed, maintenance-free bearings.
To enhance the Scotsman NS1322AX-32 Prodigy Plus ice maker's durability, its evaporator and auger are constructed of stainless steel. AutoAlert™ indicator lights provides maintenance notifications. Overall, it measures 22 inches wide by 24 inches deep by 27 inches high, and because of its front-breathing design, it's rear and sides can be placed flush against walls. For fast access to warranty history, service manuals, and cleaning guides, the ice maker includes a unit-specific QR code. To maintain sanitation between cleanings, the ice maker features antimicrobial protection.

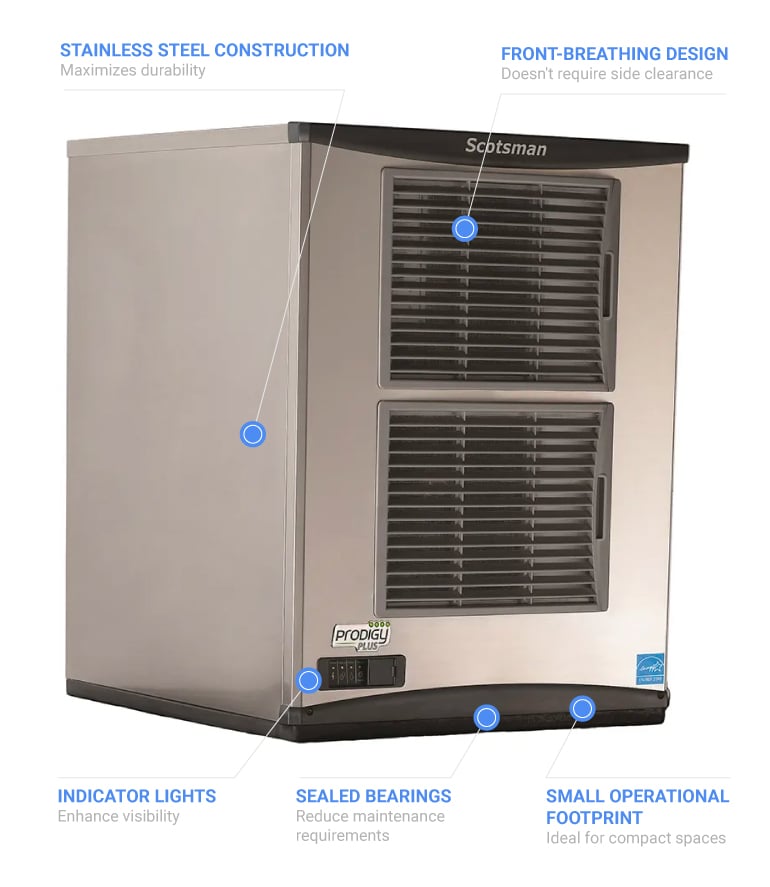

- Featured in the Prodigy Plus series
- 1,385-lb. maximum daily ice production
- 990-lb. AHRI-certified daily ice production

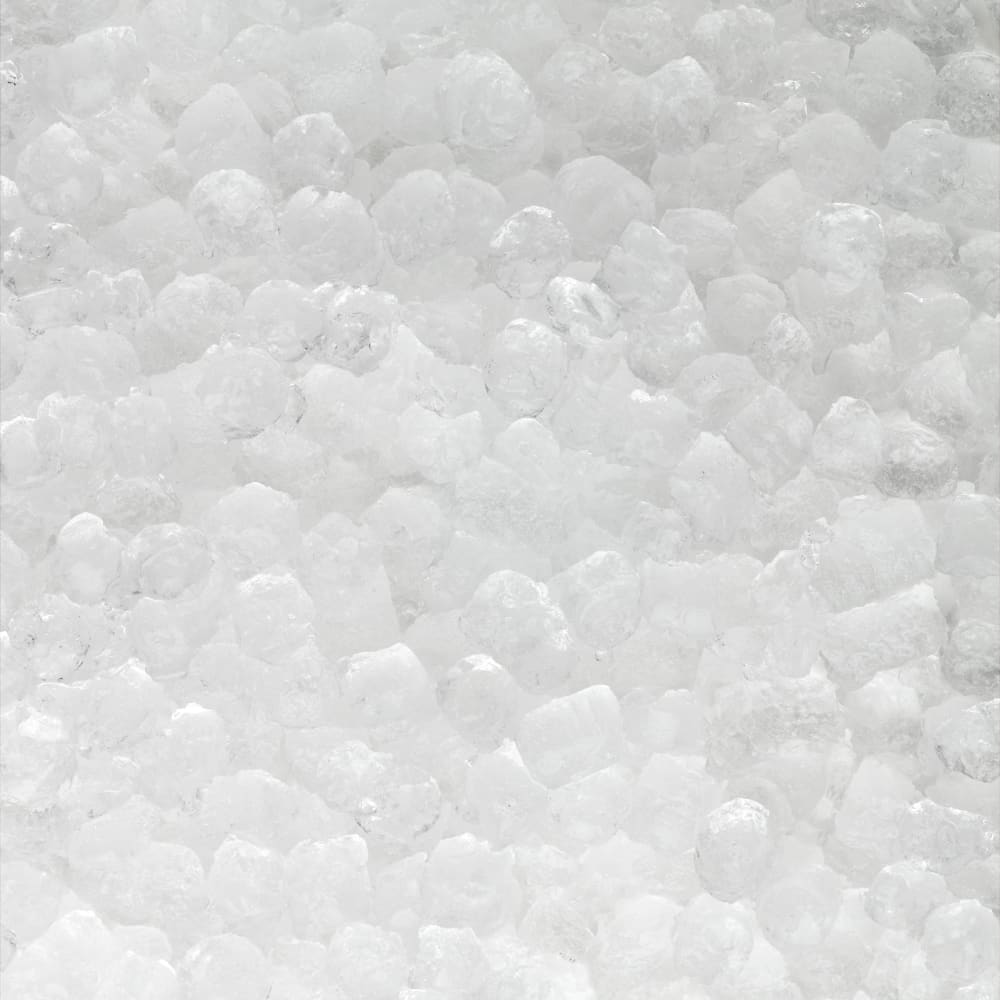

- Produces soft nugget ice
- Air-cooled refrigeration system
- R290 refrigerant
- Sealed bearings reduce maintenance requirements
- Heavy-duty stainless steel evaporator and auger
- AutoAlert indicator lights maximize visibility
- Small footprint for venues with limited space
- Comes with unique QR code for unit-specific documents
- Front-breathing design doesn't require side clearance
- Antimicrobial protection enhances sanitation between cleanings
- Sealed refrigeration system
- Ideal ambient air temperature: 50-100 degrees F
- Ideal incoming water temperature: 40-100 degrees F
- Ideal incoming water pressure: 20-80 PSIG
- 22 in. W x 24 in. D x 27 in. H
- 17.8 A, 4.04 kW
- 208-230 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Scotsman NS1322AX-32 within the 48 contiguous states.
From The Manufacturer
Prodigy Plus® Ice Maker, nugget style, Original Chewable Ice®, air-cooled, self-contained condenser, production capacity up to 1314 lb/24 hours at 70°/50° (1001 lb AHRI certified at 90°/70°), sealed maintenance-free bearings, AutoAlert™ indicating lights, front facing removable air filter, unit specific QR code, stainless auger and evaporator, one-touch cleaning, stainless steel finish, AgION™ antimicrobial protection, R290 refrigerant, 208-230v/60/1-ph, NSF, cULus
Watch a video about this product
Scotsman NS1322AX-32 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Scotsman |
| 24 Hr. Production (lb) | 1314 |
| Also Known As | NS1322A-32 |
| Compressor Type | Air Cooled |
| Depth (in) | 24 |
| Height (in) | 27 |
| Ice Type | Nugget |
| Phase | 1 |
| Product | Ice Machine Heads |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R290 (Hydrocarbon) |
| Series | Prodigy Plus® |
| Special Features | Sealed, Maintenance-Free Bearings |
| Special Features | The Original Chewable Ice® |
| Suggested Use | Commercial |
| Voltage | 208/230 |
| Warranty | Commercial: 3-year Parts & Labor; 5-year Compressor Parts; Residential: 1-year Parts & Labor |
| Water Inlet (in) | 0.38 |
| Width (in) | 22 |
| Weight | 225.00 |
Important Prop 65 information for California residents.
- Scotsman N1322A32A
Compare to Similar Items
| Attributes |
Scotsman NS1322AX-32 Scotsman NS1322AX-32 22" Prodigy Plus® Nugget Ice Machine Head - 1314 lb/24 hr, Air Cooled, 208-230v/1ph Current Item |
||
|---|---|---|---|
| Customer Rating |
|
|
|
| Price | $10,360.00 / Each | $10,940.00 / Each | $10,017.00 / Each |
| Shipping | Free Shipping | Free Shipping | Free Shipping |
| Lead Time | QUICK SHIP: Typically ships in 1 - 3 Business Days | Typically ships in 4 - 8 Business Days | Typically ships in 6 - 8 weeks |
| 24 Hr. Production (lb) | 1314 | 1327 | 1350 |
| Ice Type | Nugget | Nugget | Nugget |
| Compressor Type | Air Cooled | Air Cooled | Air Cooled |
| Width (in) | 22 | 30 | 21 |
| Rating | Best | Best | Better |
| Voltage | 208/230 | 208/230 | 208/230 |
| Series | Prodigy Plus® | Slim-Line | Pearl Ice® |
| Refrigerant | R290 (Hydrocarbon) | R404A | R404A |
| Warranty | Commercial: 3-year Parts & Labor; 5-year Compressor Parts; Residential: 1-year Parts & Labor | 3-year Parts & Labor; 5-year Compressor & Condenser Parts | 3-year Parts & Labor; 5-year Compressor Parts |
