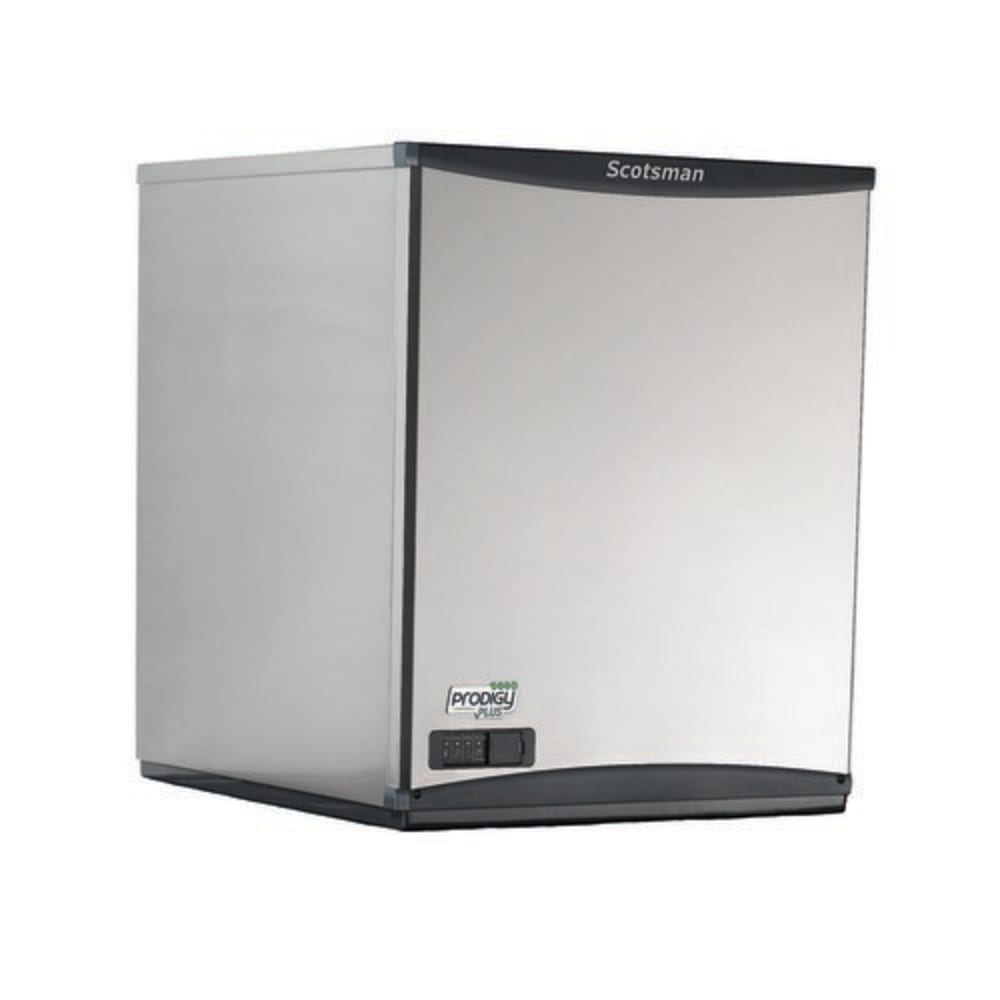

Scotsman NH1322W-32 22" Prodigy Plus® Nugget Ice Machine Head - 1242 lb/24 hr, Water Cooled, Harder Nugget, 208-230v/1ph

The Scotsman NH1322W-32 nugget ice machine head is water cooled and can produce as much as 1,242 pounds of H² nugget ice per day in ideal conditions, making it great for high-volume applications. The auger is constructed of durable stainless steel, resisting rust and corrosion. To reduce maintenance downtime, the Prodigy Plus® series ice machine head is equipped with sealed, maintenance-free bearings made with a self-lubricating polymer that eliminates the need for greasing. It's front breathing, removing the need for side clearances and enabling adaptable placement. To simplify access to its inside, the front panel of the unit is self-aligning, and the air filter is also located in the front for streamlined replacement.

The food zone of the Scotsman NH1322W-32 nugget ice machine head is protected from mold growth by the AgION®, antimicrobial guards, and the refrigeration system is sealed to prevent the entrance of airborne contaminants. To reduce the environmental impact of the ice maker, it uses R-404A refrigerant. A unit-specific QR code printed on the unit provides users with instant access to documents such as user manuals, parts lists, and warranty information.

Product Details

• Part of the Prodigy Plus series
• Water cooled
• 1,242-lb. maximum daily ice production
• 1,054-lb. AHRI-certified daily ice production

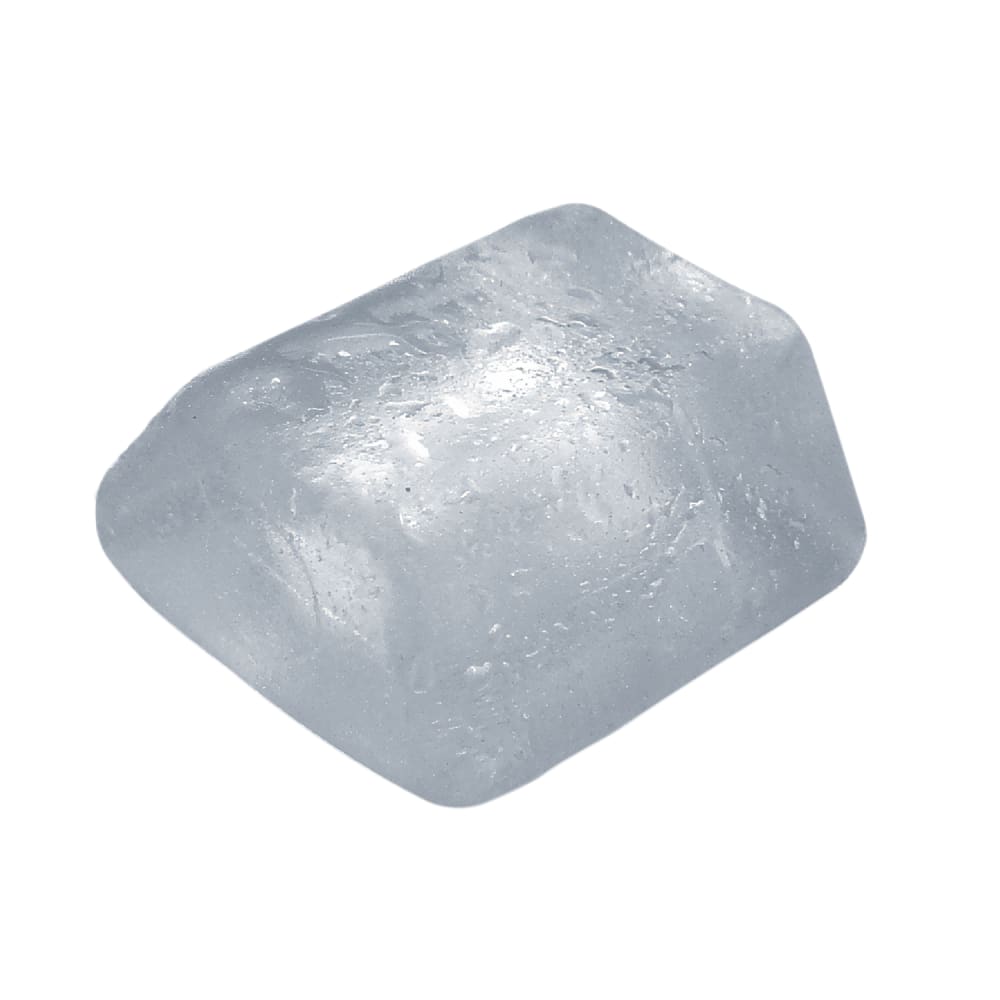

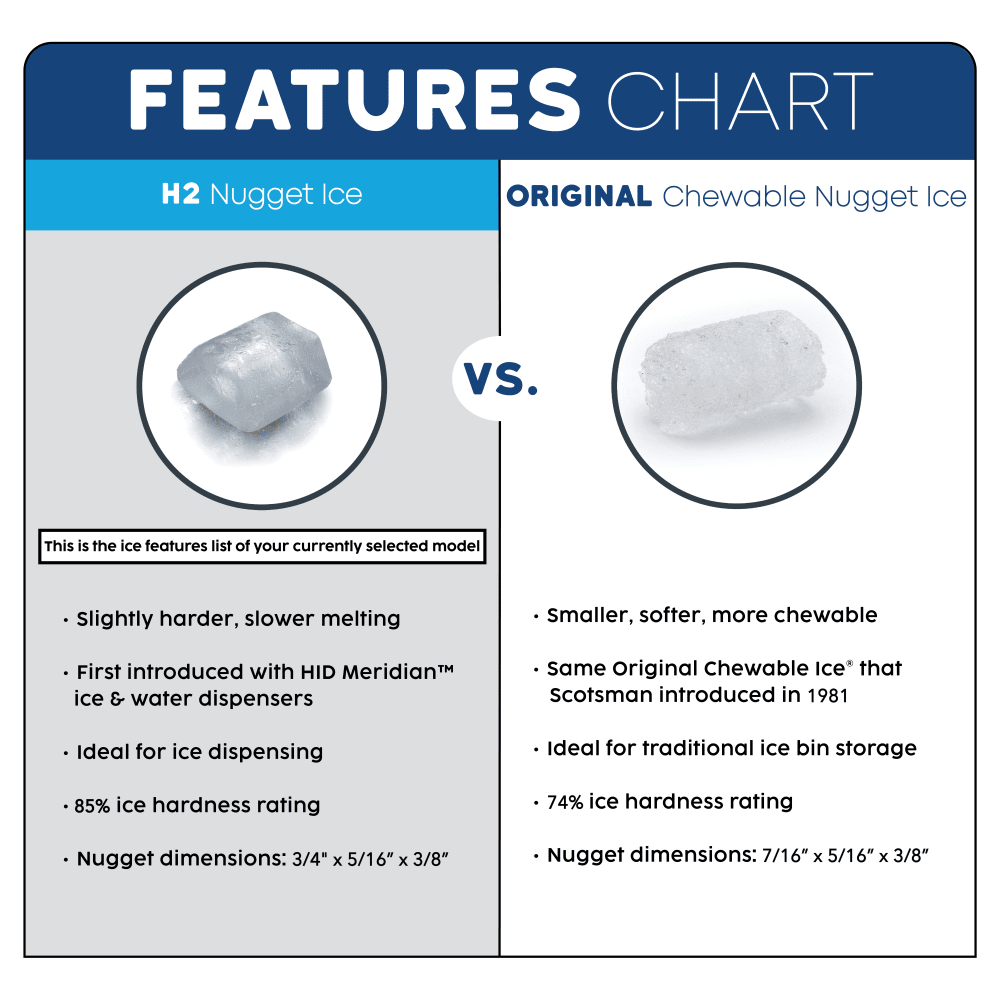

• Produces H² nugget ice
• Nugget ice size: ³/₄ in. x ⁵/₁₆ in. x ³/₈ in.
• Stainless steel finish
• AutoAlert™ indicator lights for increased visibility
• Model-specific QR code provides access to manuals, care instructions, and warranty history
• Front-facing air filter for improved access
• Self-aligning front panel
• Smart-Board™ expands diagnostic capabilities
• AgION antimicrobial protection
• Sealed refrigeration system
• R-404A refrigerant
• Ice bin sold separately

Product Features

Operating requirements

• Ideal ambient air temperature: 50-100 degrees F
• Ideal incoming water temperature: 40-100 degrees F
• Ideal incoming water pressure: 20-80 PSIG
• 16,000-BTU heat transfer capacity

Dimensions & Utilities

• 22⁷/₁₀ in. W x 24⁹¹/₁₀₀ in. D x 27 in. H
• 16.6 A, 3.11 kW
• 208-230 V/60 Hz/1 ph

From The Manufacturer

Prodigy Plus® Ice Maker, nugget style, H2 Nugget Ice, water-cooled, self-contained condenser, production capacity up to 1242 lb/24 hours at 70°/50° (1054 lb AHRI certified at 90°/70°), sealed maintenance-free bearings, AutoAlert™ indicating lights, unit specific QR code, stainless auger and evaporator, one-touch cleaning, stainless steel finish, AgION™ antimicrobial protection, R-404A refrigerant, 208-230v/60/1-ph, 16.6 amps, NSF, cULus, engineered and assembled in USA

*Image may not depict product color, inclusions or accessories.

Additional Product Information

Hardwired

Product does not come with plug and must be hardwired to operate

BPA Free

Contains no chemical Bisphenol A (BPA)

Commercial: 3-year Parts & Labor; 5-year Compressor Parts; Residential: 1-year Parts & Labor

Scotsman NH1322W-32 Specifications

Documents

Spec Sheet

Warranty

Parts Breakdown

Manual

Brochure

Certifications
